What Is Fluids Fuel?
Fluids and fuel testing encompasses the physical, chemical, and performance characterisation of petroleum fuels, biofuels, lubricating oils, hydraulic fluids, coolants, and speciality process fluids. Comprehensive testing verifies composition, purity, stability, and performance properties to ensure compliance with product specifications, regulatory limits, and end-use requirements.
This service supports fuel producers, refineries, distributors, OEM qualification programs, and quality control laboratories requiring accurate, standards-compliant analytical data for fluid characterisation, incoming inspection, and product certification.
Applications and Benefits of Fluids Fuel Testing
Scope
Fluids and fuel testing evaluates the key physical, chemical, and performance characteristics required to ensure product quality, operational reliability, and compliance with industry standards. It helps assess suitability for use in automotive, industrial, marine, and energy applications.
Key parameters typically include:
- Physical properties: density, viscosity, flash point, pour point, and cloud point
- Chemical composition: SARA analysis, sulfur content, water content, and acid number
- Fuel performance: cetane number, octane rating, and oxidation stability
- Lubricant properties: TAN/TBN, wear protection, and viscosity index
- Contaminants: sediment, free water, particulate matter, and microbial content
Applications
- Petroleum fuel quality certification (gasoline, diesel, jet fuel)
- Biofuel blend quality assessment (FAME, ethanol blends)
- Lubricating oil formulation and qualification
- Hydraulic and transmission fluid specification compliance
- Aviation fuel and turbine oil quality control (ASTM D1655)
Benefits
- Ensures fuel and fluid compliance with ASTM, IP, ISO, and EN specifications
- Detects adulteration, contamination, and off-spec batches
- Supports import/export quality documentation and custody transfer
- Provides data for blend optimisation and formulation development
- Reduces equipment damage risk from off-spec fluid use

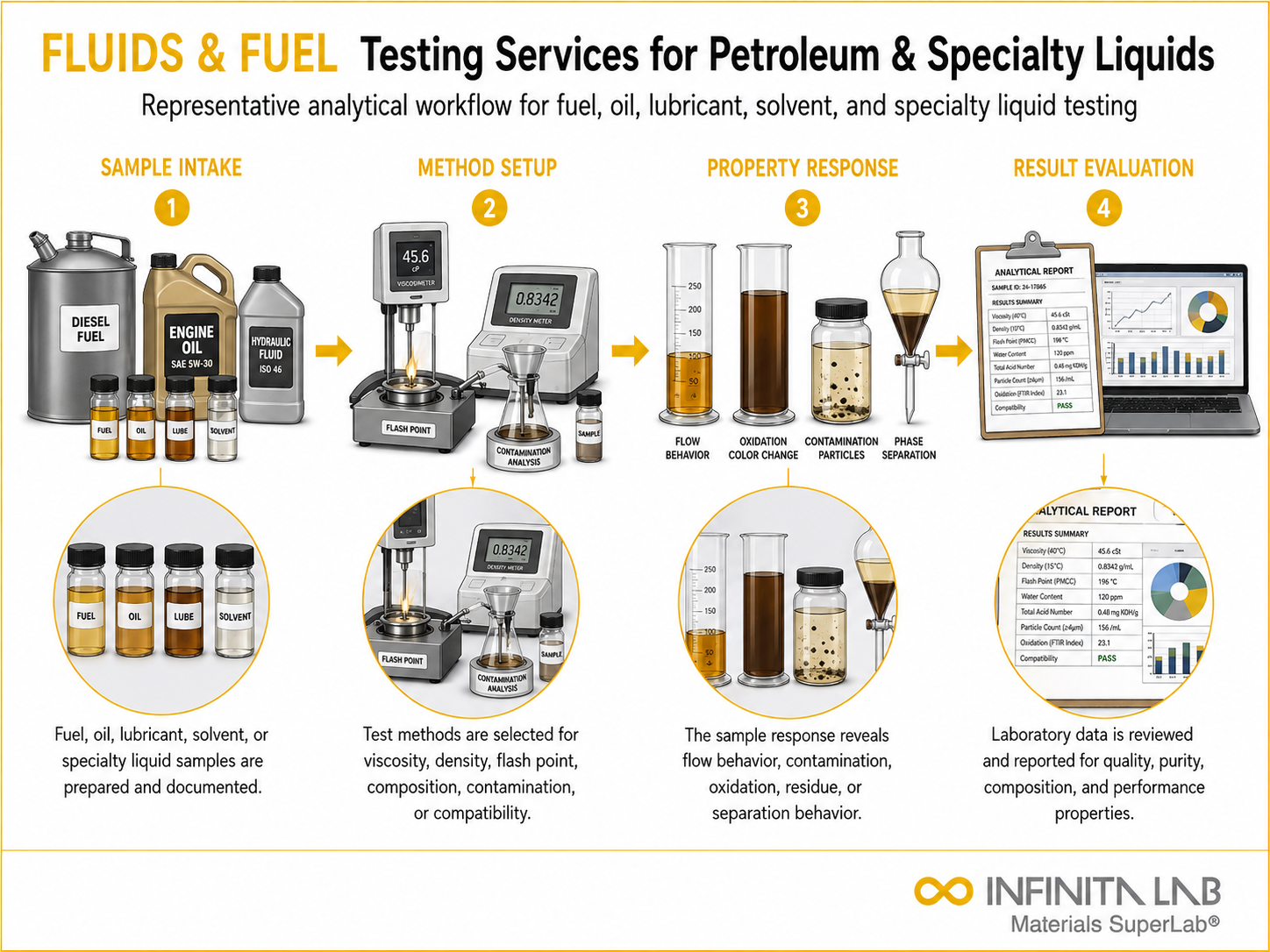

Our Testing Procedure
Sample Reception
Samples are logged and assigned for testing as per the required specification.
1Physical Testing
Density, viscosity, flash point, pour/cloud point, and colour are measured.
2Chemical Analysis
Sulphur, water, acid number, SARA, and oxidation stability are tested.
3Reporting
Results are compared with specifications and a CoA is issued.
4Test parameters and requirements
| Parameter | Details |
|---|---|
| Key Physical Tests | Distillation, kinematic viscosity, flash point, density, pour point |
| Key Chemical Tests | Sulfur (D4294), water (Karl Fischer), TAN/TBN, oxidation stability |
| Sample Types | Gasoline, diesel, jet fuel, biofuels, lubricating oils, hydraulic fluids |
| Standards | ASTM D86, D445, D92, D97, D1298, D4052, D1655, IP 391, ISO 3104, EN 590 |
- Automatic distillation analyser (ASTM D86)
- Kinematic viscometer (Ubbelohde/Cannon-Fenske)
- Flash point tester (Pensky-Martens, Cleveland OC)
- X-ray fluorescence (XRF) sulfur analyser
- Karl Fischer titrator
- Density meter (oscillating U-tube)
Equipment and Instrumentation Used for Testing
What You Receive: Test Report, Data, and Certification
- Specification compliance table (pass/fail per limit)
- Distillation curves and viscosity-temperature data
- Adulteration or contamination identification (if detected)
- Full test report with method citations and uncertainty
Fluids Fuel FAQs
Flash point is the minimum temperature at which a fluid produces enough vapor to briefly ignite in the presence of a spark (ASTM D93/D92). Fire point is the higher temperature at which sustained combustion occurs for at least 5 seconds, relevant for fire safety classification.
Jet fuel (Jet-A, Jet-A1) quality is characterized per ASTM D1655 and DefStan 91-091, covering flash point, freeze point, density, aromatic content, thermal stability (JFTOT), sulfur content, and water separability (MSEP), among other parameters.
Biofuel blends (B5, B20, E10, E85) have dedicated test standards. FAME biodiesel is characterized per EN 14214 or ASTM D6751. Ethanol blends are tested per ASTM D4806. Blend properties are evaluated against appropriate specification limits.
Kinematic viscosity (mm²/s or cSt) is the ratio of dynamic viscosity to fluid density. It is a critical parameter for lubricants, diesel fuels, and hydraulic fluids — governing film formation, pump operation, atomization in injectors, and heat transfer efficiency.
Sulfur content is critical because excessive sulfur can lead to corrosion, increased emissions, and catalyst poisoning in modern engines. It is commonly measured using standardized methods such as ASTM D4294, ASTM D5453, or equivalent sulfur analysis techniques.
Fluids and fuels testing evaluates the physical, chemical, and performance properties of fuels, lubricants, hydraulic fluids, and specialty liquids. Samples are analyzed for parameters such as density, viscosity, flash point, sulfur content, water content, and chemical composition. The results are compared with applicable ASTM, ISO, or industry specifications to assess quality, purity, and performance.
Aerospace high-pressure fuel testing evaluates the safety, reliability, and performance of fuel system components under specified operating pressures and flow conditions. Components such as pumps, valves, filters, pipes, and fuel manifolds are tested for pressure integrity, leakage, flow rate, and functional performance. The results are compared with applicable aerospace specifications and approved test procedures.
Hydrocarbon processing industry material testing evaluates materials used in refineries, petrochemical plants, pipelines, and processing equipment. Samples are examined for chemical composition, mechanical strength, corrosion resistance, hardness, and resistance to high temperatures or pressure, as required. The results help identify material degradation, verify specification compliance, and support equipment integrity and safe operation.
Why Choose Infinita Lab for Fluids Fuel Testing
When your Fluids Fuel results have to hold up - for compliance, a customer audit, or an engineering decision - accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your fluids fuel testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
