What Is ASTM F1970 PVC CPVC Special Engineered Fittings?
ASTM F1970, Standard Specification for Special Engineered Fittings, Appurtenances or Valves for Use in Poly (Vinyl Chloride) (PVC) or Chlorinated Poly (Vinyl Chloride) (CPVC) Systems, is a product specification maintained by ASTM Committee F17 on Plastic Piping Systems. The current active edition is F1970-24. It supersedes F1970-23 and earlier editions. The document doesn’t prescribe a single test procedure. Instead, it sets minimum requirements for testing, materials, dimensions, artistry, marking, and in-plant quality control, and those requirements apply to components that other ASTM PVC and CPVC fitting standards don’t cover. Typical examples are unions, flanges, and valves, which may be molded, fabricated, or assembled from molded or machined parts. Bodies are generally PVC, CPVC, polyethylene, or polyamide (nylon); assemblies may also include rigid thermoplastics, thermoplastic elastomers, elastomers, and metals. The specification addresses solvent-weld, threaded, flange, and spigot connections, including bolt patterns, outside diameters, roundness, and wall thickness. Valves, check valves, and blind flanges get hydrostatic internal pressure testing to confirm pressure resistance, leakage resistance, and joint tightness. Scope stops at pressurized liquid distribution in compatible chemical environments. Gas service and heat-fusion-welded connections are excluded, and the check valves it covers aren’t backflow prevention devices. For the underlying pipe and fitting systems, the document references ASTM D1785, D2241, D2846/D2846M, F441/F441M, and F442/F442M. F1970 is a specification, so conformance is shown by verifying a product against each applicable requirement, not by running one method. Specifiers, manufacturers, and third-party certification programs use it as a common, auditable baseline for engineered PVC and CPVC components in pressurized liquid systems.
Applications and Benefits of ASTM F1970 PVC CPVC Special Engineered Fittings Testing
Scope
ASTM F 1970 classifies and evaluates special engineered PVC and CPVC fittings and valves by measuring defined dimensional, hydrostatic pressure, and performance properties — enabling manufacturers, engineers, and system designers to verify fitting and valve performance against ASTM F 1970 classification and acceptance requirements for pressure piping system applications.
ASTM F 1970 testing evaluates:
- ASTM F1970 is a specification, not a test method. It defines the requirements a specially engineered product must meet to conform.
- Coverage extends to fittings, appurtenances, and valves for PVC and CPVC piping systems that existing ASTM product specifications don’t address.
- Unions, flanges, and valves are the typical products; check valves and blind flanges are included.
- A product may be molded or fabricated, or it may be assembled from molded or machined components.
- Bodies are commonly made of PVC, CPVC, PE, or PA (nylon), and the materials of construction also include rigid thermoplastics, thermoplastic elastomers, elastomers, and metals.
- Minimum requirements cover testing, materials, dimensions, artistry, marking, and in-plant quality control.
- Connections addressed are solvent-weld, threaded, flange, and spigot, along with bolt patterns, outside diameter, roundness, and wall thickness where applicable.
- The standard requires hydrostatic internal pressure testing for valves, check valves, and blind flanges, evaluating pressure resistance, leakage resistance, and joint tightness.
- Scope is limited to pressurized liquid distribution in chemically compatible service. Gas service is excluded.
- Heat-fusion-welded connections fall outside the scope too, and the check valves covered aren’t backflow prevention devices.
Applications
- Industrial process piping built on PVC or CPVC pipe that needs valves, unions, or flanges beyond standard catalog fittings
- Chemical handling and transfer lines, where the fluid is compatible with the component materials
- Water and wastewater treatment systems that distribute pressurized liquids
- Manufacturers’ custom or proprietary fittings and valve assemblies for specialized PVC or CPVC installations
- Product approval and third-party certification programs, NSF listings that reference F1970 materials and performance sections among them
- Procurement specifications calling for a documented baseline for engineered plastic piping components
Benefits
- A recognized, consensus-based requirement set for components that otherwise lack a dedicated ASTM product standard
- Documented evidence of conformance to support product approval and certification files
- Helps identify leakage, joint-tightness, or pressure-resistance weaknesses before components reach the field
- Dimensional and artistry consistency gets verified across production lots
- Buyers and specifiers get a common, auditable basis for comparing suppliers
- Gathering evidence against the current edition early reduces redesign and requalification risk

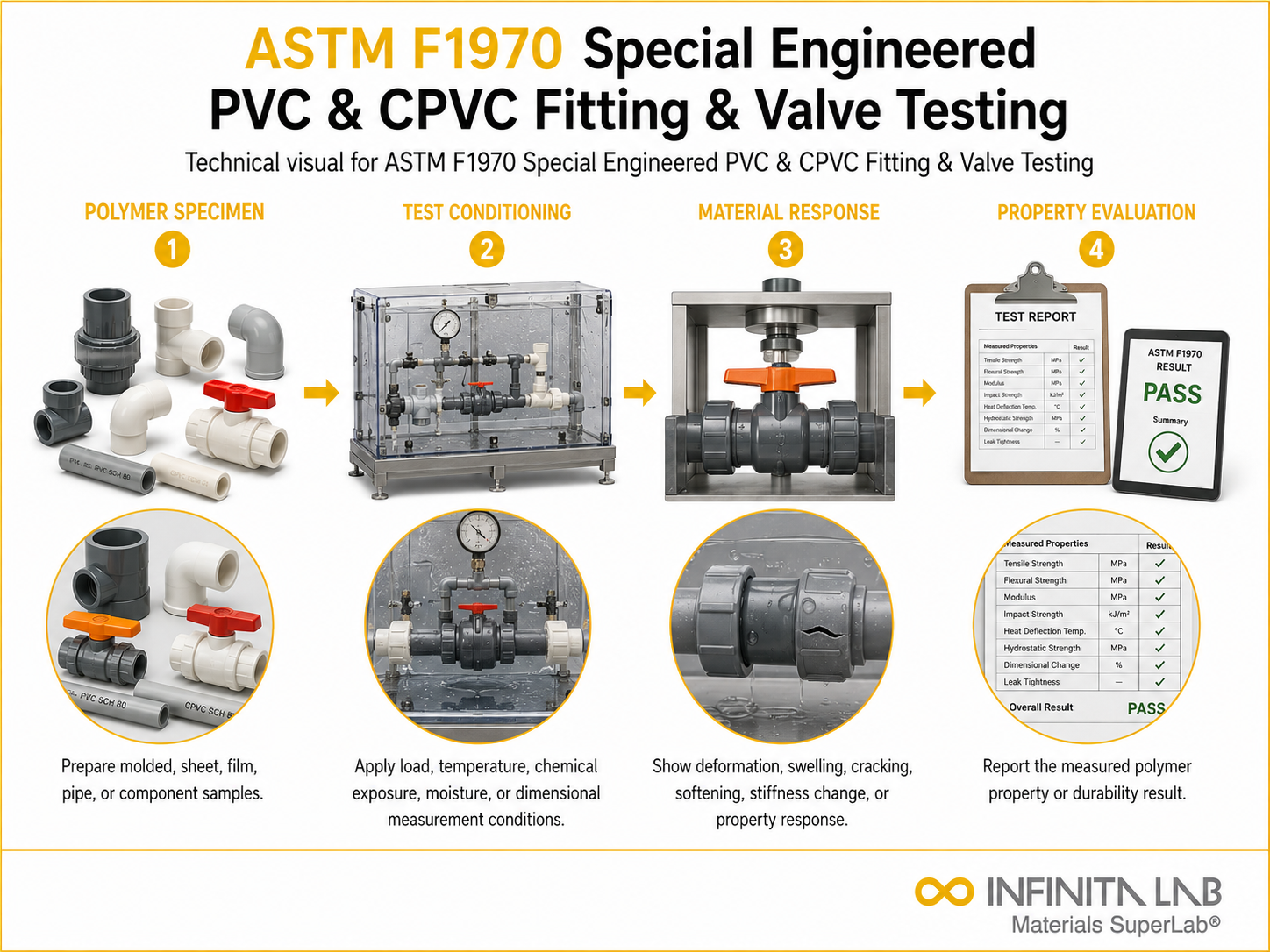

Our ASTM F1970 Testing Procedure
Sample Preparation
PVC and CPVC fitting specimens prepared and conditioned per ASTM F 1970 requirements.
1Dimensional Verification
Fitting dimensions and tolerances measured against ASTM F 1970 dimensional requirements.
2Hydrostatic Pressure Testing
Fittings subjected to defined hydrostatic pressure and sustained load per ASTM F 1970 conditions.
3Data Analysis & Reporting
Measured properties assessed against ASTM F 1970 criteria to determine test compliance result.
4ASTM F1970 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | PVC Type I Grade 1 and CPVC Type IV Grade 1 special engineered fittings and valves |
| Hydrostatic Pressure | Burst pressure test at 4× rated working pressure per ASTM F 1970 requirements |
| Sustained Pressure | 1000-hour sustained pressure test at rated system temperature per ASTM F 1970 |
| Test Temperature | 23°C ± 2°C standard and elevated temperature per ASTM F 1970 system rating conditions |
| Measured Outputs | Dimensional data, burst pressure, sustained pressure performance, and test compliance result |
- Hydrostatic Pressure Test Station – applies controlled internal liquid pressure to valves, check valves, and blind flanges to evaluate pressure resistance and leakage
- Calibrated Pressure Gauges and Transducers – measure and record test pressure accurately through every hold period
- Environmental Conditioning Chamber or Water Bath – gets specimens to the specified test temperature before pressurization
- Digital Callipers and Micrometers – measure outside diameter, roundness, and wall thickness of fittings and connection ends
- Coordinate or Optical Measuring Equipment – checks bolt patterns, flange geometry, and thread form where required
- Torque Wrenches – assemble threaded and flanged joints consistently before joint-tightness evaluation
- Material Identification Equipment (e.g., FTIR) – supports verification of body and component materials against the specification
Equipment and Instrumentation Used for ASTM F1970 Testing
What You Receive: Test Report, Data, and Certification
- A conformance report identifying the F1970 edition used, with a pass or fail statement for each applicable requirement
- Hydrostatic pressure test records: test pressure, hold conditions, and any observed leakage or joint failure
- Dimensional and artistry inspection data, with measured values and marking verification
- Material verification results tied to the specimens tested
- Traceability through specimen identification and chain-of-custody records
- Photographs and observations of any failures or nonconformances, to support corrective action
ASTM F1970 PVC CPVC Special Engineered Fittings FAQs
ASTM F1970 includes pressure rating, temperature limits up to approximately 93°C, dimensional tolerances, material composition, joint compatibility, and mechanical strength requirements, ensuring fittings and valves perform reliably in PVC and CPVC piping systems.
ASTM F1970 covers engineered fittings and valves manufactured from polyvinyl chloride and chlorinated polyvinyl chloride materials, designed for use in piping systems requiring corrosion resistance and controlled fluid handling performance.
ASTM F1970 specifies requirements for pressure resistance, leak tightness, dimensional stability, chemical resistance, and mechanical integrity, ensuring fittings and valves operate safely within specified service conditions in piping systems.
ASTM F1970 components are used in industrial piping, chemical processing, water treatment, and plumbing systems where PVC and CPVC fittings and valves must meet performance and durability requirements.
ASTM F1970 defines requirements under controlled conditions and may not account for installation practices, thermal cycling, mechanical stresses, or environmental exposure that can influence long-term performance of fittings and valves.
ASTM F1970 specifies requirements for special engineered fittings, appurtenances, and valves used in PVC or CPVC piping systems. Testing includes dimensional and material requirements, workmanship, marking, and hydrostatic pressure and leakage tests to verify performance and joint integrity.
