Reliability and Compliance| The Role of Flexible Pipe Testing in Offshore EnergyFlexible pipes are engineered multi-layer composite structures used in offshore oil and gas production to transport hydrocarbons, water, and chemicals between subsea equipment and floating production platforms. Their ability to accommodate dynamic movement, thermal expansion, and installation loads makes them indispensable for deepwater operations. Rigorous material testing and qualification ensure that flexible pipes maintain integrity throughout service lives exceeding 25 years in aggressive subsea environments. For companies seeking flexible pipe material testing at a US-based testing lab, Infinita Lab provides comprehensive polymer and metal testing services through its accredited laboratory network.
Flexible Pipe Structure and Materials
Polymer Layers
Internal pressure sheaths (HDPE, PA-11, PA-12, PVDF) provide fluid containment and chemical resistance. External sheaths protect against seawater ingress and mechanical damage. These polymer layers are tested for tensile strength (ASTM D638), elongation, chemical compatibility, and thermal aging to ensure long-term performance in the petroleum environment.
Steel Armor Layers
Helically wound carbon steel or duplex stainless steel armor wires provide pressure containment and tensile load capacity. Wire testing includes tensile properties (ASTM A370), hardness, corrosion resistance (ASTM B117, NACE TM0177 for sour service), and fatigue performance.
Anti-Wear and Insulation Layers
Polymer tape layers prevent metal-on-metal contact, provide thermal insulation, and contribute to the pipe’s collapse resistance. These materials require abrasion testing, creep resistance evaluation, and thermal conductivity measurement.
Testing and Qualification Standards

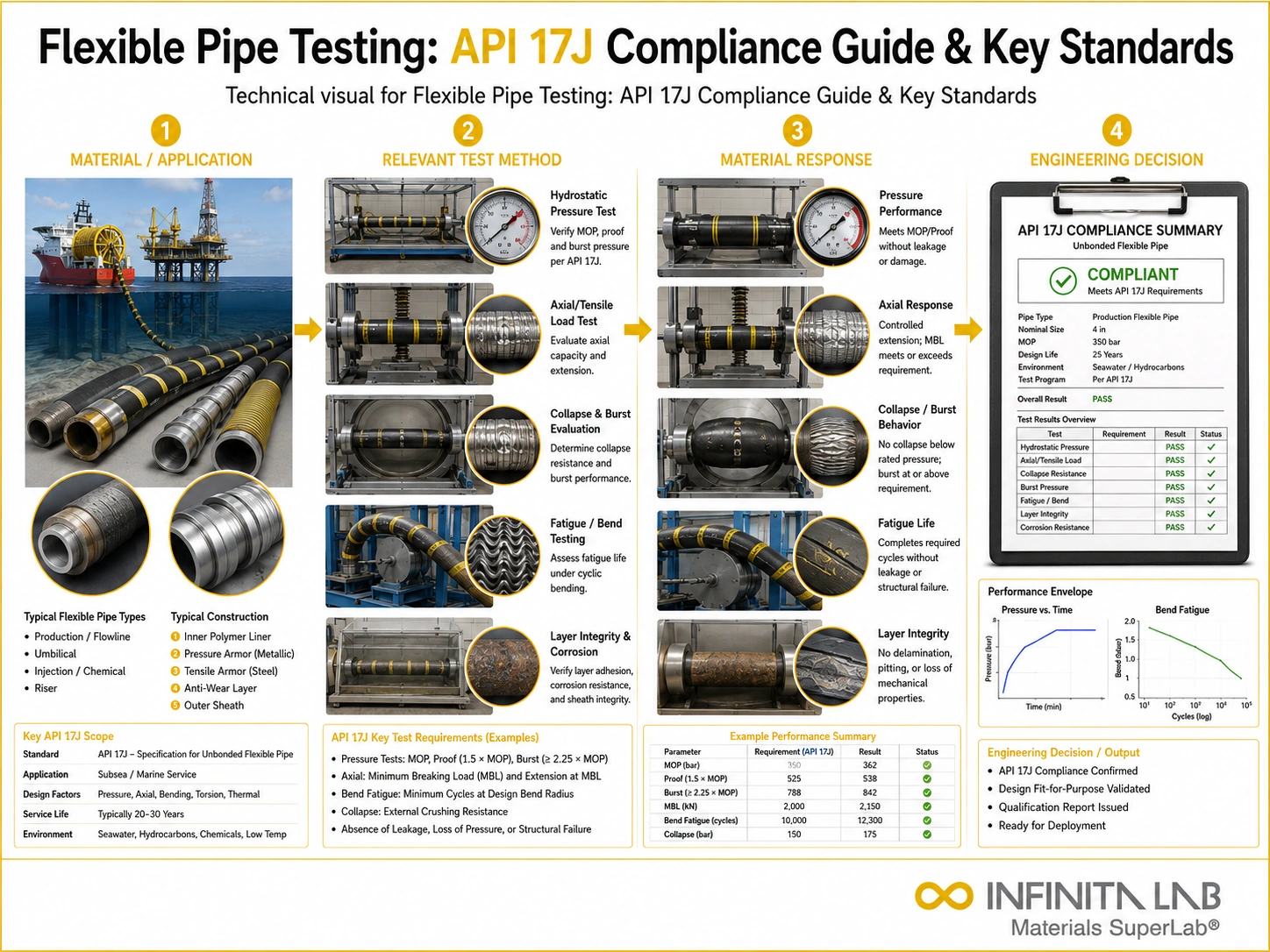

API 17J and API 17B govern the design, manufacture, and testing of flexible pipe. Qualification includes factory acceptance testing (FAT), hydrostatic burst, collapse, tensile, fatigue cycling, gas permeation, and aging tests. Material testing supports every phase from design through installation and operational monitoring.
Why Choose Infinita Lab for Flexible Pipe Testing?
Infinita Lab is a trusted USA-based testing laboratory offering Flexible Pipe Testing services across an extensive network of accredited facilities across the USA. Infinita Lab is built to serve the full spectrum of modern testing needs—across industries, materials, and methodologies. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What are flexible pipes used for in offshore oil and gas? Flexible pipes transport crude oil, natural gas, water, and chemicals between subsea wellheads, manifolds, and floating production platforms. Their flexibility accommodates wave motion, thermal expansion, and installation dynamics.
What materials are used in flexible pipe construction? Flexible pipes use polymer layers (HDPE, nylon, PVDF) for fluid containment, carbon or stainless steel armor wires for strength, and polymer tapes for wear protection and insulation—typically 5–9 distinct layers.
What standards govern flexible pipe testing? API 17J covers flexible pipe specification, API 17B provides recommended practice, and DNV-OS-F201 covers dynamic risers. Material testing follows ASTM, NACE, and ISO standards for polymers, metals, and corrosion resistance.
Why is corrosion testing critical for flexible pipe armor? Steel armor wires are exposed to corrosive annulus environments containing CO2, H2S, and seawater. Sour service testing (NACE TM0177) and pitting resistance evaluation ensure armor integrity throughout the 25+ year design life.
How are flexible pipe polymers tested for chemical compatibility? Polymer layers are aged in representative production fluids at elevated temperatures, then tested for retention of tensile properties, weight change, dimensional change, and hardness change to verify long-term chemical compatibility.
