Wear Testing of Polymers: Methods and ASTM Standards

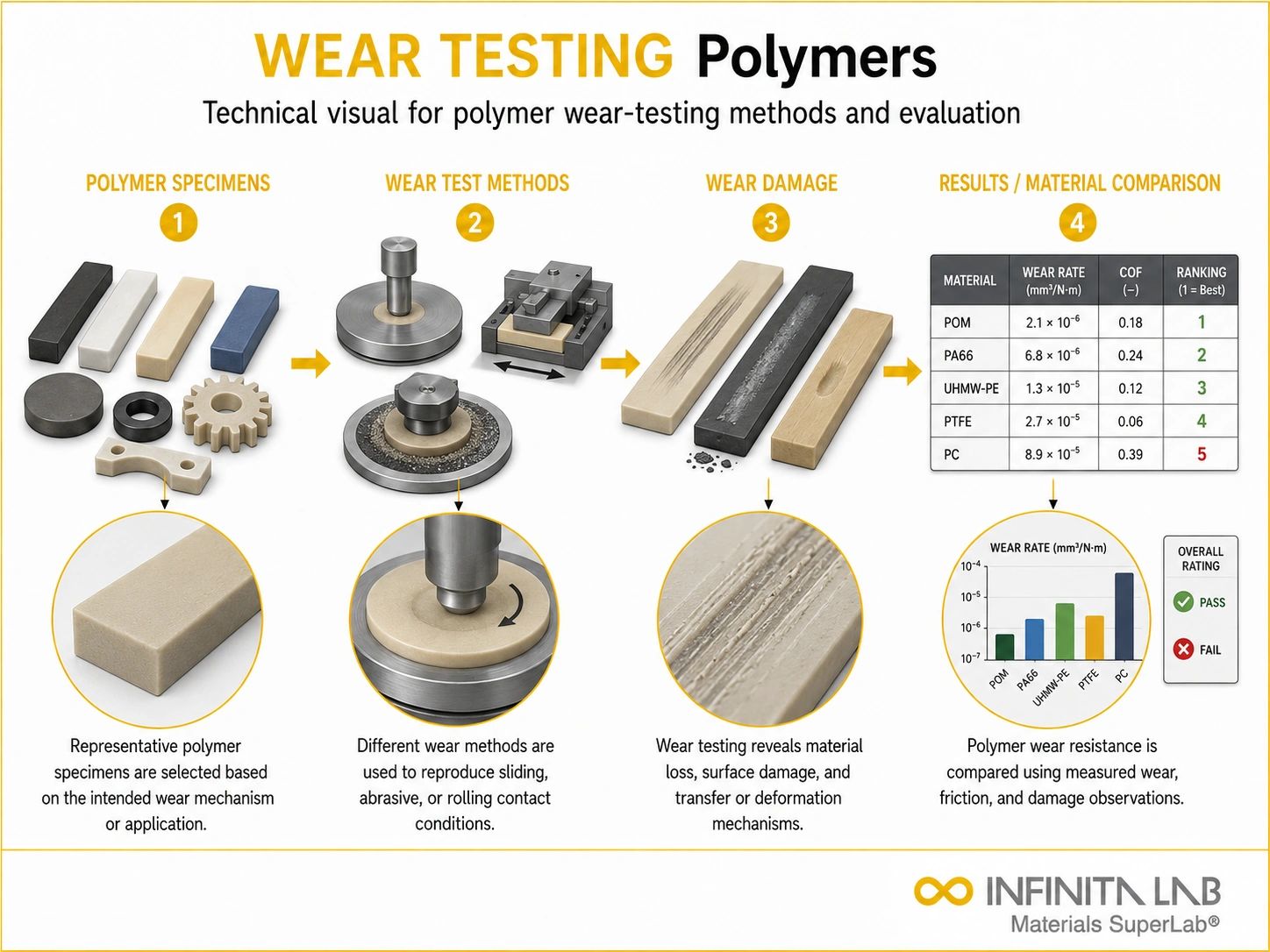

Representative Infinita Engineering Visual explaining the four-step workflow for Wear Testing Polymers.What Is Wear Testing for Polymers?
Wear testing determines how a polymer or polymer pair behaves under sliding contact, measuring wear rate and coefficient of friction to rank material combinations for applications where components slide, rotate, or rub against each other in service. ASTM G99 (Wear and Friction Testing with a Pin-on-Disk or Ball-on-Disk Apparatus) is the most widely used standardized method, applicable to metals, polymers, ceramics, and coatings alike.
Test Principle
A stationary pin or ball is pressed against a rotating disk under a controlled normal load, with the pin tracing a continuous circular wear track on the disk surface as it rotates. Throughout the test, the apparatus continuously records friction force, vertical displacement (indicating material loss), and coefficient of friction.
Specimen Configurations
- Cylindrical pin: 2-10 mm diameter with a radiused tip, the most common configuration for general material screening
- Ball pin: hardened steel or ceramic spheres, typically 6 mm or 10 mm diameter, producing Hertzian contact stress ideal for coating evaluation
- Flat pin: conformal contact area for large-scale wear studies, requiring precise alignment to avoid edge loading
- Disk: flat circular specimen, normally 30-100 mm diameter and 2-10 mm thick, with both pin and disk surfaces ground to a surface roughness of 0.8 µm or less to avoid uncontrolled abrasive contribution from surface texture
Test Procedure
- Prepare pin and disk specimens to the specified surface finish and dimensions
- Mount the pin perpendicular to the disk and apply the specified normal load
- Rotate the disk at the specified sliding speed for the specified sliding distance or duration
- Continuously record friction force and vertical (normal) displacement throughout the test
- Calculate specific wear rate from mass loss, material density, applied load, and sliding distance
- Calculate coefficient of friction from the ratio of measured friction force to applied normal load
Interpreting Results
ASTM G99 is explicitly a comparative, ranking method — it establishes relative wear resistance and friction behavior between material pairs under a specific, reproducible set of test conditions, not an absolute prediction of in-service wear life. Any reported result should state that it “followed the procedure of ASTM G99” along with the specific test parameters used, since wear behavior depends heavily on load, speed, and environment, none of which are fixed by the standard itself.
Related Methods
ASTM G133 uses linear reciprocating motion instead of continuous rotation, better simulating applications like human joint prosthesis movement or oscillating bearings. Taber abrasion (rotary drum abrasion per ISO 4649) is a related but distinct method more commonly applied to rubber and elastomeric wear.
Industry Specifications Referencing Polymer Wear Testing
- ASTM G99: primary pin-on-disk/ball-on-disk method
- ASTM G133: linear reciprocating wear testing
- ISO 4649, DIN 50324: European rotary drum abrasion equivalents
Conclusion
Pin-on-disk wear testing is a ranking tool, not a life-prediction tool — it’s excellent for comparing material or coating candidates under identical, controlled conditions, but translating a G99 wear rate into an actual predicted service life requires validating against the real application’s load, speed, and environment.
What factors influence the wear resistance of polymeric materials? Factors influencing wear resistance include the polymer’s composition, additives, operating conditions, and the type of wear mechanism (abrasion, sliding, or particle-induced).
What industries benefit most from polymer wear testing? Automotive, aerospace, and construction industries rely heavily on wear testing to ensure material reliability and performance in demanding environments.
Can wear testing help in product design? Yes, wear testing provides critical insights that inform material selection and design optimization, enhancing product durability and performance.
How does the sliding wear test differ from the scratch resistance test? The sliding wear test tests a material's resistance to wear under continuous sliding motion, similar to that in seals and bearings, whereas the scratch resistance test tests a material's ability to withstand sharp bodies that scratch its surface.
Why is abrasion resistance significant for polymers? Abrasion resistance is significant due to the ability of a polymer to endure surface wear due to contact with abrasive materials. This is especially important in applications involving high friction.
