Types of Hardness Testing Explained
What Is Hardness Testing?
Hardness testing measures a material’s resistance to localised permanent deformation — typically indentation by a harder body under a defined load. It is the most widely performed mechanical test in industry because it is fast, low-cost, largely non-destructive, and correlates with tensile strength, wear resistance, and heat-treatment condition. A single hardness reading is routinely used to verify incoming material certification, confirm case hardening depth, qualify welds, and screen production batches across the automotive, aerospace, oil & gas, medical device, and metal fabrication industries.
Hardness is not a fundamental material property — it is a response to a specific test method. Rockwell, Brinell, Vickers, Knoop, Shore, and Leeb each apply different indenters, loads, and measurement principles, so results are reported on method-specific scales and are only comparable through empirical conversion (ASTM E140).

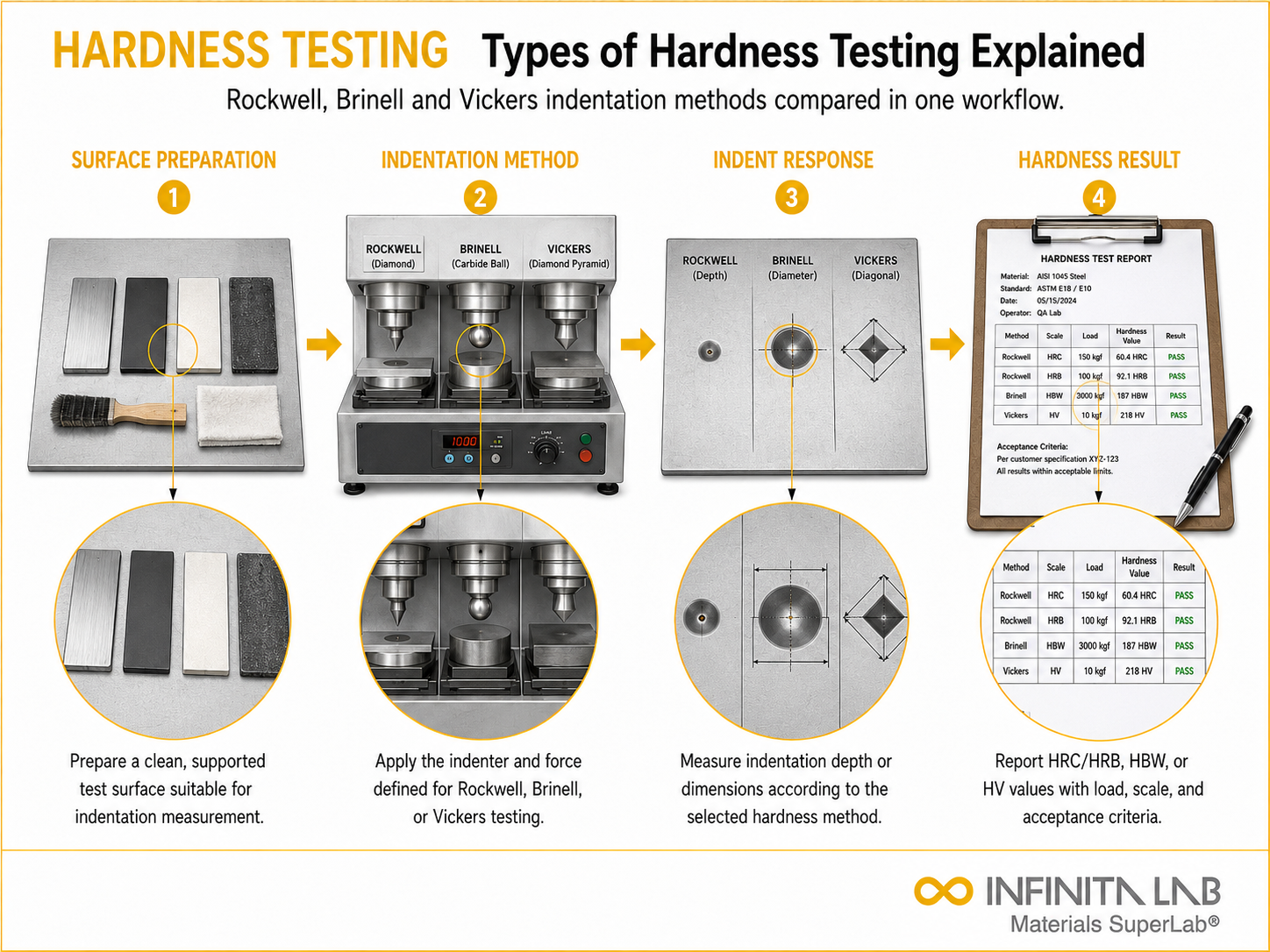

Types of Hardness Testing
Rockwell Hardness Testing (ASTM E18, ISO 6508)
Rockwell measures the depth of penetration of an indenter under a major load after a minor preload. A diamond cone (120°, HRA/HRC scales) or hardened steel/carbide ball (HRB and others) is used, with major loads of 60, 100, or 150 kgf. Superficial Rockwell scales (15N, 30N, 45N, 15T, etc.) use lighter loads of 15–45 kgf for thin stock and case-hardened surfaces.
Rockwell is the fastest and most common production method — direct digital readout, no optical measurement, cycle times under 15 seconds. HRC is the default scale for hardened steels (typically 20–68 HRC); HRB is for softer steels, brass, and aluminium alloys. Minimum specimen thickness should be at least 10× the indentation depth.
Also Read – Non-Destructive Hardness Testing: Methods, Accuracy & Applications
Brinell Hardness Testing (ASTM E10, ISO 6506)
Brinell presses a tungsten carbide ball (typically 10 mm) into the surface under loads of 500–3000 kgf and optically measures the indentation diameter. The Brinell number (HBW) is the load divided by the curved surface area of the impression.
The large indentation averages over microstructural variation, making Brinell the preferred method for castings, forgings, and coarse-grained or inhomogeneous materials where a small indenter would give scattered readings. The 3000 kgf / 10 mm ball combination is standard for steels; 500 kgf is used for soft non-ferrous alloys. Brinell requires a thicker specimen and leaves a visible impression, so it is not suitable for finished surfaces or thin sections.
Vickers Hardness Testing (ASTM E92, ASTM E384, ISO 6507)
Vickers uses a square-based diamond pyramid (136° between faces) and measures the diagonals of the impression optically. Its defining advantage is a single continuous scale across the full hardness range — loads span from 1 gf (microhardness) to 120 kgf (macrohardness), and the hardness number (HV) is nominally load-independent for homogeneous materials.
Microhardness Vickers (ASTM E384, loads 1–1000 gf) is the standard method for case depth profiles, coating and plating hardness, weld heat-affected zones, and individual microstructural phases. It requires a polished, metallographically prepared surface and is slower than Rockwell due to optical measurement.
Knoop Hardness Testing (ASTM E384, ASTM C1326)
Knoop uses an elongated rhombohedral diamond indenter (7.11:1 diagonal ratio), producing a shallow, long impression — penetration depth roughly half that of Vickers at equal load. This makes Knoop the method of choice for very thin coatings, brittle materials (glass, ceramics per ASTM C1326), and steep case-hardness gradients where indentations must be placed close together or close to an edge. Knoop values (HK) are load-dependent and not directly interchangeable with Vickers.
Shore Durometer Testing (ASTM D2240, ISO 48-4)
Shore durometer measures indentation resistance of elastomers, rubbers, and soft plastics using a spring-loaded indenter. Shore A covers soft to medium rubbers (O-rings, seals, tyres); Shore D covers hard rubbers and rigid thermoplastics. Readings are taken instantaneously or after a defined dwell (typically 1–15 s) because viscoelastic materials creep under load. Specimen thickness must be at least 6 mm for reliable readings, and results depend strongly on temperature.
Leeb Rebound Testing (ASTM A956, ISO 16859)
Leeb is a portable, dynamic method: a tungsten carbide impact body is propelled against the surface, and the ratio of rebound to impact velocity gives the Leeb value (HLD, HLS, etc.). It is used for on-site testing of large components — rolls, dies, pressure vessels, structural steel — that cannot be sectioned or brought to a bench tester. Accuracy depends on mass and rigidity of the test piece (minimum ~5 kg unsupported) and surface finish; conversions to HRC or HB are alloy-group specific.
Hardness Conversion Between Scales
ASTM E140 provides empirical conversion tables between Rockwell, Brinell, Vickers, Knoop, and tensile strength — but conversions are material-family specific (non-austenitic steels, austenitic stainless, cartridge brass, etc.) and introduce uncertainty. Certification and acceptance testing should always be performed on the scale the specification requires; converted values are for reference only.
Industry Standards Referencing Hardness Testing
- Steel products: ASTM A370 (mechanical testing of steel), ASTM A255 (Jominy hardenability)
- Aerospace: AMS 2759 heat-treatment specs, NADCAP hardness requirements
- Fasteners: ASTM F606, ISO 898-1 (property class verification)
- Welding: AWS D1.1, NACE MR0175/ISO 15156 (max 22 HRC for sour service)
- Case hardening: SAE J423, ISO 2639 (effective case depth by microhardness traverse)
- Plastics & rubber: ASTM D785 (Rockwell for plastics), ASTM D2240 (durometer)
Also Read – Polymer Hardness Testing: Common Uses, Methods & Scale Selection
Conclusion
No single hardness test covers all materials and geometries. Rockwell dominates production metal testing for speed, Brinell handles coarse and cast structures, Vickers and Knoop resolve microscale features like case depth and coatings, Shore covers elastomers, and Leeb enables field testing of large components. The correct choice follows from the material, section thickness, surface condition, and — above all — the scale named in the governing specification.
What is the difference between Rockwell and Brinell hardness testing? Rockwell measures indentation depth with direct readout and small impressions, making it fast for production QC of homogeneous metals. Brinell measures the diameter of a large ball impression under heavy load, averaging over microstructural variation — better suited to castings, forgings, and coarse-grained materials. Values are reported on separate scales and are only related through ASTM E140 conversion tables.
When should Vickers microhardness be used instead of Rockwell? Vickers microhardness (ASTM E384) is required when the feature being tested is too small or thin for a Rockwell indent — case-hardened layers, platings and coatings, weld heat-affected zones, or individual phases in a microstructure. Loads down to 1 gf produce indentations tens of microns across, allowing hardness traverses at 0.1 mm spacing for case-depth determination.
Can hardness values be converted between scales? Only approximately. ASTM E140 provides empirical conversions between HRC, HB, HV, HK, and estimated tensile strength, but the tables are specific to material families and carry inherent uncertainty. Acceptance and certification testing must be performed on the scale the specification requires; converted values should be treated as reference information only.
What surface preparation is required for hardness testing? Rockwell and Brinell require a clean, smooth surface free of scale, decarburization, and paint — light grinding is usually sufficient. Vickers and Knoop microhardness require metallographic mounting and polishing so the small impression diagonals can be measured accurately. Shore durometer requires flat specimens at least 6 mm thick, and Leeb requires a ground surface and rigid support of the test piece.
Why do hardness results vary between laboratories? Common variability sources include indenter condition, machine calibration and verification status (daily verification per ASTM E18/E10 is required), specimen thickness below minimum limits, edge-distance and indent-spacing violations, surface preparation, operator optical measurement in Brinell/Vickers, and testing on curved surfaces without correction factors. Using ISO/IEC 17025-accredited labs with documented verification records minimizes inter-laboratory spread.
