Top 20 Polymer Testing Methods for Plastics & Elastomers

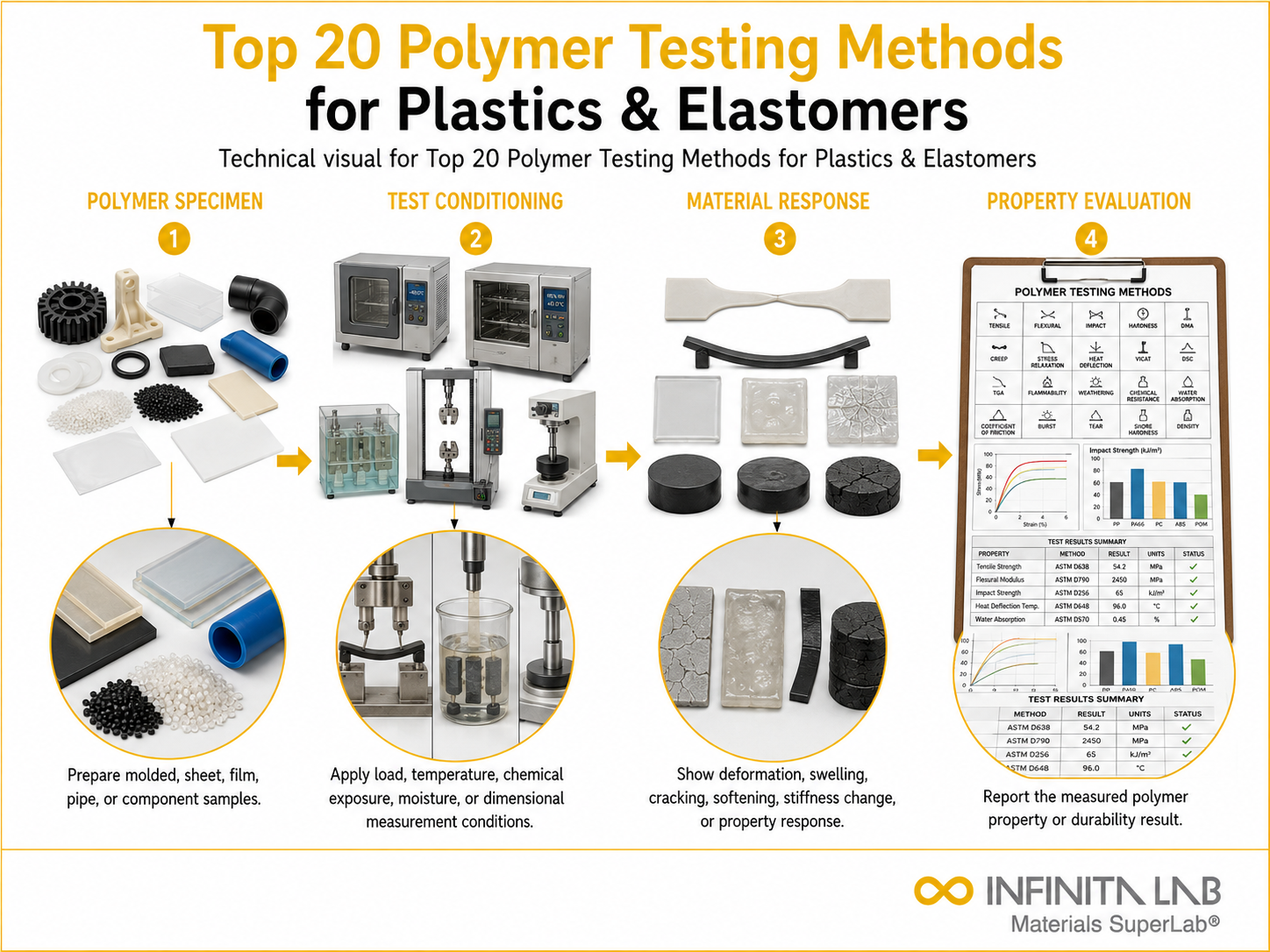

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 Polymer Testing Methods for Plastics & Elastomers.What Is Polymer Testing?
Polymer testing evaluates plastics, elastomers, and polymeric compounds to characterise their mechanical, thermal, chemical, and rheological properties. Because polymer performance is highly sensitive to molecular weight, additive content, processing history, and environmental exposure, testing spans molecular-level characterisation through finished-part performance evaluation.
Why Polymer Testing Matters
- Confirms material properties match formulation specification
- Verifies performance across intended service temperature and chemical exposure
- Detects degradation, contamination, or improper processing
- Supports material selection and failure analysis
Top 20 Polymer Testing Methods
- Tensile Testing (ASTM D638) – Measures tensile strength, elongation, and modulus of elasticity.
- Flexural Testing (ASTM D790) – Evaluates bending strength and stiffness.
- Izod / Charpy Impact Testing (ASTM D256) – Measures resistance to sudden impact loading.
- Hardness Testing (Shore A/D, ASTM D2240) – Quantifies surface hardness relevant to elastomers and rigid plastics alike.
- Melt Flow Index (MFI) Testing (ASTM D1238) – Measures flow behaviour of molten polymer, indicating molecular weight and processability.
- Differential Scanning Calorimetry (DSC) – Characterises melting point, crystallisation, and glass transition temperature.
- Thermogravimetric Analysis (TGA) – Measures thermal stability and decomposition temperature, and quantifies filler/additive content.
- Dynamic Mechanical Analysis (DMA) – Evaluates viscoelastic behaviour (storage/loss modulus) across temperature and frequency.
- Heat Deflection Temperature (HDT) Testing (ASTM D648) – Determines the temperature at which a polymer deforms under a specified load.
- Gel Permeation Chromatography (GPC) – Measures molecular weight distribution, a key driver of mechanical and processing properties.
- Fourier-Transform Infrared Spectroscopy (FTIR) – Identifies polymer type, additives, and contamination via characteristic absorption spectra.
- Environmental Stress Cracking Resistance (ESCR) Testing (ASTM D1693) – Evaluates susceptibility to cracking under stress in the presence of specific chemicals.
- UV / Weathering Resistance Testing (ASTM G154, G155) – Assesses degradation, embrittlement, and colour change from prolonged sunlight exposure.
- Chemical Resistance Testing – Evaluates swelling, dissolution, or degradation upon exposure to solvents, acids, and oils.
- Water Absorption Testing (ASTM D570) – Measures moisture uptake, which affects dimensional stability and mechanical properties.
- Flammability Testing (UL 94) – Classifies burning behaviour and self-extinguishing characteristics.
- Density Testing (ASTM D792) – Determines specific gravity, useful for quality control and material identification.
- Rheological Testing (Viscosity/Shear Rate) – Characterises flow behaviour under processing-relevant shear conditions.
- Fatigue Testing – Evaluates performance under repeated cyclic loading relevant to long-term part durability.
- Compression Set Testing (ASTM D395) – Measures an elastomer’s ability to recover shape after sustained compression, key for gaskets and seals.
Polymer Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Mechanical strength | Tensile, flexural, impact | ASTM D638, D790, D256 |
Thermal behavior | DSC, TGA, HDT | ASTM D648 |
Molecular characterization | GPC, FTIR | – |
Environmental durability | UV weathering, ESCR | ASTM G154, D1693 |
Processability | Melt flow index, rheology | ASTM D1238 |
Applications by Industry
Automotive – Interior and under-hood components tested for heat deflection, chemical resistance, and long-term UV stability. Packaging – Films and containers tested for tensile properties, water absorption, and chemical compatibility with contents. Medical Devices – Polymer components tested for mechanical properties alongside biocompatibility per ISO 10993. Construction – Pipes, membranes, and insulation tested for environmental stress cracking and long-term weathering resistance. Consumer Goods – Injection-moulded parts tested for impact resistance and flammability compliance.
Industry Standards Referencing Polymer Testing
ASTM D638, D790, D256, D1238, D648, D1693, D570, D792, D395, UL 94, ASTM G154/G155, ISO 527, ISO 178
Advantages and Limitations
Advantages: Verifies formulation and processing consistency across production batches; predicts long-term environmental and chemical durability; supports material selection and root-cause failure analysis. Limitations: Polymer properties are highly sensitive to processing history, meaning lab specimens may not perfectly represent finished-part behaviour; accelerated weathering tests approximate but don’t perfectly replicate real-world exposure; results can vary between polymer grades and even between production lots of the same grade.
Conclusion
Polymer performance is shaped by molecular structure, processing history, and formulation additives all at once – which is why a thorough testing program combines mechanical, thermal, and molecular-level characterisation rather than relying on any single property to predict how a plastic or elastomer will behave in service.
Why is polymer testing important? Testing verifies material quality, supports product design, identifies defects, and confirms performance under expected service conditions.
Which tests measure polymer strength? Common methods include tensile, compression, flexural, impact, tear, and fatigue testing.
How is polymer hardness measured? Shore A, Shore D, Rockwell, and indentation hardness tests are commonly used depending on the polymer type.
Which methods evaluate thermal properties? DSC, TGA, DMA, thermal conductivity, heat deflection temperature, and Vicat softening tests are commonly used.
How is polymer composition identified? FTIR, Raman spectroscopy, XRF, SEM/EDS, and chromatography can identify polymers, additives, fillers, and contaminants.
