Top 20 Metals Testing Methods for Alloys & Metal Products

What Is Metals Testing?

Metals testing evaluates the mechanical, chemical, and metallurgical properties of metallic materials – steel, aluminium, titanium, copper alloys, and more – to confirm they meet design specifications and will perform reliably in service. Because metal performance is governed by alloy composition, heat treatment, and microstructure, testing combines destructive mechanical evaluation with compositional and microstructural analysis.

Why Metals Testing Matters

• Confirms alloy composition and heat treatment produced the specified properties
• Verifies mechanical strength, ductility, and toughness for structural applications
• Detects internal or surface defects before failure
• Ensures corrosion resistance for the intended service environment

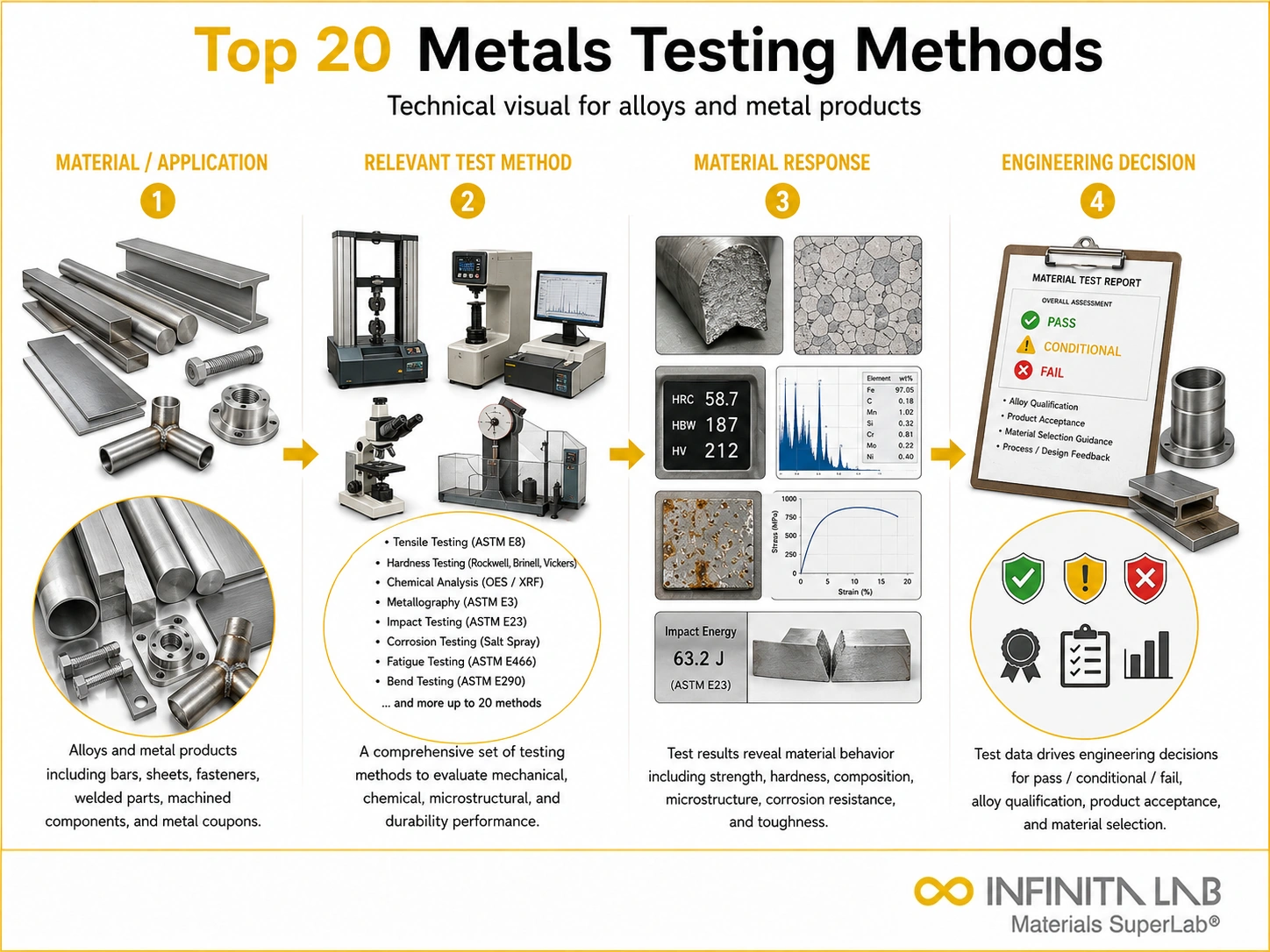

Top 20 Metals Testing Methods

1. Tensile Testing (ASTM E8) – Measures yield strength, ultimate tensile strength, and elongation.
2. Hardness Testing (Rockwell, Brinell, Vickers) – Quantifies resistance to indentation, often used for rapid quality control.
3. Charpy/Izod Impact Testing (ASTM E23) – Measures toughness and ductile-to-brittle transition behaviour, especially critical for structural steels.
4. Chemical Composition Analysis (OES, ICP, XRF) – Verifies alloy composition matches the specified grade.
5. Metallographic / Microstructural Analysis – Examines grain size, phase distribution, and inclusions under microscopy.
6. Fatigue Testing – Evaluates performance under cyclic loading to establish fatigue life and endurance limits.
7. Fracture Toughness Testing (ASTM E399) – Quantifies resistance to crack propagation, critical for fracture-critical components.
8. Creep Testing – Measures high-temperature deformation under sustained load, relevant to turbine and power-generation components.
9. Corrosion Resistance Testing (Salt Spray, Electrochemical) – Evaluates degradation behaviour in corrosive or marine environments.
10. Intergranular Corrosion Testing (ASTM A262) – Detects susceptibility to corrosion along grain boundaries, particularly for stainless steels.
11. Non-Destructive Testing – Ultrasonic Inspection – Detects internal voids, inclusions, or cracks without damaging the part.
12. Radiographic Testing (X-Ray/Gamma) – Reveals internal defects in castings, welds, and forgings.
13. Magnetic Particle Inspection – Detects surface and near-surface cracks in ferromagnetic metals.
14. Dye Penetrant Inspection – Detects surface-breaking defects in non-ferromagnetic metals.
15. Weld Quality Testing (Bend, Tensile, Macro-Etch) – Verifies weld joint strength and freedom from defects.
16. Hardenability Testing (Jominy End-Quench) – Evaluates how hardness varies with cooling rate, informing heat treatment specification.
17. Residual Stress Measurement (X-Ray Diffraction) – Evaluates internal stresses from forming, welding, or heat treatment.
18. Grain Size Analysis (ASTM E112) – Quantifies average grain size, which strongly influences strength and toughness.
19. Coating and Plating Thickness Testing – Verifies protective coating thickness on metal substrates for corrosion protection.
20. Positive Material Identification (PMI) – Rapid handheld XRF or OES testing to verify alloy grade at the point of use, critical for preventing mix-ups in critical service.

Metals Test Method Comparison

Applications by Industry

Construction & Structural Steel – Tensile, impact, and weld quality testing to verify structural steel meets building code requirements. Oil & Gas – Corrosion resistance and PMI testing critical for pipeline and pressure vessel material verification. Aerospace – Fatigue, fracture toughness, and residual stress testing for flight-critical components. Power Generation – Creep and high-temperature testing for turbine blades and boiler components. Automotive & Manufacturing – Hardness and dimensional testing for high-volume component quality control.

Industry Standards Referencing Metals Testing

ASTM E8, E18, E10, E23, E399, A262, E112, E164, E1444, E1086, ASME Boiler and Pressure Vessel Code

Advantages and Limitations

Advantages: Confirms structural integrity before critical service deployment; detects alloy mix-ups and defects that could cause catastrophic failure; supports code compliance for regulated industries like construction and pressure vessels. Limitations: Destructive mechanical tests consume the test specimen and can’t be repeated on the exact tested location; NDT methods each have inherent detection limits depending on defect size, orientation, and material; results can vary with sample location within a larger casting or forging due to microstructural variation.

Conclusion

Metals testing sits at the intersection of chemistry, metallurgy, and mechanical engineering – verifying not just that a metal is the right alloy, but that its processing history produced the strength, toughness, and defect-free structure a critical application demands.
