SEM-EDS Material Characterization: How It Works & What It Reveals
High-resolution SEM-EDS analysis for precise material characterization at Infinita LabScanning Electron Microscopy with Energy Dispersive X-ray Spectroscopy (SEM/EDS or SEM-EDS) combines high-resolution surface imaging with elemental chemical analysis in a single powerful instrument. SEM provides magnifications from 10x to over 300,000x with nanometer-scale resolution, while EDS identifies and quantifies the elemental composition of features observed in the SEM image. This dual capability makes SEM/EDS indispensable for failure analysis, quality control, contamination identification, and materials research. For companies seeking SEM/EDS analysis at a USA-based testing lab, Infinita Lab provides comprehensive microscopy and microanalysis through its accredited network of over 2,000 partner labs.

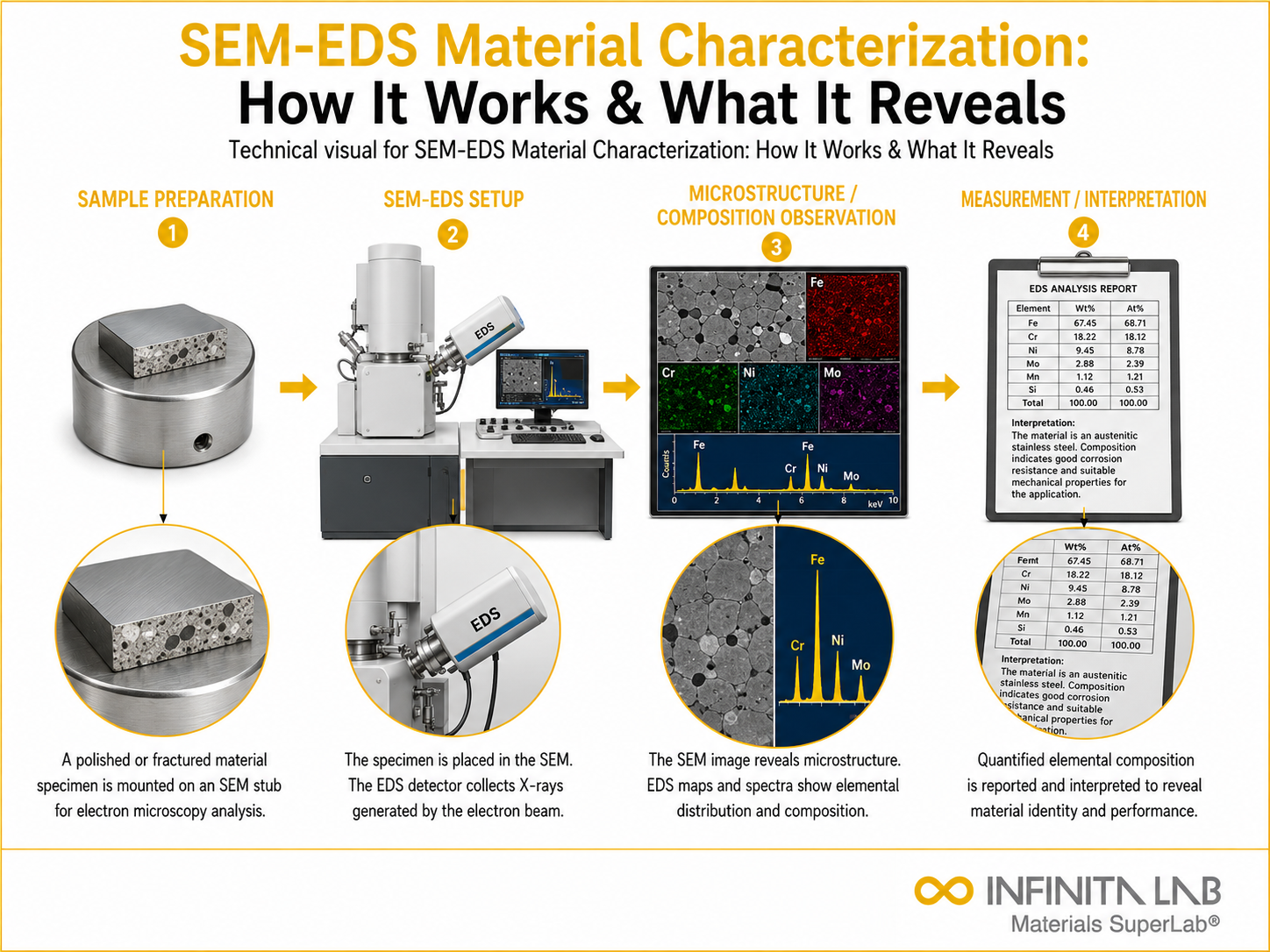

How SEM/EDS Works
SEM Imaging
A focused electron beam scans the specimen surface, generating secondary electrons (topographic contrast) and backscattered electrons (compositional contrast). The resulting images reveal surface morphology, fracture features, particle shape, coating structure, and microstructural details at resolutions of 1–10 nm.
EDS Elemental Analysis
When the electron beam strikes the specimen, it generates characteristic X-rays unique to each element present. The EDS detector captures these X-rays, producing an energy spectrum with peaks corresponding to specific elements. EDS identifies all elements from boron through uranium and provides semi-quantitative weight and atomic percentages.
Key Analytical Capabilities
SEM/EDS provides point analysis (elemental composition at a specific location), line scans (elemental distribution along a line), elemental mapping (spatial distribution of elements across an area), and particle analysis (automated size, shape, and composition of individual particles). These capabilities support comprehensive material characterization.
Why Choose Infinita Lab for SEM-EDS Analysis?
Infinita Lab is a leading provider of SEM-EDS Analysis and streamlined material testing services, addressing the critical challenges faced by emerging businesses and established enterprises. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions. The company’s unique value proposition includes comprehensive project management, confidentiality assurance, and seamless communication through a Single Point of Contact (SPOC) model. By eliminating inefficiencies in traditional material testing workflows, Infinita Lab accelerates research and development (R&D) processes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What can SEM/EDS analyze? SEM/EDS analyzes surface morphology and elemental composition of metals, ceramics, polymers, composites, coatings, particles, and contaminants. It identifies what elements are present and where they are located.
What elements can EDS detect? EDS detects elements from boron (Z=5) through uranium (Z=92). Light elements (B, C, N, O) have lower sensitivity. Detection limits are typically 0.1–1 weight percent, depending on the element and matrix.
What is EDS elemental mapping? Elemental mapping acquires EDS data at each pixel across a scanned area, producing color-coded images showing the spatial distribution of each element—revealing segregation, diffusion, contamination, and compositional gradients.
What sample preparation is needed for SEM/EDS? Conductive samples require minimal preparation. Non-conductive samples (polymers, ceramics) need a thin conductive coating (carbon or gold). Cross-sections require mounting, polishing, and sometimes etching.
When is SEM/EDS used instead of other analytical methods? SEM/EDS is preferred when both imaging and elemental analysis of specific features are needed—especially for failure analysis, contamination identification, particle characterization, and microstructural elemental distribution.
