Rotational Flat Drop Compliance Testing: Method & Standards Guide
Aerospace corrosion testing per MIL-STD-810 evaluating alloy and coating protection performanceWhen large unitized loads, heavy industrial crates, and oversized shipping cases move through a distribution network, they face conditions that standard flat free-fall drop tests cannot fully replicate. The rotational flat drop — where a package falls from a position where one side is raised and then rotates to land flat — represents one of the most structurally demanding impact events in real-world shipping. Rotational Flat Drop Compliance Testing is the standardized laboratory method for evaluating this scenario.
What Is Rotational Flat Drop Compliance Testing?
Rotational flat drop compliance testing assesses the impact resistance and structural integrity of unitized loads, large shipping crates, and heavy cases when subjected to a controlled rotational drop in which one side of the package is raised and then released to free-fall flat onto a rigid surface. The test simulates the shock conditions that arise when packages are mishandled or tipped during loading, stacking, or transport.
The test makes the structural design of the container and its integrity clear and relevant — revealing any design flaws that could lead to container failure, content damage, and costly distribution losses.
Test Procedure

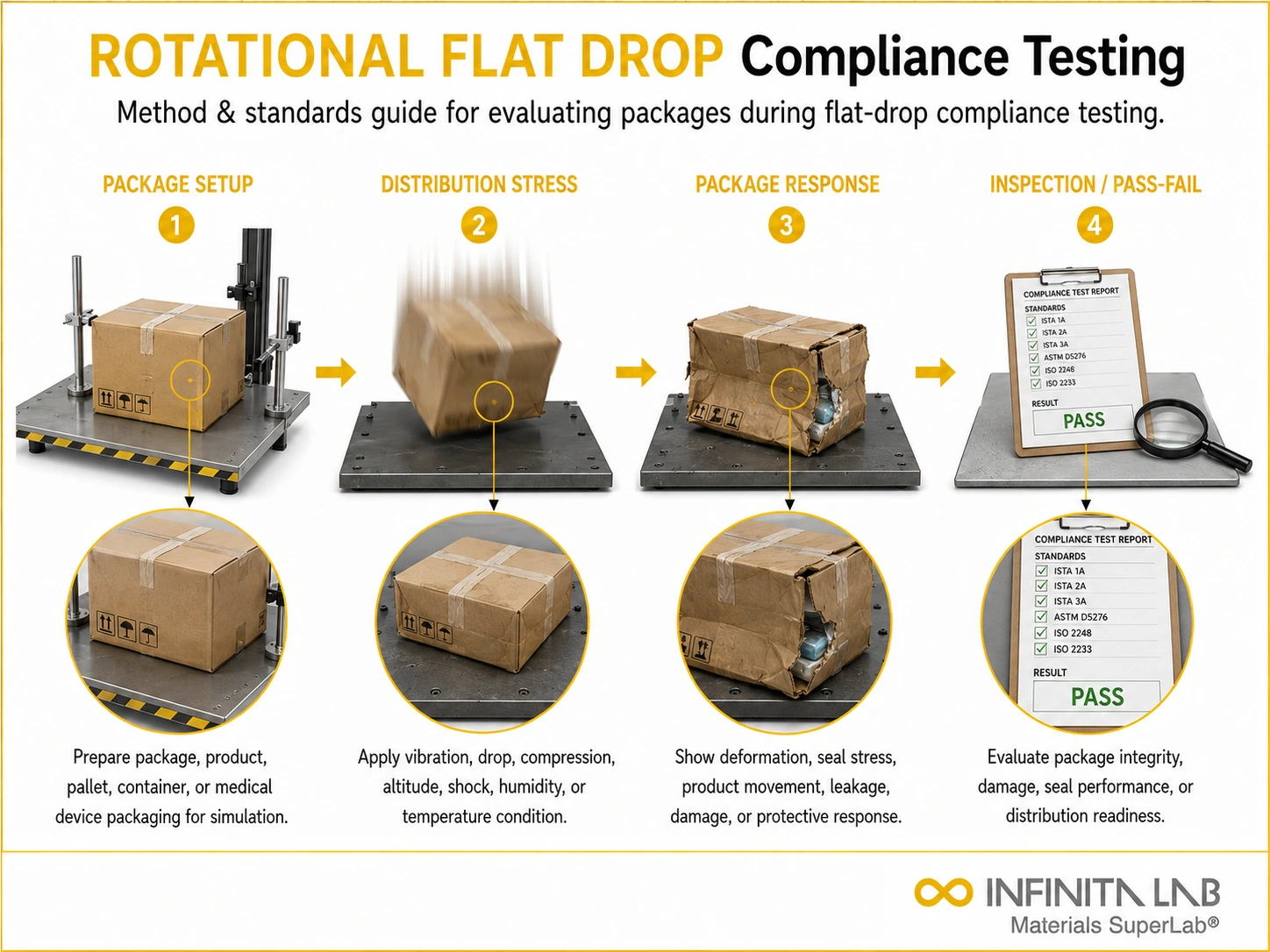

The rotational flat drop test procedure begins with sample selection: a representative unit is selected and conditioned in accordance with ASTM D4332 (Conditioning of Containers, Packages, or Packaging Components for Testing) to ensure representative temperature and humidity conditions.
The test is then conducted using a measuring tool and a flat, hard surface of concrete or steel. One side of the product is raised 9 inches from the ground, and then immediately released so that it falls freely to the surface. This common testing procedure is effectively a controlled shock test on the packaging system.
The rotational flat drop test sequence requires multiple drops of the product on predetermined sides and orientations, as specified in the governing standard. A detailed test report is produced after completion, documenting:
- The dimensions of the test item and its contents
- The drop sequence, height, and orientations
- Instrumentation details and date of testing
- The after-test condition of the packaging and contents
- Any observed failures, deformations, or content damage
Applicable Standards
- ISTA Series (3A, 3B, 3E) — Include flat drop and rotational drop sequences for various distribution scenarios
- ASTM D4169 — Performance Testing of Shipping Containers and Systems
- ASTM D4332 — Conditioning Containers, Packages, or Packaging Components for Testing
- ASTM D7386 — Performance Testing of Packages for Single Parcel Delivery Systems
Why Rotational Flat Drop Testing Matters
The significance of rotational flat drop compliance testing cannot be understated in the context of protecting distribution investments. Products that sustain damage during laboratory testing are highly likely to sustain the same damage in the real distribution cycle — making this test a reliable and cost-effective predictor of field performance.
The business case for compliance testing is compelling:
- Shorter time from product to market — identify and fix packaging failures in development, not after launch
- Cost-effective distribution — eliminate over-packaging and under-packaging through data-driven design
- Improved customer satisfaction — products arrive intact, as designed
- Increased market share — packaging compliance certifications are increasingly required by major retail and industrial customers
- Reduced product loss and damage — directly reducing replacement and logistics costs
Industrial Sectors Served
Technology and Computing: Large format displays, rack-mounted servers, and data center equipment shipped in crates require rotational flat drop compliance to protect fragile internal components.
Automotive Supply Chain: Large automotive assemblies, precision tooling, and body-in-white components are shipped internationally in purpose-built crates that must meet drop compliance requirements.
Aerospace: Transport containers for aerospace components — engines, landing gear assemblies, structural panels — must pass drop compliance testing as part of packaging qualification.
Industrial Equipment: Capital equipment, large machine components, and metrology systems in transit cases require rotational flat drop compliance testing for domestic and international logistics.
Infinita Lab’s Rotational Flat Drop Compliance Testing Services
Infinita Lab is an ISTA-certified and ISO 17025-accredited laboratory. Our proven consultative approach — from test plan development through post-test packaging improvement recommendations — helps manufacturers qualify their packaging efficiently and cost-effectively. With a nationwide network of 2,000+ accredited labs and full SPOC project management, Infinita Lab is the trusted partner for packaging compliance programs.
Contact Infinita Lab: (888) 878-3090 | www.infinitalab.com
Frequently Asked Questions (FAQs)
What is rotational flat drop compliance testing? It is a standardized test that evaluates the structural integrity of unitized loads, crates, and heavy cases by raising one side 9 inches and releasing it to fall flat onto a rigid surface, simulating real-world handling impacts.
How is rotational flat drop testing different from a free-fall flat drop test? In a free-fall flat drop, the entire base of the package is raised and dropped simultaneously. In a rotational flat drop, one side is raised, causing the package to rotate and land with an impact sequence that replicates tipping-type drops more realistically.
How is drop height determined for rotational flat drop compliance testing? Drop height is determined by package gross weight per the referenced standard table. ASTM D5276 and ISTA protocols both provide weight-based drop height matrices. Retailer programs may override standard heights with their own requirements.
Can a package pass flat drop testing but fail overall distribution compliance? Yes. Flat drop is one element of a broader distribution simulation sequence. A package may survive flat drops but fail under vibration, compression, or climate conditioning components of the same compliance protocol.
How does package closure method affect flat drop compliance outcomes? Tape type, application pattern, and adhesive strength directly affect whether flaps remain closed on impact. Insufficient closure can cause package opening, product exposure, or damage — all of which constitute compliance failures.
