Rotational Edge Drop Integrity Testing: Overview & ISTA Compliance
Aerospace corrosion testing per MIL-STD-810 evaluating alloy and coating protection performanceIn modern distribution systems, packages are handled by people and machines under time pressure. They are pushed, stacked, sorted, and transported on conveyors and in freight vehicles where impacts are frequent and unavoidable. Among the most mechanically demanding of these impacts is the edge drop — when a heavy crate or unitized load falls from a tipped or raised position, striking the ground along one of its edges.
Rotational Edge Drop Integrity Testing is the standardized laboratory simulation of this event. It provides packaging engineers and product manufacturers with the data needed to verify that their shipping systems can protect contents through the edge-drop events inherent in real-world distribution.
What Is Rotational Edge Drop Integrity Testing?

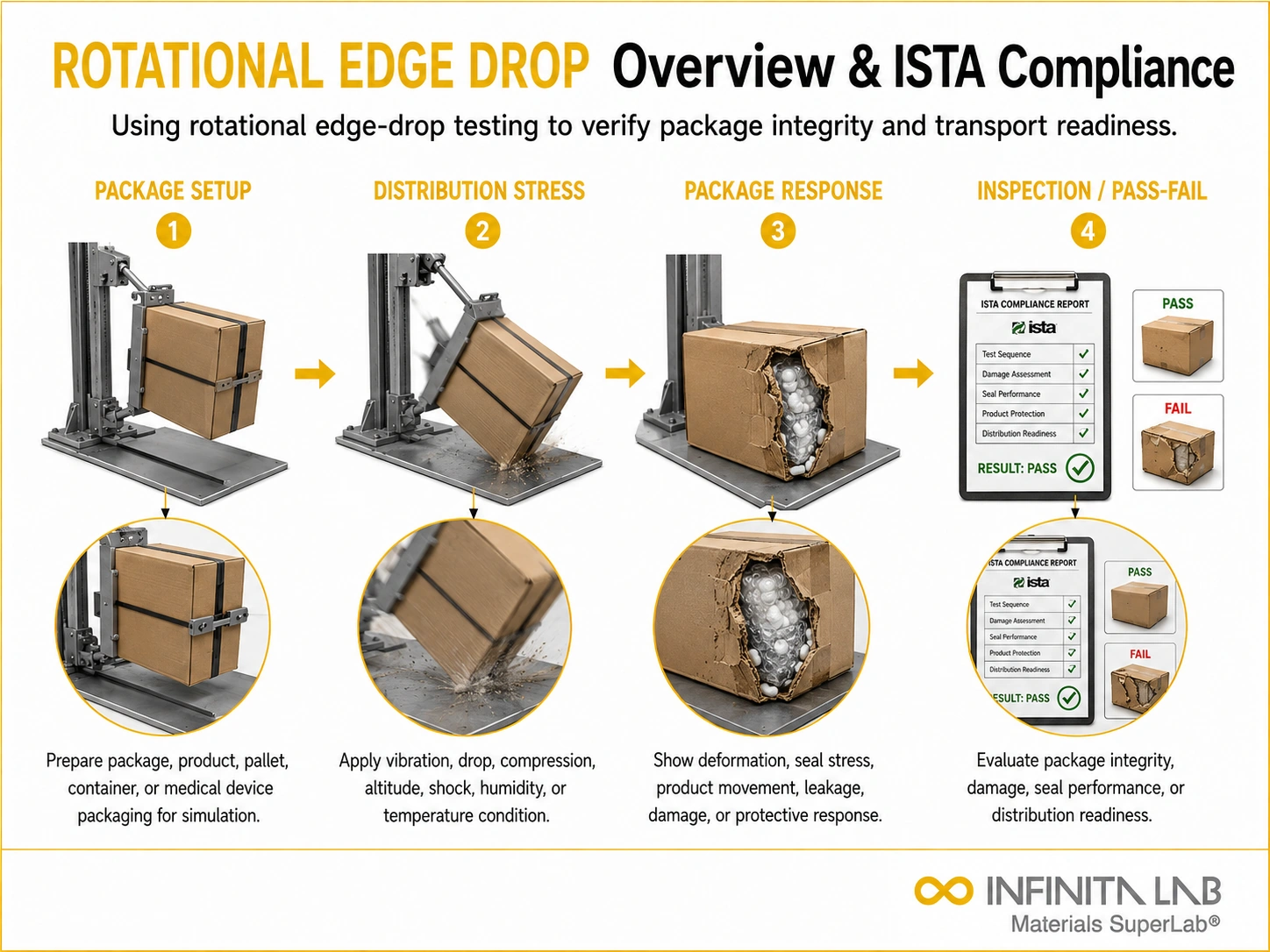

Rotational Edge Drop Integrity Testing evaluates the structural strength and stability of unitized loads, shipping crates, and heavy transport cases when one edge is subjected to a controlled drop impact. The test directly replicates the forces experienced when packages rotate around an edge — such as when a forklift sets a pallet down unevenly, or when a case tilts off a conveyor.
This testing method helps assess the stability of the load and provides actionable data for improving shipping container design. Importantly, damage observed in laboratory edge drop testing has been consistently correlated with damage observed in real distribution environments — making it a reliable predictor of field performance.
Test Procedure
The rotational edge drop test is performed using a measuring device, a standardized support block (3.5–4.0 inches tall and wide, at least 8 inches longer than the longest package dimension), and a flat, rigid surface of steel or concrete.
One edge of the package is placed on the support block. The opposite edge is then raised 9 inches from the ground and released — allowing the package to free-fall and rotate around the supported edge onto the flat surface. The test standard requires multiple drops of the package on specified sides and orientations. Units are conditioned per ASTM D4332 prior to testing.
Following the test, a detailed report is prepared containing: the after-test condition of the product and packaging, drop angle and height details, the date and time of the test, instrumentation details, and a test summary.
Important note: If the product, while in a particular orientation, topples over before the specified edge can be raised to the required support or drop height, the rotational edge drop test cannot be performed for that orientation. This is documented in the test report.
Applicable Standards
- ISTA 3E — Unitized loads of similar products on pallets (includes two rotational edge drops)
- ISTA 3F — Mixed pallet loads for regional shipments
- ASTM D4169 — Performance Testing of Shipping Containers and Systems
- ASTM D4332 — Conditioning Containers, Packages, or Packaging Components for Testing
Business and Technical Benefits of Edge Drop Testing
Proactive rotational edge drop testing delivers multiple tangible benefits:
- Reduced product loss and damage during the distribution cycle
- Cost-effective distribution by eliminating packaging over-engineering and under-engineering
- Faster time to market by identifying and resolving packaging failures before production scale-up
- Improved customer satisfaction through consistent delivery of intact products
- Increased market share through demonstrated packaging reliability and compliance
Packages that fail laboratory edge drop testing are virtually certain to suffer damage in the real distribution system — making laboratory qualification an essential step, not an optional one.
Industry Applications
Technology and Electronics: Crated server racks, networking equipment, and precision electronics in heavy transport cases require edge drop validation before global distribution.
Automotive: Engine components, transmission assemblies, and precision tooling shipped on wooden or composite crates are subjected to edge drop testing to prevent costly damage during inter-plant logistics.
Aerospace: Sensitive avionics components, instruments, and structural assemblies in certified shipping containers require edge drop compliance as part of packaging qualification.
Industrial: Capital equipment, testing instruments, and custom-fabricated components that travel in purpose-built crates require rotational edge drop testing to verify design integrity.
Infinita Lab’s Rotational Edge Drop Integrity Testing Services
Infinita Lab is an ISTA-certified and ISO 17025-accredited testing partner. We understand the challenges of meeting ASTM and ISTA drop compliance requirements and guide clients through the process from test planning to post-test packaging improvement. With a nationwide network of accredited labs and a consultative testing approach, Infinita Lab delivers fast, accurate edge drop integrity testing with comprehensive reporting.
