Rotational Corner Drop Testing: Method, Standards & Applications
When heavy shipping cases, large crates, and industrial unitised loads travel through the distribution system, they are subjected to stresses that standard flat drop tests cannot fully replicate. One of the most mechanically demanding events a package encounters is the rotational corner drop — when a crate or case falls from an elevated position with one corner acting as the pivot point, concentrating all the impact energy at a single structural junction. Rotational Corner Drop Testing is the laboratory method that replicates this event under controlled, standardised conditions.
Defining Rotational Corner Drop Testing
Rotational corner drop testing is a dynamic impact test designed to evaluate the structural integrity of shipping cases, wooden crates, heavy transport containers, and unitised loads when subjected to corner-concentrated impact forces. Unlike flat-surface drop tests — which distribute impact energy broadly across the base — a rotational corner drop concentrates force at a single corner joint, creating the highest structural stress the packaging will experience during rough-handling events.
The test determines whether the packaging can protect its contents through the repeated corner impacts that naturally occur during loading, unloading, warehouse handling, and transportation of heavy freight.

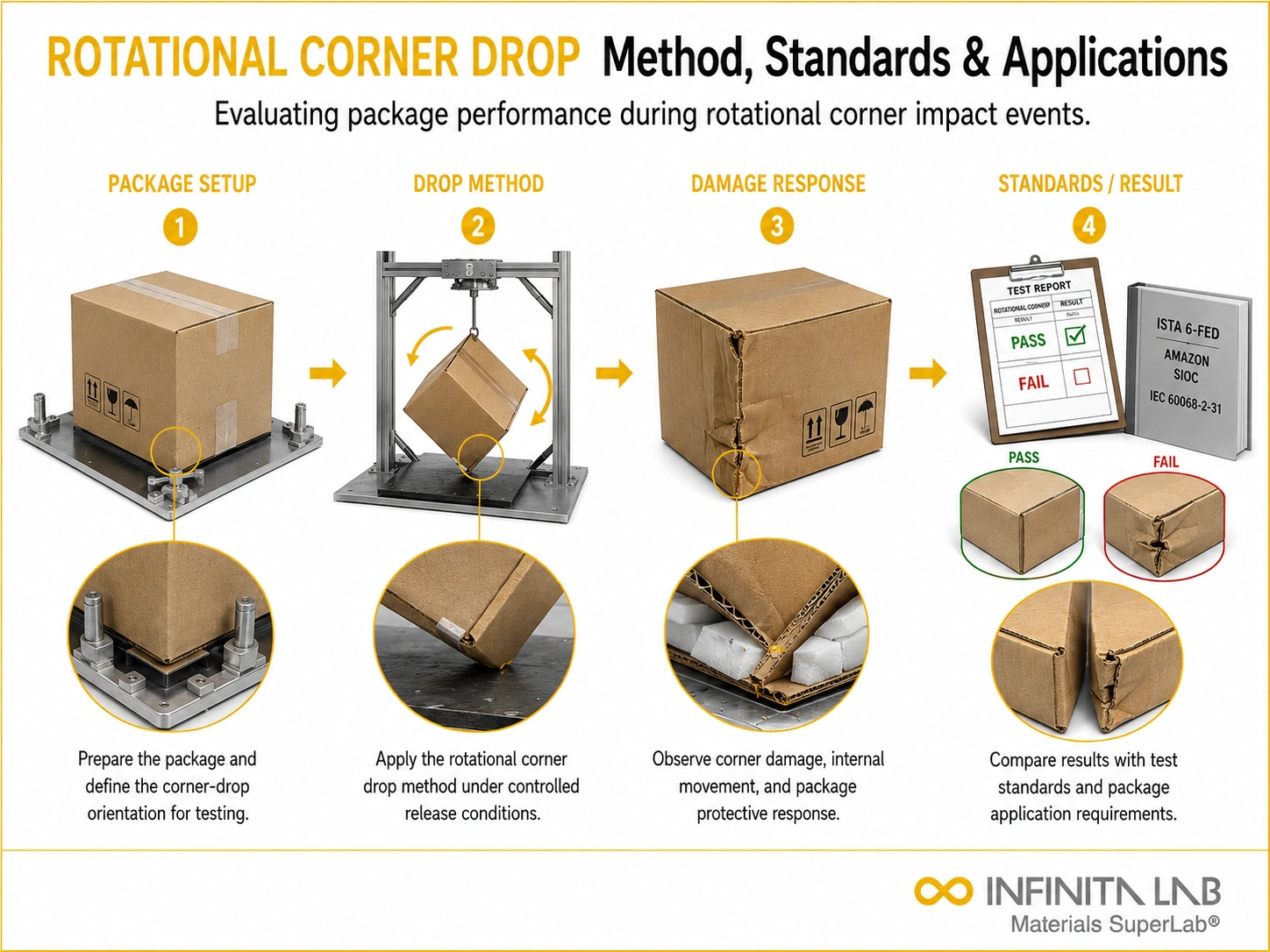

Test Procedure Step by Step
The rotational corner drop test uses simple but precise equipment:
Required equipment:
- A measurement tool (ruler or tape measure)
- A standardised support block: 3.5 to 4.0 inches in height and width, and at least 8 inches longer than the longest package dimension to be supported
- A flat, rigid surface (concrete or steel)
Test execution: One corner of the test unit is placed on the support block, which elevates that corner while the opposite end rests on the flat surface. The elevated corner creates the rotational geometry that gives this test its name. The package is then released and falls freely to the flat surface.
The test standard calls for multiple drops on different corners and orientations as specified by the applicable test protocol. Test units are conditioned per ASTM D4332 (Conditioning Containers, Packages, or Packaging Components for Testing) before the test begins, to normalise temperature and humidity effects.
Post-test documentation: A comprehensive test report is produced containing: the dimensions and description of the test item, details of any simulated contents, the drop height and angle for each drop, the date and instrumentation information, and a complete description of the after-test condition of the packaging and contents — including any structural failures, deformations, or content damage observed.
Why This Test Matters for Product Protection
Products that sustain damage during laboratory rotational corner drop testing are highly likely to sustain similar damage in the real distribution system. The test, therefore, serves as a reliable and cost-effective predictor of field performance.
The business consequences of packaging failure in the field extend far beyond the replacement cost of a single damaged product:
- High replacement and reshipping costs
- Delays in delivery schedules
- Loss of customer loyalty and repeat business
- Increased customer service burden
- Revenue loss from damaged inventory
Proactive rotational corner drop qualification prevents these outcomes by identifying packaging weaknesses in the design phase — when corrections are inexpensive — rather than after market launch.
Applicable Standards
Rotational corner drop testing is conducted within the framework of several key international standards:
- ISTA Series (International Safe Transit Association): ISTA 3A, 3B, 3E, and 3F procedures include rotational drop sequences as part of their comprehensive distribution simulation programs
- ASTM D4169 — Performance Testing of Shipping Containers and Systems
- ASTM D4332 — Conditioning Containers, Packages, or Packaging Components for Testing
- ASTM D7386 — Performance Testing of Packages for Single Parcel Delivery Systems
Industries That Require Rotational Corner Drop Testing
Electronics and Technology: Servers, network equipment, large displays, and precision instruments shipped in crates or heavy transit cases require corner drop qualification to protect sensitive internal components.
Aerospace and Defence: Specialised shipping containers for avionics, precision instruments, and defence equipment must pass rigorous rotational drop tests to meet military and aerospace handling requirements.
Automotive: Engine assemblies, body panels, and precision mechanical components shipped in industrial crates require packaging validation to prevent costly damage and rework.
Industrial Equipment: Machine tools, power equipment, and capital instruments require rotational corner drop testing to confirm packaging integrity through multi-leg distribution cycles.
Conclusion
Rotational corner drop testing is a critical distribution simulation method for evaluating the ability of heavy shipping cases, crates, and industrial unitised loads to withstand severe corner-focused impact events. By reproducing one of the most damaging real-world handling scenarios under controlled laboratory conditions, this test helps identify structural weaknesses before products enter the supply chain. It plays a vital role in packaging design validation, reducing transit damage, minimising replacement costs, and ensuring product integrity throughout storage and transportation.
Why Choose Infinita Lab for Rotational Corner Drop Testing?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From advanced metrology (SEM, TEM, RBS, XPS) to mechanical, dielectric, environmental, and standardised ASTM/ISO testing, we give clients unmatched flexibility, specialisation, and scale. You’re not limited by geography, facility, or methodology—Infinita connects you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is rotational corner drop testing? Rotational corner drop testing is a packaging performance test that simulates a package falling and impacting on a single corner, creating concentrated stress at that corner joint.
Why is this test important? It helps determine whether heavy packages, crates, and shipping cases can withstand rough handling during loading, unloading, and transportation without damaging the product inside.
Which products typically require this test? Heavy industrial equipment, electronics, aerospace components, automotive parts, and defence equipment commonly require rotational corner drop testing.
How is the test performed? One corner of the package is elevated using a support block while the opposite side rests on a rigid surface, then the package is released to rotate and impact the corner on the floor.
What is evaluated after the test? The packaging is inspected for corner failure, cracking, joint separation, deformation, and any damage to the internal contents.
