Rotational Edge Drop Integrity Testing: Method & Standards Guide

In the real distribution system, packages do not always land flat. When heavy crates and unitised loads are moved by forklifts, conveyor systems, or manual handlers, they frequently tip, pivot, or fall from positions where one edge acts as the fulcrum — resulting in a rotational edge drop. This is one of the most damaging impact scenarios that shipping systems encounter, and it demands specific laboratory testing to verify that packaging can withstand it without compromising the contents inside.

Rotational Edge Drop Integrity Testing is the standardised laboratory method for replicating this impact scenario, providing packaging engineers and manufacturers with the data they need to verify structural integrity before products enter distribution.

What Is Rotational Edge Drop Integrity Testing?

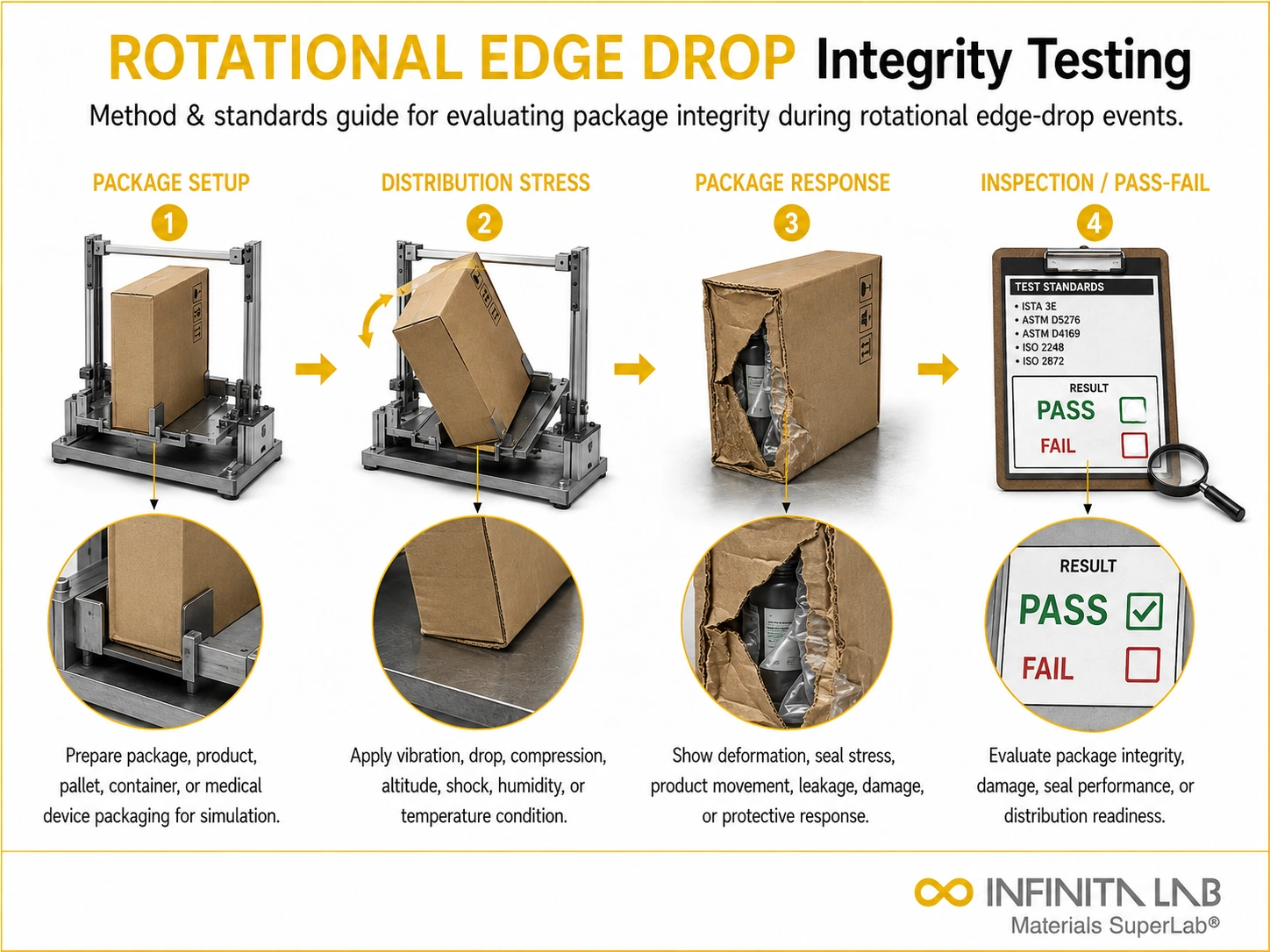

Rotational Edge Drop Integrity Testing evaluates the strength and integrity of unitised loads, shipping cases, and crates by subjecting them to a controlled drop in which one edge of the package is pivoted on a support block and the opposite edge is raised and released to free-fall to the floor.

This test directly replicates the physical dynamics of real-world edge-drop events — such as when a forklift sets a loaded pallet down unevenly, when a crate tips off a conveyor edge, or when a heavy case is mishandled and falls from a partially elevated position. Damage observed during laboratory edge drop testing correlates strongly with damage observed in actual distribution environments, making this test a reliable predictor of field packaging performance.

How Rotational Edge Drop Testing Is Conducted

The test procedure requires three pieces of equipment: a measuring device, a standardised support block, and a flat, rigid surface of concrete or steel.

Support block specifications:

• Height and width: 3.5 to 4.0 inches
• Length: At least 8 inches longer than the longest package dimension to be supported

Test procedure: One edge of the package is placed on the support block. The opposite edge is lifted to a height of 9 inches from the ground. The elevated edge is then released quickly, allowing the package to free-fall and rotate around the supported edge onto the flat surface. The test standard requires multiple drops of the package on specified sides and orientations as defined by the applicable standard.

Units are conditioned per ASTM D4332 before testing to normalise temperature and humidity.

Important limitation: If the product, while in a particular orientation, topples over before the specified edge can be raised to the required height, the rotational edge drop test is not possible for that orientation. This limitation is documented in the test report.

Post-test documentation: A detailed report is prepared containing: the after-test condition of the product and packaging, drop angle and height, date and time of testing, instrumentation details, and a test summary. Any structural failure, content damage, or deformation is described and photographed.

Why Rotational Edge Drop Testing Is Critical

The business case for rotational edge drop testing is compelling. Packages that fail edge drop testing will almost certainly suffer damage in real distribution — and that damage has real costs:

• Expensive product replacement and reshipping
• Delays in delivery and product launch timelines
• Reduced customer satisfaction and loyalty
• Increased warranty claims and customer service costs
• Revenue loss from damaged inventory

Conducting edge drop testing in the design phase — before packaging is finalised and production begins — enables engineers to identify and correct structural weaknesses at a fraction of the cost of field failures.

Key benefits of properly conducted rotational edge drop compliance testing include: cost-effective distribution, assured product launch, improved customer satisfaction, increased market share, reduced time to market, and reduced product loss and damage.

Applicable Standards

• ISTA 3E — Unitised loads of similar products on pallets (includes two required rotational edge drops)
• ISTA 3F — Mixed pallet loads for regional shipments
• ASTM D4169 — Performance Testing of Shipping Containers and Systems
• ASTM D4332 — Conditioning Containers, Packages, or Packaging Components for Testing

Industries Relying on Rotational Edge Drop Testing

Electronics: Server racks, networking equipment, precision instruments, and large electronics shipped in crates require edge drop qualification to verify protection of sensitive internal components.

Automotive Supply Chain: Engine components, transmission assemblies, and precision tooling shipped in crates or on pallets are tested for edge drop compliance as part of supplier packaging qualification.

Aerospace: Avionics components, structural assemblies, and aerospace instruments in certified shipping containers require edge drop testing as part of packaging qualification programs.

Industrial Equipment: Capital equipment, large machine components, and metrology systems require rotational edge drop testing to verify packaging design integrity across domestic and international logistics.

Conclusion

Rotational edge drop integrity testing is an essential packaging validation method for heavy crates, pallets, and unitised loads that may experience tipping or uneven handling during transportation. By simulating edge-focused impacts under controlled laboratory conditions, this test helps predict real-world distribution performance and identify structural weaknesses early in the packaging design stage. Proper qualification reduces product damage, lowers logistics costs, and ensures safe delivery through complex supply chain environments.
