Flat Tensile Specimen Preparation: Dimensions and ASTM E8

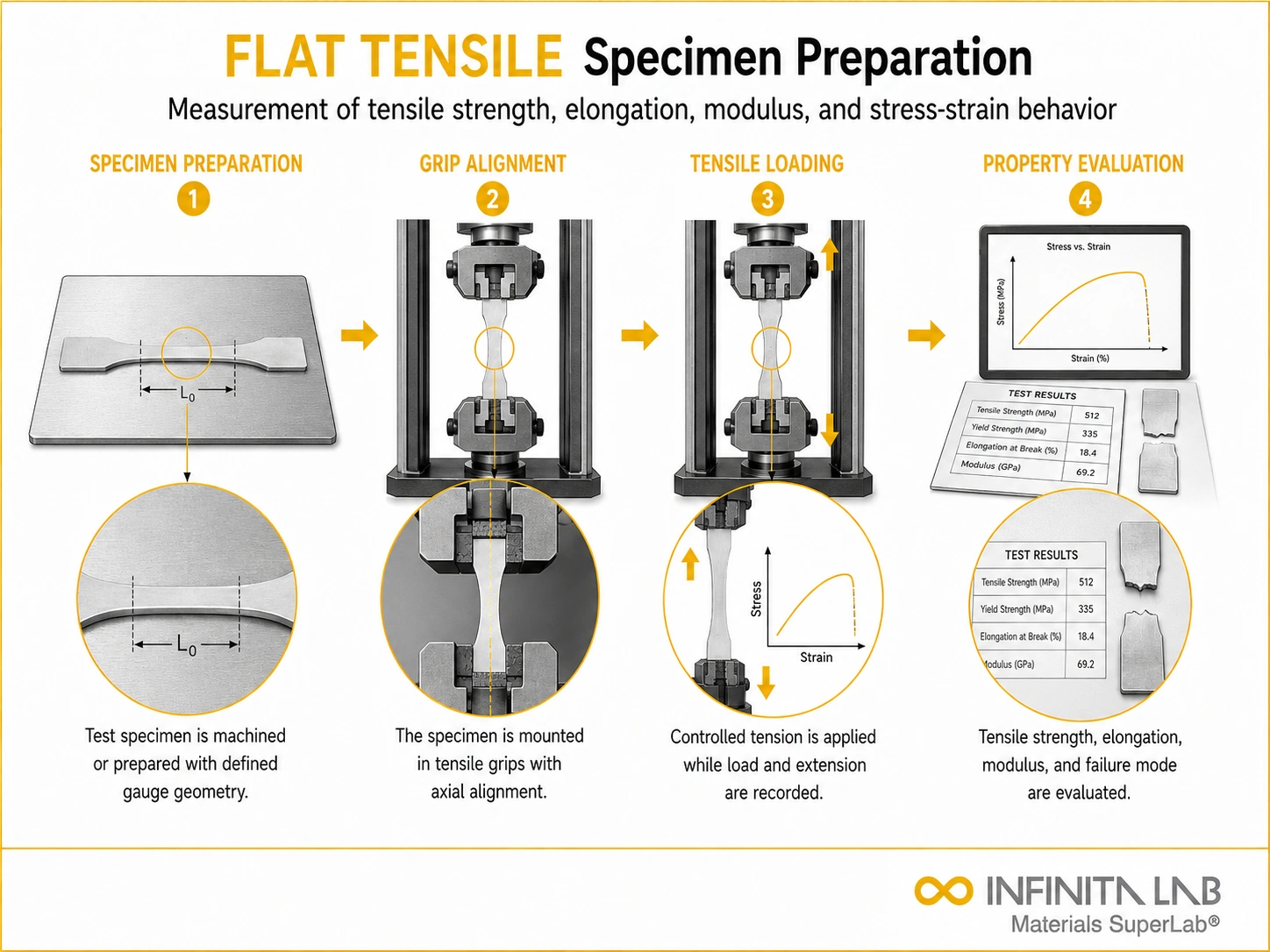

Representative Infinita Engineering Visual showing tensile specimen preparation, axial loading, and property evaluation for Flat Tensile Specimen Preparation.What Is Flat Tensile Specimen Preparation?
Flat tensile specimen preparation is the process of machining a flat “dog-bone” shaped coupon from sheet, plate, or thin-section material for tensile testing. Flat specimens are used specifically when the starting material is sheet-based or thin — rolled metal sheet, stamped panels, polymer sheet, or thin composite laminate — where a round bar specimen isn’t practical to produce.
Machining Methods
Flat specimens are produced through milling, waterjet cutting, or laser cutting, where material is removed from a flat blank to form the standard dog-bone profile defined by the applicable standard (commonly ASTM E8 for metals or ISO 6892-1). CNC milling gives the most repeatable control over gauge length, shoulder radius, and overall dimensions, and is preferred for research or high-precision QC work; waterjet and laser cutting offer faster throughput for less dimensionally critical applications.
Key Dimensional Requirements
- Gauge length: precisely controlled and clearly marked for post-fracture elongation measurement
- Shoulder radius: generous, smooth transition from the gripping ends into the gauge section to avoid stress concentration at the transition
- Surface finish: smooth and free of burrs, tool marks, or stress risers that could initiate premature fracture outside the gauge section
- Width and thickness uniformity: measured at multiple points along the gauge length to confirm consistency before testing
Also Read – ASTM D4964: Tension & Elongation Testing of Elastic Fabric
Preparation Procedure
- Select the blank material and confirm orientation relative to rolling direction, since properties can differ significantly between longitudinal and transverse orientations
- Machine the dog-bone profile to the standard’s specified gauge length, width, and shoulder radius
- Inspect for burrs, tool chatter marks, or visible damage along the gauge section edges
- Mark the gauge length clearly for post-test elongation measurement
- Condition the specimen at standard laboratory temperature (typically 23°C ± 2°C) unless the test protocol specifies otherwise
Flat vs. Round Specimens
Flat specimens are chosen specifically for materials where thickness and surface condition are key testing factors — sheet metal, stamped panels, and thin composite laminates — while round specimens, turned on a CNC lathe from bar stock, are used when testing isotropic bulk material performance. Each geometry serves industries differently: automotive body panels and aircraft skins are almost always flat-specimen territory, while machined bar stock and forgings are typically tested as round specimens.
Industry Specifications Referencing Flat Tensile Specimen Preparation
- ASTM E8/E8M: primary US standard defining flat and round specimen geometries for metals
- ISO 6892-1: international equivalent
- ASTM D638: flat dumbbell geometry for plastics
Also Read – ASTM E111: Young’s Modulus Testing for Metals, Polymers & Composites
Conclusion
Because flat tensile specimens are typically cut directly from the actual product form — sheet, plate, or laminate — preparation quality has an outsized effect on results: a burr, an off-axis cut, or an undersized shoulder radius can trigger a false premature failure that has nothing to do with the material’s real tensile performance.

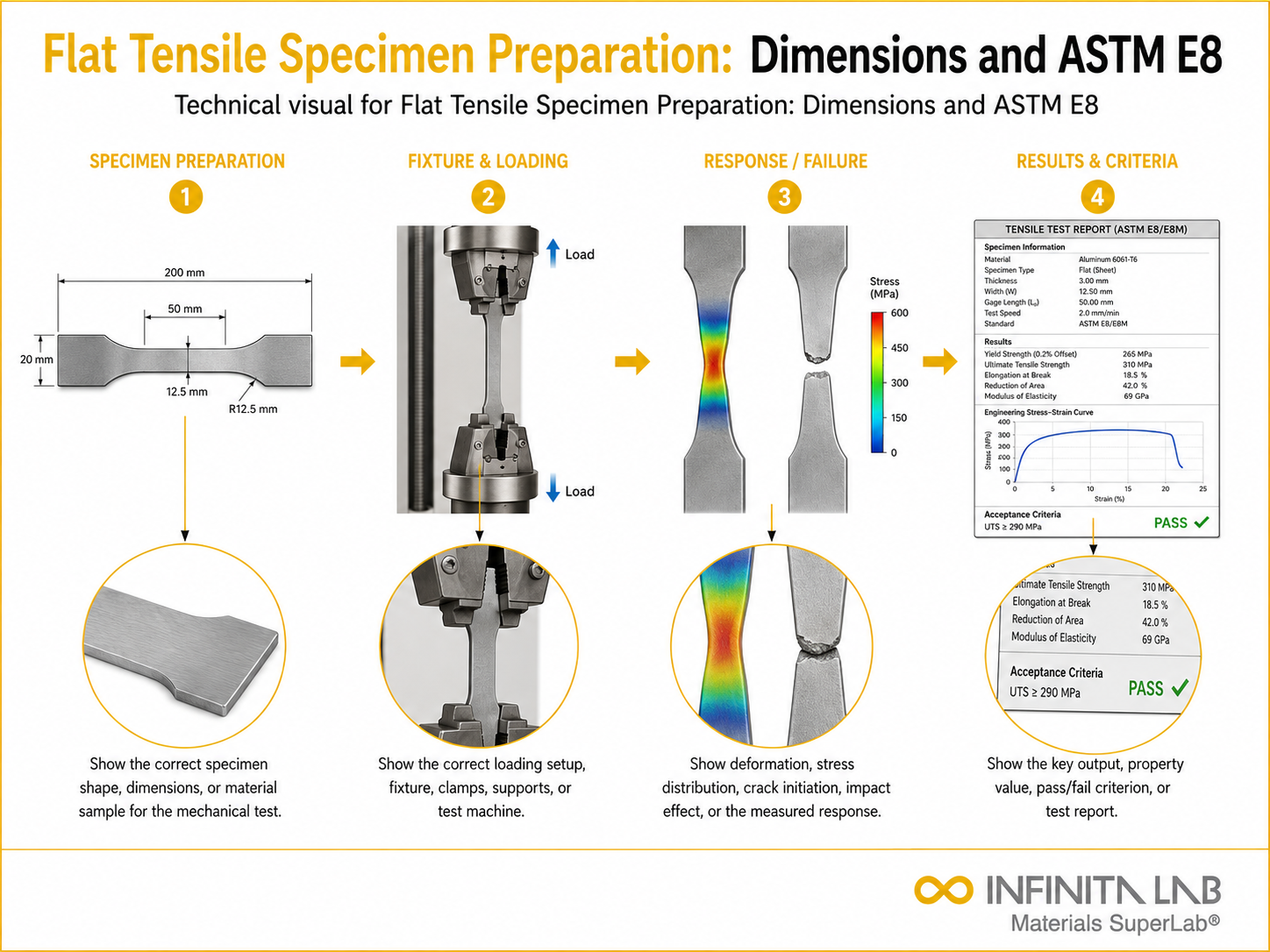

What are the common flat specimen dimensions? A commonly used sheet-type specimen has a width of 12.5 mm, a gauge length of 50 mm, and an overall length of approximately 200 mm. Subsize specimens may use a 6 mm width and 25 mm gauge length.
What is the gauge length? The gauge length is the marked section over which elongation is measured. It must match the selected specimen geometry and should be measured accurately before testing.
How are flat tensile specimens prepared? Specimens may be prepared by machining, milling, grinding, laser cutting, waterjet cutting, or blanking. The process should avoid excessive heat, work hardening, burrs, and edge damage.
Why are fillets used between the grip and gauge sections? Smooth fillets reduce stress concentrations where the specimen width changes. Incorrect or uneven fillets can cause premature fracture outside the intended gauge section.
How should the specimen edges be finished? Edges should be smooth, parallel, and free from notches, cracks, burrs, or machining marks. Edge defects can act as stress concentrators and reduce the measured tensile strength.
