ASTM Tensile Testing Standards: An Overview
What Are ASTM Tensile Testing Standards?

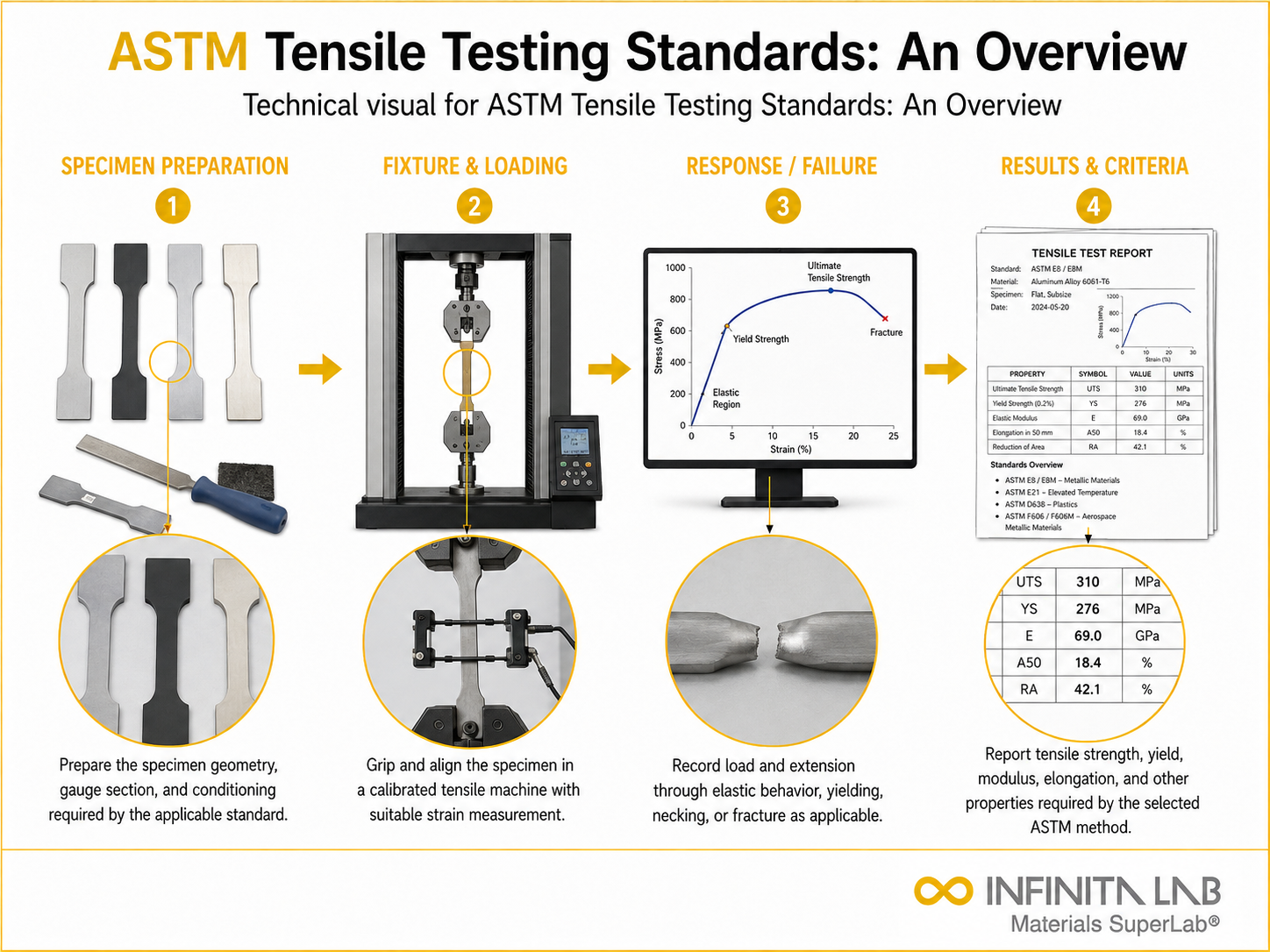

ASTM maintains a family of tensile testing standards, each tailored to a specific material class’s typical specimen form, expected ductility, and load range. While the underlying principle – pull a specimen to failure and record the resulting stress-strain behaviour – is consistent across all of them, the specimen geometry, test speed, and grip requirements differ enough that using the wrong standard for a given material produces results that aren’t industry-comparable.
ASTM E8/E8M: Metallic Materials
Covers tension testing of metals using round or flat dog-bone specimens, commonly with a 4D gauge length convention (four times the specimen diameter) for round bars. Reports yield strength (typically via 0.2% offset method), ultimate tensile strength, elongation, and reduction of area. Load capacities for E8 testing machines commonly range from 50 kN to 600 kN depending on material strength.
ASTM D638: Plastics
Covers unreinforced and reinforced plastics up to 14 mm thick, using five defined dumbbell specimen types selected by material thickness, and five defined crosshead speeds (1, 2, 5, 10, 50 mm/min) chosen based on whether modulus/yield or elongation at break is the target property.
ASTM D412: Rubber and Elastomers
Covers vulcanised and thermoplastic elastomers, typically using dumbbell or ring specimens pulled at higher crosshead speeds and to much greater elongations than rigid materials, reflecting rubber’s capacity to stretch several hundred per cent before failure.
ASTM D882: Thin Plastic Film
Designed for plastic sheeting and film under 1.0 mm thick, where D638’s dumbbell geometry isn’t practical – uses simple rectangular strip specimens instead.
ASTM D3039: Polymer Matrix Composites
Covers continuous fibre-reinforced composites, requiring balanced, symmetric layups to prevent twisting under load and commonly using bonded tabs to protect the gripping area. Load capacity requirements scale with fibre type – 30-50 kN for glass fibre, 100 kN or more for carbon fibre composites.
Comparing Key Requirements Across Standards
- E8 (metals): highest typical load capacity, precise 0.2% offset yield determination required
- D638 (plastics): moderate load, variable crosshead speed matched to specimen type and target property
- D412 (rubber): minimal load requirement, very high elongation capability
- D882 (film): thin-specimen-specific grips, low load capacity
- D3039 (composites): highest load requirement for carbon fibre, tabbing essential, layup-dependent results
Industry Specifications Referencing ASTM Tensile Standards
- ASTM E8/E8M, D638, D412, D882, D3039: the core material-specific tensile methods
- ISO 6892, ISO 527, ISO 37: international equivalents for metals, plastics, and rubber respectively
Conclusion
The ASTM tensile standards aren’t interchangeable variations of the same test – each one encodes assumptions about specimen geometry, ductility, and load range specific to its material class, and selecting the correct standard is what makes a reported tensile value meaningful and comparable to the rest of the industry.
Which ASTM standard is used for tensile testing metals? ASTM E8/E8M is the primary standard for tension testing metallic materials. It covers specimen dimensions, testing equipment, loading procedures, strain measurement, and the determination of properties such as yield strength, tensile strength, elongation, and reduction of area. The specimen geometry depends on whether the material is supplied as sheet, plate, wire, tube, bar, or another form.
Which ASTM standard applies to tensile testing plastics? ASTM D638 is commonly used to determine the tensile properties of reinforced and unreinforced plastics. The method typically uses a dumbbell-shaped specimen and provides data for material specification, quality control, characterization, and research. ASTM currently lists ASTM D638-22 among its plastics mechanical-property standards.
When is ASTM D882 used instead of ASTM D638? ASTM D882 is intended for thin plastic sheeting and films. ASTM D638 indicates that D882 is generally preferred for thin sheeting, including film below 1.0 mm in thickness. Because films can stretch significantly and may behave differently in different directions, grip selection, specimen alignment, width, thickness, and test speed must be carefully controlled.
Which tensile standard is used for rubber and elastomers? ASTM D412 covers tension testing of vulcanized thermoset rubber and thermoplastic elastomers. It includes procedures using dumbbell-shaped, straight-section, and cut-ring specimens. The standard can be used to measure properties such as tensile strength, elongation, and tensile stress at a specified strain, but different specimen methods may not produce identical results.
Why are specimen dimensions and test speed important? Specimen geometry, gauge length, thickness, and loading rate can significantly affect tensile results. Changing the specimen shape or test speed may change where fracture occurs and how much strain is measured. ASTM standards therefore define permitted specimen configurations and testing conditions so that results obtained by different laboratories can be compared more reliably.
