ASTM D6049: Rubber Viscoelastic Compression Testing Services
In ASTM D6049, the rheological behavior (viscosity and elasticity) of unvulgarized raw rubbers and rubber compounds, and the macrostructure of rubber polymers, can be measured and characterized using this test method. The values expressed in SI units should be considered the standard.
TRUSTED BY
Get ASTM D6049 compliant results — request your rubber viscoelastic compression testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM D6049 Rubber Viscoelastic Compression?
ASTM D6049 describes the standard test method for determining the viscosity and elasticity of unvulcanised rubbers and rubber compounds. These viscoelastic properties are relevant to several processing operations, including mixing, calendaring, extrusion, and molding.
The test technique assesses the response of rubber materials to the complex deformations experienced in manufacturing. Measuring the storage modulus (G’), loss modulus (G”), and phase angle (δ) in accordance with the ASTM D6049 method enables the prediction of processing behaviour and protection of consistent material performance and quality.
Applications and Benefits of ASTM D6049 Rubber Viscoelastic Compression Testing
Scope
ASTM D6049 provides a sensitive method for measuring rheological properties under low-shear conditions.
It evaluates:
- Viscosity-related parameters
- Elasticity-related parameters
- Storage modulus (G’)
- Loss modulus (G”)
- Phase angle (δ)
- Minute rheological changes
- Processability prediction
The method is suitable for compliance testing, quality control, research, and development.
Applications
- Rubber compounding
- Tire manufacturing
- Industrial rubber products
- Extrusion and molding operations
- Material formulation development
- Quality assurance testing
- Research laboratories
Benefits
- Predicts rubber processing behavior
- Detects small rheological changes
- Ensures batch-to-batch consistency
- Optimizes compound formulations
- Supports process control
- Improves product quality
- Reduces manufacturing defects

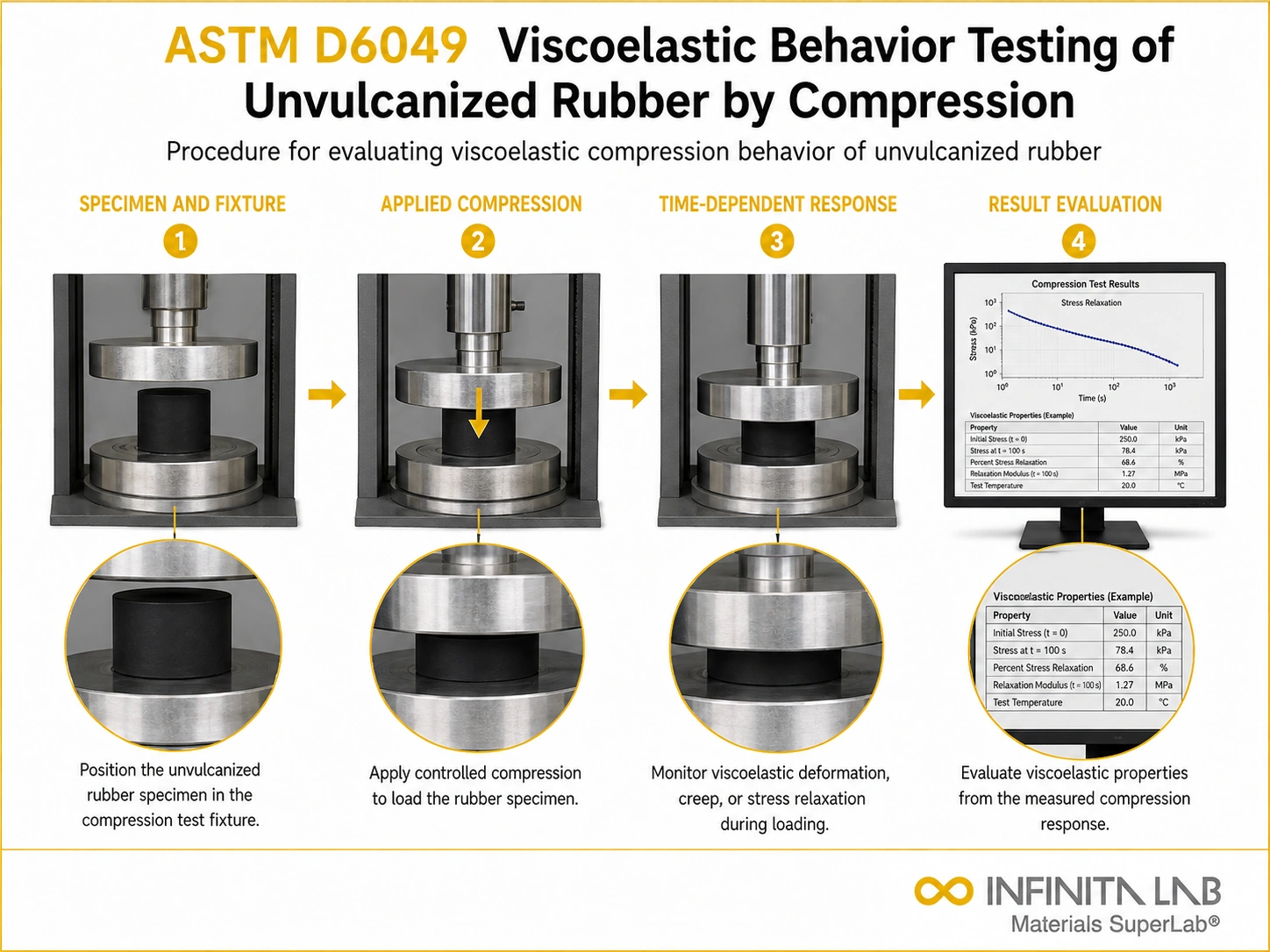

Our ASTM D6049 Testing Procedure
Specimen Preparation & Temperature Setting
Samples are prepared, and the test temperature is set to 105 ±1°C.
1Plate Positioning & Compression
The sample is centered between plates and compressed to 7.0 mm under constant force.
2Recovery & Oscillatory Loading
Recovery height is measured, and oscillatory strain/stress is applied.
3Data Collection & Analysis
Viscoelastic properties are recorded, and results are plotted.
4ASTM D6049 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Unvulcanised rubbers and compounds |
| Compression Diameter | 30.0 ±0.1 mm |
| Minimum Thickness | ≥ 2 mm |
| Test Temperature | 105 ±1°C |
| Temperature Stability | ±0.1°C |
| Plate Material | Polished steel or aluminium |
- Parallel plate rheometer
- Temperature control system
- Compression device
- Precision displacement sensors
- Load cell
- Data acquisition software
- Environmental chamber (if required)
Equipment and Instrumentation Used for ASTM D6049 Testing
What You Receive: Test Report, Data, and Certification
- Storage modulus (G’) values
- Loss modulus (G”) values
- Phase angle (δ)
- Rheological curves
- Processability assessment
- Comparative batch reports
- Quality control documentation
ASTM D6049 Rubber Viscoelastic Compression FAQs
ASTM D6049 is designed explicitly for unvulcanized raw rubbers and rubber compounds. Different test methods evaluate the properties of vulcanized rubbers.
Temperature significantly affects rubbers' viscoelasticity. Tests can be conducted at different temperatures, mimicking operating and processing conditions prevailing during utilization.
The method is generic and suitable for all kinds of unvulcanized rubbers as long as the requirements of sample preparation and testing mentioned in the standard are met.
