Horizontal Compression Integrity Testing for Packaging & Containers
Horizontal Compression Integrity Testing is a method of evaluating the strength and protection of a container or package. It tests the ability of a container to endure compressive stresses that may occur during storage and distribution. The results of the test may lead to cost-effective distribution, product launch confidence, improved consumer satisfaction and market share, and a decrease in product-to-market time. Standards such as ISO 2233 and ASTM D4332 are used to condition the package for testing.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
Horizontal Compression Integrity Testing is a method of testing the ability of packaging, containers, pipes, tubes, and structural parts to withstand any horizontal pressure applied perpendicularly to their longitudinal axis, which is similar to real-world stacking, storage, and handling situations. This is a critical test that provides much-needed data on how well a particular packaging material or container withstands horizontal pressure.
This type of testing is used to ensure that various products, containers, and packaging materials have structural integrity throughout their lifespan, whether used in construction, packaging, logistics, or manufacturing.
Scope, Applications, and Benefits
Scope
Horizontal compression integrity testing covers load-bearing and deformation assessment of packaging, containers, and cylindrical or structural components under controlled lateral compressive force.
- Applicable to corrugated boxes, cartons, drums, cylinders, tubes, and pipes
- Measures peak load, deformation, and failure mode under horizontal compression
- Covers flat crush, edge crush (ECT), and ring crush evaluations for paper and board products
- Applicable to plastic, metal, composite, and fibre-based packaging and structural components
- Supports stacking strength assessment for palletised and warehoused goods
- Applicable to both new packaging development and in-production quality verification
Applications
Corrugated box and carton testing
Shipping and logistics packaging
Food and beverage packaging
E-commerce packaging validation
Industrial bulk packaging
Benefits
Ensures packaging durability during transport
Reduces product damage and losses
Improves packaging design efficiency
Enhances supply chain reliability
Supports compliance with packaging standards

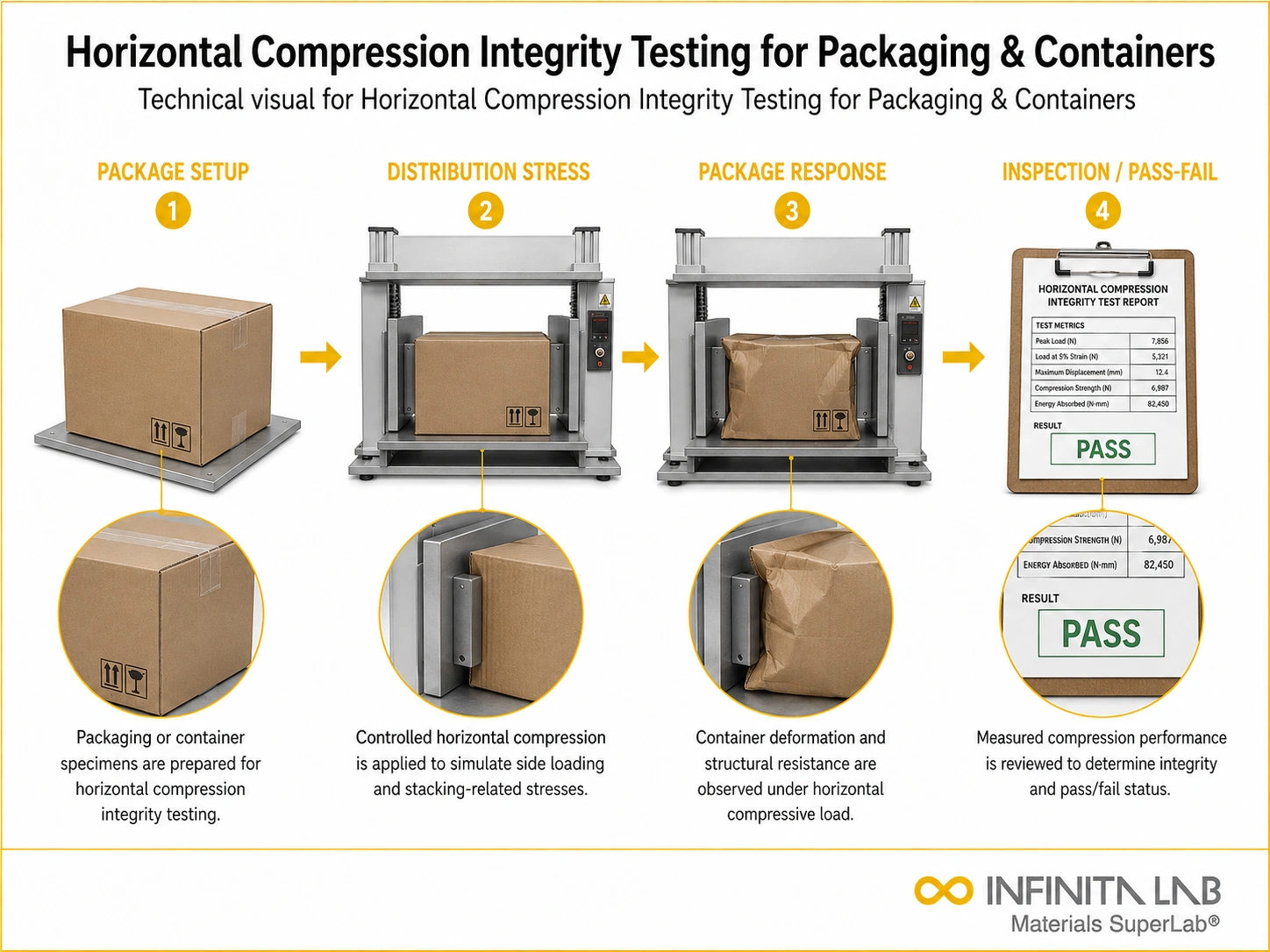

Test Process
Specimen Conditioning
Samples conditioned at standard temperature and humidity per applicable standard before testing.
1Fixture & Alignment
Specimen positioned horizontally between compression platens; alignment confirmed for uniform load application.
2Compression Loading
Compressive load applied at controlled rate; force and deformation recorded continuously to failure or target load.
3Analysis & Reporting
Peak load, deformation, and failure mode are recorded and compared with specification or standard limits.
4Technical Specifications
| Parameter | Details |
|---|---|
| Material Tested | Corrugated boxes, cartons, packaging containers |
| Test Principle | Application of lateral compressive force |
| Load Type | Compression load |
| compression load | Compression strength, deformation, failure point |
| Test Speed | Controlled compression rate |
| Orientation | Horizontal (side compression) |
| Output | Load vs deformation data |
Instrumentation Used for Testing
Compression Testing Machine (Universal Testing Machine)
Compression Plates
Load Cell
Displacement Sensors
Data Acquisition System
Results and Deliverables
Maximum compression strength values
Deformation characteristics
Failure mode analysis
Packaging performance evaluation
Detailed test report
Why Choose Infinita Lab for Horizontal Compression Integrity Testing?
Infinita Lab is a trusted USA-based testing laboratory offering Horizontal Compression Integrity Testing services across an extensive network of accredited facilities across the USA.
Infinita Lab is built to serve the full spectrum of modern testing needs—across industries, materials, and methodologies. Our advanced equipment and expert professionals deliver highly accurate and prompt test results, helping businesses achieve quality compliance and product reliability.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
It is a test used to evaluate how well packaging materials resist side compression forces, ensuring they maintain shape and protect contents during handling and transportation.
It helps prevent packaging failure during transit, reducing product damage and improving overall supply chain efficiency and reliability.
Horizontal testing evaluates side strength, while vertical testing measures stacking strength from top to bottom.
Factors include material quality, box design, thickness, moisture content, and environmental conditions during testing.
The load-deformation curve shows how the specimen responds to increasing compressive force — including the elastic region, yield point, peak load, and post-failure behaviour. It provides insight into stiffness, energy absorption, and the nature of structural collapse.
