What Is ASTM C370 Moisture Expansion Fired Whiteware?
ASTM C370 specifies a method for determining the moisture expansion of fired whiteware products such as ceramic tiles, sanitary ware, and porcelain items. Moisture expansion refers to the gradual increase in dimensions of ceramic materials when exposed to moisture over time.
This test is critical for evaluating the dimensional stability and long-term performance of ceramic products. It helps manufacturers prevent issues such as cracking, warping, or structural damage caused by moisture absorption.
Applications and Benefits of ASTM C370 Moisture Expansion Fired Whiteware Testing
Scope
ASTM C370 evaluates the expansion of fired ceramic materials when exposed to moisture under controlled conditions. The test determines the dimensional change that may occur during service life.
The test evaluates:
- Moisture-induced expansion of ceramic products
- Dimensional stability over time
- Effect of water absorption on material structure
- Risk of cracking or deformation
- Long-term performance of whiteware materials
Applications
- Ceramic tiles and flooring materials
- Sanitary ware and bathroom fixtures
- Porcelain and whiteware products
- Construction and building materials
- Industrial ceramic components
- Quality control in ceramic manufacturing
Benefits
- Helps prevent structural damage due to moisture expansion
- Ensures long-term dimensional stability
- Supports quality control and product reliability
- Assists in material selection and formulation
- Enables comparison of ceramic performance

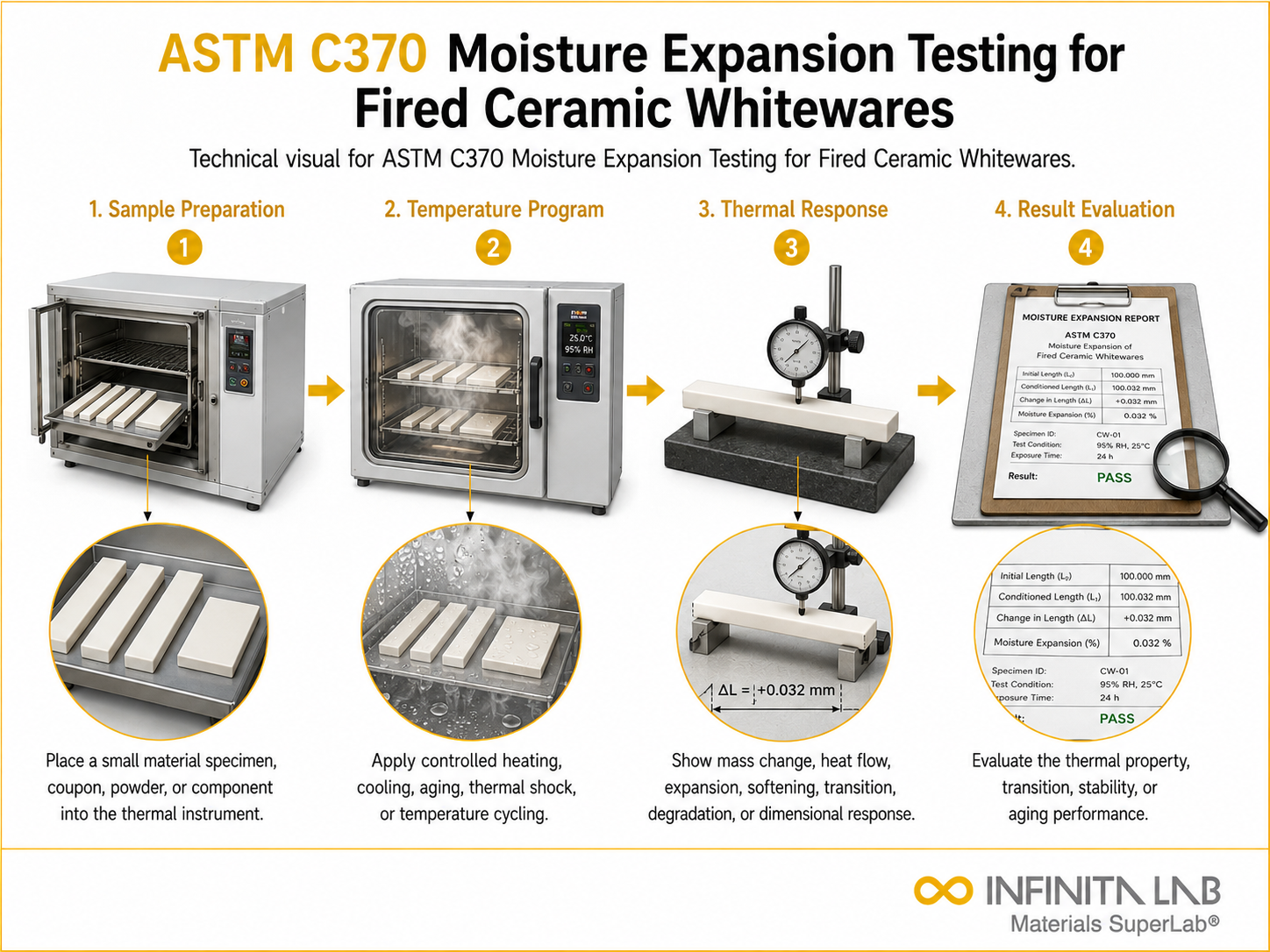

Our ASTM C370 Testing Procedure
Sample Preparation
Fired ceramic specimens are cut, cleaned, and measured for initial dimensions.
1Moisture Exposure
Samples are exposed to controlled moisture or boiling water conditions.
2Expansion Measurement
Dimensional changes are measured after exposure over a defined period.
3Data Recording & Evaluation
Expansion values are calculated and evaluated against acceptable limits.
4ASTM C370 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Fired whiteware ceramics |
| Specimen Size | ~50 mm to 150 mm length |
| Exposure Method | Boiling water or high humidity |
| Exposure Time | ~24 hours to several days |
| Expansion Range | ~0.01% to 0.10% |
| Measured Outputs | Linear expansion (%) |
- Boiling water bath or humidity chamber
- Precision length measuring device (dilatometer/comparator)
- Sample cutting tools
- Temperature control system
- Measurement gauges
- Data acquisition system
Equipment and Instrumentation Used for ASTM C370 Testing
What You Receive: Test Report, Data, and Certification
- Moisture expansion values (%)
- Dimensional stability assessment
- Risk evaluation for cracking or deformation
- Comparative material performance
- Test condition summary
- ASTM compliance report
ASTM C370 Moisture Expansion Fired Whiteware FAQs
ASTM C370 includes specimen conditioning, exposure to moisture or boiling water, measurement of length change, time duration, and temperature, evaluating expansion behavior of fired whiteware products under controlled moisture exposure conditions.
ASTM C370 determines linear expansion of ceramic specimens due to moisture absorption, indicating susceptibility to dimensional changes.
ASTM C370 is commonly applied to fired whiteware products such as tiles, sanitary ware, and ceramic components used in construction and household applications.
ASTM C370 requires measuring instruments such as micrometers or dilatometers, moisture exposure setups, and temperature control equipment to ensure accurate measurement.
ASTM C370 evaluates moisture expansion under controlled laboratory conditions and may not fully represent real service environments where varying humidity and temperature conditions influence ceramic behavior.
According to ASTM C370, moisture expansion testing measures the dimensional growth of fired whiteware products caused by rehydration. Test specimens are measured before and after exposure to high-pressure steam in an autoclave under specified conditions. The change in specimen length is used to determine moisture expansion, helping evaluate dimensional stability and the risk of glaze crazing in ceramic products.
