Impact Testing

Impact testing is the measure of a material’s resistance to the sudden application of force.

global foundries amd



Impact Testing

Impact testing is the measure of a material’s resistance to the sudden application of force. Measuring properties like plastic deformation, ductility, and brittleness of materials is essential for proper material selection, ensuring quality control and reliability for finished products. Depending on the sample requirements, experts choose ASTM and ISO standard testing procedures like Izod, Charpy, Gardner, tensile impact testing, etc. Izod and Charpy tests are the most common impact tests performed to evaluate the strength or toughness of plastics, metals, and other composite materials.

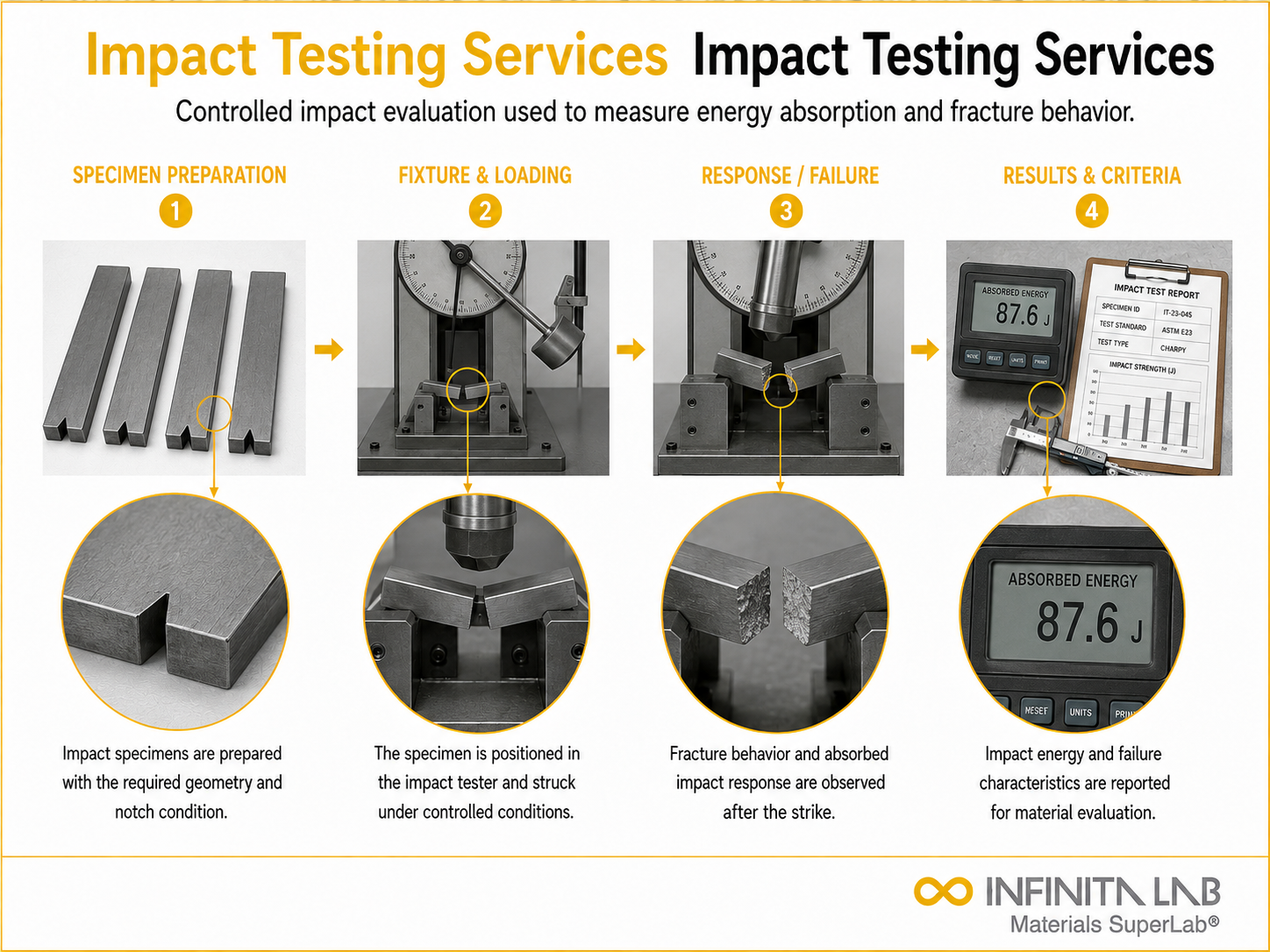

Both Charpy and Izod testing machines measure the energy absorbed by the material after a high-load impact from a swinging pendulum.

Charpy Impact Testing:

  • Notched or un-notched samples placed to impact at the center and away from the pendulum
  • Most commonly performed on metals
  • Horizontal sample orientation
  • Standardized tests for metals: ASTM E23, ASTM A370, ISO 148, EN 10045-1
  • Standardized tests available for plastics: ASTM D6110 and ISO 179

Izod Impact Testing:

  • Notched or un-notched samples placed to impact at the top tip and towards the pendulum
  • Performed on metals and plastics
  • Vertical sample orientation
  • Standardized tests: ASTM D256, ASTM E23, and ISO 180

Testing machines can be configured to perform Charpy, Izod, and other standardized methodologies and can measure from 1 ft-lb up to 700 ft-lb. Tests are performed at a wide range of temperatures, from -320°F to 2000°F. Machining services are available for sample preparation before testing.

Products Tested

  • Metals
  • Alloys
  • Plastics
  • Polymers
  • Composite Materials

Industries

  • Industries
  • Aerospace
  • Construction
  • Building Materials
  • Packaging
  • Renewable Energy
  • Manufacturing
  • Defense
  • Nuclear
  • Oil and Gas
  • Communications

Impact Testing Laboratories

  • Element Materials Technology
  • Applied Technical Services (ATS)
  • JordiLabs
  • Westmoreland Mechanical Testing and Research
  • Intertek Group Plc.
  • MP Machinery and Testing LLC

More Details

Need help or have a question?
Case Study In-depth examination of genuine material testing solutions
Dopant and ultra-low concentration elemental analysis using Scanning…

EELS analysis of gate and channel is performed on fin field-effect transistors (finFETs). Scanning transmission electron…

Learn More
Analysis of degradation of PVC pipe using Fourier…

FTIR analysis is used to study the migration and leaching of phthalate plasticizers from p-PVCs. Phthalate…

Learn More
Nano-scale roughness measurement of Si-wafers by Atomic Force…

Nano-scale surface roughness is a critical parameter in fabricated thin-films that are used in optics, solar…

Learn More
See all Case Study

Looking for Material Testing?

We have already delivered 10000+ Material Test results to top companies

    Free Consultation? - Talk to our experts

    (888) 878-3090

    FAQs on Impact Testing

    Where can I do impact testing of materials?

    Our material testing labs regularly provide standardized impact testing services for a range of parts, components, raw materials, and finished products.

    What is impact testing?

    Impact testing is the measure of a material’s resistance to the sudden application of force. Izod and Charpy tests are the most common impact tests performed to evaluate the strength or toughness of plastics, metals, and other composite materials.

    What is impact testing used for?

    Impact testing is used to measure properties like plastic deformation, ductility, and brittleness of materials which are essential for proper material selection, ensuring quality control and reliability for finished products.

    What is the main purpose of impact testing?

    Impact test measures the ability of a material to withstand an impact. This knowledge is important for engineers to predict operational behaviours of these materials.

    What do impact tests measure?

    Impact test measures the amount of energy absorbed by a material when it undergoes fracture.

    What are the types of impact testing?

    There are two main types of impact tests: Charpy test and Izod test
