Top 20 LED Display Testing Methods for Quality & Performance

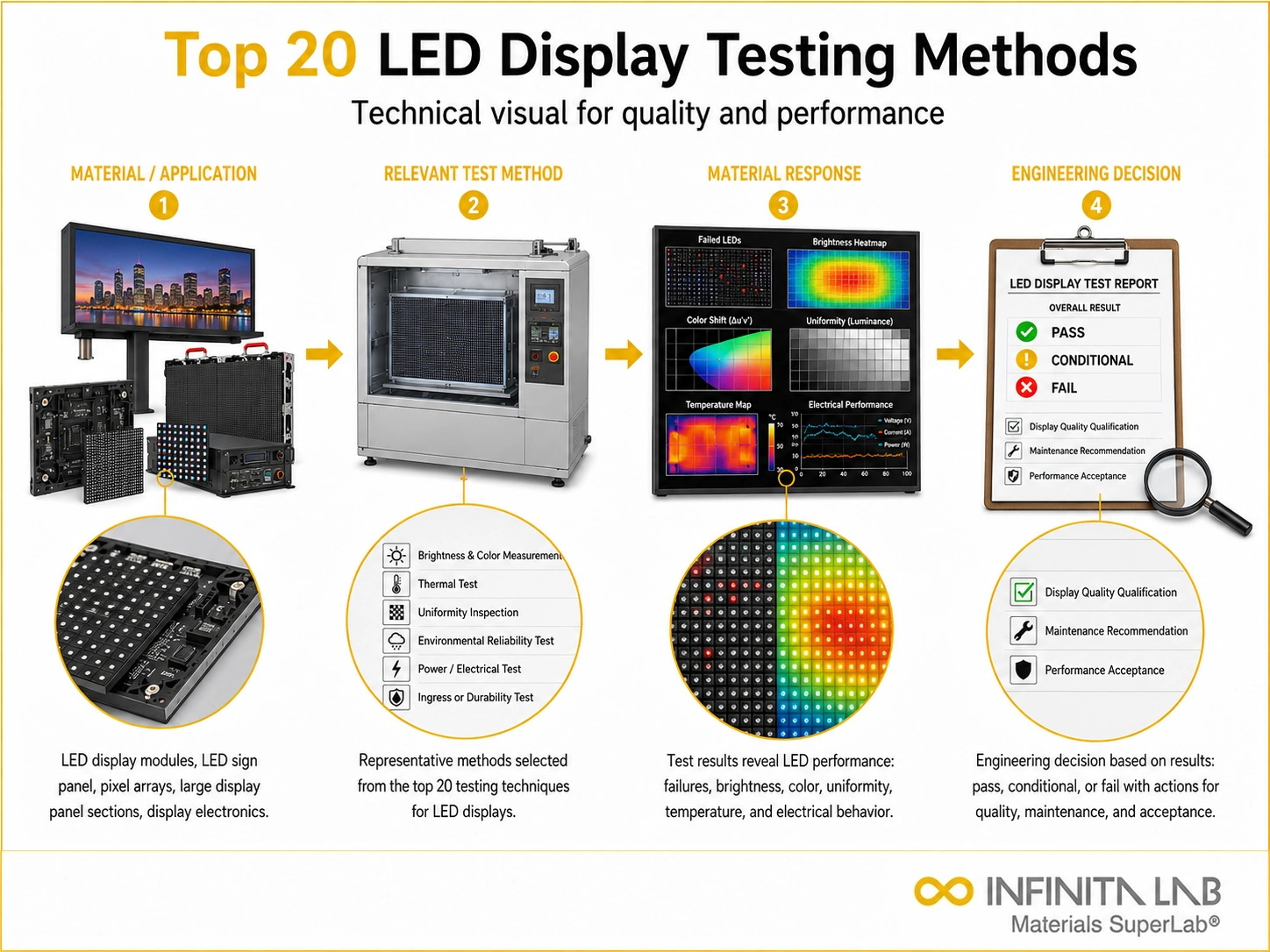

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 LED Display Testing Methods for Quality & Performance.What Is LED Display Testing?
LED display testing evaluates large-format LED video walls, digital signage, and stadium/arena displays for optical performance, electrical reliability, and environmental durability. Because LED displays are built from thousands of individual pixel modules operating continuously – often outdoors – testing must verify both individual LED performance and system-level uniformity across the full assembled display.
Why LED Display Testing Matters
- Confirms brightness, colour accuracy, and uniformity across the display
- Verifies long-term reliability given continuous operation
- Ensures environmental durability for outdoor installations
- Detects pixel-level defects before deployment
Top 20 LED Display Testing Methods
- Luminance (Brightness) Testing – Measures light output in nits/cd/m² to confirm the display meets specified brightness for its viewing environment.
- Colour Uniformity Testing – Evaluates colour consistency across the display surface to detect visible tiling or module mismatch.
- Contrast Ratio Testing – Measures the difference between brightest and darkest output to assess image quality.
- Viewing Angle Testing – Evaluates brightness and colour shift as viewing angle changes from the display’s centre axis.
- Pixel Pitch and Resolution Verification – Confirms physical pixel spacing matches specification for intended viewing distance.
- Dead Pixel / Defect Rate Testing – Identifies non-functioning or stuck LEDs across the display.
- Refresh Rate Testing – Verifies the display updates fast enough to avoid visible flicker, especially important for broadcast camera capture.
- Gamma Calibration Testing – Confirms accurate grayscale and colour reproduction across the brightness range.
- Ingress Protection (IP Rating) Testing – Verifies dust and water resistance for outdoor-rated display cabinets.
- Thermal Performance Testing – Evaluates heat dissipation and LED junction temperature under sustained full-brightness operation.
- Burn-In / Long-Term Luminance Decay Testing – Measures brightness degradation over extended operating hours to predict display lifespan.
- Electrical Safety Testing (UL 8800, IEC 62368) – Verifies protection against shock and fire hazards in display power systems.
- Electromagnetic Compatibility (EMC) Testing – Confirms the display doesn’t emit or succumb to harmful electromagnetic interference.
- Vibration and Shock Testing – Evaluates mechanical durability for displays used in mobile, vehicle-mounted, or touring applications.
- Salt Spray / Corrosion Testing – Assesses cabinet and connector corrosion resistance for coastal outdoor installations.
- UV Resistance Testing – Evaluates cabinet material and lens degradation from prolonged sunlight exposure.
- Module-to-Module Seam / Mura Testing – Detects visible seams or brightness variation between adjacent display modules.
- Power Consumption Testing – Measures energy draw across brightness levels and content types for operational cost planning.
- Redundancy / Failover Testing – Verifies backup power and signal redundancy systems function correctly for mission-critical installations.
- HDR and Wide Colour Gamut Verification – Confirms displays meet expanded colour and dynamic range specifications for premium content.
LED Display Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Optical performance | Luminance, color uniformity | ICDM/VESA display measurement standards |
Reliability | Burn-in, defect rate testing | – |
Environmental durability | IP rating, salt spray, UV | IEC 60529 |
Electrical safety | Shock/fire protection | UL 8800, IEC 62368 |
EMC | Emissions/immunity | IEC 61000 series |
Applications by Industry
Stadiums & Arenas – Large-format outdoor displays tested for brightness, viewing angle, and weather durability under continuous public use. Retail & Digital Signage – Indoor/outdoor displays tested for colour accuracy and long-term reliability in commercial environments. Broadcast & Virtual Production – Studio LED walls tested for refresh rate and colour accuracy critical to camera capture quality. Transportation & Touring – Mobile display systems tested for vibration and shock durability given frequent transport and setup cycles.
Industry Standards Referencing LED Display Testing
IEC 62368 (electrical safety), UL 8800, IEC 60529 (IP rating), IEC 61000 series (EMC), ICDM Information Display Measurements Standard
Advantages and Limitations
Advantages: Ensures consistent visual quality across large multi-module displays; predicts long-term brightness decay for lifecycle planning; verifies safety and environmental durability for demanding installation environments. Limitations: Full-scale display testing requires significant floor space and calibrated optical measurement equipment; burn-in and decay testing to predict multi-year lifespan requires long test durations or careful acceleration modelling; outdoor environmental testing results can vary with regional climate conditions not fully captured in standardised chamber tests.
Conclusion
An LED display’s visual quality depends on consistency across thousands of individual light sources working in concert – testing verifies that consistency holds not just on day one, but across years of continuous operation in sometimes harsh outdoor conditions.
What is LED display testing? LED display testing evaluates brightness, colour accuracy, uniformity, electrical performance, durability, and overall display reliability.
How is LED display brightness measured? Brightness is measured using a luminance meter or photometer and is typically reported in nits or cd/m².
How is brightness uniformity evaluated? Measurements are taken at multiple points across the display to identify dim areas, hotspots, or uneven illumination.
How is contrast ratio measured? Contrast ratio testing compares the luminance of the brightest white and darkest black displayed by the screen.
How is LED display durability tested? Durability may be evaluated through vibration, mechanical shock, impact, burn-in, thermal cycling, and continuous operation testing.
