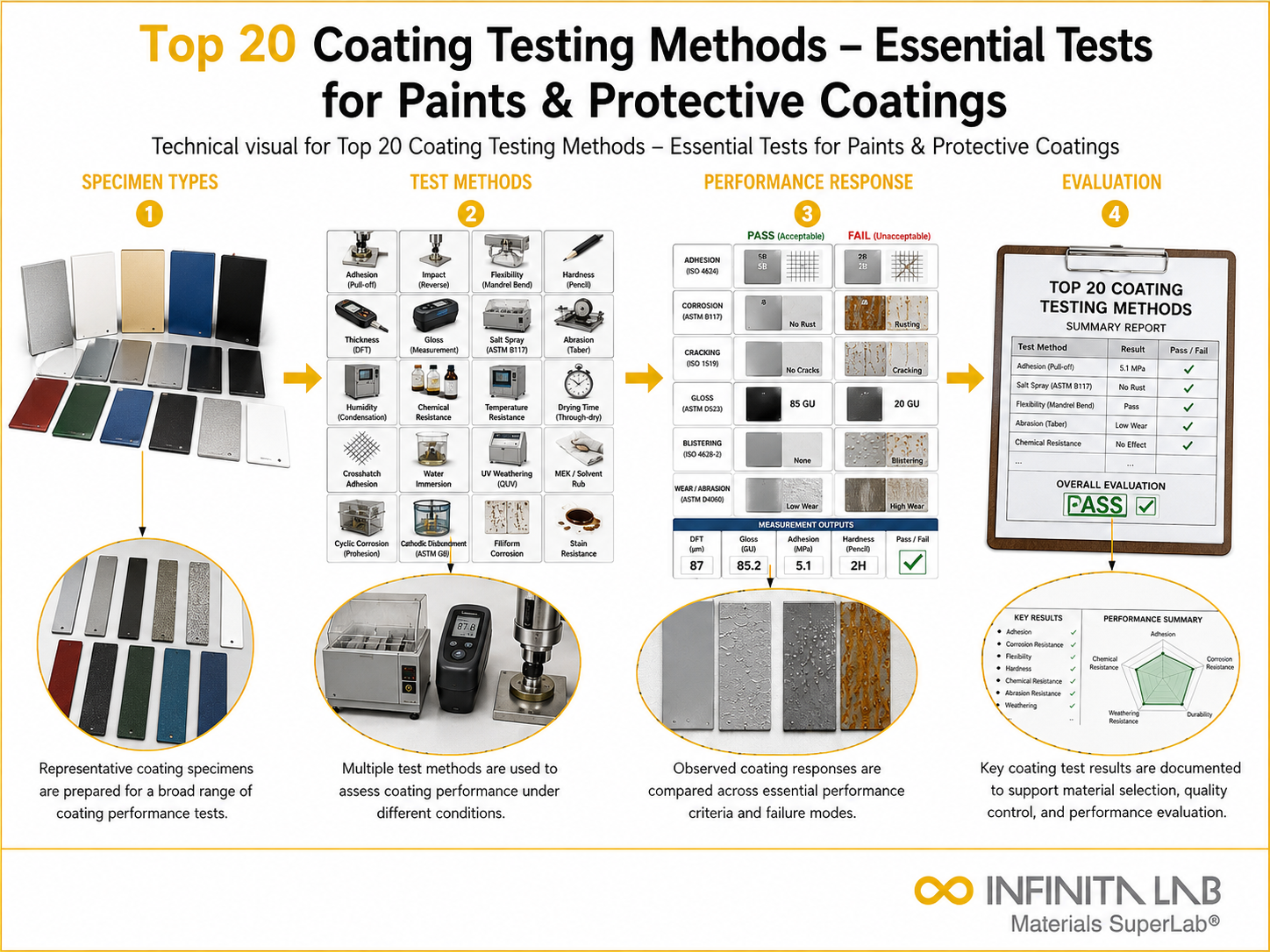

Top 20 Coating Testing Methods – Essential Tests for Paints & Protective Coatings

What Is Coating Testing?

Coating testing is the systematic evaluation of protective, functional, or decorative surface layers – paints, powder coatings, galvanising, anodising, plating, and speciality films – to confirm they perform as intended once applied to a substrate. Coatings are asked to do a lot at once: resist corrosion, survive UV exposure, hold colour, tolerate abrasion, and adhere permanently to a base material that may itself be flexing, heating, or vibrating in service. Testing verifies each of those properties independently, under controlled and repeatable conditions, before a coating system is approved for production or field use.

Because coating failure is often invisible until it’s catastrophic – a pinhole that lets in moisture, a hairline crack that starts corrosion underneath an intact-looking surface – testing labs rely on a broad toolkit of mechanical, chemical, and environmental methods rather than a single pass/fail check.

Why Coating Testing Matters

A coating that looks perfect on day one can fail in months if adhesion, thickness, or chemical resistance wasn’t verified. Testing protects against:

• Premature corrosion beneath the coating film
• Loss of adhesion leading to peeling, flaking, or blistering
• Colour fade, chalking, or gloss loss from UV exposure
• Cracking or embrittlement in cold or flexing environments
• Non-compliance with industry, regulatory, or customer specifications

Also Read – Non-Destructive Hardness Testing: Methods, Accuracy & Applications

Top 20 Coating Testing Methods

1. Cross-Hatch Adhesion Test (ASTM D3359) – A lattice pattern is cut into the coating and tape is applied and removed; the amount of coating removed indicates adhesion strength.
2. Pull-Off Adhesion Test (ASTM D4541) – A dolly is glued to the coating surface and pulled off with a calibrated tester to measure adhesion strength in force per area.
3. Dry Film Thickness (DFT) Measurement (ASTM D7091) – Magnetic or eddy-current gauges measure cured coating thickness non-destructively.
4. Wet Film Thickness (WFT) Measurement – A notched gauge measures uncured coating thickness immediately after application and is used to predict final DFT.
5. Pencil Hardness Test (ASTM D3363) – Graded pencil leads are pushed across the coating to determine the hardest pencil that does not scratch or gouge it.
6. Konig Pendulum Hardness (ISO 1522) – A pendulum’s damping rate as it rocks on the coated surface indicates relative film hardness.
7. Gloss Measurement (ASTM D523) – A glossmeter measures specular reflectance at fixed angles (20°, 60°, 85°) to quantify surface sheen.
8. Colour Measurement (Spectrophotometry) – Instruments quantify colour values (Lab*) to check batch-to-batch consistency and detect fading.
9. Salt Spray / Fog Testing (ASTM B117) – Coated panels are exposed to a continuous saline mist to accelerate and quantify corrosion resistance.
10. Cyclic Corrosion Testing (ASTM D5894, SAE J2334) – Alternates salt fog, humidity, and dry-off cycles to more closely simulate real-world corrosion exposure than constant salt spray.
11. UV / QUV Weathering (ASTM G154) – Fluorescent UV lamps combined with condensation cycles simulate sunlight and moisture degradation over time.
12. Xenon Arc Weathering (ASTM G155) – A xenon arc lamp reproduces the full solar spectrum for more realistic accelerated weathering than fluorescent UV alone.
13. Taber Abrasion Resistance (ASTM D4060) – Abrasive wheels under load wear the coating surface over repeated cycles; weight loss indicates abrasion resistance.
14. Impact Resistance Test (ASTM D2794) – A weighted indenter is dropped onto the coated panel to check for cracking or delamination under sudden impact.
15. Mandrel Bend / Flexibility Test (ASTM D522) – The coated panel is bent around cylindrical mandrels of decreasing diameter to determine the flexibility limit before cracking.
16. Cathodic Disbondment Test (ASTM G8 / G95) – Simulates the loss of coating adhesion around a holiday (defect) under cathodic protection in a buried or submerged environment.
17. Humidity Resistance / QCT Testing (ASTM D2247) – Continuous condensing humidity exposure evaluates blistering, adhesion loss, and corrosion under moisture.
18. Holiday / Porosity (Pinhole) Detection (ASTM D5162) – Low- or high-voltage spark testing detects pinholes and discontinuities in a coating film.
19. Chemical and Solvent Resistance Testing (ASTM D1308) – Coated surfaces are exposed to specific reagents or solvents to check for softening, staining, or loss of adhesion.
20. Fourier-Transform Infrared Spectroscopy (FTIR) – Identifies the chemical composition and cure state of a coating, useful for quality control and failure analysis.

Coating Test Method Comparison

Applications by Industry

• Automotive & Transportation – OEM paint systems, e-coat primers, and underbody coatings tested for stone-chip impact, salt exposure, and UV fade over the vehicle’s service life.
• Aerospace – Coatings on airframes and components tested for extreme temperature cycling, chemical resistance to hydraulic fluids, and adhesion under vibration.
• Oil & Gas / Pipeline – Buried and subsea pipeline coatings evaluated with cathodic disbondment and holiday detection to prevent corrosion-driven failures.
• Architectural & Construction – Exterior paints and powder coatings on facades, railings, and structural steel tested for weathering, gloss retention, and adhesion.
• Marine – Hull and deck coatings tested for salt spray resistance, abrasion, and antifouling performance in continuous water exposure.
• Consumer Products & Appliances – Decorative and functional coatings tested for scratch resistance, colour consistency, and chemical resistance to household cleaners.

Industry Standards Referencing Coating Testing

• Adhesion & Mechanical: ASTM D3359, ASTM D4541, ASTM D3363, ISO 1522, ASTM D2794
• Corrosion & Environmental: ASTM B117, ASTM D5894, ASTM D2247, SAE J2334
• Weathering: ASTM G154, ASTM G155, ISO 4892
• Thickness & Defects: ASTM D7091, ASTM D5162
• Chemical Resistance: ASTM D1308, ASTM D543

Advantages and Limitations of Coating Testing

Advantages

• Predicts field performance before large-scale production or application
• Enables objective, standardised comparison between coating suppliers
• Identifies formulation or application defects early, reducing warranty risk
• Supports compliance with OEM, military, and regulatory specifications

Limitations

• Accelerated tests (salt spray, QUV) approximate but don’t perfectly replicate real-world exposure.
• Results can vary with substrate preparation, application technique, and cure conditions.
• Some destructive tests (pull-off, cross-hatch) consume the test panel and cannot be repeated on the same spot
• Correlating accelerated test hours to real-world service years requires experience and historical data.

Also Read – Polymer Hardness Testing: Common Uses, Methods & Scale Selection

Conclusion

A single property rarely determines coating performance – it’s the combination of adhesion, hardness, corrosion resistance, and weatherability that determines whether a coating system will protect a substrate for its intended service life. A well-rounded testing program, built around recognised ASTM and ISO methods, catches formulation and application problems long before they become field failures.
