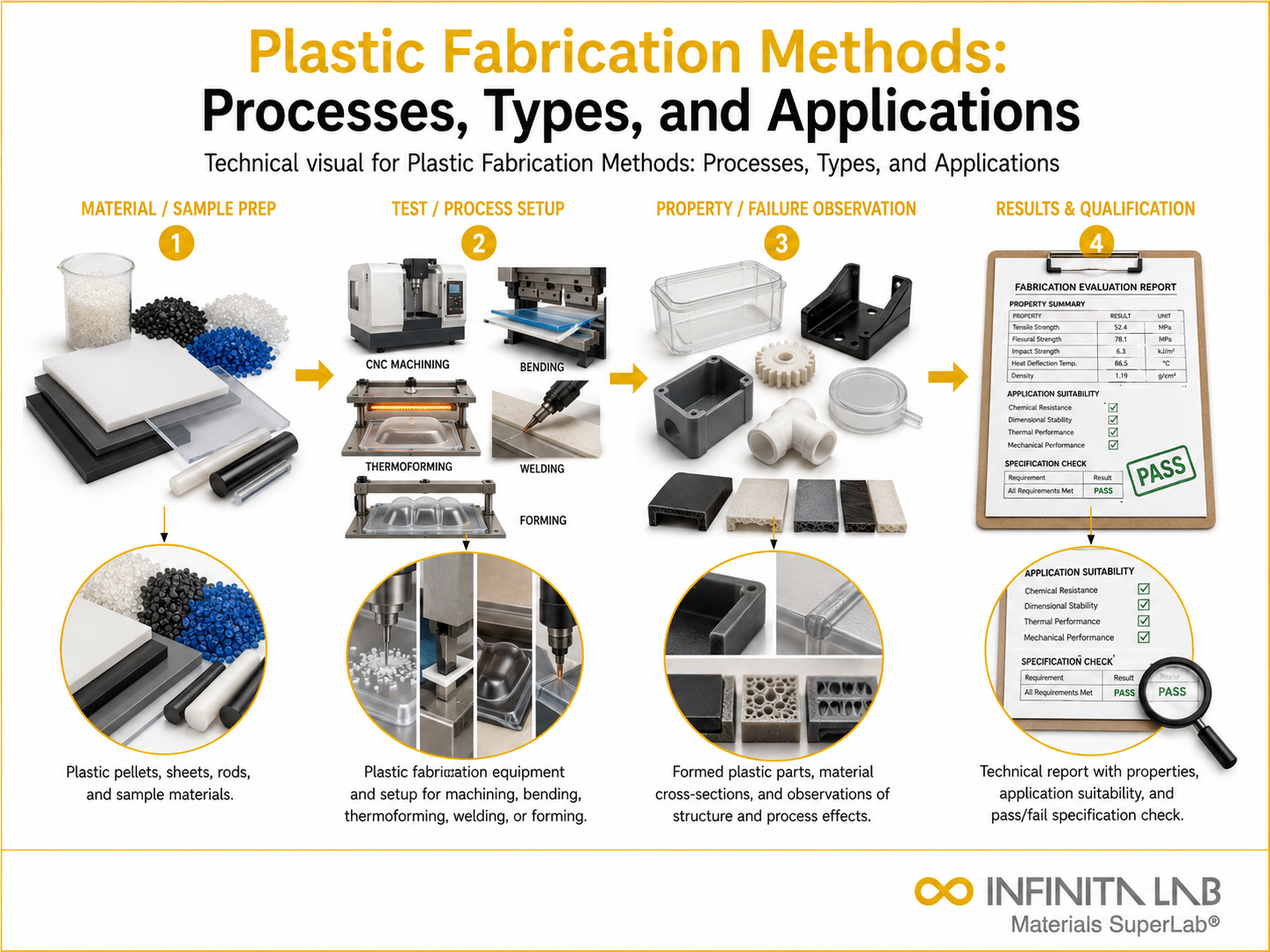

Plastic Fabrication Methods: Processes, Types, and Applications
What Is Plastic Fabrication?
Plastic manufacturing involves developing, producing, or assembling components or finished goods from plastic or plastic-containing composites. Each of the various plastic production approaches has its own set of benefits and drawbacks. Some popular types include compounding, lamination, molding, and injection molding.
Engaging in plastic manufacturing involves developing, producing, or assembling components or finished goods from plastic or plastic-containing composites. Each of the numerous plastic production approaches has its own set of benefits and drawbacks. Additionally, certain technologies are better suited for different components; for example, making massive roofs or body panels for heavy trucks will not use the same approach as making small plastic kitchen containers. There is a fabrication technique available for any plastic product you can imagine.
Based on the processes employed and the unique qualities of the final products, plastic fabrication can be broadly classified into a number of various categories. Examples of some of the most popular types include the following:
Compounding, often known as mixing, is the act of fusing together two or more types of plastic. When plastic is used to create a protective layer on the surface of another material, the process is called lamination. It’s commonly used to make things more durable and less vulnerable to damage from things like heat, electricity, chemicals, and the elements. In the same way, metal welding utilises heat to melt components, and plastic welding does the same. Welding may still be most commonly associated with metal, but it works well with plastics that don’t hold together well with other methods.
Finally, molding describes any technique where plastic is shaped by being allowed to harden inside a pre-formed mold. Molding is the most adaptable method of plastic manufacture since it can be used to make objects of varying sizes and shapes. Everyday items, industrial gear, toys, and even aeroplane parts are all made using molding. Because of the finished parts’ strength, durability, and rigidity, it has quickly become one of the most preferred plastic fabrication methods.
Also Read – Smart Composites: Integrating Sensors & Actuators — Testing & Characterization
Core Fabrication Methods
- Machining: subtractive process using lathes, mills, and routers to cut, drill, or shear rigid plastic stock — ideal for precision parts and prototypes
- Extrusion: heated plastic is forced through a die to create continuous profiles with uniform cross-sections (pipes, tubes, sheet stock)
- Pultrusion: a variant of extrusion where reinforced fibre is pulled (rather than pushed) through a resin bath and heated die, producing fibre-reinforced profiles with constant cross-section
- Thermoforming: heated plastic sheet is shaped over or into a mold using vacuum or pressure
- Welding: two plastic pieces are heated to create molecular adhesion at the joint interface, then cooled to complete the bond — methods include hot air, friction, ultrasonic, and RF welding
- Bonding: solvents or adhesives join plastic pieces without mechanical fasteners, producing a clean, seamless finish suited to larger assemblies
Material Considerations
Thermoplastics (which can be melted and reshaped repeatedly) are generally suited to molding, welding, extrusion, and vacuum/blow forming, while thermosetting plastics (which cure irreversibly) are typically limited to thermoforming, lamination, and compression-based processes, since they can’t be remelted once cured.
Welding Process Notes
Successful plastic welding requires forming a melt layer at the joint (faying) surface to allow intermolecular diffusion between the two pieces — heating time and temperature must be sufficient for the plastic to soften enough for this diffusion (autohesion) without decomposing or being squeezed out of the joint entirely.
Industry Specifications Referencing Plastic Fabrication
- Common inspection methods: portable CMMs and non-contact optical comparators for dimensional and GD&T verification of fabricated plastic parts
Also Read – Shock Response Spectrum (SRS) Analysis: Principles & Testing Guide
Conclusion
Choosing a fabrication method starts with the material class (thermoplastic vs. thermoset) and part geometry — from there, the trade-off is almost always between per-unit cost/speed (extrusion, molding) and design flexibility for low-volume or custom geometries (machining, welding, bonding).
What are the main plastic fabrication methods? Common methods include injection molding, extrusion, thermoforming, blow molding, rotational molding, machining, welding, casting, and additive manufacturing. The best process depends on the material, geometry, volume, and performance requirements.
How is injection molding used in plastic fabrication? Injection molding melts plastic pellets and forces the material into a closed mold. It is widely used for producing complex, repeatable parts in medium- to high-volume production.
What is plastic extrusion? Extrusion continuously pushes molten plastic through a shaped die. It is commonly used to manufacture pipes, tubing, films, sheets, seals, and profiles with a consistent cross-section.
How does thermoforming differ from injection molding? Thermoforming heats and shapes a plastic sheet over a mold, while injection molding injects molten plastic into a mold cavity. Thermoforming generally has lower tooling costs, while injection molding supports more complex shapes.
Can plastic parts be machined? Yes. Plastic sheets, blocks, rods, and tubes can be cut, drilled, milled, or turned using machining equipment. Proper tooling and operating conditions are needed to prevent melting, cracking, or dimensional distortion.
