The Ferritescope Test: A Non-Destructive Technique

What Is Ferritescope Testing?

Ferritescope testing is a portable, non-destructive method used to measure the ferrite content of austenitic and duplex stainless steel welds, base metal, and castings. Rather than requiring a metallographic section, chemical etch, and microscopic point count, the ferritescope reads ferrite content directly off the surface of a component in seconds – making it one of the most widely used field and shop-floor quality control tools in the fabrication of stainless and duplex steel equipment.

Ferrite content is reported either as a Ferrite Number (FN), the internationally standardised unit used in welding specifications, or as a volume per cent ferrite, more commonly used for wrought and cast duplex stainless steels. Because ferrite content directly influences a weld’s resistance to cracking and corrosion, ferritescope measurement is a routine release test on fabricated pressure equipment, piping, and process vessels destined for aggressive service environments.

Why Ferrite Content Matters

Austenitic stainless steel welds solidify with a controlled fraction of delta ferrite dispersed in the austenite matrix. This ferrite fraction is a deliberate metallurgical target, not a defect – but it must fall within a defined window:

• Too little ferrite leaves the weld susceptible to solidification (hot) cracking, since ferrite disrupts the continuous liquid film along solidifying grain boundaries that otherwise promotes cracking.
• Too much ferrite reduces toughness, ductility, and corrosion resistance, and increases susceptibility to embrittlement mechanisms such as sigma phase formation during prolonged high-temperature service.

For duplex and super-duplex stainless steels, the balance between ferrite and austenite phases (typically targeted near 50/50) governs both mechanical strength and resistance to chloride stress corrosion cracking. Because these property trade-offs are so sensitive to phase balance, ferrite content is one of the few weld metallurgical properties routinely specified as a numeric acceptance criterion on fabrication drawings and purchase specifications.

Also Read – Types of ASTM Standards: Differences Between Test Methods, Guides & Specs

How the Ferritescope Works

The ferritescope operates on the magnetic induction (feritscope) principle. A probe containing a coil generates a low-frequency alternating magnetic field at the surface of the test piece. Because ferrite is ferromagnetic while austenite is essentially non-magnetic, the presence of ferrite in the microstructure alters the magnetic permeability beneath the probe. The instrument measures the resulting change in the coil’s induced voltage (magnetic response) and converts it into a ferrite reading, displayed directly as % ferrite or Ferrite Number.

Because the method responds to any ferromagnetic phase, it detects all magnetic constituents in the steel, including martensite — an important consideration when testing materials or welds that may contain untempered martensite alongside delta ferrite, since this can produce artificially elevated readings.

Governing Standards and Ferrite Number Reporting

Ferrite content measurements are performed and reported in accordance with internationally recognised specifications, most commonly:

• AWS A4.2M – Standard Procedures for Calibrating Magnetic Instruments to Measure the Delta Ferrite Content of Austenitic and Duplex Austenitic-Ferritic Stainless Steel Weld Metal
• ISO 8249 – Welding – Determination of Ferrite Number (FN) in austenitic and duplex ferritic-austenitic Cr-Ni stainless steel weld metals
• ASTM A800/A800M – Standard Practice for Calculating Ferrite Content from Chemical Composition (used as a complementary predictive method alongside instrument measurement)
• Customer and industry-specific specifications – including SES 38.2, Shell DEP 30.10.60.18, and DEP 31.38.01.31, which are frequently invoked in oil and gas fabrication contracts

These standards define calibrated reference blocks, instrument calibration intervals, and the conversion between raw magnetic instrument output and the standardised Ferrite Number scale, ensuring that FN values are comparable across instruments, laboratories, and fabrication shops.

Calibration and Test Procedure

1. Instrument calibration – the ferritescope is calibrated against a set of certified Ferrite Number reference standards (typically primary or secondary calibration blocks traceable to AWS A4.2M) before use and at defined intervals during a testing campaign.
2. Surface preparation – the test surface is cleaned of scale, spatter, paint, or coating that could interfere with the magnetic field or introduce lift-off error.

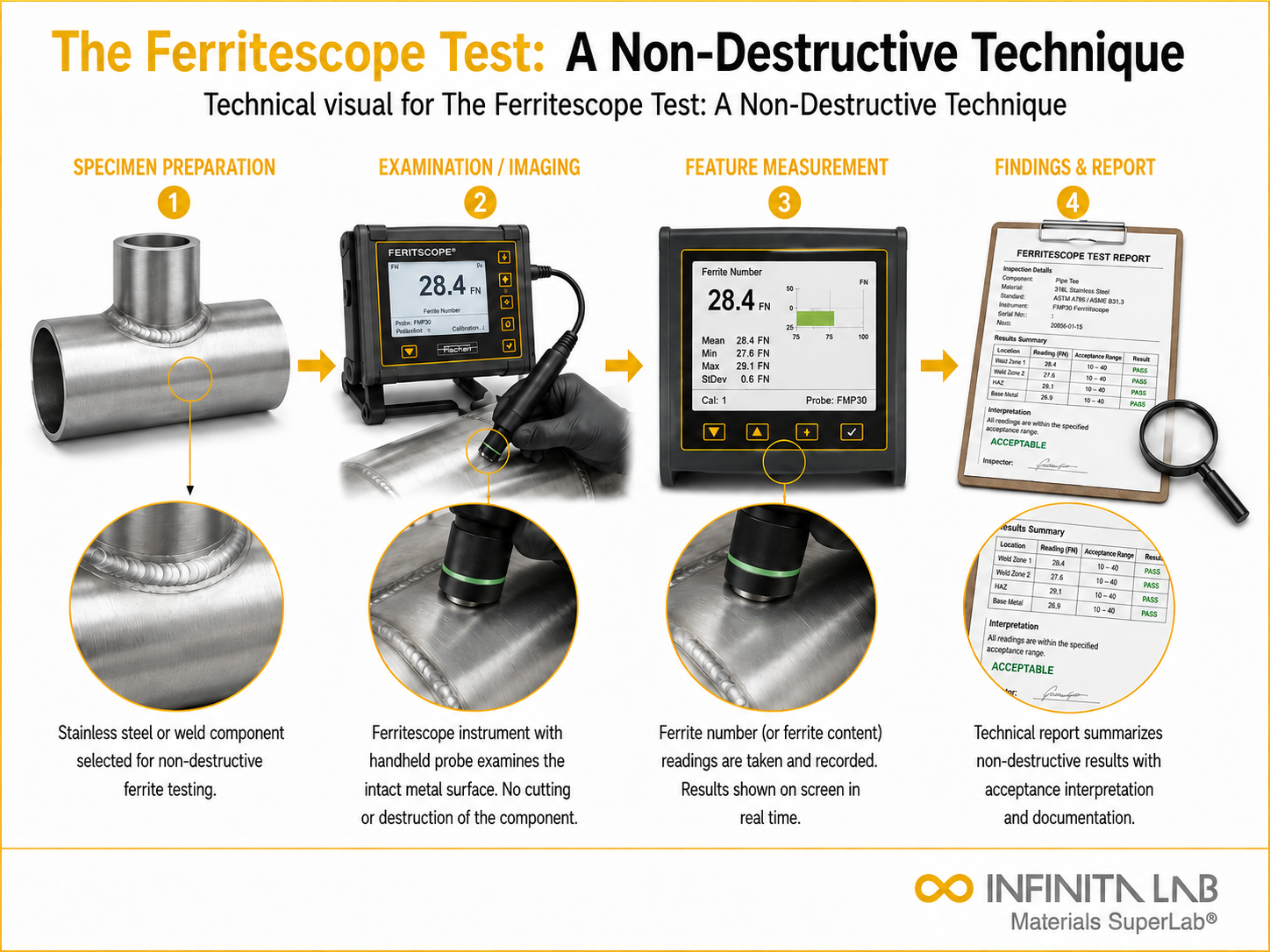

3. Probe placement – the probe is placed flat against the test surface at each specified location, typically the weld cap, weld root (where accessible), and adjacent heat-affected zone.
4. Multiple readings – several readings are taken at each location and averaged, per the governing specification, to account for local microstructural variation.
5. Recording and reporting – readings are recorded against a marked-up drawing or weld map showing test locations, along with the applicable acceptance criteria and any readings falling outside the specified range.

Factors That Affect Ferritescope Readings

Several factors can influence measurement accuracy and must be controlled or accounted for during testing:

• Surface curvature – small-diameter pipe and tight-radius fittings can distort the magnetic field and require curvature-correction factors or specialised probes
• Material thickness – thin sections or coatings beneath the probe (lift-off) reduce signal strength and can under-report ferrite content
• Cold work – surface grinding, shot peening, or other cold work can induce localised martensite and artificially elevate readings
• Temperature – magnetic response is temperature-sensitive, so readings taken shortly after welding on a still-hot component may require correction
• Probe orientation – readings can vary depending on probe alignment relative to the weld bead direction, which is why multiple orientations are often specified

Industry Applications

Oil and gas fabrication relies on ferritescope testing to verify weld ferrite content on duplex and super-duplex piping systems destined for sour and chloride-rich service, where phase balance directly governs stress corrosion cracking resistance. Power generation and process plants use ferrite measurement on austenitic stainless steel piping and pressure vessel welds operating at elevated temperature, where excessive ferrite risks embrittlement over the service life of the equipment. Nuclear component fabricators apply ferritescope testing as a documented quality control step on austenitic stainless steel welds subject to strict fabrication codes. Shipbuilding and offshore construction use the technique for rapid, in-situ verification of weld quality on stainless and duplex structural and piping welds without removing material for destructive metallographic sectioning.

Also Read – Top 20 Battery Testing Methods for Lithium-Ion & Energy Storage

Conclusion

Ferritescope testing gives fabricators and inspectors a fast, portable, and non-destructive way to confirm that a weld’s ferrite content falls within the narrow window required for both crack resistance and long-term mechanical and corrosion performance. Because the acceptable range is often tight and directly tied to contract specifications, accurate calibration and correct test technique are essential to a reliable result. At Infinita Lab, we connect fabricators, inspectors, and engineers with accredited labs experienced in ferrite content measurement to the full range of governing standards, ensuring results our clients can rely on for release and certification decisions.
