ASTM D1024: Stiffness Testing of Plastics by Cantilever Beam Method

What Is ASTM D1024?

ASTM D1024 — Standard Test Method for Stiffness Properties of Plastics as Flexural Members — is a widely used test standard for measuring the stiffness and flexural rigidity of plastic materials when subjected to bending loads. This method is primarily used to determine how resistant a plastic specimen is to bending deformation under a specified load, making it an important mechanical characterisation test for rigid and semi-rigid plastics.

The test provides key stiffness-related properties that are essential for product design, quality control, and material selection in industries such as automotive, packaging, construction, consumer goods, and electronics.

What Does ASTM D1024 Measure?

ASTM D1024 is specifically designed to evaluate the stiffness of plastics under flexural loading conditions. The main property measured is:

• Flexural stiffness: Resistance of the plastic to bending under load
• Flexural rigidity: Combined effect of material modulus and specimen geometry
• Load-deflection behaviour: Relationship between applied force and bending displacement
• Bending resistance: Useful for structural plastic components

Unlike tensile testing, which measures resistance to pulling forces, ASTM D1024 focuses on bending performance, which is often more relevant for real-world applications such as panels, sheets, trays, housings, and structural inserts.

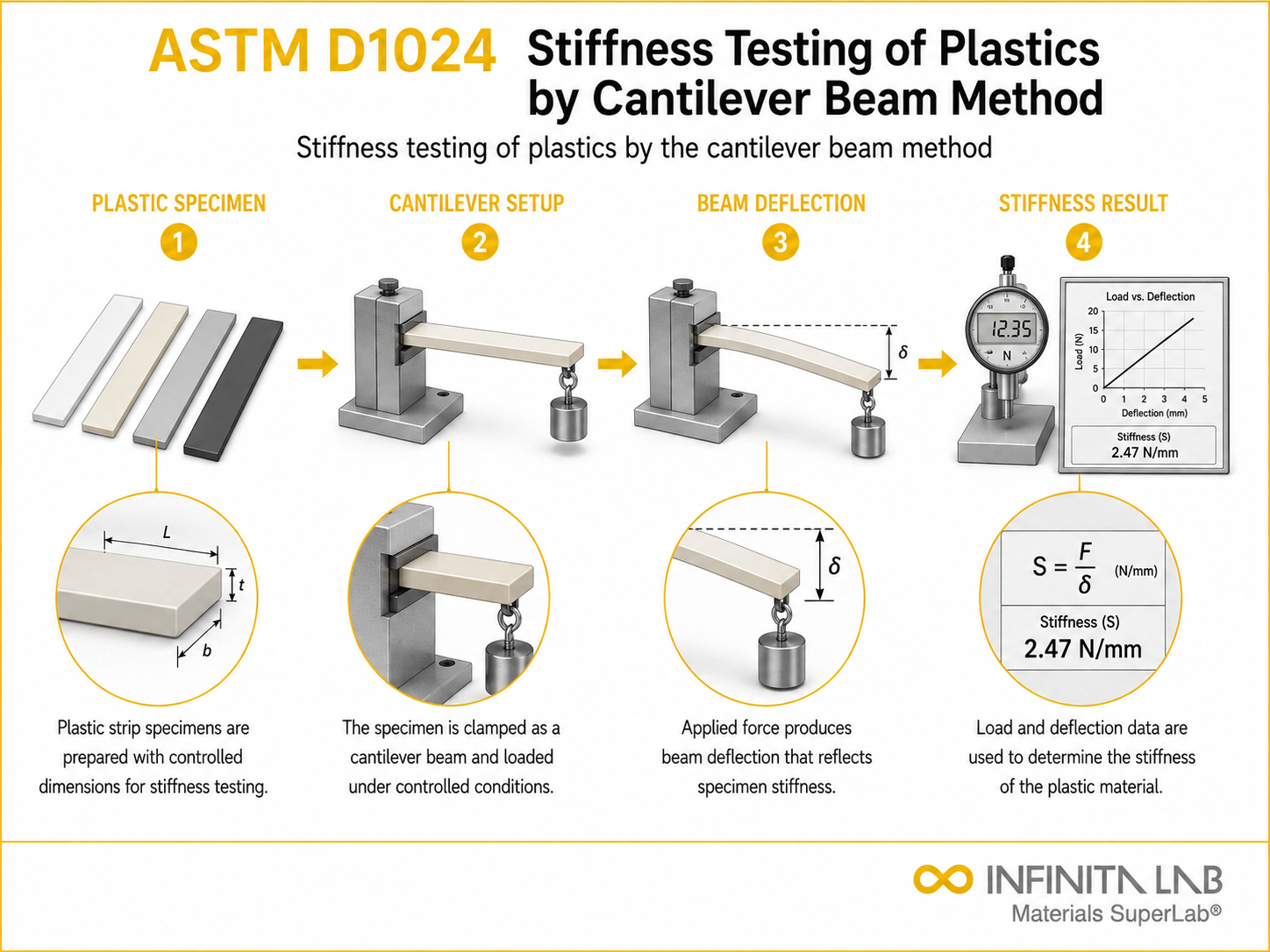

ASTM D1024 Test Procedure

The test is performed by preparing rectangular plastic specimens of specified dimensions. The specimen is supported as a beam and subjected to a load at a defined point or configuration, depending on the required stiffness evaluation.

The standard procedure generally includes:

• Cutting specimens to standard dimensions
• Measuring specimen width and thickness accurately
• Supporting the sample on fixed supports
• Applying a controlled load at the centre or specified points
• Measuring the resulting deflection
• Calculating stiffness from the load-deflection curve

The stiffness value is determined from the ratio of applied load to the measured deflection within the elastic region.

Why Stiffness Testing Is Important

Stiffness is one of the most critical mechanical properties for plastic components that must maintain shape and resist deformation during service.

Higher stiffness is important for:

• Structural panels
• Packaging trays
• Automotive interior parts
• Appliance housings
• Plastic sheets and boards
• Construction products

Materials with inadequate stiffness may bend excessively, deform permanently, or fail during use.

Factors Affecting Plastic Stiffness

Several material parameters influence ASTM D1024 results:

• Polymer type: PC, ABS, PP, HDPE, PVC, acrylic
• Filler loading: Glass fibre, talc, mineral fillers
• Thickness of specimen
• Temperature
• Moisture absorption
• Additives and reinforcement

For example, glass-filled nylon or polypropylene typically shows much higher stiffness than unfilled grades.

Industrial Applications

ASTM D1024 stiffness testing is widely used in:

• Automotive: dashboards, trim panels, structural inserts
• Packaging: rigid trays, containers, blister packs
• Construction: wall panels, insulation boards, PVC sheets
• Electronics: housings and enclosures
• Consumer products: storage bins, appliance covers, furniture components

The test data helps engineers ensure that products meet performance requirements under bending loads.

Conclusion

ASTM D1024 is the standard test method used to determine the stiffness properties of plastics under flexural loading. It measures the resistance of plastic materials to bending deformation and provides essential data for design validation, quality control, and material comparison.

This test is particularly important for rigid and semi-rigid plastic products where dimensional stability and bending resistance are critical to long-term performance.
