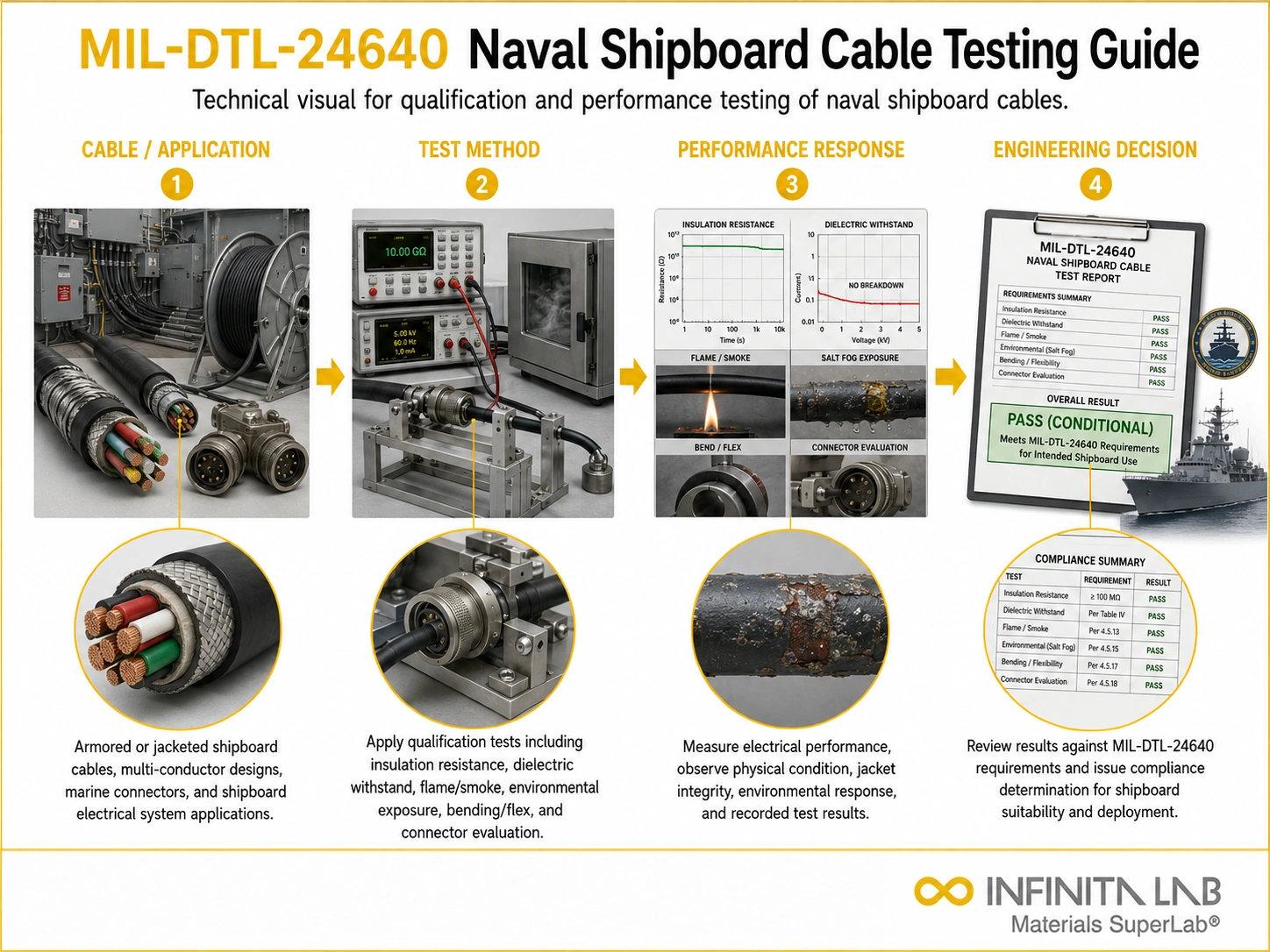

MIL-DTL-24640 Naval Shipboard Cable Testing Guide
MIL-DTL-24640C is a military specification that covers the requirements for light, low-smoke electrical cables used on Navy ships. The specification outlines the materials, construction, and performance requirements for these cables, which are designed to be used in areas where smoke and toxic fumes could pose a risk to personnel during a fire.
TRUSTED BY
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
MIL-DTL-24640 Test Overview
MIL-DTL-24640 is a U.S. military specification that defines the requirements for lightweight, low-smoke electrical cables used in Navy shipboard applications. The test ensures that cables meet strict performance, safety, and environmental criteria for use in critical marine and defense systems.
These cables are designed to operate under demanding conditions, including exposure to heat, mechanical stress, and confined environments. Testing under MIL-DTL-24640 evaluates parameters such as electrical performance, flame behavior, and durability, ensuring reliability in mission-critical applications.
Scope, Applications, and Benefits
Scope
MIL-DTL-24640 testing evaluates:
- Electrical performance (voltage rating up to ~600 V)
- Temperature resistance (−20°C to ~105°C)
- Flame retardancy and low-smoke characteristics
- Mechanical durability and flexibility
- Cable construction (shielding, armoring, watertight integrity)
Applications
- Naval shipboard electrical systems
- Marine and offshore equipment
- Defense and military communication systems
- Control, instrumentation, and power cables
- Aerospace and harsh-environment electronics
Benefits
- Ensures compliance with military-grade specifications
- Enhances safety through low-smoke, flame-retardant design
- Improves reliability in harsh environments
- Supports long-term performance under thermal and electrical stress
- Enables standardized cable classification and selection
MIL-DTL-24640 Test Process
Sample Preparation
Cable samples are selected based on configuration (shielded/unshielded, armored, watertight).
1Electrical Testing
Voltage, insulation resistance, and conductor performance are evaluated under standard conditions.
2Fire & Environmental Testing
Flame propagation, smoke generation, and temperature resistance are assessed.
3Data Analysis
Results are compared against MIL-DTL-24640 requirements for compliance verification.
4MIL-DTL-24640 Technical Specifications
| Parameter | Details |
|---|---|
| Test Principle | Performance verification of shipboard electrical cables |
| Applicable Materials | Low-smoke, lightweight electrical cablesLow-smoke, lightweight electrical cables |
| Voltage Rating | Up to ~600 V |
| Temperature Range | −20°C to ~105°C |
| Cable Types | Shielded, unshielded, armored, watertight |
| Conductor Size | Typically 20–26 AWG |
| Measured Outputs | Electrical, thermal, and fire performance |
Instrumentation Used for Testing
- Electrical testing systems (insulation resistance, voltage testing)
- Flame and smoke test chambers
- Environmental test chambers (temperature cycling)
- Mechanical testing equipment
- Cable characterization tools
- Data acquisition systems
Results and Deliverables
- Compliance status with MIL-DTL-24640 specification
- Electrical performance data (voltage, insulation resistance)
- Flame retardancy and smoke emission results
- Mechanical and environmental performance evaluation
- Cable classification and verification report
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the MIL-DTL-24640 testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
MIL-DTL-24640 testing is used to verify that electrical cables meet military requirements for performance, safety, and durability in shipboard and harsh marine environments.
The standard applies to lightweight, low-smoke electrical cables used in naval applications, including shielded, unshielded, armored, and watertight cable constructions.
Testing evaluates electrical performance, temperature resistance, flame retardancy, smoke generation, and mechanical durability to ensure reliable operation under demanding conditions.
Low-smoke cables reduce visibility hazards and toxic exposure during fire incidents, improving safety in confined environments such as ships and submarines.
Industries such as defense, marine, aerospace, and heavy engineering use this testing to ensure cables meet strict performance and safety standards in critical environments.
