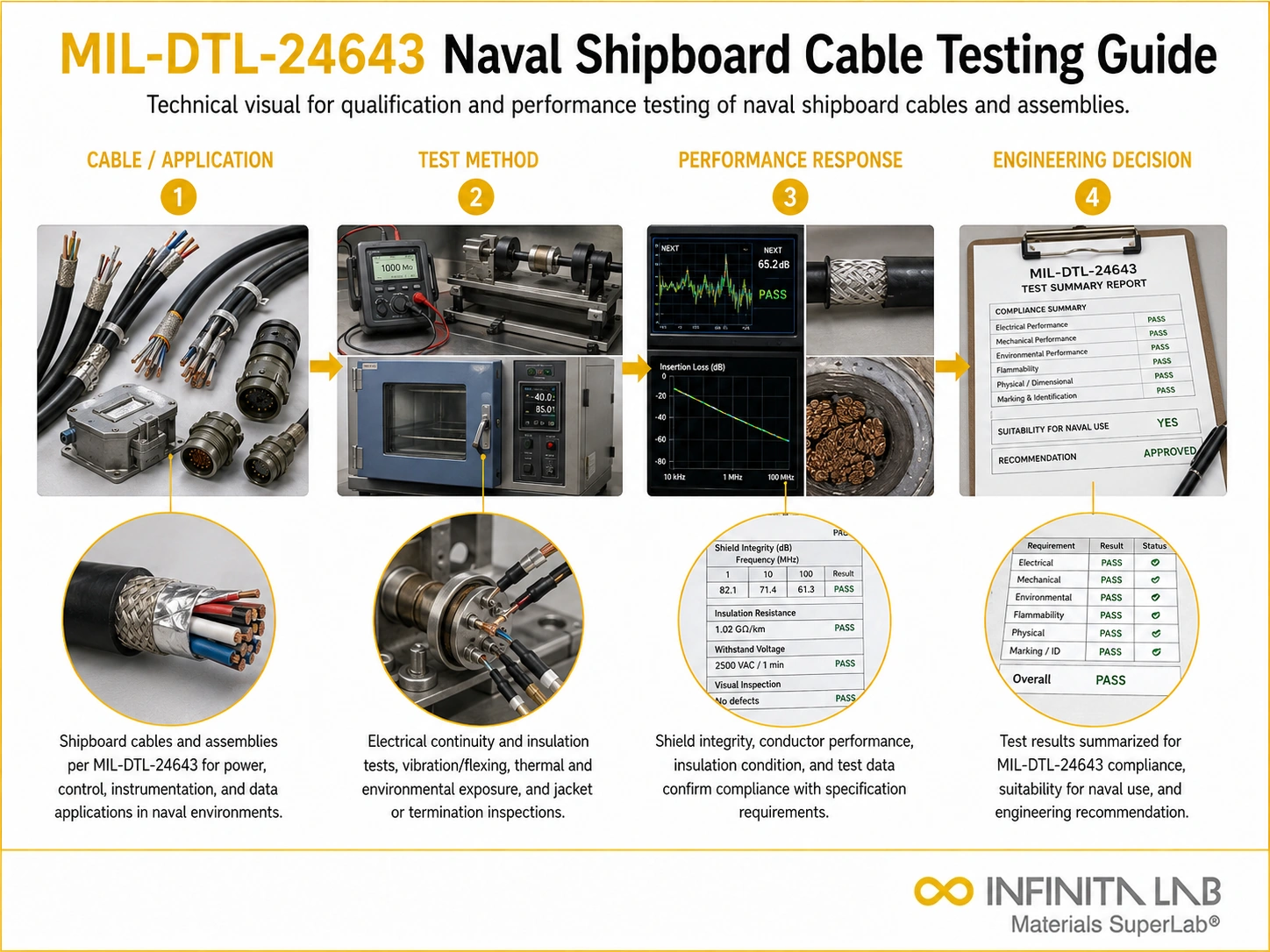

MIL-DTL-24643 Naval Shipboard Cable Testing Guide
MIL-DTL-24643 is a military specification that covers the requirements for shipboard cables used in U.S. Navy ships. The specification outlines the materials, construction, and performance requirements for these cables, which are designed to withstand the harsh conditions of a marine environment.
TRUSTED BY
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
MIL-DTL-24643 Cable Testing Overview
MIL-DTL-24643 is a U.S. military specification that defines requirements for low-smoke, halogen-free electrical cables used in Navy shipboard environments. These cables are designed to minimize smoke, toxicity, and flame propagation while maintaining reliable electrical performance under harsh marine conditions.
The specification covers a wide range of cable constructions, including armored and unarmored, watertight and non-watertight, and shielded or unshielded configurations. It ensures that cables meet strict electrical, mechanical, and fire safety criteria for applications such as power distribution, control systems, and communication networks.
Scope, Applications, and Benefits
Scope
MIL-DTL-24643 testing evaluates:
- Electrical performance (voltage withstand, insulation resistance)
- Flame propagation and fire resistance
- Smoke density and toxicity levels
- Mechanical strength and durability
- Environmental resistance (heat, humidity, aging)
Applications
- Navy shipboard electrical systems
- Marine and offshore installations
- Power, lighting, and control circuits
- Communication and instrumentation cables
- Defense and military equipment
Benefits
- Ensures low smoke and low toxicity during fire
- Enhances safety in confined environments
- Verifies durability under harsh marine conditions
- Supports compliance with military standards
- Improves long-term cable reliability
MIL-DTL-24643 Test Process
Sample Preparation
Cable specimens are selected based on construction type and conditioned before testing.
1Electrical Testing
Conductor resistance, insulation resistance (≥250–500 MΩ/1000 ft), and voltage withstand tests (up to ~3000–5000 V RMS) are performed.
2Mechanical & Environmental Testing
Tensile strength (~1300 psi), elongation (~150–160%), thermal aging, humidity, and cold bending tests are conducted.
3Fire & Safety Evaluation
Flame propagation, smoke index, toxicity index, and halogen content are measured for compliance.
4MIL-DTL-24643 Technical Specifications
| Parameter | Details |
|---|---|
| Applicable Materials | Low-smoke, halogen-free shipboard cables |
| Voltage Withstand | ~3000–5000 V RMS (depending on size) |
| Insulation Resistance | ≥250–500 MΩ/1000 ft |
| Tensile Strength | ~1300 psi minimum |
| Temperature Range | Typically up to ~125°C (application dependent) |
| Smoke Index | ≤25–45 (component dependent) |
| Halogen Content | ≤0.2% (LSZH requirement) |
| Measured Outputs | Electrical, mechanical, fire performance |
Instrumentation Used for Testing
- Dielectric strength tester
- Insulation resistance tester
- Tensile testing machine
- Environmental chamber (temperature/humidity)
- Flammability and smoke test chamber
- Toxicity measurement system
- Data acquisition system
Results and Deliverables
- Voltage withstand and insulation resistance data
- Mechanical properties (tensile strength, elongation)
- Flame propagation and fire performance results
- Smoke density and toxicity evaluation
- Pass/fail compliance with MIL-DTL-24643
Partnering with Infinita Lab for Optimal Results
Infinita Lab addresses the most frustrating pain points in the MIL-DTL-24643 testing process: complexity, coordination, and confidentiality. Our platform is built for secure, simplified support, allowing engineering and R&D teams to focus on what matters most: innovation. From kickoff to final report, we orchestrate every detail—fast, seamlessly, and behind the scenes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
MIL-DTL-24643 is used for low-smoke, halogen-free electrical cables in Navy shipboard applications, ensuring safe operation in confined environments with reduced fire hazards.
These cables are designed to produce minimal smoke and toxic gases during fire exposure while maintaining high electrical and mechanical performance in harsh marine environments.
Testing includes electrical (voltage, resistance), mechanical (tensile, bending), environmental (aging, humidity), and fire-related tests such as flame propagation, smoke, and toxicity.
LSZH stands for Low Smoke Zero Halogen, meaning the cable emits minimal smoke and no harmful halogen gases during combustion, improving safety in enclosed spaces.
It ensures cables used in critical marine and defense environments meet strict safety, reliability, and fire performance requirements, reducing risk to personnel and equipment.
