What Is Ipx1 Ipx2 Dripping Water Ingress Protection?
The IPX1 and IPX2 ratings are standardized dripping water tests. The IPX1 and IPX2 ratings fall under the Ingress Protection rating system defined by the International Electrotechnical Commission standard 60529. The first digit of the IP code shows protection from solids, and the second digit shows protection from liquids.
The IPX1 and IPX2 ratings evaluate the level of protection that a product provides from vertically falling water drops and from water dripping at a 15° angle.
Applications and Benefits of Ipx1 Ipx2 Dripping Water Ingress Protection Testing
Scope
IPX1 and IPX2 are ratings used to determine water ingress protection, which is based on IEC standard 60529. These ratings are used for various enclosures, including electrical boxes, lighting, control devices, consumer products, outdoor equipment enclosures, and industrial products. These ratings determine how effectively equipment can resist water ingress when subjected to controlled dripping conditions.
What is being tested:
– IPX1: protection against vertically dripping water
– IPX2: protection against water drops that fall at an angle of up to 15 degrees from vertical
Applications
- Outdoor electrical installations
- Lighting systems
- Switchgear and panels
- Consumer appliances
- Telecommunication enclosures
- Industrial automation equipment
- Battery housings
- Rain-exposed equipment
Benefits
- Verifies resistance to light rain and dripping water
- Ensures enclosure sealing integrity
- Reduces risk of electrical hazards
- Improves product durability
- Supports regulatory compliance
- Enhances customer confidence
- Prevents moisture-related functional failure
Our Testing Procedure

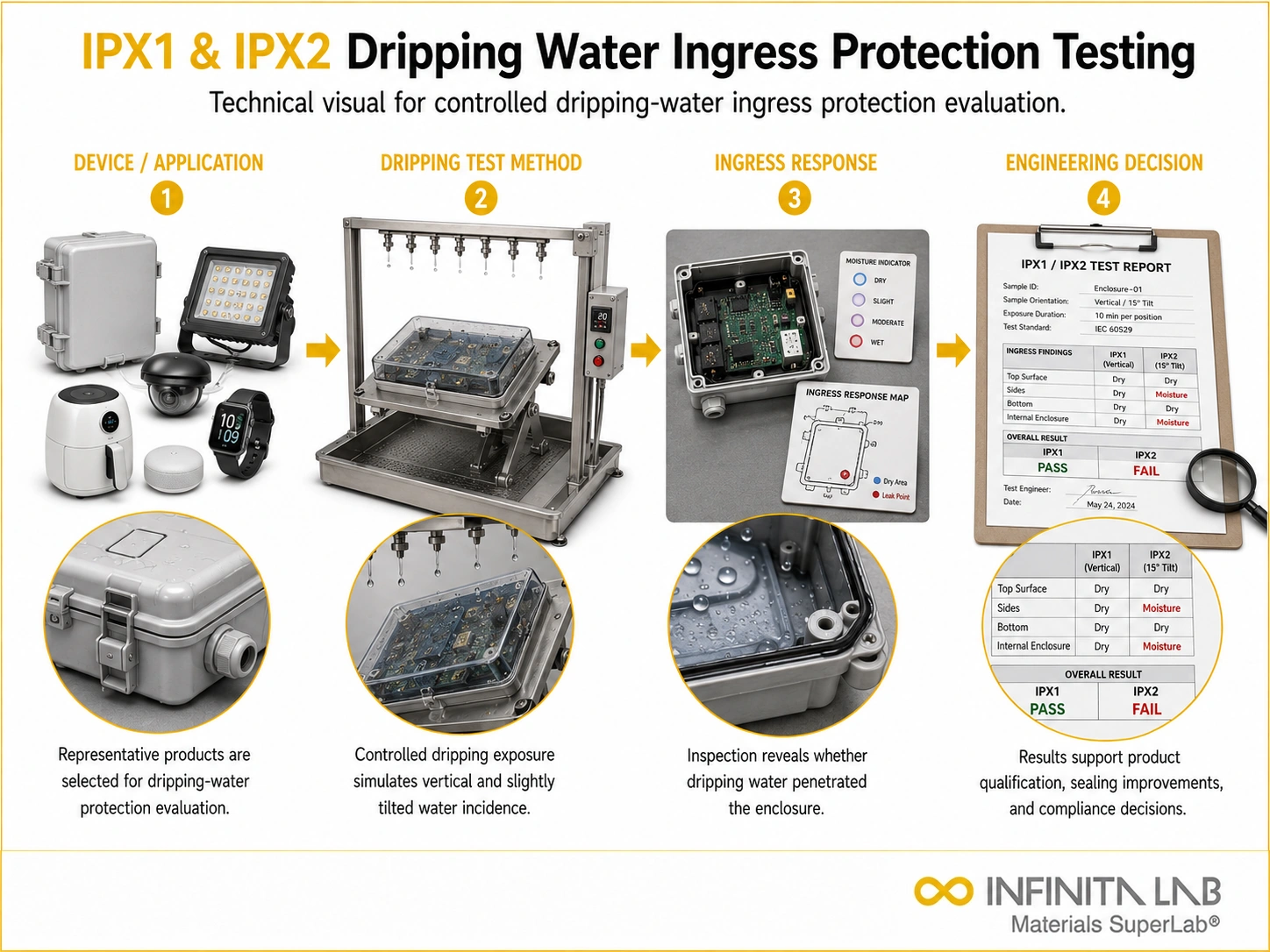

Test Setup
Place the product in a controlled dripping water chamber.
1IPX1 Exposure
Expose to vertical water drips (1 mm/min from ~200 mm height) while rotating at 1 rpm for 10 minutes.
2IPX2 Exposure
Tilt the product 15° from vertical and apply water at 3 mm/min for four positions (2.5 minutes each, total 10 minutes).
3Inspection and Compliance
Inspect for internal water ingress; the product passes if no harmful water penetration is observed.
4Test parameters and requirements
| Parameter | Details |
|---|---|
| Water Flow Rate (IPX1) | 1 mm/min |
| Water Flow Rate (IPX2) | 3 mm/min |
| Tilt Angle (IPX2) | 15° from vertical |
| Test Duration | 10 minutes |
| Rotation Speed (IPX1) | 1 revolution per minute |
| Water Drop Height | Approx. 200 mm |
| Protection Type | Dripping water protection |
| Pass Criteria | No harmful water ingress |
- Drip test apparatus
- Calibrated water flow control system
- Rotating turntable (1 rpm)
- Adjustable tilt platform (15°)
- Water collection and drainage system
- Inspection tools for ingress verification
- Environmental test chamber
Equipment and Instrumentation Used for Testing
What You Receive: Test Report, Data, and Certification
- IP rating verification (IPX1 / IPX2)
- Ingress inspection report
- Photographic documentation (if required)
- Test condition summary
- Validation and conformity reports
Ipx1 Ipx2 Dripping Water Ingress Protection FAQs
IPX1 tests the protection offered by vertically dripping water. IPX2 raises the level of testing by tilting the product at 15° and testing it in various positions. This is because the product may have water ingress routes that are not evident when testing is done vertically. Both test the protection offered by the product against moisture when used indoors.
These tests are the first level of protection against water ingress. These tests verify resistance to condensation, overhead drips, and accidental splashes. The IPX1/IPX2 rating is typically a prerequisite for more stringent IP ratings in most regulatory and OEM approval schemes.
These tests are used on electrical and electronic devices intended for indoor use. These tests are applicable to equipment that is installed in a controlled environment. Devices that are exposed to incidental moisture or condensation can benefit from these tests. These tests can be considered as a first-stage test for moisture resistance.
Yes, IPX1 does not guarantee IPX2 compliance. The 15° tilt in IPX2 brings side openings, seams, and vents into play. Water entry can happen because of inadequate sealing or enclosure design. This makes IPX2 a significant test for proving the robustness of the enclosure.
Yes, details like vents, joints, cable entries, gaskets, and fasteners can significantly affect the IPX1 and IPX2 ratings. Poor sealing or drainage can lead to water entry in localized areas, but sometimes a few design changes can improve the water resistance.
The IPX1 waterproof test evaluates an electrical enclosure's resistance to vertically falling water drops under IEC 60529. The equipment is placed beneath a calibrated drip box that distributes water uniformly over its surface. During the test, the equipment is exposed to dripping water at a rate of approximately 1 mm per minute for 10 minutes while positioned on a rotating turntable. After exposure, the enclosure is inspected to determine whether water ingress has caused harmful effects.
The IPX2 rating indicates protection against vertically falling water drops when an enclosure is tilted up to 15 degrees from its normal position. Under IEC 60529, the equipment is tested in four fixed tilted positions, with water dripping onto the enclosure for 2.5 minutes in each position. The total test duration is 10 minutes. After testing, the equipment is inspected to verify that water ingress has not caused harmful effects.
The IPX1 rating indicates that an electrical device or enclosure is protected against vertically falling water drops. During testing, the product is placed under a drip box that produces a controlled and uniform water flow. The enclosure is exposed to approximately 1 mm of rainfall per minute for 10 minutes while rotating at a controlled speed. The test helps determine whether the product can withstand light vertical dripping without harmful water ingress.
Why Choose Infinita Lab for Ipx1 Ipx2 Dripping Water Ingress Protection Testing
When your Ipx1 Ipx2 Dripping Water Ingress Protection results have to hold up - for compliance, a customer audit, or an engineering decision - accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your ipx1 ipx2 dripping water ingress protection testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
Looking for an Accredited Partner for Ipx1 Ipx2 Dripping Water Ingress Protection Testing?
Send query us at hello@infinitalab.com or call us at (888) 878-3090 to learn more about our services and how we can support you.
