ASTM D5215 Vinyl Flooring Staining by Adhesives
ASTM D5215 test measures the degree of staining by adhesives on vinyl flooring, using instrumental techniques. The specimens are subjected to heat aging and then to UVA light, to expedite discoloration. The comparative discoloration is measured by a colorimeter or spectrophotometer and expressed in CIELAB units.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
ASTM D5215 Vinyl Flooring Staining by Adhesives Overview
ASTM D5215 is the standard test method for the instrumental evaluation of the staining of vinyl flooring caused by adhesives. When resilient vinyl flooring is installed over an adhesive, certain components in the adhesive can migrate into the vinyl over time and cause discoloration – a yellowing or staining of the floor that is a common and costly installation failure. This test measures how much staining a given adhesive produces on a given vinyl flooring, using instrumental color measurement rather than subjective visual judgment.
Because staining develops slowly under normal service conditions, the test accelerates it. Specimens of vinyl flooring in contact with the adhesive are subjected to heat aging and then to UVA light exposure, which expedites the discoloration that would otherwise take much longer to appear. The color of the vinyl is measured before and after this accelerated exposure using a colorimeter or spectrophotometer, and the degree of staining is expressed as a color difference in CIELAB (Lab*) units – typically as a ΔE value capturing the total color change, along with the individual components such as the b* shift that indicates yellowing.
ASTM D5215 is used by flooring and adhesive manufacturers to evaluate adhesive-flooring compatibility, to develop and qualify non-staining adhesives, and to verify that an adhesive will not discolor the flooring it is meant to bond. By using instrumental color measurement, it provides an objective, quantitative, and repeatable measure of staining that removes the variability of visual assessment.
ASTM D5215 Vinyl Flooring Staining by Adhesives Scope, Applications, and Benefits
Scope
ASTM D5215 covers the instrumental determination of the degree to which an adhesive stains vinyl flooring, using accelerated aging followed by color measurement expressed in CIELAB units.
Key aspects of the test scope include:
- Test purpose – measuring the staining (discoloration) of vinyl flooring caused by contact with an adhesive
- Accelerated exposure – specimens undergo heat aging followed by UVA light exposure to expedite the discoloration that develops slowly in service
- Instrumental measurement – color is measured with a colorimeter or spectrophotometer, providing an objective result rather than a visual judgment
- Result basis – discoloration expressed in CIELAB (Lab*) units, typically as a color difference (ΔE) between exposed and unexposed/control specimens, capturing yellowing and overall color change
- Materials – vinyl (resilient) flooring and the flooring adhesives used to install it
- Comparative measurement – staining assessed by the comparative color change relative to a control
Applications
- Adhesive-flooring compatibility – verifying that a flooring adhesive will not discolor the vinyl flooring it is used with before the combination is put into service
- Non-staining adhesive development – developing and optimizing flooring adhesive formulations to minimize staining of vinyl flooring
- Flooring product qualification – confirming that a vinyl flooring product resists staining from the adhesives it will be installed with
- Quality control – verifying batch-to-batch consistency of adhesives (or flooring) with respect to staining behavior
- Formulation troubleshooting – investigating staining/discoloration complaints by quantifying the staining produced by specific adhesive-flooring combinations
- Supplier and product comparison – comparing adhesives (or flooring products) on an objective, instrumental basis for their staining tendency
Benefits
- Objective, quantitative result – instrumental color measurement in CIELAB units replaces subjective visual judgment with a defined, numerical measure of staining
- Accelerated and practical – heat aging plus UVA exposure expedites discoloration that would take far longer in service, giving a usable result in a manageable timeframe
- Identifies incompatible combinations before installation – testing reveals adhesive-flooring combinations that will discolor, preventing a costly and visible installation failure
- Supports non-staining product development – quantitative staining data guides the formulation of adhesives (and selection of flooring) that resist discoloration
- Repeatable and comparable – the standardized, instrumental approach gives consistent results that can be compared across products, batches, and formulations
- Captures yellowing specifically – the CIELAB measurement quantifies the yellowing (b* shift) that is the characteristic mode of adhesive staining, not just overall color change

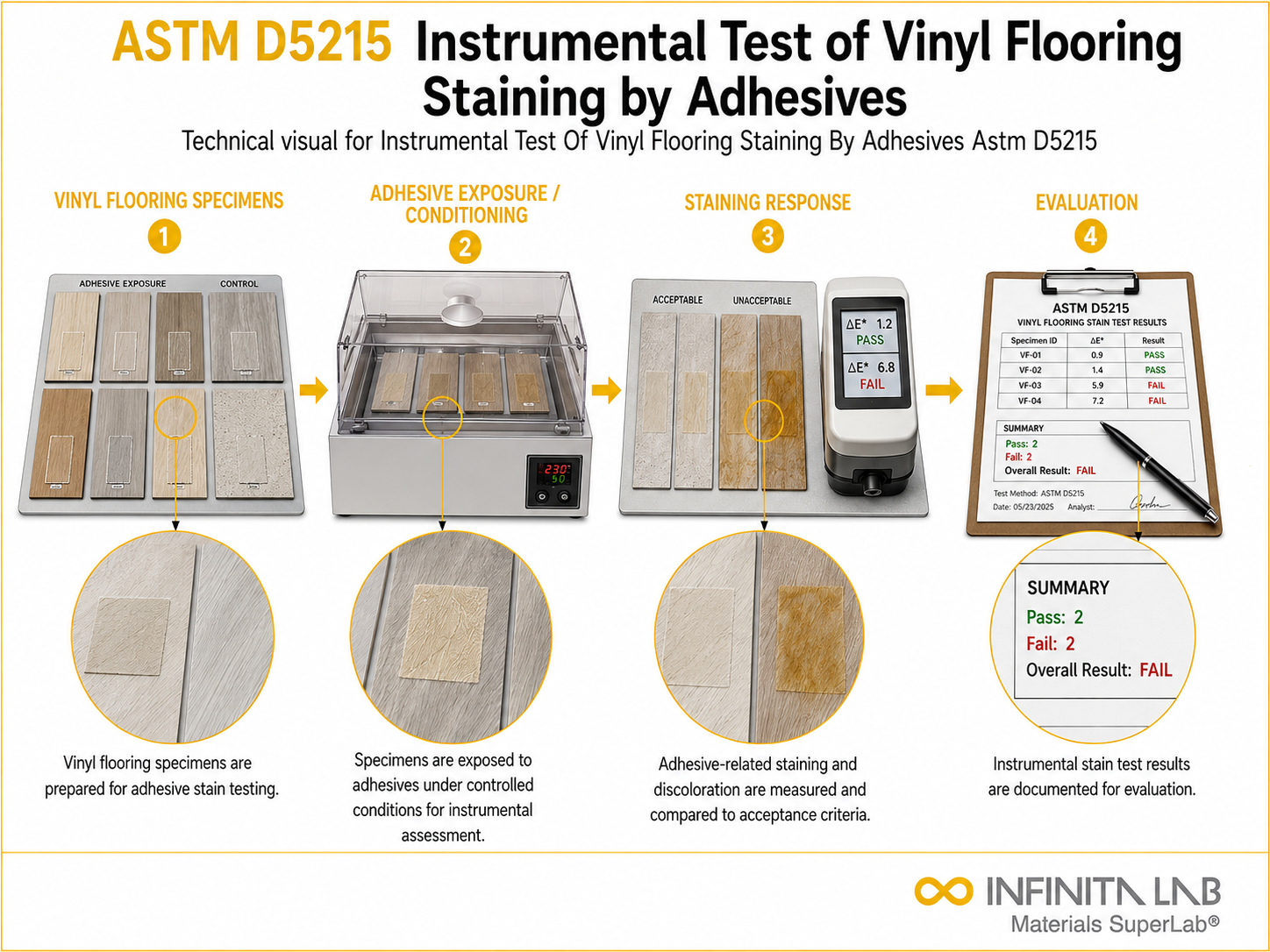

ASTM D5215 Vinyl Flooring Staining by Adhesives Test Process
Prepare the Specimens
Apply the adhesive to vinyl flooring samples and record the initial colour.
1Heat Age the Samples
Expose the specimens to the specified elevated temperature.
2Apply UVA Exposure
Subject the aged specimens to UVA light to accelerate staining.
3Measure and Report
Calculate the CIELAB colour difference (ΔE) and report the degree of discoloration.
4ASTM D5215 Vinyl Flooring Staining by Adhesives Technical Specifications
| Parameter | Details |
|---|---|
| Measured Property | Degree of staining (discoloration) of vinyl flooring |
| Accelerated Conditioning | Heat aging followed by UVA light exposure |
| Measurement | Colorimeter or spectrophotometer |
| Result Basis | CIELAB (Lab*) units; color difference (ΔE) vs. control |
| Key Indicator | Yellowing (b* shift) and total colour change |
| Materials | Vinyl (resilient) flooring and flooring adhesives |
Instrumentation Used for ASTM D5215 Vinyl Flooring Staining by Adhesives
- Colorimeter or spectrophotometer (CIELAB color measurement)
- Heat aging oven
- UVA light exposure apparatus
- Specimen preparation tooling for flooring and adhesive
- Controlled-environment conditioning
- Color analysis software (CIELAB ΔE calculation)
ASTM D5215 Vinyl Flooring Staining by Adhesives Results and Deliverables
- Staining evaluation report – the degree of staining of the vinyl flooring by the adhesive, expressed in CIELAB units, with the conditioning documented
- Color difference data – ΔE and the Lab* component changes (notably the b*/yellowing shift) relative to the control
- Before/after measurements – baseline and post-exposure color readings supporting the calculated discoloration
- Conditioning record – the heat aging and UVA exposure conditions applied
- Comparison against specification (where provided) – measured staining against the acceptance limit for the adhesive-flooring combination
- Sample records – vinyl flooring and adhesive identification, specimen preparation, and control details
Frequently Asked Questions
Certain substances in flooring adhesives can migrate into vinyl and cause visible colour changes. Testing helps manufacturers assess adhesive compatibility before installation or product approval.
The test uses vinyl flooring specimens placed in contact with the adhesive being assessed. Identical control specimens that do not contact the adhesive are also tested for comparison.
Heat and UVA exposure accelerate chemical reactions and migration that may cause staining during long-term service. This allows adhesive–flooring compatibility to be evaluated within a shorter laboratory period.
Colour differences are expressed using the CIELAB colour-scale system. This system provides numerical values that allow small changes in colour to be measured objectively.
Vinyl composition, adhesive formulation, coating thickness, specimen conditioning and exposure uniformity can influence staining. Instrument calibration and consistent positioning are also important for reliable colour measurements.
