What Is ASTM D8133 Low Level Phthalates PVC Solvent Extraction?
ASTM D8133 provides a standard test method for determining low-level phthalate plasticizers in PVC plastics using solvent extraction followed by gas chromatography-mass spectrometry (GC-MS). The method quantifies regulated phthalates, including DEHP, DBP, BBP, DINP, DIDP, and DNOP, at concentrations relevant to RoHS, REACH SVHC, and toy safety regulations.
Solvent extraction per ASTM D8133 is applicable to a broad range of PVC concentrations and provides well-validated, globally accepted analytical data for compliance demonstration in international markets.
Applications and Benefits of ASTM D8133 Low Level Phthalates PVC Solvent Extraction Testing
Scope
ASTM D8133 evaluates:
- Regulated phthalate concentrations (wt%) in PVC articles
- Extraction using tetrahydrofuran (THF) or other specified solvents
- GC-MS identification and quantification of target phthalates
- Compliance verification at the 0.1 wt% regulatory threshold
Applications
- RoHS 2 and REACH SVHC phthalate compliance testing
- Toy safety phthalate compliance per EN 71-9 and ASTM F963
- Consumer electronics and cable insulation testing
- Medical device PVC component qualification
- Food contact and packaging material assessment
Benefits
- Widely accepted by regulatory authorities globally
- Applicable to both high- and low-concentration PVC samples
- Excellent sensitivity and selectivity via GC-MS
- Well-validated method with extensive interlaboratory data
- Provides defensible compliance data for export markets

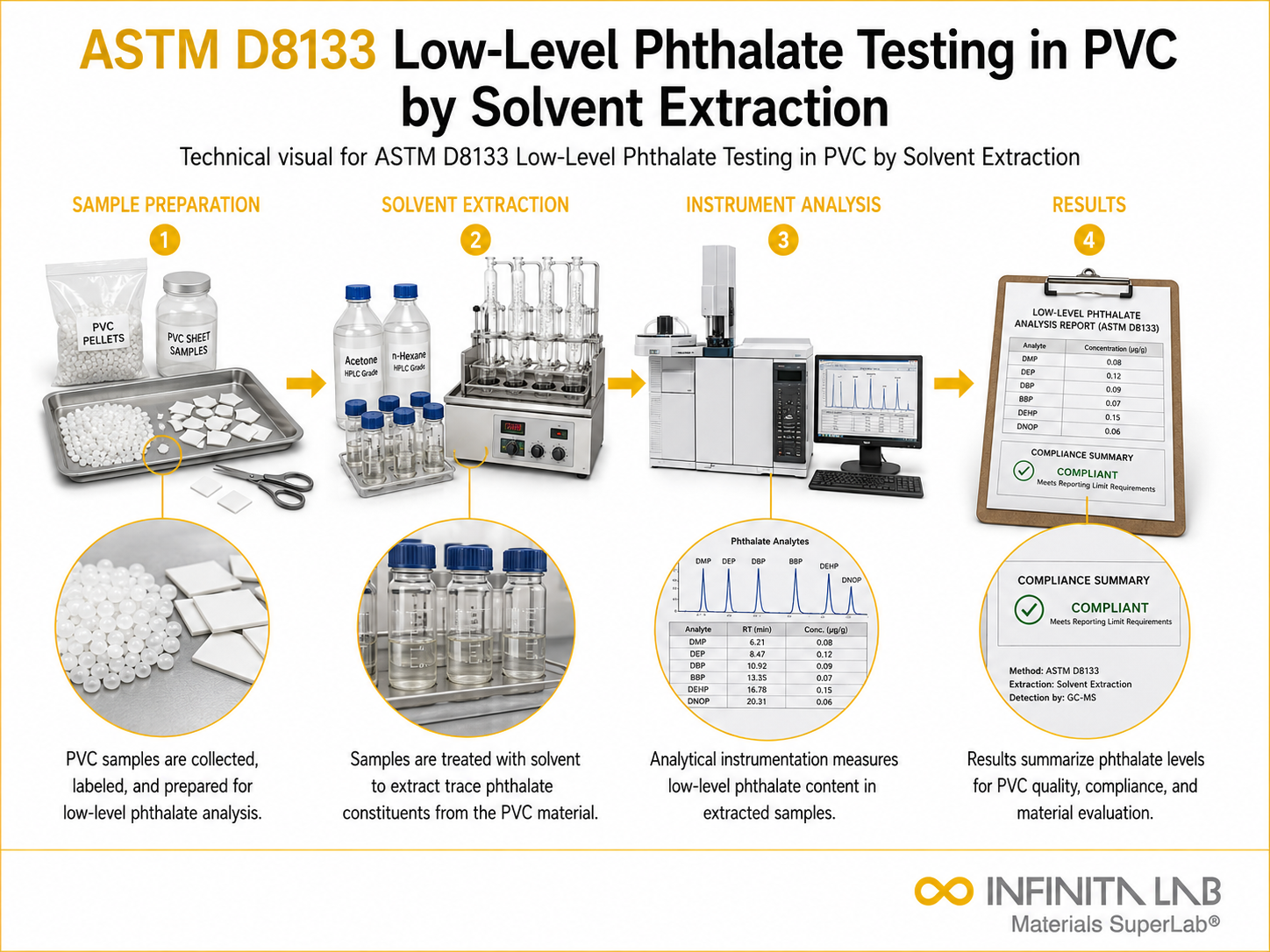

Our ASTM D8133 Testing Procedure
Sample Preparation
PVC specimens are cut or ground into small pieces; a precisely weighed sample (~1 g) is dissolved or extracted in THF or the specified solvent at ambient or elevated temperature.
1Extract Preparation
The extract is filtered, diluted to a defined volume, and spiked with internal standards before GC-MS injection.
2GC-MS Analysis
Phthalate compounds are separated by GC and identified and quantified by mass spectrometry in full scan or SIM mode against certified external and internal calibration standards.
3Quantification & Reporting
Phthalate concentrations (wt%) are calculated; results are compared to regulatory limits and a compliance report with pass/fail determination is issued.
4ASTM D8133 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Extraction Solvent | Tetrahydrofuran (THF) |
| Technique | Solvent extraction GC-MS |
| Target Phthalates | DEHP, DBP, BBP, DINP, DIDP, DNOP |
| Regulatory Threshold | 0.1 wt% per substance |
| Detection Limit | <0.005 wt% (method dependent) |
- GC-MS system (full scan and SIM modes)
- Certified phthalate reference standards
- Analytical balance (±0.1 mg)
- THF and solvent-handling equipment
- SPE or filtration system for extract cleanup
Equipment and Instrumentation Used for ASTM D8133 Testing
What You Receive: Test Report, Data, and Certification
- Quantified phthalate concentrations (wt%) for each analyte
- GC-MS chromatograms with peak identification
- Compliance determination vs. RoHS/REACH/EN 71-9 limits
- Calibration data and method QC results
- Full phthalate analysis report with regulatory comparison
ASTM D8133 Low Level Phthalates PVC Solvent Extraction FAQs
ASTM D8133 dissolves the PVC matrix in THF to extract phthalates — suitable for a wide concentration range. ASTM D7823 uses thermal desorption, which is faster and solvent-free but may have limitations at very high phthalate concentrations. D8133 is more universally applicable and widely specified in global regulations.
Yes. GC-MS with selective ion monitoring can differentiate between structural isomers of phthalates (e.g., DINP and DIDP from DEHP) based on retention time and mass spectral fragmentation patterns, enabling accurate identification and quantification of each regulated phthalate.
XRF provides rapid elemental screening but cannot speciate or quantify individual phthalate compounds. XRF may be used for initial screening, but GC-MS (ASTM D8133 or D7823) is required for definitive quantification and regulatory compliance confirmation.
Approximately 1–5 g of sample is required for the extraction, plus additional material for replicate analyses. For composite articles with multiple PVC components, each component must be tested separately per applicable regulatory requirements.
Yes. ASTM D8133 is recognized as a valid analytical method for phthalate determination in polymeric materials under EU REACH (SVHC), EU RoHS 2, and similar national regulations. It is widely accepted in third-party laboratory compliance test reports.
Why Choose Infinita Lab for Low Level Phthalates PVC Solvent Extraction Testing
When your Low Level Phthalates PVC Solvent Extraction results have to hold up - for compliance, a customer audit, or an engineering decision - ASTM D8133 accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your ASTM D8133 low level phthalates PVC solvent extraction testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
