What Is ASTM D4663 Isocyanate Hydrolyzable Chlorine?
ASTM D4663, Standard Test Method for Polyurethane Raw Materials: Determination of Hydrolyzable Chlorine of Isocyanates, determines the hydrolyzable chlorine content of toluene-2,4-diisocyanate, toluene-2,6-diisocyanate, or mixtures of the two. D4663-25 is the current edition. It revises D4663-20 and is maintained by ASTM Subcommittee D20.22 on Cellular Materials, with the text published in Book of Standards Volume 08.02. It’s technically equivalent to ISO 15028. What the method measures is chlorine coming mainly from carbamoyl chloride and dissolved phosgene carried over from isocyanate manufacture. Both compounds react with alcohols and water, forming ureas, carbamates, carbon dioxide, and hydrochloric acid. That’s why the result is reported as hydrolyzable chlorine, not total chlorine. According to the standard, it may be used for research or for quality control to characterize toluene diisocyanates, and hydrolyzable chlorine correlates with performance in some polyurethane systems. Although written for toluene diisocyanate, the scope allows the method to be applied to other isocyanates of suitable solubility, with the caution that precision for crude polymeric isocyanates has not been established. D4663 is easy to confuse with neighboring methods. D4661 addresses total chlorine in toluene diisocyanate. D2572 measures isocyanate group content rather than chlorine impurities. D5523, a separate method, determines acidity by argentometric determination of hydrolyzable chlorine in monomeric aromatic isocyanates (toluene diisocyanate and monomeric MDI). The reagents, apparatus, and calculations are in the licensed standard, which is only a few pages long. This page stays at a descriptive level. Numerical procedure parameters are deliberately left out, since they should be taken directly from the current ASTM document.
Applications and Benefits of ASTM D4663 Isocyanate Hydrolyzable Chlorine Testing
Scope
ASTM D4663 evaluates:
- The method determines the hydrolyzable chlorine content of toluene-2,4-diisocyanate, toluene-2,6-diisocyanate, or mixtures of the two.
- Other isocyanates of suitable solubility may also be covered, according to the scope statement.
- Precision for crude polymeric isocyanates has not been established, so treat results on those materials with caution.
- Chlorine measured originates mainly from carbamoyl chloride and dissolved phosgene remaining from the manufacturing process.
- Both of those species react with alcohols and water to form ureas, carbamates, carbon dioxide, and hydrochloric acid.
- Intended uses: research, plus quality control characterization of toluene diisocyanates.
- D4663-25, the current edition, is an active standard that revises D4663-20 and falls under the jurisdiction of ASTM Subcommittee D20.22.
- It’s technically equivalent to ISO 15028, which covers hydrolyzable chlorine in aromatic isocyanates for polyurethane production.
- D4661 (total chlorine in toluene diisocyanate) and D5523 (argentometric acidity in monomeric aromatic isocyanates) are separate methods.
Applications
- Quality control release testing of toluene diisocyanate lots at producers and blenders.
- Polyurethane foam, coating, and elastomer manufacturers running incoming inspection of toluene diisocyanate.
- Research comparing isocyanate grades or manufacturing and purification routes.
- Looking into process performance differences that may relate to hydrolyzable chlorine in a polyurethane system.
- Compliance checks against supplier specifications that include a hydrolyzable chlorine limit.
- Other soluble isocyanates can be characterized too, with awareness that precision has not been established for crude polymeric grades.
Benefits
- It targets the reactive chlorine species, carbamoyl chloride and dissolved phosgene, that are most relevant to isocyanate performance.
- Suppliers and buyers get a defined, recognized procedure they can reference in specifications.
- Hydrolyzable chlorine results can be tracked from lot to lot to monitor consistency.
- Technical equivalence to ISO 15028 supports use across international supply chains.
- Alongside total chlorine, acidity, and isocyanate content data, results give a fuller raw-material profile.
- Short and focused, the standard keeps method execution and review straightforward for trained analysts.

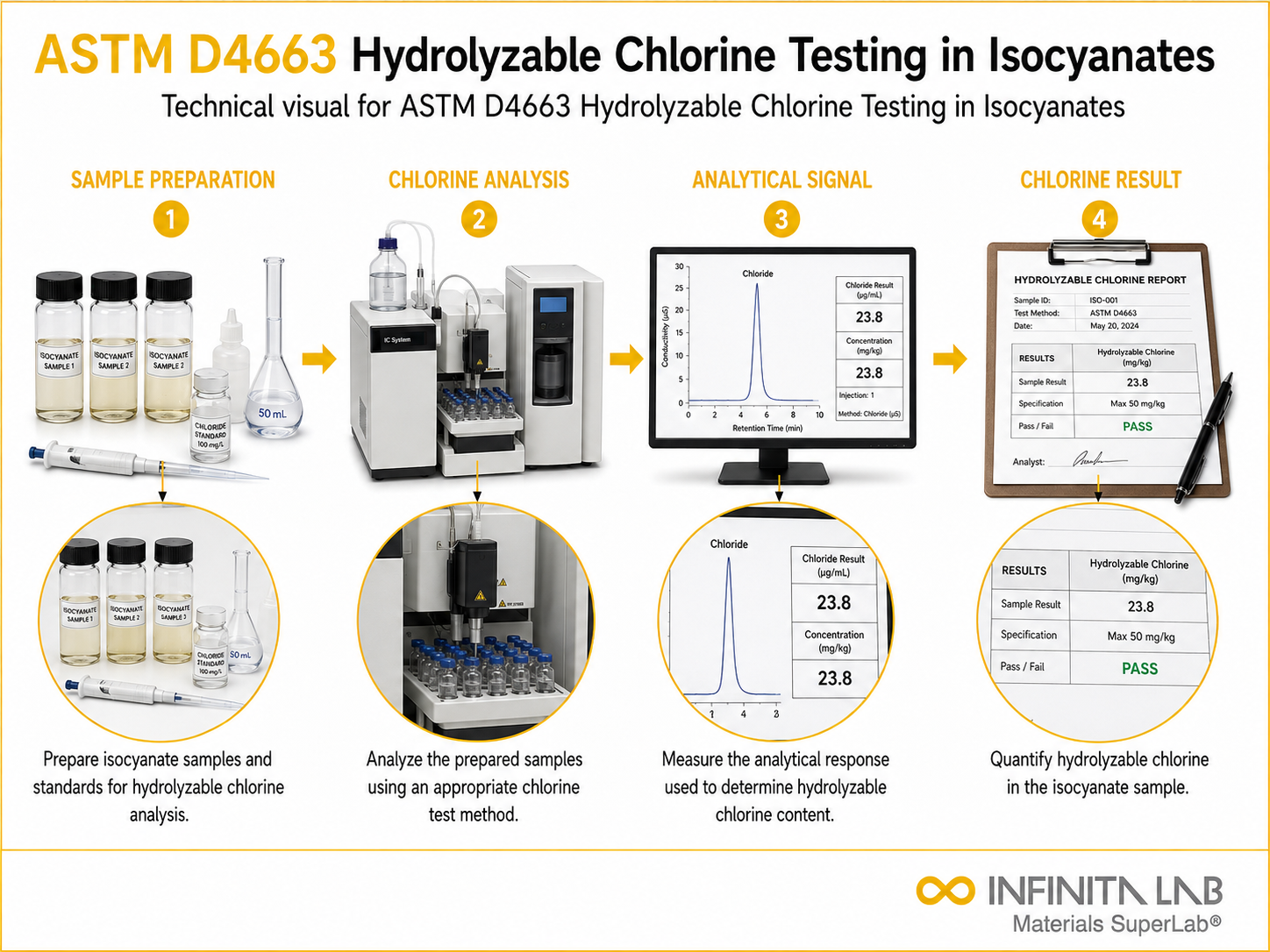

Our ASTM D4663 Testing Procedure
Controlled Hydrolysis
Isocyanate sample is reacted with water under specified conditions to hydrolyze acid chloride groups.
1Chloride Extraction
Released HCl is absorbed into the aqueous phase.
2Potentiometric Titration
Chloride ions are titrated with standardized silver nitrate solution.
3Calculation
Hydrolyzable chlorine is calculated from titration data and sample weight.
4ASTM D4663 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Test Principle | Controlled hydrolysis followed by potentiometric Ag⁺ titration |
| Titrant | Standardized silver nitrate (AgNO₃) |
| Applicable Materials | MDI, TDI, aliphatic isocyanates |
| Output Units | ppm or weight percent (%) hydrolyzable Cl |
| Measured Outputs | Hydrolyzable chlorine content |
- Analytical Balance – weighs the isocyanate sample and reagents accurately.
- Titration System or Equivalent Quantification Apparatus – measures the released chloride per the finishing technique in the standard.
- Heating and Reaction Glassware – the sample and solvent sit in it during the reaction step, under the specified conditions.
- Dry Handling Equipment – keeps moisture-sensitive isocyanate samples protected during transfer and weighing.
- Volumetric Glassware and Reagent Dispensers – for delivering solvents and standard solutions with traceable accuracy.
- Fume Hood – ventilation for safe work with isocyanates and chlorinated reaction products.
Equipment and Instrumentation Used for ASTM D4663 Testing
What You Receive: Test Report, Data, and Certification
- Hydrolyzable chlorine content of the isocyanate sample, reported as defined in D4663.
- Identification of the material tested, including lot number and isomer type where provided.
- Reference to the D4663 edition used, plus any deviations from the written procedure.
- Blank and control results that support the reliability of the measurement.
- A formal laboratory report suitable for supplier qualification, batch release, or customer files.
- Results can optionally be paired with related data such as total chlorine, acidity, or isocyanate content when requested.
ASTM D4663 Isocyanate Hydrolyzable Chlorine FAQs
ASTM D4663 determines hydrolyzable chlorine content in isocyanates. It evaluates impurities that can react with moisture, helping ensure stability, quality, and consistent performance in polyurethane manufacturing and related chemical applications.
Key parameters include sample preparation, hydrolysis conditions, titration method, reagent concentration, and temperature control. Controlled conditions ensure accurate measurement of hydrolyzable chlorine content in isocyanate samples.
The test measures hydrolyzable chlorine content, typically expressed in parts per million. Results indicate impurity levels that may affect reactivity, stability, and processing performance.
ASTM D4663 applies to isocyanates used in polyurethane foams, coatings, adhesives, and elastomers where chlorine impurities influence chemical reactions and final product properties.
ASTM D4663 results depend on proper hydrolysis and titration accuracy. Interfering substances or incomplete reactions may affect results, requiring additional validation methods for precise chlorine determination.
