ASTM A269 Stainless Steel Tubing Testing
ASTM A269/A269M test method covers the use of stainless steel tubing for general corrosion-resisting and low or high-temperature service. The method helps determine the mechanical properties of stainless steel tubing. The results obtained from this method help in quality control, research, and performance evaluation of steel tubing.
TRUSTED BY
ASTM A269 Stainless Steel Tubing Testing
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
ASTM A269 Stainless Steel Tubing Testing Overview
ASTM A269/A269M is the standard specification covering seamless and welded austenitic stainless steel tubing intended for general corrosion resistance and for low- or high-temperature service. It is one of the most widely cited tubing specifications in process industries, instrumentation, and fluid-handling systems, covering a wide range of grades and dimensions in both inch-pound and SI units. The A269 designation is used across applications ranging from chemical processing and pharmaceutical manufacturing to cryogenic systems and semiconductor fabrication, wherever austenitic stainless steel tubing must meet a recognized material standard.
The specification covers multiple austenitic grades, including 304, 304L, 316, 316L, 317, 317L, 321, 347, and others. Each grade brings specific compositional characteristics -316 and 316L add molybdenum for improved pitting and crevice corrosion resistance, low-carbon L grades limit sensitization risk during welding, and stabilized grades 321 and 347 use titanium or niobium to prevent intergranular corrosion after high-temperature exposure. Selecting the right grade for the service environment is the starting point; A269 testing confirms the material meets the specification requirements for that grade.
Required testing under A269 includes a hydrostatic or nondestructive electric (NDE) test on every tube, tension testing for mechanical properties, and grain size or intergranular corrosion testing for certain grades and conditions. Seamless and welded tube construction have different requirements, and the specification addresses both. Chemical composition is verified by heat analysis, with product analysis available when required by the purchaser.
ASTM A269 Stainless Steel Tubing Testing Scope, Applications, and Benefits
Scope
ASTM A269/A269M covers seamless cold-worked and welded cold-worked or cold-finished austenitic stainless steel tubing in grades TP304, TP304L, TP304H, TP309S, TP310S, TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, and XM-10. Tubing is intended for general corrosion resistance and for low- or high-temperature service. Required testing includes a hydrostatic pressure test or a nondestructive electric test (eddy current or ultrasonic) on each tube, tension testing for yield strength, tensile strength, and elongation, grain size determination for specified grades and conditions, and intergranular corrosion susceptibility testing by practice E or C per ASTM A262 for specified grades and heat treatments. Hardness testing is required for certain grades. Chemical composition is established by heat analysis; product analysis by the purchaser is permitted. The specification falls under ASTM Committee A01 and is published in BOS Vol. 01.01.
Applications
- Instrumentation tubing for process control systems in chemical, oil, and gas, and power generation plants
- Semiconductor and pharmaceutical process tubing requiring high-purity surfaces and corrosion resistance
- Heat exchanger and condenser tubing in corrosive service environments
- Cryogenic fluid transfer lines requiring austenitic grades for low-temperature toughness
- Food and beverage processing equipment tubing requires sanitary and corrosion-resistant materials
- Hydraulic and pneumatic system tubing in marine and offshore applications
- Tubing for chloride-bearing environments where molybdenum-bearing 316/316L grades are specified
- High-temperature service tubing requiring stabilized grades 321 or 347 to prevent sensitization
- Incoming material receiving inspection for stainless steel tubing at fabricators and end users
Benefits
- Covers the full range of standard austenitic stainless grades under a single, widely recognized specification
- Addresses both seamless and welded tubing construction with grade-appropriate requirements for each
- Mandatory hydrostatic or NDE test on every tube provides baseline integrity assurance.
- Intergranular corrosion testing for sensitization-sensitive grades protects against premature corrosion failure in service.
- Available in dual units (inch-pound and SI) for domestic and international procurement
- Accepted by engineering standards,s including ASME B31.3 for process piping material qualification
- Broad grade coverage supports material substitution decisions when specific grades are supply-constrained

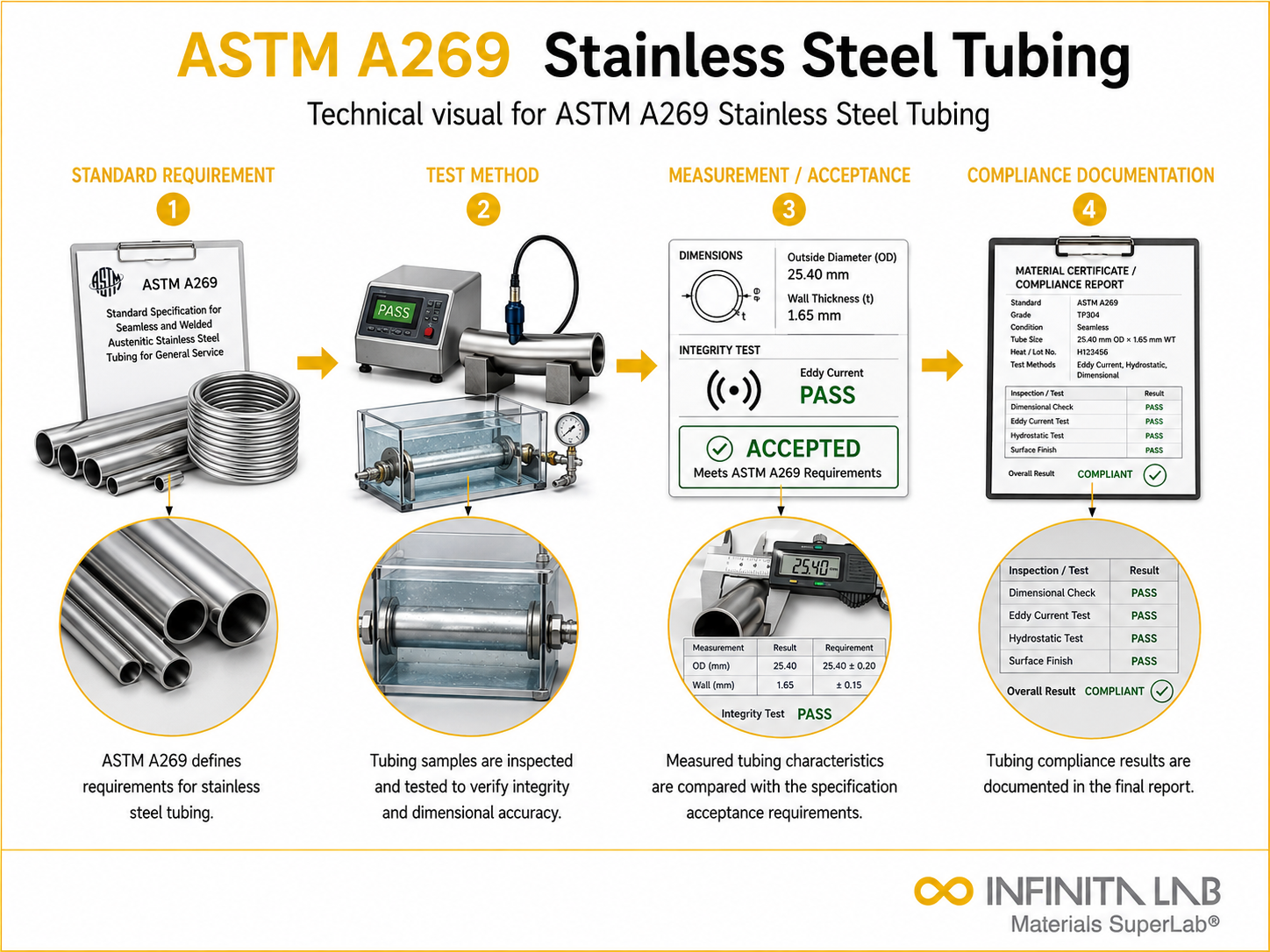

ASTM A269 Stainless Steel Tubing Testing Process
Chemical Composition Verification
Heat analysis is reviewed to confirm that the tube lot meets the elemental requirements for the specified grade.
1Mechanical Property Testing
Tension specimens are taken from tubing samples and tested to determine yield strength, tensile strength, and elongation.
2Hydrostatic or Nondestructive Electric Test
ach tube is subjected to either a hydrostatic pressure test at the specified test pressure or a nondestructive electrical test
3Grain Size and Intergranular Corrosion Testing
For grades and conditions where sensitization is a concern, grain size is determined, and intergranular corrosion testing is performed
4ASTM A269 Stainless Steel Tubing Testing Technical Specifications
| Parameter | Details |
|---|---|
| Standard | ASTM A269/A269M-21 |
| ASTM Committee | A01 – Steel, Stainless Steel, and Related Alloys |
| BOS Volume | 01.01 |
| Tube Construction | Seamless cold-worked, welded cold-worked, welded cold-finished |
| Grades Covered | TP304, TP304L, TP304H, TP309S, TP310S, TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, XM-10 |
| Required Tests | Chemical analysis, tension test, hydrostatic or NDE test, grain size, intergranular corrosion test (grade-dependent) |
Instrumentation Used for ASTM A269 Stainless Steel Tubing Testing
- Universal testing machine for tension testing of tube specimens
- Optical emission spectrometer (OES) or X-ray fluorescence (XRF) for chemical composition verification
- Hydrostatic pressure test apparatus for per-tube pressure testing
- Eddy current or ultrasonic nondestructive examination equipment per ASTM A450/A450M
- Hardness tester (Rockwell, Vickers, or Brinell as applicable to tube dimensions)
- Optical metallurgical microscope for grain size determination
- Intergranular corrosion test apparatus and reagents per ASTM A262 Practice E or C
ASTM A269 Stainless Steel Tubing Testing Results and Deliverables
- Heat analysis chemical composition report with all required elemental values for the specified grade
- Tensile test data, including yield strength, tensile strength, and elongation,n with comparison to specification minimums
- The grade specification required a hardness value.
- Hydrostatic test pressure records or NDE test records for each tube in the lot
- Grain size classification per ASTM E112 for grades requiring grain size verification
- Intergranular corrosion test results per ASTM A262 for sensitization-sensitive grades
- Heat number, lot identification, and tube dimensions for full material traceability
- Mill test report or test certificate covering all required properties,s formatted for procurement, fabrication, and quality record.s
Frequently Asked Questions
ASTM A269/A269M specifies requirements for seamless and welded austenitic stainless steel tubing intended for general corrosion-resistant and low- to moderate-temperature service. It defines chemical composition, mechanical properties, and dimensional tolerances.
Seamless tubing is formed without a weld joint, offering uniform strength and better pressure resistance, while welded tubing is made by forming and welding strip material. Both must meet the same performance and quality requirements under the standard.
The standard typically includes tensile testing, flattening or flaring tests, hydrostatic or nondestructive electric testing, and dimensional inspections. These verify mechanical integrity and weld quality (for welded tubes).
Common grades include 304, 304L, 316, and 316L austenitic stainless steels. These grades are selected for their corrosion resistance and suitability in chemical, food, and general industrial applications.
ASTM A269 tubing is widely used in heat exchangers, instrumentation lines, pharmaceutical systems, chemical processing, and food-grade piping where corrosion resistance and clean surface finish are critical.
