Top 20 LED Testing Methods for Luminaire & Component Qualification

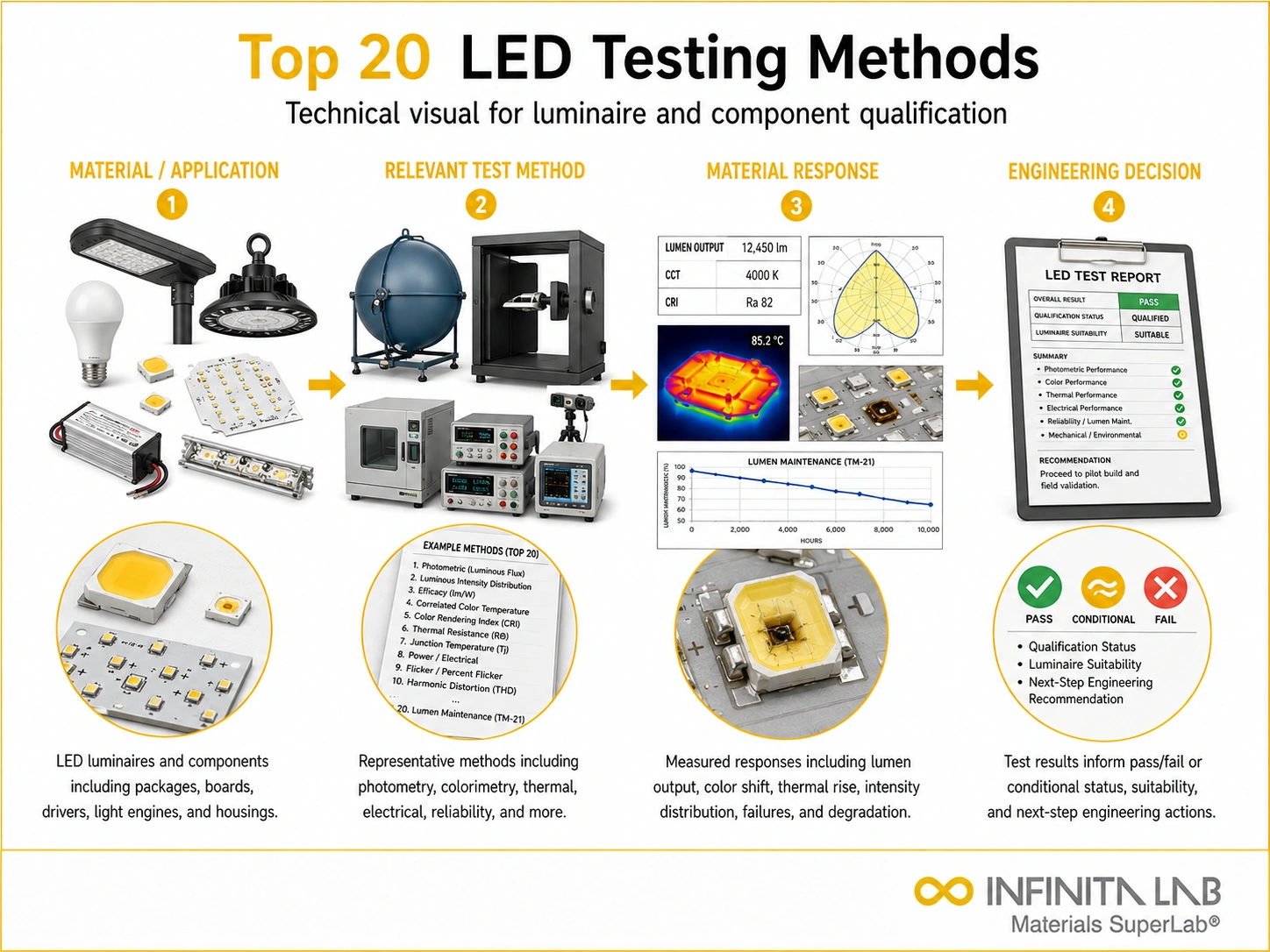

Representative Infinita Engineering Visual explaining the four-step workflow for Top 20 LED Testing Methods for Luminaire & Component Qualification.What Is LED Testing?
LED testing evaluates individual light-emitting diode components for optical, electrical, and thermal performance and reliability. Unlike LED display testing, which focuses on assembled video walls, LED component testing verifies the underlying die, package, and phosphor performance that determines an LED’s brightness, colour, efficiency, and operating lifetime across applications from general lighting to automotive and horticultural use.
Why LED Testing Matters
- Confirms luminous output and efficacy meet specification
- Verifies colour consistency (binning) across production batches
- Predicts long-term lumen depreciation and operating life
- Ensures thermal and electrical reliability under continuous operation
Top 20 LED Testing Methods
- Luminous Flux Testing (Integrating Sphere, LM-79) – Measures total light output in lumens under controlled electrical and thermal conditions.
- Luminous Efficacy Testing – Calculates lumens-per-watt to characterise energy efficiency.
- Colour Temperature (CCT) Measurement – Determines the perceived warmth or coolness of emitted light.
- Colour Rendering Index (CRI) / TM-30 Testing – Evaluates how accurately the LED renders colours compared to a reference light source.
- Chromaticity Coordinate (Binning) Testing – Verifies colour consistency across production, critical for matching LEDs within the same fixture or batch.
- Forward Voltage / Current Testing – Measures electrical characteristics to confirm the LED operates within specified parameters.
- Thermal Resistance Testing (JESD51) – Measures how efficiently heat transfers from the LED junction to the package and board.
- Junction Temperature Measurement – Determines actual operating temperature at the LED die, a key driver of both light output and lifespan.
- Lumen Maintenance / Depreciation Testing (LM-80) – Long-duration testing tracks light output decline over thousands of operating hours.
- Lifetime Projection Testing (TM-21) – Uses LM-80 data to statistically project rated LED lifetime (e.g., L70 hours).
- Thermal Cycling Testing – Evaluates package and solder joint reliability under repeated temperature swings.
- Humidity Resistance Testing (85/85 Test) – Combines high temperature and humidity to accelerate moisture-related degradation.
- Electrostatic Discharge (ESD) Sensitivity Testing – Evaluates LED die vulnerability to static discharge damage during handling or operation.
- Vibration and Mechanical Shock Testing – Assesses solder joint and package durability under transportation and operational vibration.
- Ingress Protection (IP Rating) Testing – Verifies dust and moisture resistance for outdoor and wet-location LED fixtures.
- Photobiological Safety Testing (IEC 62471) – Assesses potential blue-light hazard and other photobiological risks to eyes and skin.
- Flicker Testing – Measures light output modulation that can cause visible flicker or health effects at certain frequencies.
- Surge and Transient Immunity Testing – Evaluates LED driver resilience to voltage spikes from the electrical grid.
- Spectral Power Distribution (SPD) Analysis – Measures the full wavelength output spectrum, important for horticultural and speciality lighting applications.
- Burn-In / Early Failure Rate Testing – Operates LEDs under stress conditions to identify early-life failures before shipment.
LED Test Method Comparison
Property Evaluated | Representative Method | Typical Standard |
|---|
Optical output | Luminous flux, efficacy | IES LM-79 |
Color quality | CCT, CRI, binning | ANSI C78.377 |
Lifetime | Lumen maintenance, projection | IES LM-80, TM-21 |
Thermal performance | Junction temp, thermal resistance | JESD51 series |
Safety | Photobiological, ESD | IEC 62471 |
Applications by Industry
General & Architectural Lighting – Luminous flux, CRI, and lifetime testing to support energy-efficiency claims and warranty commitments. Automotive Lighting – Thermal cycling and vibration testing given underhood and exterior exposure conditions. Horticultural Lighting – Spectral power distribution testing to optimise wavelength output for plant growth. Consumer Electronics (Backlighting/Indicators) – Binning and forward voltage testing to ensure visual consistency across mass-produced devices.
Industry Standards Referencing LED Testing
IES LM-79, IES LM-80, IES TM-21, IES TM-30, ANSI C78.377, JESD51 series, IEC 62471, IEC 60068 (environmental testing)
Also Read – Substances of Very High Concern (SVHC): REACH Testing & Compliance
Advantages and Limitations
Advantages: Predicts multi-decade lumen maintenance from thousands of hours of accelerated data; ensures colour and brightness consistency across mass production; verifies safety for both photobiological and electrical hazards. Limitations: TM-21 lifetime projections extrapolate from LM-80 data and carry inherent statistical uncertainty; thermal and electrical test results are highly sensitive to the exact drive current and ambient conditions used; binning tolerances mean some visible colour variation can persist even within spec.
Conclusion
An LED’s real value proposition – decades of reliable, efficient light output – is something that can only be demonstrated through a combination of optical, thermal, and long-duration reliability testing, since the diode’s performance and lifespan are governed by factors invisible in a simple visual inspection.
How is LED brightness measured? Luminous intensity, luminous flux, and luminance are measured using photometers, integrating spheres, or goniophotometers.
What is colour temperature testing? Colour temperature testing measures the appearance of LED light and reports it as correlated colour temperature in kelvin.
What is electrical performance testing? Electrical testing measures forward voltage, current, power consumption, resistance, leakage current, and driver efficiency.
Why is thermal testing important? Thermal testing evaluates junction temperature, heat dissipation, thermal resistance, and performance changes caused by overheating.
Which environmental tests are used for LEDs? Common methods include temperature cycling, humidity, thermal shock, UV exposure, corrosion, dust, and water-ingress testing.
