Plastic Injection Molding: Process, Materials, and Common Defects

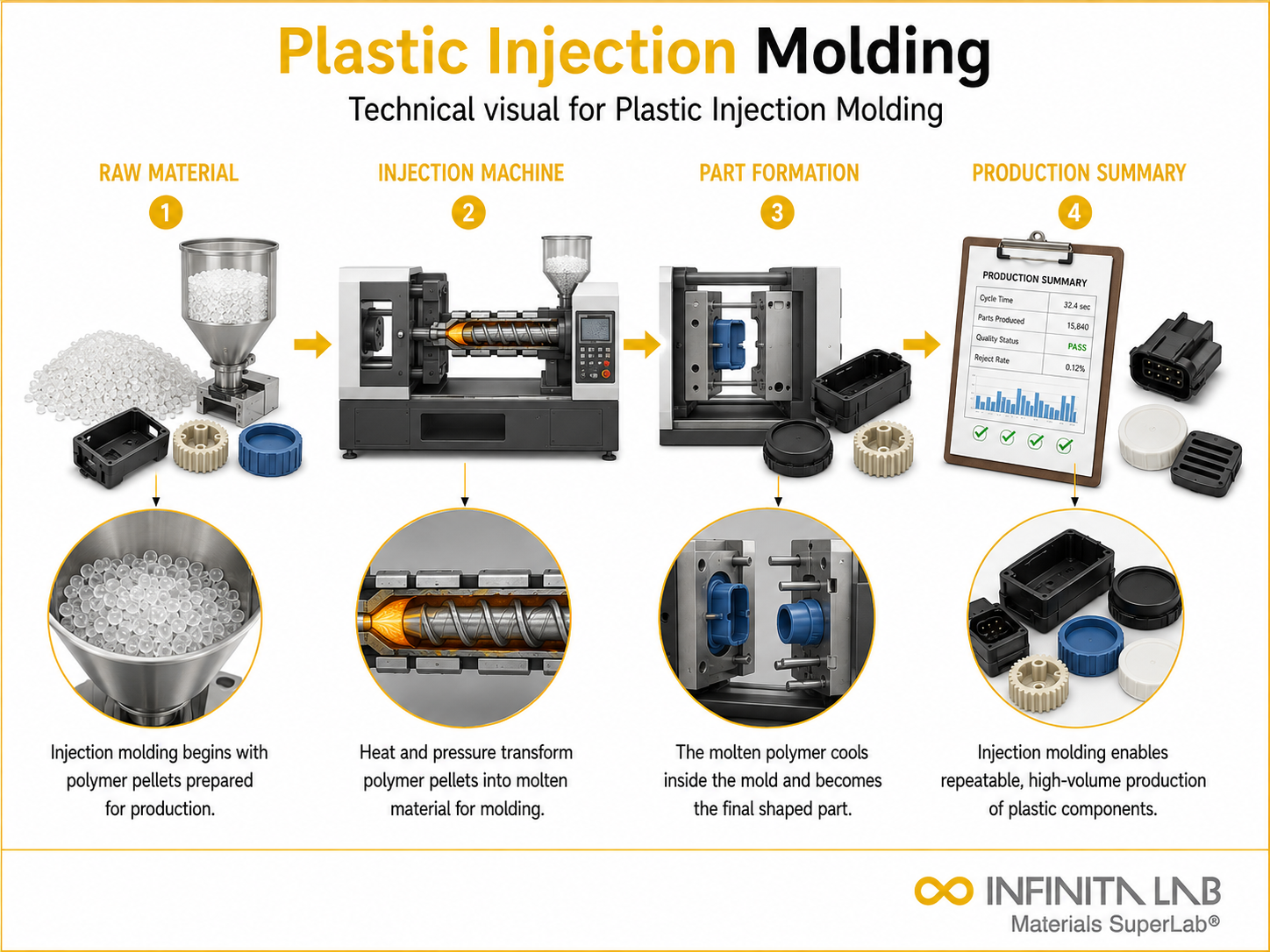

Representative Infinita Engineering Visual explaining the four-step workflow for Plastic Injection Molding.What Is Plastic Injection Molding?
Injection molding is the dominant manufacturing process for producing precise, complex plastic parts at volume, working by injecting molten plastic into a mold cavity under pressure, then cooling and ejecting the finished part. Consistent part quality depends on tightly controlling several interacting process variables simultaneously.
Key Process Parameters
- Melt temperature: affects flow behaviour, fill quality, and residual stress
- Mold temperature: influences cooling rate, surface finish, and dimensional stability
- Injection pressure and speed: govern fill behaviour and can drive flow lines, weld lines, or short shots if incorrect
- Holding (packing) pressure and time: compensates for material shrinkage during cooling; a leading factor in sink marks and warpage
- Cooling time: affects cycle time and dimensional stability upon ejection, clamp force, and cushion
Common Defects and Their Causes
- Sink marks: typically caused by insufficient holding pressure or holding time relative to part thickness
- Warpage: driven by uneven cooling or excessive shrinkage variation across the part
- Short shots: incomplete fill, often from insufficient injection pressure/speed or premature cooling
- Weld/flow lines: occur where two melt fronts meet, influenced by melt temperature and gate design
- Flashing: excess material at parting lines, usually from excessive injection pressure or insufficient clamp force
Inspection and Quality Control Methods
Non-destructive inspection methods — pressure analysis, X-ray imaging, thermographic analysis, and acoustic emission testing — allow defect verification without damaging the part. Real-time process monitoring (tracking melt temperature, injection pressure, cooling time, and clamp force on control charts) is increasingly used to catch parameter drift before it produces defective parts, rather than relying solely on post-molding inspection.
Industry Specifications Referencing Injection Molding QC
- Common QC framework: statistical process control (SPC) applied to melt temperature, pressure, and cycle time
- Complementary testing: ASTM D638 (tensile), D790 (flexural), D256 (impact) for verifying that molded parts meet mechanical property specifications
Conclusion
Because injection molding defects often only become visible after the part is fully produced (or after a series of production cycles), the highest-value quality control investment is in real-time process parameter monitoring — catching a drifting variable before it produces scrap, rather than sorting good parts from bad after the fact.
What is plastic injection molding? Plastic injection molding is a manufacturing process in which molten polymer is injected into a closed mold under pressure. The material cools and solidifies into the required part shape before being ejected.
How does the injection molding process work? Plastic pellets are heated inside a barrel and pushed forward by a rotating screw. The molten plastic is injected into the mold cavity, held under pressure, cooled, and then removed as a finished part.
Which materials are commonly used in injection molding? Common materials include polypropylene, polyethylene, ABS, nylon, polycarbonate, polystyrene, acrylic, and thermoplastic elastomers. Material selection depends on strength, temperature resistance, appearance, flexibility, and cost.
What products are made using injection molding? The process is used to manufacture automotive components, medical-device parts, electronic housings, packaging, toys, appliance components, connectors, and many other high-volume plastic products.
What are the main advantages of injection molding? Injection molding provides high production speed, repeatable dimensions, complex part geometries, and low unit costs at large volumes. It can also incorporate textures, colors, inserts, and multiple features into one component.
