Hole Basis vs Shaft Basis System, Explained

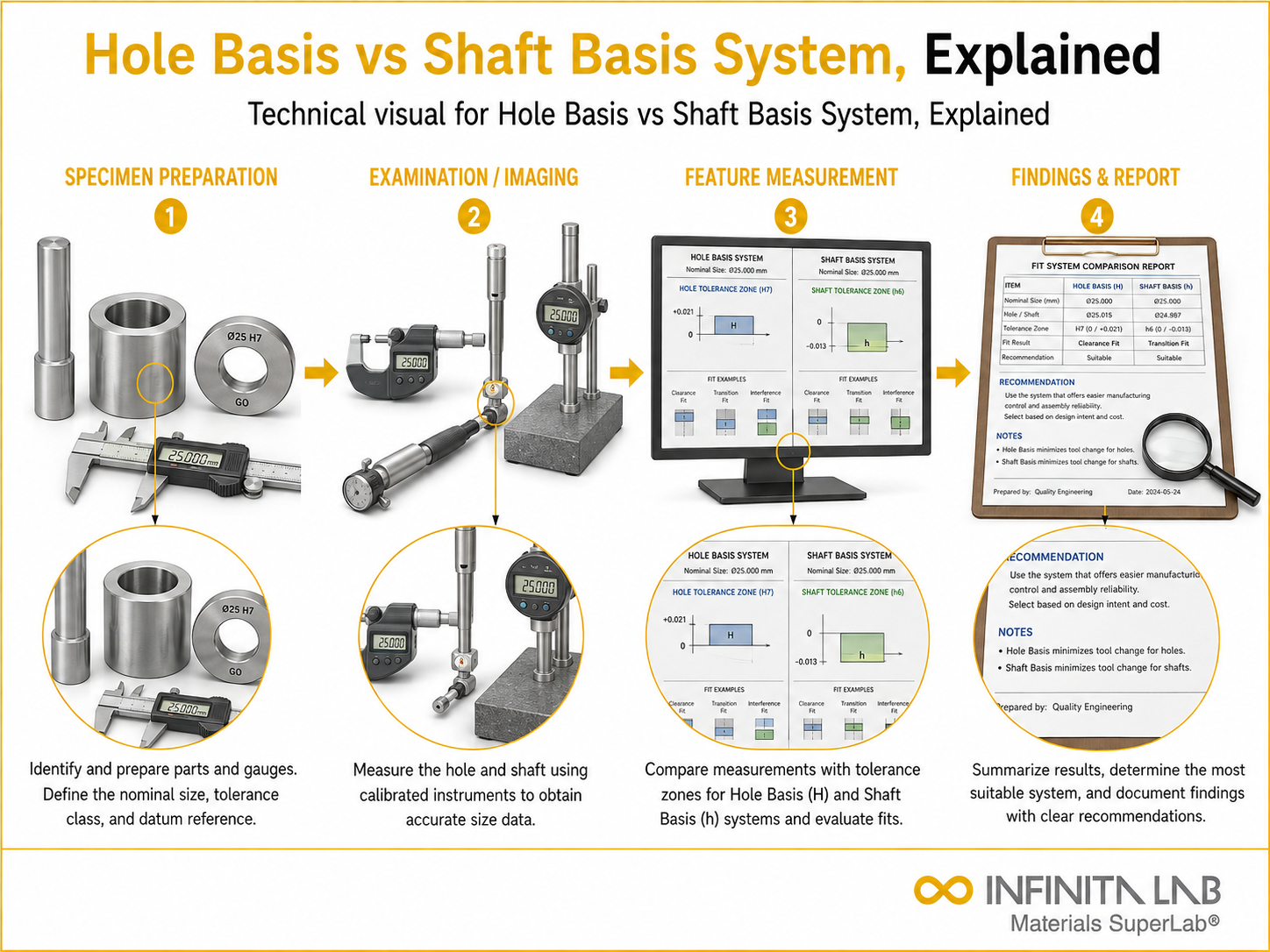

What Are Hole Basis and Shaft Basis Systems?
Hole basis and shaft basis are the two systems used in tolerance engineering to define fits between mating components. In any assembly where a shaft fits into a hole, either the hole size is held constant while the shaft is varied (hole basis), or the shaft size is held constant while the hole is varied (shaft basis). The choice determines which component carries the tolerance variation and which is manufactured to a fixed fundamental deviation.
Holes are generally more expensive to hold to tight tolerances – they require precision boring, reaming, or grinding, and are harder to measure in-process than external diameters. Shaft basis systems were historically used when the shaft was a standard purchased size, and the housing bore was machined to suit. Understanding which system applies is the starting point for any tolerance stack-up analysis.
How Each System Works
Hole Basis System
In the hole basis system, the lower deviation of the hole is zero – the minimum hole size equals the nominal dimension. The hole tolerance is applied upward. The shaft size is varied to achieve the desired fit. ISO designates hole basis fits with an uppercase H for the hole (e.g., H7, H8, H11) combined with a lowercase letter for the shaft (e.g., H7/g6 for clearance, H7/k6 for transition, H7/p6 for interference). Hole basis is preferred in most general engineering applications.
Shaft Basis System
In the shaft basis system, the upper deviation of the shaft is zero – the maximum shaft size equals the nominal dimension. The shaft tolerance is applied downward. The hole is varied to achieve the desired fit. ISO designates shaft basis fits with lowercase h for the shaft (e.g., h6) combined with an uppercase letter for the hole (e.g., F8/h6 for clearance, K7/h6 for transition, P7/h6 for interference). Shaft basis is used when the shaft is a standard commercial size – precision ground shafting or rolled bar stock – and the mating component is machined to fit.
Also Read – Importance of Spare Parts Management in Testing Laboratories
Fits and Tolerances
Clearance Fits
A clearance fit always produces a gap between shaft and hole at maximum material condition. Clearance fits are used for sliding and running fits – journal bearings, sliding guides, loose assemblies. Common hole basis examples: H7/g6 (close running), H8/f7 (free running), H11/c11 (loose fit). The minimum and maximum clearance define the functional limits of the fit.
Interference Fits
An interference fit always produces overlap – the shaft is larger than the hole. Assembly requires pressing, heating the housing, or cooling the shaft. Interference fits transmit torque and axial loads without fasteners. Common examples: H7/p6 (light press), H7/s6 (medium drive), H7/u6 (force fit). The interference magnitude determines the contact pressure and the torque capacity of the joint.
Transition Fits
Transition fits may produce either clearance or interference depending on where within the tolerance band each part falls. Used where accurate location is needed without guarantee of a press fit – keyed assemblies, locating spigots, removable bearing housings. Common examples: H7/k6, H7/m6. The tolerance design must account for the full range from maximum clearance to maximum interference to ensure assembly function is maintained.
Industry Specifications
- ISO Tolerance System: ISO 286-1 (limits and fits – basis), ISO 286-2 (tables of standard tolerance grades)
- ANSI/ASME Standard Fits: ANSI B4.1 (preferred limits and fits), ASME B4.2 (preferred metric limits and fits)
- GD&T: ASME Y14.5-2018, ISO 1101
- Bearing Fits: ISO 492 (rolling bearing tolerances), ABMA Standard 7
- Dimensional Measurement: ASME B89.1.5, ISO 2768 (general tolerances)
- Aerospace: AS9102 (first article inspection), MIL-STD-8
Also Read – Icing and Freezing Rain Testing: Methods and Standards
Conclusion
Hole basis and shaft basis systems reflect the manufacturing reality of which component is cheaper to hold to a fixed size. Hole basis dominates general engineering because bore tolerances drive machining cost and shaft size is easier to adjust. Shaft basis applies when the shaft is a standard commercial size, and the mating component is purpose-machined. Understanding which system governs an assembly is a prerequisite to any tolerance stack-up, fit selection, or dimensional inspection program.
Why is hole basis more common than shaft basis in general engineering? Holes are harder and more expensive to produce to tight tolerances than external diameters. In hole basis, the hole is made once to a standard tolerance (H7, H8) and the shaft is turned or ground to the required fit. Standard tooling - reamers, drill sizes - also aligns with hole basis nominal sizes, reducing the need for special tooling. Adjusting shaft size to suit a fixed bore is simpler and cheaper than remachining a bore to suit a fixed shaft.
What is an IT grade and how does it affect tolerance selection? IT grade (International Tolerance grade) is the magnitude of the tolerance band. IT grades run from IT01 (tightest, for gauge blocks) through IT18 (loosest, for rough machining). For a given nominal diameter, each IT grade specifies a tolerance in micrometers from ISO 286-2 tables. IT6 and IT7 are typical for precision fits; IT9 through IT11 for general clearance fits. The choice balances manufacturing cost against the functional requirement of the fit.
How do you calculate minimum and maximum clearance for a hole basis fit? For H7/g6 at 25 mm nominal: look up the H7 hole deviation and g6 shaft deviation from ISO 286-2 tables. Minimum clearance is the minimum hole size minus the maximum shaft size. Maximum clearance is the maximum hole size minus the minimum shaft size. The H7 lower deviation is zero (minimum hole equals nominal); the g6 upper deviation is negative (maximum shaft is less than nominal). Both values come directly from ISO 286 tables without calculation beyond subtraction.
When should interference fit magnitude be verified by calculation rather than table selection? Table-selected interference fits are appropriate for standard material combinations and conventional operating conditions. When the application involves dissimilar materials with different thermal expansion coefficients, elevated service temperatures, dynamic loading, or torque transmission requirements that must be quantified, Lame's equation analysis of press fit contact pressure is required. This determines whether the interference produces sufficient contact pressure across the full temperature range and whether the hub or shaft will yield during assembly.
Can GD&T and the ISO tolerance system be used together on the same drawing? Yes. ISO 286 tolerances define the size limits of cylindrical features. ASME Y14.5 or ISO 1101 GD&T controls define geometric relationships - perpendicularity, concentricity, position - that are separate from the size tolerance. A bearing bore might be toleranced H7 for size and controlled with a cylindricity tolerance and a position tolerance relative to a datum axis. The size tolerance and geometric tolerances are independent controls that must both be satisfied simultaneously.
