SAE J2020 Accelerated Weathering Testing for Automotive Materials
SAE J2020 is a standard published by the Society of Automotive Engineers (SAE) that defines a standardized set of terms, definitions, and abbreviations used in the field of hydraulic fluid power systems. The standard is titled "Hydraulic system components - Vocabulary," and it provides a comprehensive set of terms and definitions used in the design, manufacture, and maintenance of hydraulic systems. The standard covers a wide range of topics related to hydraulic systems, including fluid power, pumps, valves, actuators, filters, and accumulators, among others.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
SAE J2020 Automotive Weathering Testing Overview
SAE J2020 evaluates the resistance of automotive materials and coatings to accelerated ultraviolet (UV) weathering exposure under controlled laboratory conditions. The test subjects were painted surfaces, plastics, rubber materials, films, adhesives, sealants, and coated assemblies, subjected to repeated cycles of UV radiation, moisture condensation, and elevated-temperature exposure to simulate long-term outdoor environmental aging. It is widely used by automotive OEMs and Tier 1 suppliers to assess color stability, gloss retention, chalking resistance, cracking, adhesion durability, and overall material performance under accelerated weathering conditions.
SAE J2020 is commonly applied within automotive qualification programs for exterior coatings, interior trim materials, polymeric components, elastomeric seals, films, and decorative surfaces exposed to sunlight and environmental degradation. The method typically uses UVA-340 or UVB-313 fluorescent UV lamps, depending on OEM specifications and exposure-severity objectives. Standard test programs commonly range from 400 to 1000 exposure hours, with OEM-specific requirements defined by manufacturers such as GM, Ford, Stellantis, and Toyota. UVA-340 lamps are generally preferred for realistic solar UV simulation and exterior durability studies, while UVB-313 lamps provide more aggressive accelerated exposure conditions for comparative material screening and rapid degradation assessment.
Scope, Applications, and Benefits
Scope
SAE J2020 is a test specification that assesses the accelerated weathering resistance of automotive exterior coatings, plastics, and surface materials by applying specified cycles of UV, high-temperature, and moisture exposure, replicating the effects of long-term outdoor weathering in a controlled laboratory setting.
SAE J2020 accelerated exposure testing evaluates:
- UV radiation resistance and color stability of automotive exterior coatings and paint systems
- Gloss retention and surface appearance degradation under accelerated weathering exposure
- Chalking, cracking, and surface erosion of exterior plastic and coating materials
- Adhesion integrity and delamination resistance of coating systems after weathering exposure
Applications
- Automotive paint systems, clearcoats, and exterior protective coatings
- Plastic exterior components, including bumpers, trim, and body panel assemblies
- Exterior rubber seals, gaskets, and weatherstrip materials
- Decorative and functional surface films applied to automotive exterior surfaces
- Exterior adhesives, sealants, and surface treatment materials requiring OEM weathering qualification
Benefits
- Supports SAE J2020 qualification and automotive OEM production approval compliance
- Provides certified accelerated weathering test data for supplier qualification submittals
- Identifies UV degradation and weathering vulnerabilities before production release
- Delivers traceable test documentation aligned with automotive OEM quality requirements
- Reduces development risk by detecting weathering failure modes early in the qualification cycle

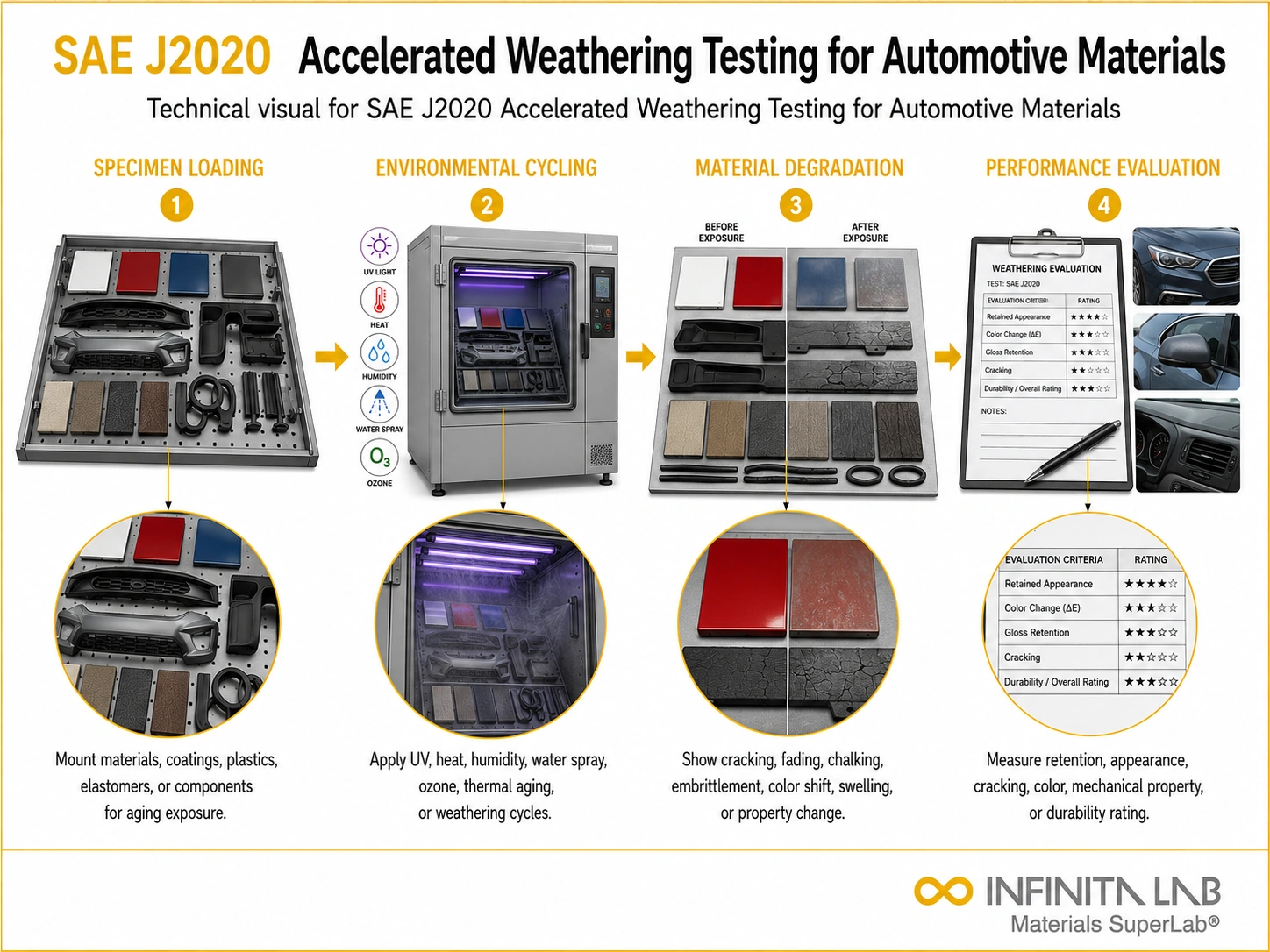

SAE J2020 Test Process
Sample Preparation
Specimens are prepared in standard sizes and mounted in the test chamber.
1UV Exposure
Samples are exposed to UV light (~8 hours at ~70°C).
2Condensation Cycle
Moisture exposure is applied (~4 hours at ~50°C) to simulate dew conditions.
3Data Analysis
Changes in color, mechanical properties, and surface degradation are evaluated.
4SAE J2020 Technical Specifications
| Parameter | Details |
|---|---|
| Applicable Materials | Automotive paint systems, exterior coatings, plastic components, rubber materials, films, and surface treatments |
| Exposure Conditions | Defined UV radiation, elevated temperature, and moisture cycles per SAE J2020 test conditions |
| Test Chamber | Calibrated accelerated weathering apparatus conforming to SAE J2020 specifications |
| Sample Size | ~50 × 75 mm to 100 × 150 mm |
| Light Source | UVA-340 or UVB-313 fluorescent lamps |
| Irradiance | ~0.48–0.77 W/m²/nm (lamp dependent) |
| Typical UV Exposure Cycle | 8 h UV exposure / 4 h condensation |
| UV Phase Temperature | Approximately 60–70 °C |
| Condensation Phase Temperature | Approximately 50 °C |
| Typical Exposure Duration | 400 h, 800 h, 1000 h, or OEM-defined |
| Evaluation Parameters | ΔE color change, gloss retention, chalking, cracking |
| Related Standards | ASTM G154, SAE J2412, SAE J2527, ISO 4892-3 |
| Measured Outputs | Color and gloss measurements, surface degradation observations, and test compliance result |
Instrumentation Used for Testing
- Calibrated accelerated weathering test chamber per SAE J2020 specifications
- UV radiation intensity monitoring and control system
- Precision colorimeter and spectrophotometer for color and gloss measurement
- Temperature and humidity monitoring instrumentation
- Surface inspection and photographic documentation equipment
- Data acquisition and test logging system
Results and Deliverables
- Accelerated weathering exposure records, including UV intensity, temperature, and cycle data
- Color change and gloss retention measurements at defined exposure intervals
- Surface degradation observations, including chalking, cracking, and coating condition
- Test compliance result assessed against SAE J2020 acceptance criteria
- SAE J2020 Compliance report
Frequently Asked Questions
SAE J2020 accelerated exposure testing is a standard for determining the resistance of automotive exterior materials and coatings to weathering and long-term durability under specified cycles of UV exposure, high temperature, and moisture simulating actual outdoor exposure degradation.
Automotive paint systems, clearcoats, plastics used on the exterior, rubber, decorative films, adhesives, and surface treatments that require OEM production approval typically require SAE J2020 accelerated weathering qualification testing prior to vehicle production release.
SAE J2020 tests for the degree of change in color, gloss retention, chalking of the coating surface, coating cracks, coating delamination, and coating erosion, which determine the overall weatherability performance of the coating according to the SAE J2020 acceptance criteria for OEM production qualification.
AE J2020 utilizes calibrated UV radiation, elevated temperature, and moisture-exposure cycles within a simulated accelerated weathering chamber to simulate the long-term outdoor weathering degradation of exterior automotive surface finishes in actual use.
SAE J2020 accelerated weathering qualification is typically required by automotive OEMs and Tier 1 parts suppliers for exterior coating systems and surface materials. Always verify these requirements against your applicable OEM material specification or supplier quality agreement.
