    What Is Double Shear?

    Double shear testing measures the shear strength of a fastener, pin, bolt, or similar cylindrical component by loading it so that it is sheared simultaneously across two planes. Shear strength is the maximum load a material can withstand from forces acting parallel to its cross-section – forces that tend to slide one part of the material past the adjacent part. For fasteners and pins that hold assemblies together, shear strength is often the governing design property, because these components are frequently loaded transverse to their axis in service.

    In a double shear test, the specimen is supported in a fixture so that the applied load tends to cut it across two cross-sections at once, rather than the single plane of a single shear test. This double-shear arrangement reflects how many pins and fasteners are actually loaded in a joint – held in a clevis or double-lap configuration where the pin must shear in two places to fail. Because the load is carried across two planes, the test directly measures the component’s resistance in the configuration most representative of these applications.

    The test is run on a universal testing machine using a hardened double-shear fixture. The load is applied at a controlled rate until the specimen fails, and the maximum load is recorded. Shear strength is then calculated from the failure load and the total sheared cross-sectional area. Double shear testing is widely used for fasteners, dowel pins, rivets, and bar stock in aerospace, automotive, construction, and general mechanical applications.

    Applications and Benefits of Double Shear Testing

    Scope

    Double shear testing covers the determination of shear strength of cylindrical fasteners, pins, and similar components loaded across two shear planes simultaneously, using a double-shear fixture on a universal testing machine.

    Key aspects of the test scope include:

    • Double-shear configuration – the specimen is loaded so it is sheared across two cross-sections at once, representing the clevis/double-lap loading common for pins and fasteners
    • Measured property – ultimate shear strength, calculated from the maximum failure load and the total sheared area (two cross-sections)
    • Specimen types – fasteners, bolts, dowel pins, rivets, and round bar/wire specimens
    • Test control – load applied at a controlled rate on a calibrated universal testing machine until failure
    • Fixturing – a hardened double-shear fixture that supports the specimen and applies the load across the two planes with minimal bending
    • Reference standards – fastener and material shear testing referenced in standards such as ASTM B565 (shear testing of aluminum/aluminum-alloy rivets and pins), ASTM F606 (mechanical testing of fasteners, which includes shear), and aerospace/military fastener specifications as applicable

    Applications

    • Fastener qualification – determining the shear strength of bolts, pins, and rivets to confirm they meet the strength requirement for their grade or specification
    • Aerospace fasteners – shear testing of pins, bolts, and rivets used in aerospace joints, where double-shear loading is common and shear strength is a critical design value
    • Dowel pin and clevis pin testing – measuring the shear strength of pins used in clevis and double-lap joints that load the pin across two planes
    • Rivet testing – determining rivet shear strength for riveted joint design and verification
    • Material shear strength – measuring the shear strength of bar, rod, or wire stock as a material property
    • Incoming inspection – verifying that purchased fasteners and pins meet their shear strength specification before use
    • Design verification – generating shear strength data for the design and analysis of pinned and bolted joints

    Benefits

    • Represents real double-shear loading – many pins and fasteners are loaded in double shear in service; the test reproduces this configuration, so the result directly reflects how the component is actually stressed
    • Directly measures a governing design property – for transversely loaded fasteners, shear strength is often the controlling property, and the test provides this value directly for design and verification
    • Reduces bending influence – the double-shear fixture loads the specimen symmetrically across two planes, minimizing the bending that can complicate a single-shear result
    • Supports fastener qualification and acceptance – the data confirms fasteners meet their shear strength requirements, supporting qualification, incoming inspection, and supplier verification
    • Standardized and comparable – run to recognized fastener/material test methods, the results provide a consistent basis for comparing components and verifying specifications

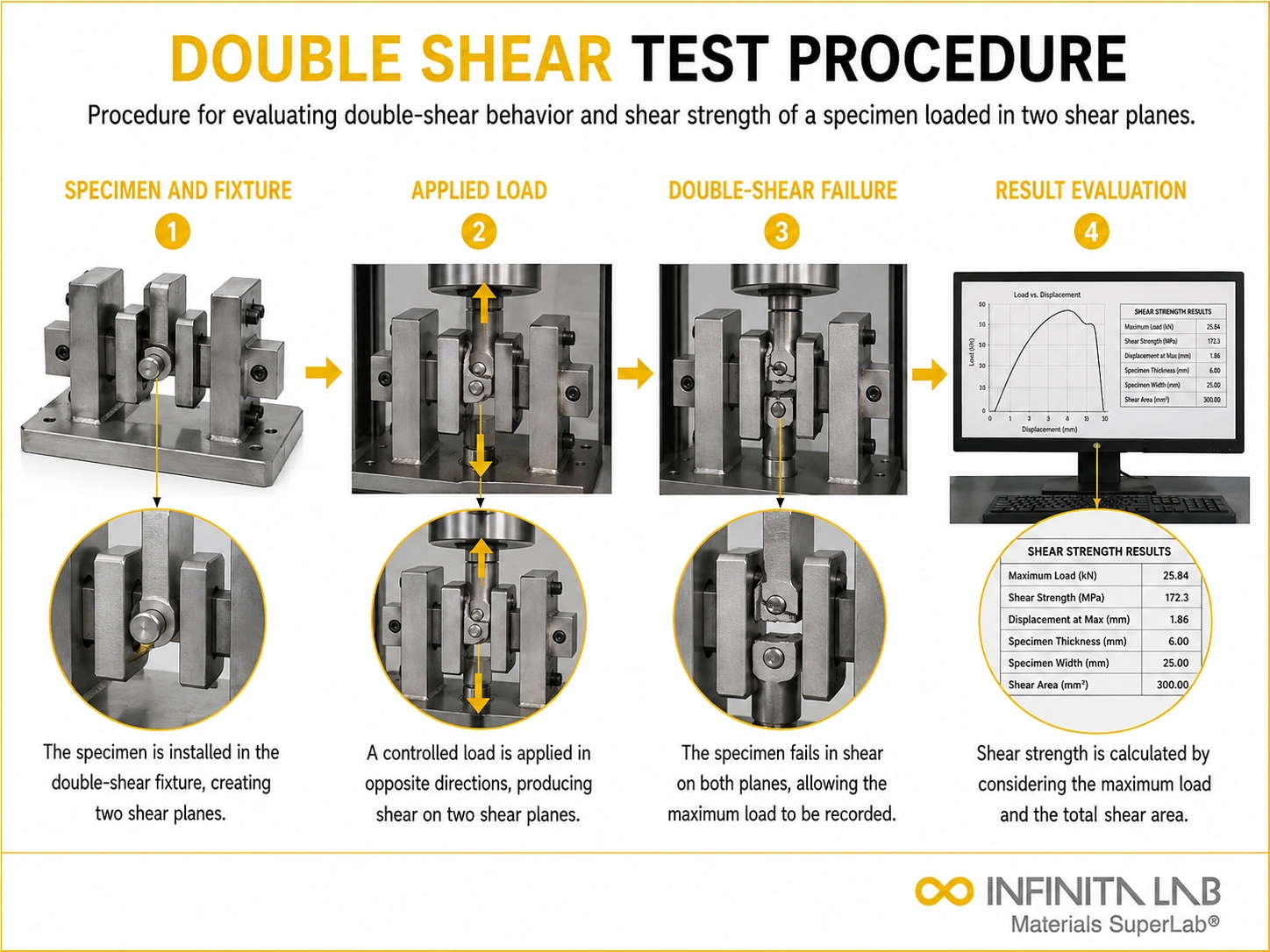

    Our Testing Procedure

    Prepare the Specimen

    Measure the sample and position it in the double-shear fixture.

    1

    Set Up the Test

    Align the shear planes and set the required loading rate.

    2

    Apply Shear Load

    Increase the load until failure and record the maximum force.

    3

    Calculate and Report

    Determine shear strength from the maximum load and total sheared area, then report the test conditions and results.

    4

    Test parameters and requirements

    ParameterDetails
    ConfigurationSpecimen sheared across two cross-sectional planes simultaneously
    Measured PropertyUltimate shear strength (from failure load and total sheared area)
    Specimen TypesBolts, pins, dowel pins, rivets, round bar/wire
    EquipmentUniversal testing machine with hardened double-shear fixture
    LoadingControlled rate to failure
    Reference StandardsASTM B565 (rivets/pins), ASTM F606 (fasteners), aerospace/military specs as applicable
    • Universal Testing Machine (UTM) with calibrated load cell
    • Hardened double-shear test fixture
    • Precision measuring equipment (micrometers, calipers) for specimen dimensions
    • Specimen alignment tooling
    • Data acquisition system for load recording



    Equipment and Instrumentation Used for Testing

    What You Receive: Test Report, Data, and Certification

    • Double shear test report – maximum failure load and calculated ultimate shear strength for each specimen, with the test configuration documented
    • Per-specimen results – individual and average shear strength values with the relevant statistics across the specimens tested
    • Specimen dimensions – measured cross-sectional dimensions and the total sheared area used in the calculation
    • Test conditions – loading rate, fixture, and machine details
    • Comparison against specification (where provided) – measured shear strength against the requirement for the fastener grade or material
    • Sample records – fastener/pin/material identification, grade, and lot information

    Double Shear FAQs

    Single shear creates failure along one shear plane, while double shear loads the specimen across two planes. Double shear specimens can generally carry approximately twice the load of comparable single-shear specimens.

    The specimen is placed through a fixture with three aligned loading sections. A testing machine applies force until the specimen yields, fractures or reaches the required test load.

    Double shear strength is calculated by dividing the failure load by the total area of the two shear planes. For a round specimen, both circular cross-sectional areas are included.

    A universal testing machine fitted with a specialised double-shear fixture is normally used. Load cells and displacement sensors record force and deformation during testing.

    Applicable requirements may be found in ASTM, ISO, aerospace, military or customer-specific specifications. The correct method depends on the specimen type, material and intended application.

    Shear testing services evaluate the ability of materials, components, and bonded assemblies to withstand forces acting parallel to their surfaces. A representative specimen is prepared according to the applicable testing standard and mounted in a universal testing machine using a suitable shear fixture. A controlled force is applied until the specimen deforms or fails. The testing equipment records the applied load and displacement to determine shear strength and other relevant mechanical properties. The results help assess material performance, product quality, and structural reliability across industries such as automotive, aerospace, construction, and manufacturing.

    Custom shear strength testing evaluates materials or components using test configurations designed around specific dimensions, loading conditions, and application requirements. The laboratory selects or develops a suitable fixture, prepares the specimen, and establishes the loading procedure based on the material and intended application. A universal testing machine applies a controlled shear force until failure or a specified deformation occurs. The maximum load, displacement, and failure characteristics are recorded and analyzed to determine shear strength and material behavior. Custom testing is useful when standard methods do not adequately represent the actual service conditions or component geometry.

    A bolt shear fixture is an attachment used with a universal testing machine to determine the shear strength of bolts, fasteners, pins, and rivets. The bolt is positioned through aligned openings in hardened shear plates or blocks, creating either a single-shear or double-shear configuration. The testing machine applies a controlled compressive or tensile load, depending on the fixture design, causing the bolt to experience transverse shear forces. The maximum load required to cause failure is recorded and used to calculate the bolt's shear strength. Proper alignment of the shear planes helps minimize unwanted bending and improves test repeatability.

    Why Choose Infinita Lab for Double Shear Testing?

    When your Double Shear results have to hold up - for compliance, a customer audit, or an engineering decision - accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your double shear testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
