ASTM D6742: Composite Filled Hole Tension Compression Testing Services
Filled-Hole Tension and Compression Testing of Polymer Matrix Composite Laminates is done by ASTM D6742. Different parameters such as fastener selection, material hardness, fastener hole tolerance, torque, and clearance of filled-holes affect the strength properties of the composite material.
TRUSTED BY
Get ASTM D6742 compliant results — request your composite filled hole tension compression testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM D6742 Composite Filled Hole Tension Compression?
ASTM D6742 provides test methods for determining the tension and compression properties of composite laminates containing a filled hole. The presence of a hole simulates real structural conditions such as bolted or fastened joints.
This test is widely used to evaluate the strength and failure behavior of fiber-reinforced composites in mechanically fastened assemblies. It helps understand how materials perform when stress concentrations are introduced by holes and fasteners.
Applications and Benefits of ASTM D6742 Composite Filled Hole Tension Compression Testing
Scope
ASTM D6742 evaluates the mechanical performance of composite materials with a filled hole under tensile and compressive loading. It assesses the effect of stress concentration on strength and durability.
The test evaluates:
- Tensile and compressive strength with filled holes
- Effect of stress concentration
- Failure modes around holes
- Load-bearing capacity of fastened joints
- Structural performance of composites
Applications
- Aerospace structural joints
- Automotive composite assemblies
- Mechanical fastener design
- Bolted and riveted connections
- Composite material research
- Quality control in composite manufacturing
Benefits
- Aerospace structural joints
- Automotive composite assemblies
- Mechanical fastener design
- Bolted and riveted connections
- Composite material research
- Quality control in composite manufacturing

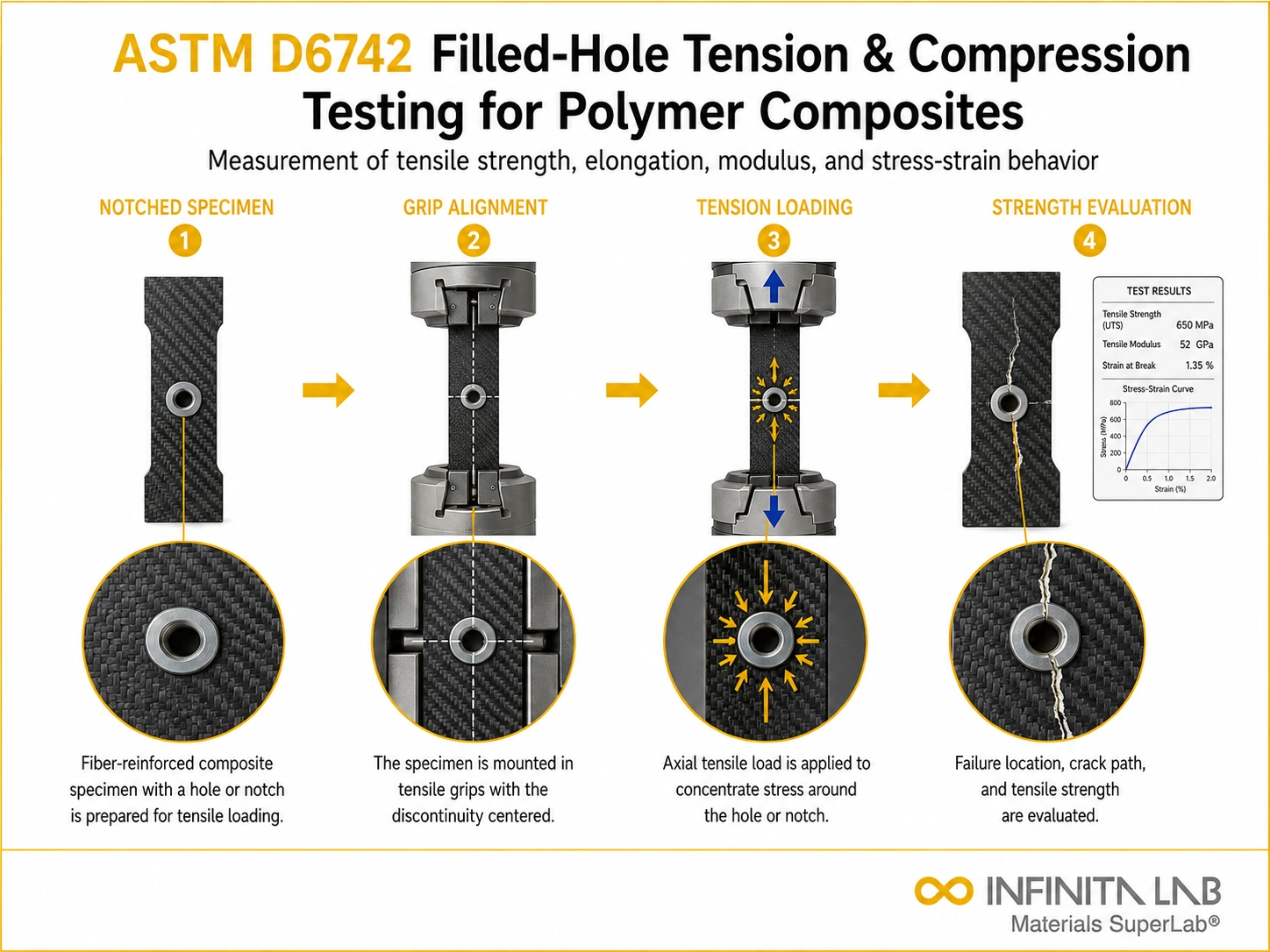

Our ASTM D6742 Testing Procedure
Sample Preparation
Composite specimens with a drilled and filled hole are prepared.
1Fixture Setup
Specimen is mounted in tensile or compression fixture.
2Load Application
Load is applied until failure under controlled rate.
3Data Recording & Evaluation
Strength and failure modes are recorded and analyzed.
4ASTM D6742 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Fiber-reinforced polymer composites |
| Hole Diameter | Typically 6 mm to 12 mm |
| Filling Material | Fastener or pin (metallic/composite) |
| Loading Type | Tension and compression |
| Loading Rate | Approximately 1–2 mm/min |
| Test Temperature | Approximately 23°C ± 2°C |
| Measured Outputs | Strength (MPa), failure mode, load capacity |
- Universal testing machine
- Tensile and compression fixtures
- Precision drilling tools
- Alignment fixtures
- Strain measurement devices
- Data acquisition system
Equipment and Instrumentation Used for ASTM D6742 Testing
What You Receive: Test Report, Data, and Certification
- Filled-hole tensile strength
- Filled-hole compressive strength
- Failure mode analysis
- Load-displacement behavior
- Test condition summary
- ASTM compliance report
ASTM D6742 Composite Filled Hole Tension Compression FAQs
ASTM D6742 is a standard test method used to evaluate tensile and compressive properties of composite materials containing a filled hole, simulating bolted joint conditions in structural applications.
ASTM D6742 helps assess joint performance in composites, ensuring strength, durability, and safety in applications like aerospace and automotive structures where fasteners introduce stress concentrations around holes.
ASTM D6742 involves applying controlled tensile or compressive loads to a specimen with a filled hole, measuring strength and deformation to evaluate material behavior under simulated fastening conditions.
ASTM D6742 requires a universal testing machine, specialized fixtures, strain measurement devices, and precisely machined specimens with filled holes to ensure accurate and repeatable testing results.
Results are reported as tensile and compressive strength values, along with failure modes and stress-strain data, providing insights into material performance around fastener regions in composite structures.
