ASTM D6040 Unsintered PTFE Extruded Film Property Testing
ASTM D6040 is used for evaluating unsintered extruded films or tapes made of PTFE. The SI values are considered standard.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
ASTM D6040 evaluates the physical and mechanical properties of unsintered polytetrafluoroethylene (PTFE) extruded films. The test focuses on assessing material characteristics prior to sintering to ensure consistency in processing and product performance.
This method is widely used in fluoropolymer manufacturing, electrical insulation, and high-performance material applications. It helps verify that unsintered PTFE films meet required specifications before further processing.
Scope, Applications, and Benefits
Scope
ASTM D6040 assesses unsintered PTFE extruded films by evaluating their dimensional, mechanical, and processing-related properties. The test ensures uniformity and suitability for subsequent sintering or end-use applications.
The test evaluates:
- Thickness and dimensional consistency
- Mechanical strength of unsintered film
- Surface uniformity and integrity
- Processing behavior prior to sintering
- Material suitability for final applications
Applications
- PTFE film manufacturing
- Electrical insulation materials
- Chemical-resistant liners
- High-performance industrial films
- Aerospace and electronics applications
- Quality control in fluoropolymer production
Benefits
- Ensures consistency before sintering
- Supports process optimization
- Improves final product performance
- Detects defects in early stages
- Enables comparison of PTFE film quality

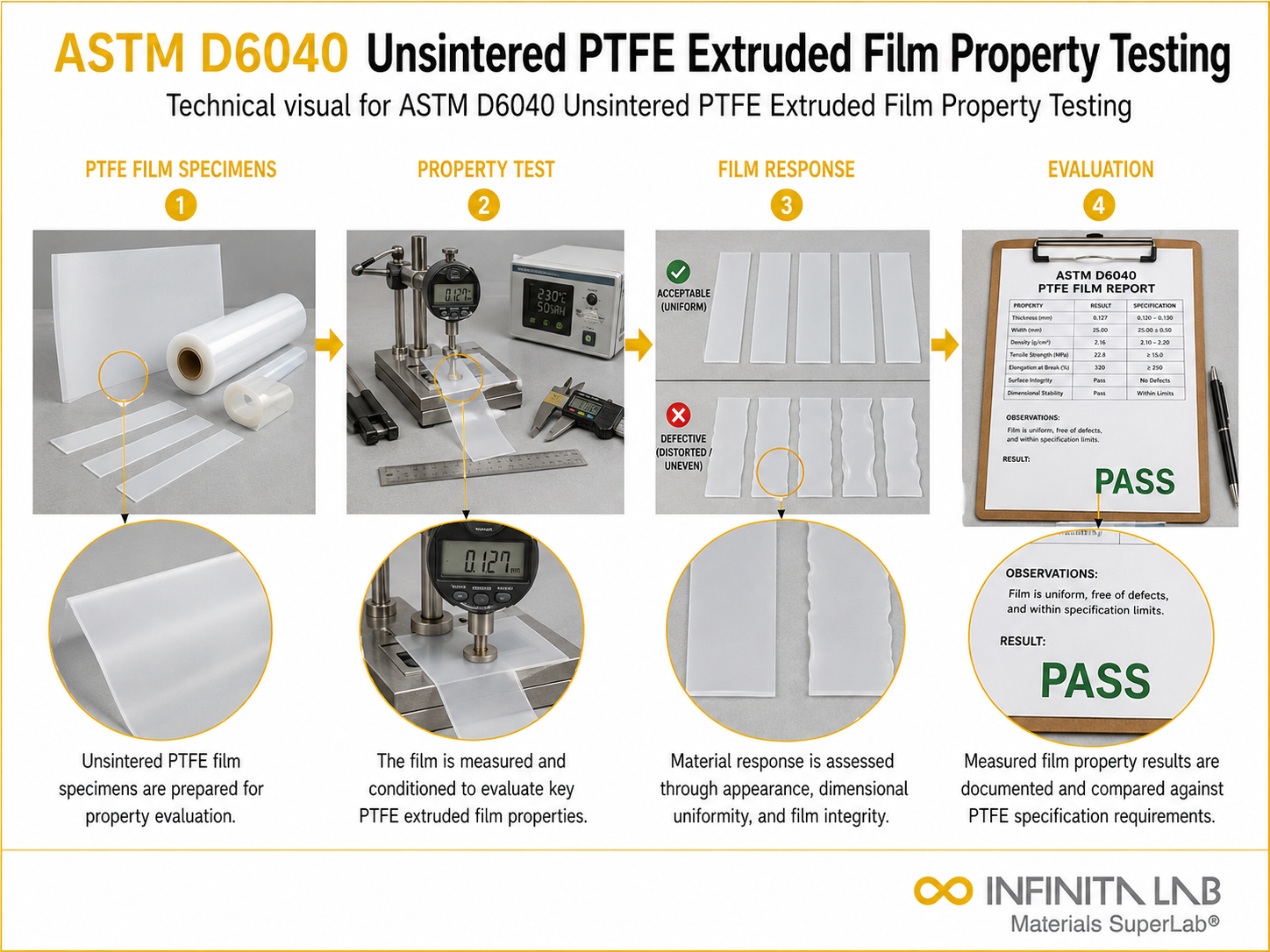

Test Process
Sample Preparation
Unsintered PTFE film specimens cut to defined dimensions and conditioned per ASTM D 6040.
1Dimensional Measurement
Film thickness, width, and dimensional uniformity measured per ASTM D 6040 requirements.
2Tensile & Elongation Testing
Specimens tested in machine and transverse directions at defined crosshead speed per ASTM D 6040.
3Data Analysis & Reporting
Measured properties assessed against ASTM D 6040 criteria to determine test compliance result.
4Technical Specifications
| Parameter | Details |
|---|---|
| Applicable Materials | Unsintered polytetrafluoroethylene extruded film for sealing and industrial applications |
| Specimen Geometry | 25.4 mm wide × 150 mm gauge length per ASTM D 6040 tensile specimen requirements |
| Crosshead Speed | 500 mm/min tensile test speed per ASTM D 6040 mechanical property requirements |
| Conditioning | 23°C ± 2°C and 50% ± 5% relative humidity per ASTM D 6040 conditioning requirements |
| Measured Outputs | Tensile strength, elongation, thickness, dimensional data, and test compliance result |
Instrumentation Used for Testing
- Universal testing machine with 500 mm/min crosshead speed control
- Precision film thickness gauge for dimensional measurement
- Calibrated load cell for tensile force measurement
- Specimen conditioning chamber at 23°C ± 2°C and 50% ± 5% RH
- Precision cutting tools for defined specimen geometry preparation
- Data acquisition and test reporting system
Results and Deliverables
- Tensile strength and elongation data in machine and transverse directions per ASTM D 6040
- Dimensional measurement data including thickness, width, and film uniformity
- Statistical summary of mechanical property results across the test specimen set
- Test compliance result assessed against ASTM D 6040 minimum property requirements
- ASTM D 6040 test report
Why Choose Infinita Lab for ASTM D 6040?
At the core of this breadth is our network of 2,000+ accredited labs in the USA, offering access to over 10,000 test types. From advanced metrology (SEM, TEM, RBS, XPS) to mechanical, dielectric, environmental, and standardized ASTM/ISO testing, we give clients unmatched flexibility, specialization, and scale. You’re not limited by geography, facility, or methodology—Infinita connects you to the right testing, every time.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions
ASTM D6040 evaluates properties of unsintered PTFE extruded films. It helps assess material quality, uniformity, and suitability for further processing into finished products such as tapes, seals, and industrial components.
Key parameters include film thickness, density, tensile properties, and visual inspection. Controlled conditions ensure accurate evaluation of unsintered PTFE film characteristics before sintering processes.
The test measures physical and mechanical properties of PTFE films. Results indicate uniformity, strength, and processing suitability for further manufacturing steps.
ASTM D6040 applies to unsintered PTFE extruded films used in industrial applications such as sealing, insulation, and chemical-resistant components.
ASTM D6040 focuses on unsintered material properties and may not represent final product performance after sintering, requiring additional testing for complete evaluation.
