ASTM D3170: Coating Chip Resistance Testing Services
Chip Resistance Test of Coatings is done by using Gravelometer following ASTM D3170 test method. This test determines the chipping resistance of coated surfaces while simulating the effects of gravel or other small items on automotive parts.
TRUSTED BY
Get ASTM D3170 compliant results — request your coating chip resistance testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM D3170 Coating Chip Resistance?
ASTM D3170 provides a standardised method for evaluating the resistance of coatings to chipping when impacted by gravel or other projectiles. Chip resistance is a critical performance attribute for automotive exterior coatings, truck bed liners, underbody coatings, and any protective finish applied to surfaces exposed to road debris or mechanical impacts.
The test uses a gravelometer apparatus in which a stream of standardised gravel is propelled by compressed air against the coated test panel. The resulting chip damage is compared visually to a photographic reference chart, and a numerical rating from 10 (no chipping) to 0 (severe chipping) is assigned. This rating system allows direct comparison of coating systems and supports the design and specification of chip-resistant finishes.
Applications and Benefits of ASTM D3170 Coating Chip Resistance Testing
Scope
ASTM D3170 evaluates:
- Chip resistance of organic coatings on metal substrates
- Effect of coating type and thickness on chip performance
- Impact of substrate preparation on chip resistance
- Temperature dependence of chipping behaviour
- Comparative ranking of coating systems
- Coating adhesion failure vs. cohesive chip patterns
Applications
- Automotive OEM exterior coatings
- Truck bed liner coatings
- Underbody and rocker panel coatings
- Fleet vehicle protective finishes
- Heavy equipment coatings
- Agricultural machinery coatings
- Quality control in automotive paint lines
Benefits
- Simulates real-world gravel impact damage
- Enables objective chip resistance rating
- Supports selection of chip-resistant coating systems
- Identifies adhesion weaknesses under impact conditions
- Provides data for coating system qualification
- Enables testing at low temperature to simulate cold-weather chipping

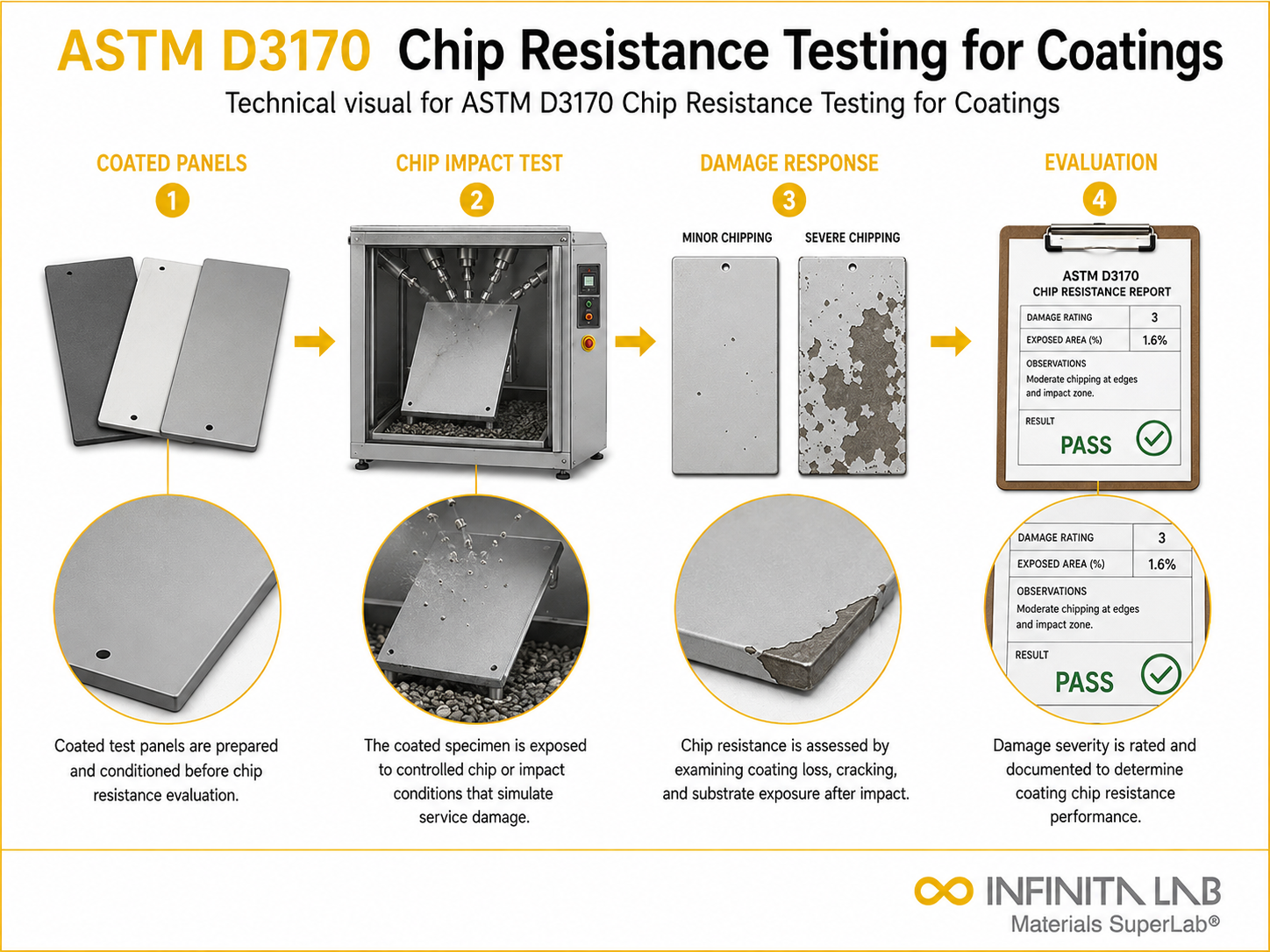

Our ASTM D3170 Testing Procedure
Specimen Preparation
Coated metal panels are prepared at specified dry film thickness and fully cured.
1Temperature Conditioning
Panels are optionally conditioned at -18°C or specified temperature before testing.
2Gravel Impact
Panel is mounted in the gravelometer; 500 mL of standardized gravel is propelled at the coated surface with compressed air.
3Rating
Panel is compared to the SAE J400 / ASTM D3170 photographic chart and assigned a numerical chip resistance rating.
4ASTM D3170 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Painted metal panels, coated automotive body panels, coated substrates |
| Specimen Types | Flat coated test panels |
| Impact Media | Standard gravel or specified chipping media |
| Test Temperature | Ambient or low-temperature conditioned environment |
| Test Environment | Controlled laboratory conditions |
- Gravelometer apparatus with compressed air delivery
- Standardised SAE gravel (angular, 9–16 mm)
- Photographic rating chart (SAE J400/ASTM D3170)
- Low-temperature conditioning chamber
- Film thickness gauge
- Magnifying glass for chip examination
Equipment and Instrumentation Used for ASTM D3170 Testing
What You Receive: Test Report, Data, and Certification
- Chip resistance rating (numeric, 0–10)
- Chip pattern photographs
- Dry film thickness measurements
- Temperature-dependent chip resistance data
- Coating system qualification reports
ASTM D3170 Coating Chip Resistance FAQs
It measures the chip resistance of coatings when impacted by gravel, stones, or other flying objects.
It is widely used in the automotive, industrial coatings, and paint manufacturing industries.
Typically, coated metal test panels or painted automotive body panels are used.
It helps evaluate how well a coating can withstand road debris impact, which is critical for vehicle durability and appearance.
Yes, it is similar to SAE J400, another widely used gravelometer chip resistance test.
