ASTM D2239: Pe Pipe Inside Diameter Testing Services
ASTM D2239 test method applies to water-rated polyethylene (PE) pipe with standard interior dimension ratios (SIDR) (see appendix). Workmanship, dimensions, increased temperature, sustained pressure, burst pressure, and labeling are all covered, as well as requirements and test techniques for PE compounds. The final results of this method are displayed as per the international standards.
TRUSTED BY
Get ASTM D2239 compliant results — request your pe pipe inside diameter testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM D2239 Pe Pipe Inside Diameter?
ASTM D2239 establishes specifications and test requirements for polyethylene (PE) plastic pipe manufactured with a controlled inside diameter (ID). Unlike outside-diameter-controlled pipe, ID-controlled pipe is designed for applications where the internal flow capacity is the primary engineering concern. The standard covers dimensions, pressure ratings, material requirements, and performance testing.
The inside diameter of the pipe is held to close tolerances to ensure consistent flow characteristics, while the wall thickness is adjusted based on the required hydrostatic pressure design basis and the standard dimension ratio (SDR). Testing includes burst pressure, sustained pressure, and quality conformance checks to ensure the pipe will perform reliably under service conditions.
Applications and Benefits of ASTM D2239 Pe Pipe Inside Diameter Testing
Scope
ASTM D2239 covers:
- Dimensional requirements for ID-controlled PE pipe
- Wall thickness and standard dimension ratio (SDR)
- Material classification and pressure design basis
- Short-term burst pressure performance
- Sustained hydrostatic pressure testing
- Quality conformance and marking requirements
Applications
- Irrigation and agricultural water supply
- Potable water distribution
- Industrial fluid transport
- Gas distribution systems
- Mining water conveyance
- Residential plumbing applications
- Chemical handling in corrosive environments
Benefits
- Ensures consistent internal flow capacity
- Supports pressure rating verification
- Enables reliable performance under service conditions
- Facilitates pipe system design and sizing
- Provides compliance data for regulatory requirements
- Reduces failures from substandard pipe materials

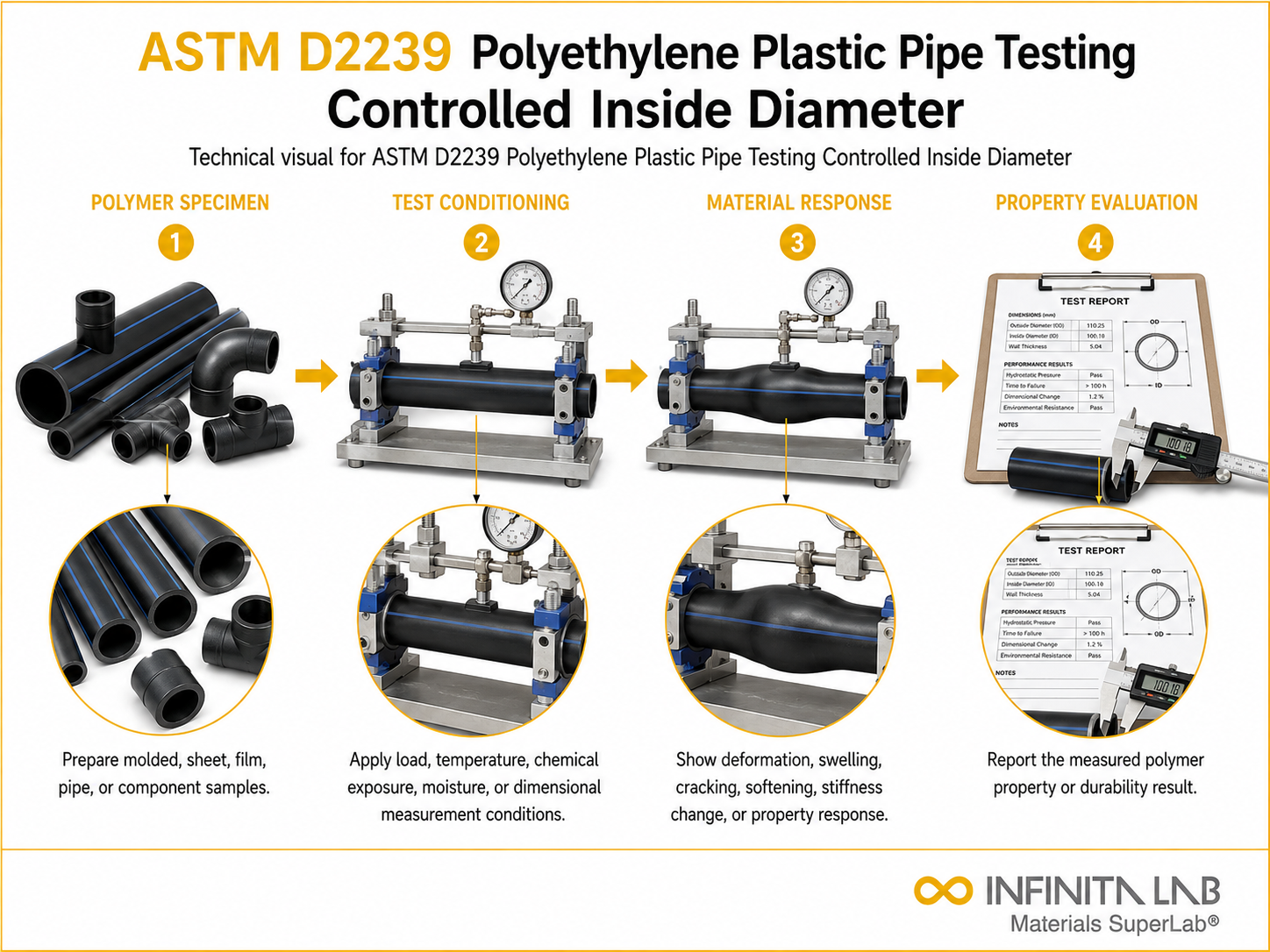

Our ASTM D2239 Testing Procedure
Dimensional Verification
Inside diameter, wall thickness, and length are measured to confirm conformance.
1Material Identification
Resin type and classification are verified against material specifications.
2Burst Pressure Test
Pipe is subjected to rapid pressurization to determine short-term burst strength.
3Sustained Pressure Test
Pipe specimens are held under elevated pressure for the required test duration.
4ASTM D2239 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Polyethylene (PE) plastic pipe |
| Specimen Types | Pipe sections / finished pipe samples |
| Measured Property | Inside diameter, pressure rating, burst strength |
| Pressure Test | Sustained and burst pressure resistance |
| Test Environment | Controlled ambient and hydrostatic pressure conditions |
- Calibrated calipers and bore gauges
- Hydrostatic pressure testing apparatus
- End-cap and pressurization fittings
- Timer and temperature monitoring equipment
- Analytical balance
- Data recording system
Equipment and Instrumentation Used for ASTM D2239 Testing
What You Receive: Test Report, Data, and Certification
- Dimensional conformance report
- Burst pressure test results
- Sustained pressure test pass/fail data
- Material classification records
- Quality assurance reports
ASTM D2239 Pe Pipe Inside Diameter FAQs
It covers PE plastic pipes with controlled inside diameter (SIDR) used primarily for water conveyance and pressure systems.
SIDR stands for Standard Inside Dimension Ratio, where the inside diameter is controlled and wall thickness varies according to pressure rating.
The standard applies to polyethylene (PE) plastic pipe compounds.
It includes checks for dimensions, burst pressure, sustained pressure, and workmanship.
It is widely used in water supply, irrigation, and pressure piping systems.
