What Is ASTM D1037 Wood Base Fiber Particle Panel?
ASTM D1037, Standard Test Methods for Evaluating Properties of Wood-Base Fibre and Particle Panel Materials, is not a single test but a comprehensive suite of more than twenty standardised procedures used to characterise the mechanical, physical, and durability performance of engineered wood panels. Infinita Lab connects manufacturers, importers, and specifiers of particleboard, medium density fibreboard (MDF), hardboard, oriented strand board (OSB), and other wood-base fibre and particle panel products with accredited laboratory partners qualified to execute the full range of methods this standard describes. Because these panels are engineered from wood particles, fibres, or strands bonded with adhesive under heat and pressure, in-service performance depends on many interacting characteristics: bending and rupture resistance under load, internal bond strength through the panel thickness, fastener holding power, surface resistance to indentation and abrasion, and response to moisture through swelling, expansion, and warping. ASTM D1037 addresses each through a dedicated procedure, letting one governing standard guide testing that would otherwise require several disconnected methods.
Typical evaluations performed under D1037 include static bending for modulus of rupture and elasticity, tension and compression testing parallel and perpendicular to the panel surface, shear testing in multiple orientations, lateral nail resistance, nail and screw withdrawal, nail-head pull-through, hardness, falling-ball impact resistance, abrasion resistance, water absorption and thickness swelling, linear expansion with moisture change, cupping and twisting, and accelerated ageing. Manufacturers rely on these results to qualify product formulations, support building code compliance, validate ongoing quality control, and back specification and marketing claims with defensible, standardised data. Infinita Lab manages the full testing engagement, from scoping the relevant methods for a given product to coordinating specimen submission and delivering a consolidated report, through its accredited partner network and a single point of contact.
Applications and Benefits of ASTM D1037 Wood Base Fiber Particle Panel Testing
Scope
- ASTM D1037 establishes standardised procedures for evaluating the mechanical, physical, and durability properties of wood-based fibre and particle panel materials.
- The standard applies to particleboard, medium density fibreboard (MDF), hardboard, insulation board, structural fibreboard, and oriented strand board (OSB).
- It specifies methods for strength properties, including static bending, tension, compression, and shear in multiple directions and orientations.
- It defines fastener performance tests, including lateral nail resistance, nail withdrawal, nail-head pull-through, and direct screw withdrawal.
- It covers surface and durability characteristics, including hardness, falling-ball impact resistance, and abrasion resistance.
- It includes dimensional stability tests, such as water absorption, thickness swelling, linear expansion with moisture change, and cupping and twisting.
- It provides an accelerated ageing procedure for assessing how bond quality and physical properties change under simulated long-term exposure.
- The standard specifies conditioning requirements, specimen sizing, and calculation procedures so that results are comparable across laboratories and product batches.
- It is referenced by numerous product standards and specifications governing engineered wood panels used in construction, furniture, and cabinetry.
Applications
- Manufacturers use D1037 testing to qualify new panel formulations before commercial release.
- Building product companies rely on D1037 data to demonstrate compliance with building codes and voluntary product standards.
- Furniture and cabinetry producers use the results to select panel grades suited to structural and fastener-holding demands.
- Flooring underlayment and structural sheathing suppliers use the standard to verify bending strength and moisture resistance.
- Quality control laboratories use selected D1037 methods for routine batch acceptance testing during production.
- Importers and distributors use independent D1037 test reports to verify supplier claims before bringing panel products to market.
- Research and product development teams use the standard to compare competing panel constructions on a consistent, repeatable basis.
Benefits
- A single governing standard reduces the need to source multiple disparate test methods for one product.
- Standardised specimen preparation and conditioning make results comparable across suppliers, plants, and testing cycles.
- Comprehensive property coverage supports both structural and cosmetic performance claims in one testing program.
- Accredited third-party testing strengthens credibility with customers, code officials, and specifiers.
- Early identification of weak points, such as poor internal bond or excessive thickness swell, reduces field failure risk.
- Documented, traceable data supports warranty defence, liability management, and continuous quality improvement.

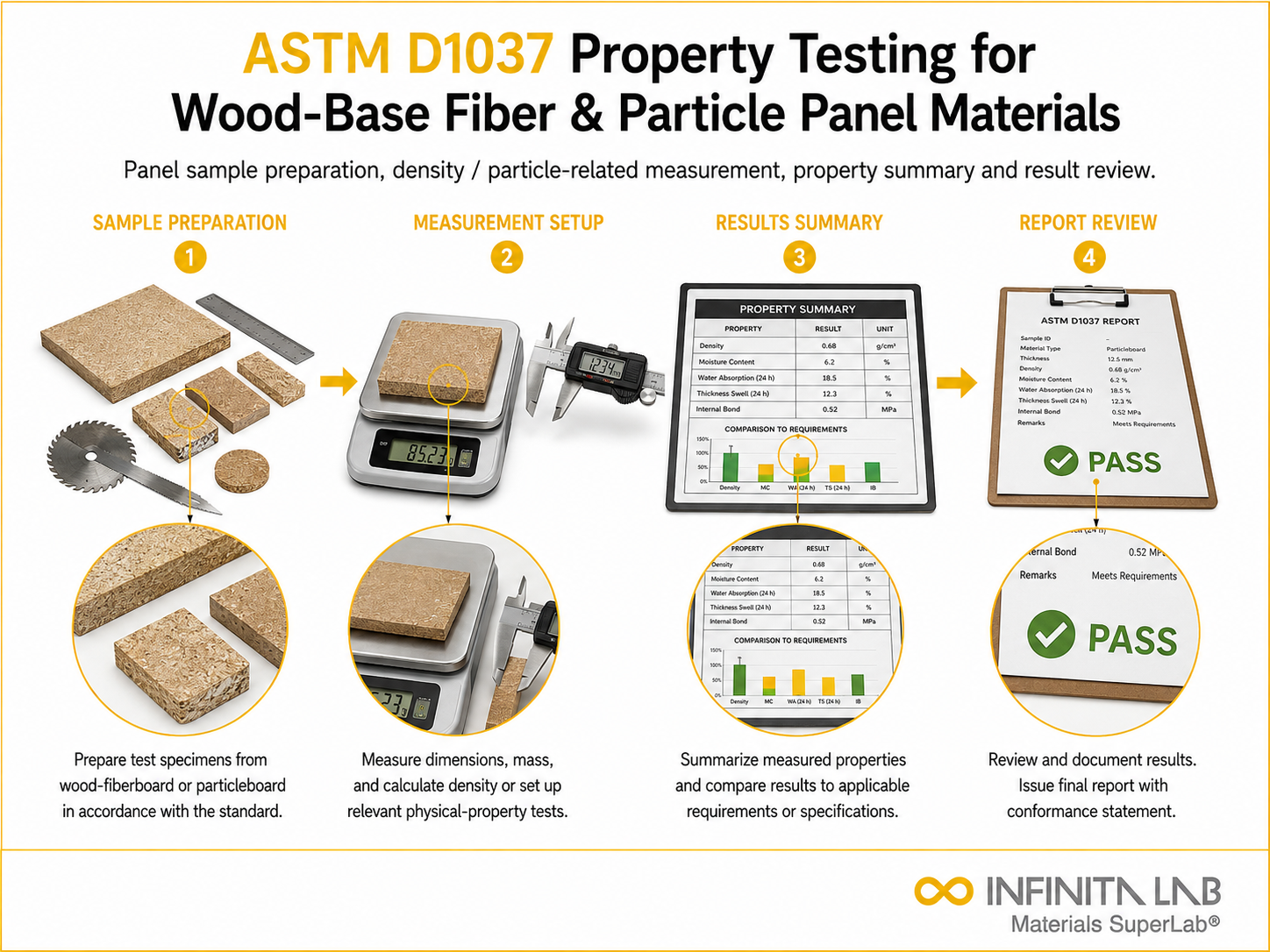

Our ASTM D1037 Testing Procedure
Sample Preparation
Panel specimens cut to defined dimensions and conditioned per ASTM D 1037 requirements.
1Mechanical Property Testing
Specimens tested for bending, tension, compression, and fastener holding per defined procedures.
2Moisture & Durability Testing
Specimens evaluated for linear expansion, thickness swell, and water absorption performance.
3Data Analysis & Reporting
Measured properties assessed against ASTM D 1037 criteria to determine test compliance result.
4ASTM D1037 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Particleboard, fiberboard, hardboard, oriented strand board, and wood composite panels |
| Specimen Geometry | Defined specimen dimensions per ASTM D 1037 individual test requirements |
| Specimen Conditioning | Pre-test conditioning per ASTM D 1037 temperature and humidity requirements |
| Measured Parameters | Bending, tension, compression, fastener holding, expansion, swell, and absorption |
| Measured Outputs | Mechanical, physical, durability property data, and test compliance result |
- Universal Testing Machine (UTM) – Applies controlled load for static bending, tension, compression, and internal bond testing.
- Durometer or Hardness Tester – Measures surface resistance to indentation.
- Environmental Conditioning Chamber – Maintains controlled temperature and humidity for specimen conditioning and accelerated ageing.
- Water Immersion Tank – Supports water absorption and thickness swelling test procedures.
- Precision Callipers and Dial Gauges – Record dimensional changes for thickness swell, linear expansion, and cupping and twisting measurements.
- Falling-Ball Impact Apparatus – Evaluates panel resistance to impact damage.
- Abrasion Testing Equipment – Assesses surface wear resistance under standardised abrasive action.
Equipment and Instrumentation Used for ASTM D1037 Testing
What You Receive: Test Report, Data, and Certification
- A detailed test report documenting specimen identification, dimensions, and conditioning history for every sample tested.
- Calculated values for each requested property, such as modulus of rupture, internal bond strength, or thickness swell percentage.
- Pass/fail determinations against applicable product standards when specified by the client.
- Photographic documentation of specimen failure modes where relevant to the interpretation of results.
- A summary suitable for supporting regulatory submissions, customer qualification packages, or internal quality records.
- Consultative guidance on selecting the subset of D1037 methods most relevant to a specific product or application.
ASTM D1037 Wood Base Fiber Particle Panel FAQs
ASTM D1037 measures the physical and mechanical properties of wood-based fiberboard and particleboard panels. It assesses features like bending strength, internal bond strength, thickness swelling, and density.
ASTM D1037 helps manufacturers and engineers check the quality and structural performance of wood panels. These panels are used in construction, furniture, and industrial applications where strength, durability, and dimensional stability are important.
ASTM D1037 measures several properties. These include modulus of rupture, modulus of elasticity, internal bond strength, density, moisture resistance, thickness swelling, and nail withdrawal resistance.
ASTM D1037 is often used for particleboard, medium density fiberboard, hardboard, insulation board, and other engineered wood panels. These materials are found in building construction, furniture manufacturing, and interior structural applications.
ASTM D1037 evaluates panel properties under laboratory conditions and may not fully represent real service environments where long-term moisture exposure, load variations, and environmental factors affect wood-based material performance.
ASTM D1037 evaluates the physical and mechanical properties of wood-based fibre and particle panels such as particleboard, MDF, hardboard, and OSB. Specimens are prepared and conditioned, then selected tests -such as bending, tensile, hardness, fastener holding, water absorption, thickness swelling, and shear -are performed to assess panel performance.
Why Choose Infinita Lab for Wood Base Fiber Particle Panel Testing
When your Wood Base Fibre Particle Panel results have to hold up - for compliance, a customer audit, or an engineering decision - ASTM D1037 accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your ASTM D1037 wood base fibre particle panel testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
