ASTM A578 Straight Beam Ultrasonic Examination of Steel Plates (Special Applications)
ASTM A 577 is a standard specification that gives the detailed procedure and examination method for straight-beam, pulse-echo, ultrasonic examination of rolled carbon and alloy steel plates, 3⁄8 inch in over and for special applications.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
ASTM A578 is a standard procedure for ultrasonic testing, which can identify defects within a rolled steel plate. This procedure involves sending ultrasonic waves into the steel, which are then echoed back by any defects within the steel, thereby testing the integrity of the steel.
This procedure is often used for quality control purposes for pressure vessel plates, structural steel pieces, etc. The ultrasonic procedure can identify defects within the steel, which can affect the reliability of the steel for use in specific applications.
Scope, Applications, and Benefits
Scope
ASTM A578 is a standard for the ultrasonic inspection of rolled steel plates, which are used for structural as well as pressure vessel applications. The standard addresses carbon steel, alloy steel, as well as heavy structural steel plates, outlining the procedure for the straight beam ultrasonic inspection of the steel plates to determine the quality of the steel internally. The inspection is conducted to determine the quality of the steel plates, which are used for structural purposes, by:
– Determining the presence of internal laminations within the rolled steel plates
– Detecting the presence of non-metallic inclusions within the steel plates
– Detecting the presence of voids or porosity within the steel plates, which are a result of the manufacturing process
– Determining the presence of internal discontinuities within the steel plates
Applications
- Quality control of rolled steel plates
- Inspection of pressure vessel materials
- Structural steel inspection
- Shipbuilding and marine structures
- Power plant components
- Heavy machinery fabrication
- Bridge and infrastructure steel components
Benefits
- Detects internal defects without damaging the material
- Ensures structural integrity of steel plates
- Improves reliability of critical components
- Supports compliance with engineering standards
- Provides rapid and accurate inspection
- Reduces risk of material failure in service
- Enhances quality assurance in steel manufacturing

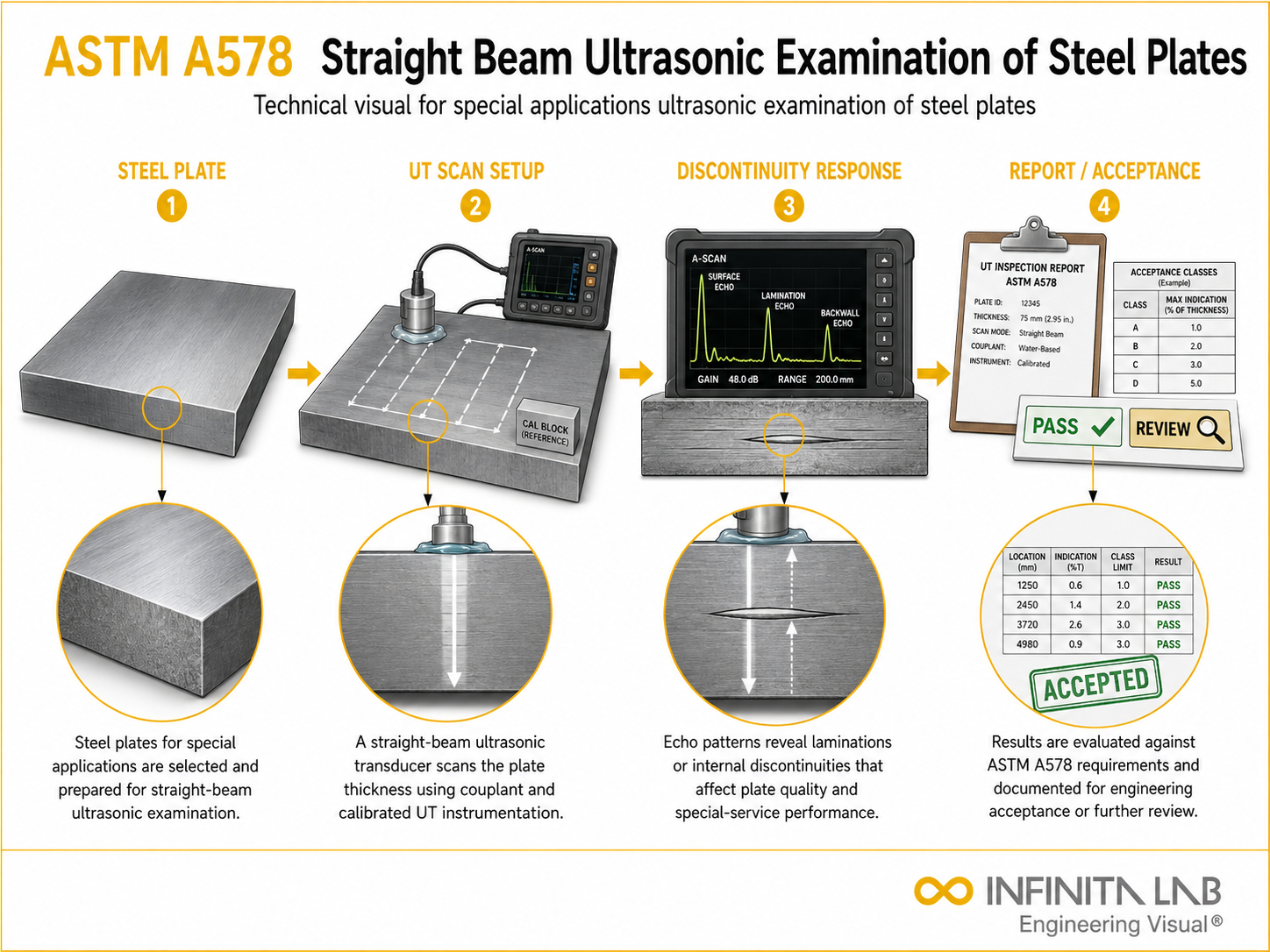

Test Process
Surface Preparation & Calibration
The steel plate surface is cleaned and ultrasonic equipment is calibrated using reference blocks for accurate inspection.
1Couplant Application
A suitable couplant is applied to ensure efficient transmission of ultrasonic waves into the steel plate.
2Straight-Beam Ultrasonic Scanning
A straight-beam transducer is moved across the plate surface to scan the material thickness.
3Signal Detection & Evaluation
Reflected signals are detected and evaluated based on amplitude and acceptance criteria to identify internal defects.
4Technical Specifications
| Parameter | Details |
|---|---|
| Applicable Materials | Rolled carbon steel and alloy steel plates |
| Inspection Method | Pulse-echo ultrasonic testing |
| Quality Levels | Multiple acceptance levels (Level A, B, C, etc.) |
| Inspection Coverage | Full plate surface or specified scanning grid |
| Couplant Used | Water, oil, or ultrasonic gel |
| Output Units | Signal amplitude and defect location |
Instrumentation Used for Testing
- Ultrasonic flaw detector
- Straight-beam ultrasonic transducers
- Calibration reference blocks
- Couplant (gel, oil, or water)
- Scanning equipment or manual probes
- Thickness gauges
- Data recording and analysis software
Results and Deliverables
- Detection of internal laminations and discontinuities
- Ultrasonic scan reports
- Defect location and depth information
- Acceptance or rejection based on ASTM criteria
- Reports
Frequently Asked Questions
Among all the types of testing, the ultrasonic examination is unique. It is also non-destructive to inspect steel plates compared to destructive ones. This method includes some internal defects that are not easy to note by the naked eye and hence gives a better picture of the quality of the steel plate.
The criteria are established depending on the measurements of the defects that exist. They monitor and ensure the steel plates' quality, and that only quality steel plates are used in the correct sections.
Nondestructive testing of any steel plate thickness uses ultrasonic testing equipment that utilizes the pulse-echo technique.
Laminations, Inclusion clusters, Non Metallic inclusion, Voids, and other internal defects during ultrasonic examination.
