Instrumented Impact Testing: Force-Displacement Data & Material Insights
Difference between standard and instrumented impact testingInstrumented impact testing enhances traditional Charpy and Izod pendulum tests by adding high-speed load and displacement measurement instrumentation to capture the complete force-time history of fracture. While standard impact tests report only total absorbed energy, instrumented testing reveals the initiation energy, propagation energy, peak load, deflection at failure, and fracture mode—providing engineers with far richer data for material selection, failure analysis, and product design. For manufacturers seeking instrumented impact testing at a USA-based ASTM testing lab, Infinita Lab provides comprehensive mechanical testing through its accredited network of over 2,000 partner labs.
How Instrumented Impact Testing Works

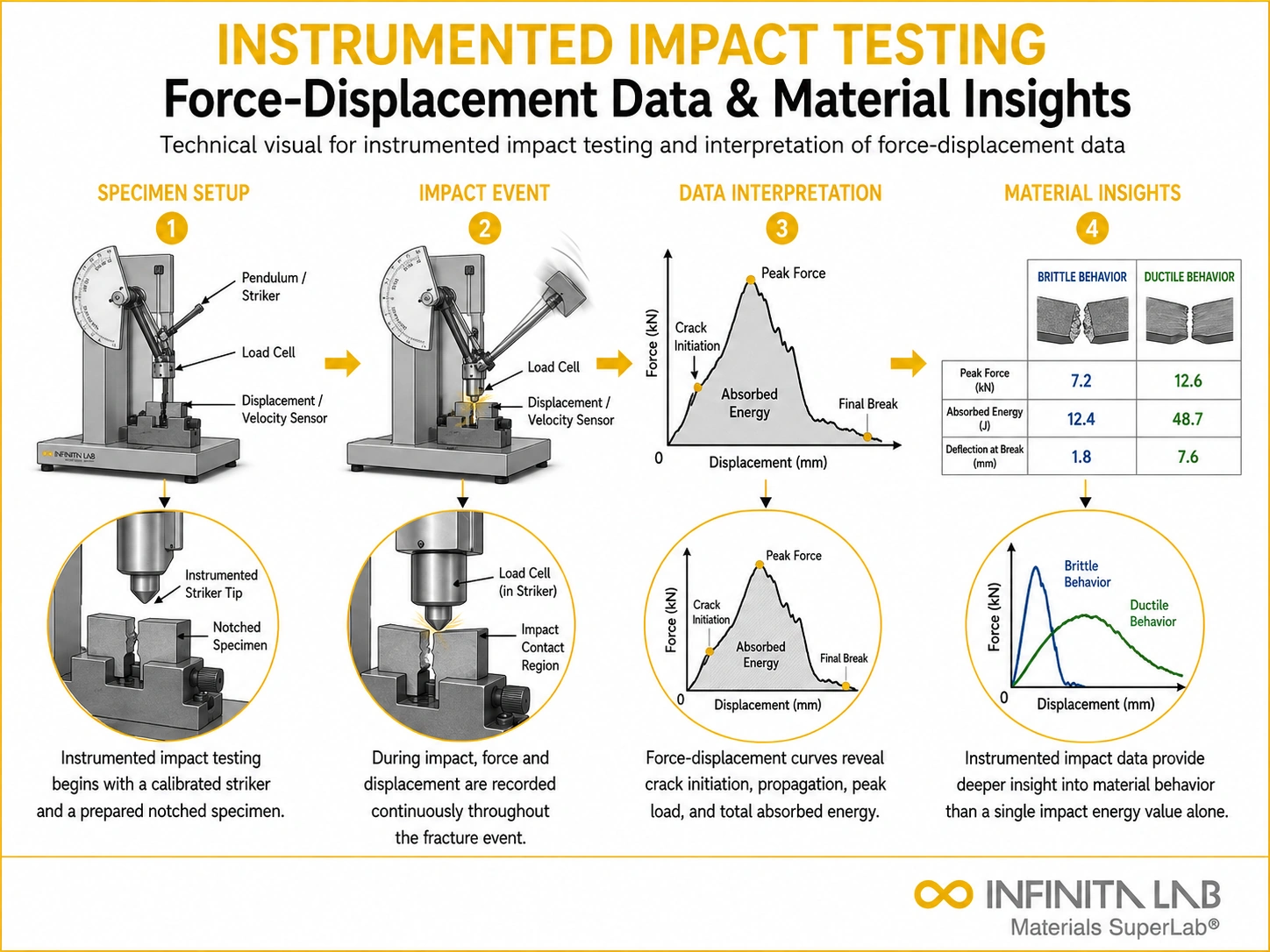

A strain-gauged or piezoelectric force sensor (tup) is mounted on the pendulum striker or drop-weight tower. During impact, the sensor records the force applied to the specimen at sampling rates of 500 kHz to 2 MHz. Integrating the force-displacement curve yields total absorbed energy, while the curve shape reveals whether the fracture was ductile, brittle, or mixed-mode. High-speed cameras may supplement force data with visual documentation of crack propagation.
Key Testing Standards
ASTM D3763 – Puncture Impact of Rigid Plastics
ASTM D3763 uses an instrumented drop-weight tower to measure the multiaxial puncture resistance of rigid plastic sheets and molded parts. The instrumented tup provides force-displacement curves that characterise ductile-to-brittle transition behaviour.
ASTM E2298 – Instrumented Charpy Impact
ASTM E2298 covers instrumented impact testing of metallic materials using a Charpy V-notch pendulum with force instrumentation. It supplements ASTM E23 by providing force-time data for fracture mechanics analysis of metals used in the automotive, aerospace, and pipeline industries.
ASTM D7136 – Drop-Weight Impact of Composites
ASTM D7136 measures the damage resistance of fibre-reinforced composite plates using an instrumented drop-weight impactor, quantifying the impact force, energy absorbed, and damage area for aerospace composite damage-tolerance assessment.
Advantages Over Standard Impact Testing
Instrumented testing separates crack initiation from propagation energy, identifies ductile-to-brittle transition more precisely, provides load-deflection curves for quality fingerprinting, enables fracture mechanics parameter calculation, and supports computer simulation validation through detailed force-time data.
Why Choose Infinita Lab for Impact Testing?
Infinita Lab is a leading provider of Impact Testing and streamlined material testing services, addressing the critical challenges faced by emerging businesses and established enterprises. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions. The company’s unique value proposition includes comprehensive project management, confidentiality assurance, and seamless communication through a Single Point of Contact (SPOC) model. By eliminating inefficiencies in traditional material testing workflows, Infinita Lab accelerates research and development (R&D) processes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is instrumented impact testing? Instrumented impact testing adds high-speed force and displacement measurement to standard impact tests, capturing the complete force-time history of fracture rather than just total absorbed energy.
What additional data does instrumented testing provide? Peak force, initiation energy, propagation energy, deflection at failure, loading rate, and the complete force-displacement curve—enabling separation of crack initiation and propagation behaviour.
What ASTM standards cover instrumented impact testing? ASTM E2298 (instrumented Charpy for metals), ASTM D3763 (puncture impact of plastics), ASTM D7136 (drop-weight impact of composites), and ASTM D5628 (drop-weight impact of flat plastics) are key standards.
What is the difference between Charpy and drop-weight impact testing? Charpy uses a pendulum striking a notched beam specimen (uniaxial stress state). Drop-weight testing drops a mass onto a plate specimen (multiaxial stress state), better simulating real-world impact events.
Which industries use instrumented impact testing most? Automotive (bumper and interior trim evaluation), aerospace (composite damage tolerance), pipeline (transition temperature determination), packaging (puncture resistance), and consumer products all rely on instrumented impact data.
