Guided Bend Test for Welding PQR: Standards, Procedure & Pass/Fail
Guided Bend Test: Welding Standards & PQR Guide | Infinita LabThe guided bend test is a fundamental mechanical test used to evaluate the ductility, soundness, and quality of welded joints and base materials. By forcing a specimen to conform to a specified bend radius, the test reveals surface and subsurface defects—including cracks, lack of fusion, porosity, and inclusions—that could compromise structural integrity. Guided bend testing is a cornerstone of welder qualification and welding procedure qualification programs. For companies seeking guided bend testing at a USA-based ASTM testing lab, Infinita Lab provides accredited mechanical testing through its network of over 2,000 partner labs.
How the Guided Bend Test Works

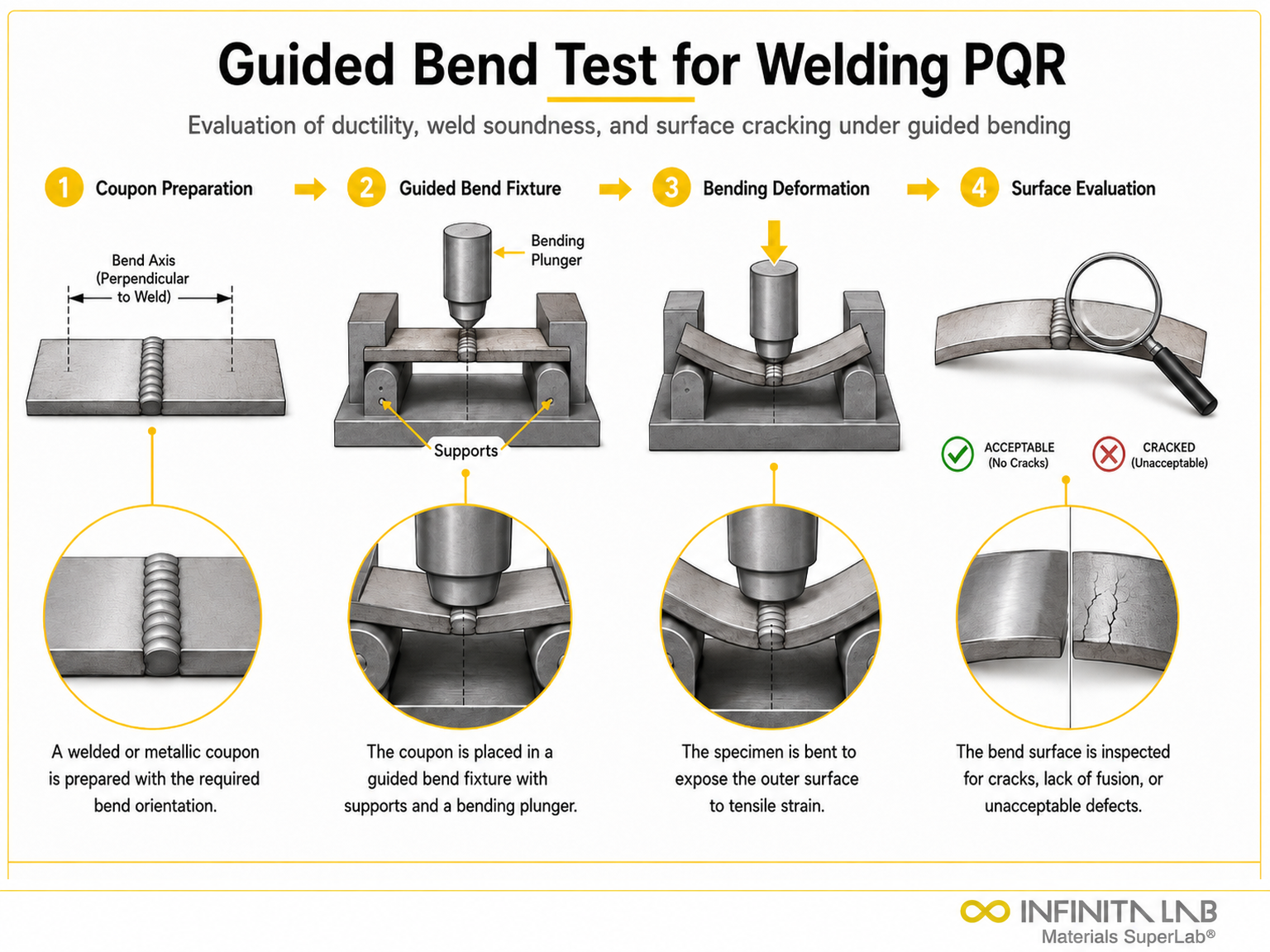

A rectangular specimen cut from a welded joint or base material is placed in a guided-bend fixture comprising a plunger (male die) and a die (female support). The plunger forces the specimen through the die, bending it to a specified radius—typically 2t to 4t (where t is specimen thickness). After bending, the convex (outer) surface is examined for cracks, tears, or open defects exceeding acceptance criteria defined by the applicable code.
Types of Guided Bend Tests
Face Bend
The weld face (top surface) is placed on the tension side of the bend. Face bends evaluate the quality of the weld surface and the first-pass deposits.
Root Bend
The weld root (bottom surface) is placed on the tension side. Root bends evaluate root pass quality, penetration, and fusion at the root of the joint, where many weld defects originate.
Side Bend
The cross-section of the weld is placed on the tension side. Side bends are required for thicker materials (typically over 9.5 mm) and evaluate the full weld cross-section simultaneously.
Common Uses and Standards
Guided bend testing per ASTM E190 and AWS D1.1 supports welder performance qualification (proving a welder can produce sound joints), welding procedure qualification (WPQ/PQR validation), pipeline weld qualification per API 1104, pressure vessel and boiler code compliance per ASME Section IX, and structural steel weld qualification for the construction industry.
Why Choose Infinita Lab for Guided Bend Testing?
Infinita Lab is a leading provider of Guided Bend Testing and streamlined material testing services, addressing the critical challenges faced by emerging businesses and established enterprises. With access to a vast network of over 2,000+ accredited partner labs across the United States, Infinita Lab ensures rapid, accurate, and cost-effective testing solutions. The company’s unique value proposition includes comprehensive project management, confidentiality assurance, and seamless communication through a Single Point of Contact (SPOC) model. By eliminating inefficiencies in traditional material testing workflows, Infinita Lab accelerates research and development (R&D) processes.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090 to learn more about our services and how we can support you. Request a Quote
Frequently Asked Questions (FAQs)
What is a guided bend test? A guided bend test forces a flat specimen through a die to a specified bend radius, evaluating the ductility and soundness of welded joints or base material by revealing surface and subsurface defects.
What defects does bend testing detect? Bend testing reveals cracks, lack of fusion, incomplete penetration, porosity, slag inclusions, and delamination that appear as open discontinuities on the convex surface after bending.
What standards govern guided bend testing? ASTM E190 (guided bend for ductility), AWS D1.1 (structural welding), ASME Section IX (boiler/pressure vessel welding), and API 1104 (pipeline welding) all specify requirements for guided bend tests.
What is the difference between face and root bend tests? Face bends place the weld face in tension (evaluating top surface quality), while root bends place the weld root in tension (evaluating root pass penetration and fusion). Both are typically required for full qualification.
What are the acceptance criteria for guided bend tests? Typically, no single crack or open defect may exceed 3.2 mm (1/8 inch) in any direction on the convex surface after bending. Corner cracks during bending are generally excluded from evaluation unless caused by internal defects.
