Bend testing evaluates the ductility and soundness of metallic materials, welds, and structural components by bending a specimen through a defined angle over a mandrel of specified radius — measuring whether the material can sustain the imposed plastic strain without cracking, fracturing, or delaminating. Unlike tensile testing, which measures ductility under uniaxial tension, bend testing imposes combined tension-compression stress states that are directly representative of forming, bending, and structural loading conditions. The metals, welds, structural steel, and pipeline industries rely on bend testing for material qualification, weld quality verification, and forming process development.
Types of Bend Tests
Free Bend Test
In the free bend test, no mandrel constrains the bend geometry — the specimen is placed between two supports and a central load is applied, allowing the bend angle and radius to develop freely as functions of material ductility. Free-bend tests are used for sheet metal forming characterisation and brittle material fracture assessment.
Guided Bend Test (ASTM E290)

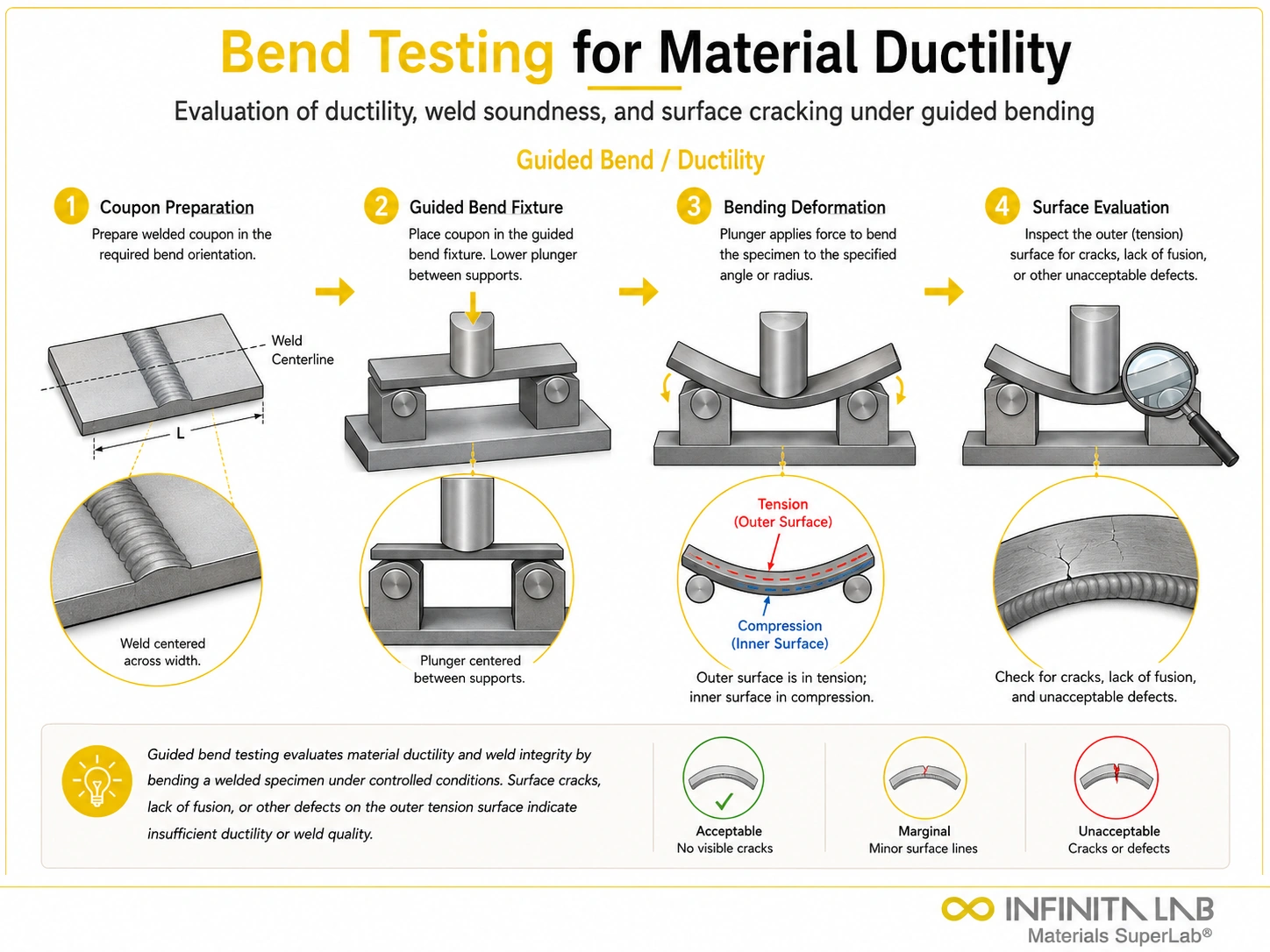

The guided bend test uses a plunger (die) with a specified radius to force the specimen into a defined U-shape around the mandrel. The plunger radius and die width are specified in terms of specimen thickness and material type. The test is the most commonly specified bend test for weld qualification per ASME Section IX and structural welding codes, as described in Blog 52.
Three-Point Bend Test (ASTM E290 / ISO 7438)
A specimen is supported on two rollers and loaded at the midpoint by a third roller. The support span and loading nose radius define the stress distribution. Three-point bending is used for brittle material fracture toughness screening, ceramic flexural strength (ASTM C1161), and material ductility qualification in forming applications.
Four-Point Bend Test
Two inner loading rollers apply force symmetrically to a specimen supported by two outer rollers — creating a uniform bending moment between the inner rollers, free of shear. Four-point bending is preferred for fracture mechanics specimens (ASTM E1820), ceramic flexural strength (ASTM C1161 Method C), and stress corrosion cracking threshold determination.
Mandrel Bend Test (ASTM E290 / D522)
The specimen is bent to a defined angle (90°, 120°, 180°) around a mandrel of specified radius in one continuous motion. Qualification is based on the absence of cracks on the outer (tension) surface after bending. Used for coating ductility (ASTM D522), pipe and tube bending qualification, and sheet metal formability assessment.
ASTM E290 — Standard Test Methods for Bend Testing of Material for Ductility
ASTM E290 is the primary governing standard for bend testing metallic materials. It defines: specimen geometry (rectangular bar or strip), bend fixture design, mandrel radius selection based on material type and thickness, test procedure, and acceptance/evaluation criteria. Results are reported as: bend angle achieved, mandrel radius used, and presence/absence of cracks on the tension surface.
Conclusion
ASTM E290 defines a robust and widely accepted framework for evaluating the ductility and structural integrity of metallic materials through bend testing. By simulating real-world forming and loading conditions, bend tests provide critical insight into a material’s ability to withstand plastic deformation without cracking or failure. Whether applied to base metals, welds, coatings, or structural components, bend testing serves as a key qualification tool in industries such as construction, pipelines, and manufacturing. The various bend test methods — including guided, free, three-point, four-point, and mandrel bending — enable engineers to assess material performance under different stress conditions, ensuring reliability, safety, and compliance with industry standards.
