Advantages of the Guided Bend Test for Welds & Ductile Materials
What Is the Guided Bend Test?

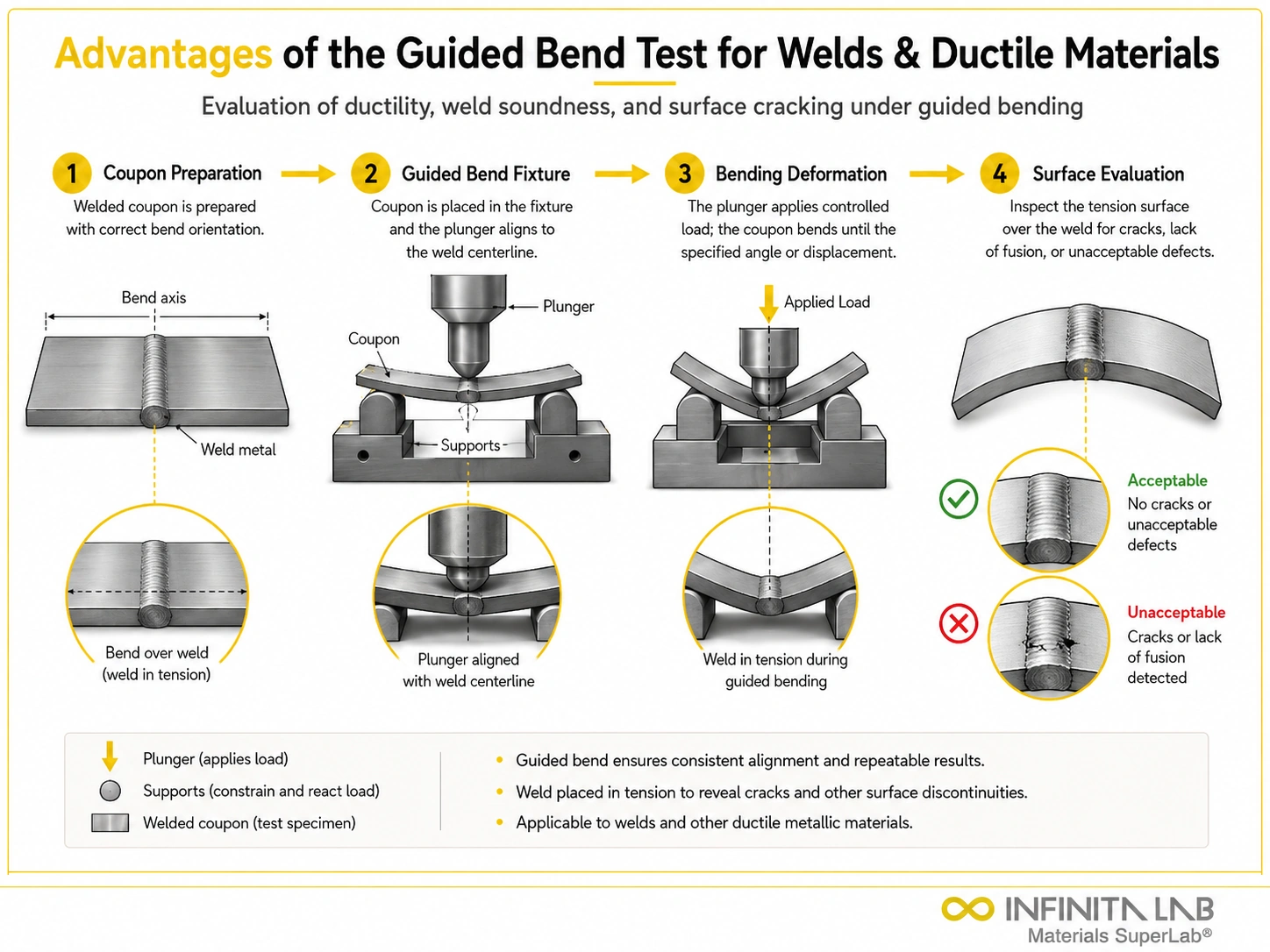

The guided bend test is a mechanical test that evaluates the ductility and soundness of welded joints by bending a machined specimen over a mandrel of defined radius until the outer fiber has been strained to a specified elongation. It is one of the most fundamental weld qualification tests, required by welding codes and standards including ASME Boiler and Pressure Vessel Code Section IX, AWS D1.1 (Structural Welding Code — Steel), AWS D1.2 (Aluminum), and API 1104 (Pipelines) across the welding, pipeline, pressure vessel, and structural steel industries.
Types of Guided Bend Test Specimens
Face Bend
The weld face (top surface) is placed in tension — on the outside of the bend. Face bends reveal surface defects, incomplete fusion at the root of fillet welds, and near-surface porosity or lack-of-fusion in the upper weld passes.
Root Bend
The weld root (bottom surface) is placed in tension. Root bends are the most demanding variant — revealing root pass defects including incomplete penetration, root concavity, and lack of fusion at the root that are the highest-consequence weld defects in pressure-containing applications.
Side Bend
A cross-sectional slice through the full weld thickness is bent — placing the entire weld cross-section in tension. Side bends are required for thicker welds (>10 mm) where face and root bend specimens may not reveal midwall defects. Side bends are particularly effective for detecting lack-of-fusion defects between weld passes and lamellar tearing in heavy plate.
Key Advantages of the Guided Bend Test
Direct Ductility Verification
The guided bend test directly measures the actual ductility of a welded joint under a large plastic strain — typically 20–30% outer fiber elongation. Unlike hardness testing or chemical composition verification, guided bend testing proves that the weld metal, heat-affected zone (HAZ), and fusion boundary can accommodate plastic deformation without cracking — the most critical property for pressure-containing and structural applications.
Detection of Planar Weld Defects
Guided bending is particularly sensitive to planar discontinuities — lack of fusion, incomplete penetration, and laminar inclusions — that may not scatter sufficient ultrasonic energy for reliable UT detection. The high bending strain opens small defects into visible cracks, providing a reliable screening method complementary to volumetric NDE.
Welding Procedure and Welder Qualification
ASME Section IX and AWS D1.1 require guided bend tests as part of both Welding Procedure Specification (WPS) qualification and Performance Qualification Testing (PQT) of individual welders. Each welder must demonstrate adequate ductility of their deposited welds before being certified to produce production welds.
Post-Test Acceptance Criteria
After bending, the convex (tension) surface is examined for cracks or open defects. ASME Section IX acceptance criteria allow defects not exceeding 3 mm (⅛ inch) in any direction on the tension surface. Corner cracks from specimen geometry are excluded. These criteria ensure that any defects present are small enough to be tolerated by the design safety margins.
Conclusion
The guided bend test is a highly effective method for assessing weld quality by evaluating ductility, soundness, and the presence of surface or subsurface defects. It provides clear, visual evidence of weld integrity, making it a reliable tool for quality assurance and compliance with industry standards. By identifying weaknesses early, it helps ensure strong, durable, and defect-free welded joints in critical applications.
Why Choose Infinita Lab for Guided Bend Testing?
Infinita Lab is a trusted USA-based testing laboratory offering guided bend testing per ASME, AWS, and API standards across an extensive network of accredited weld testing facilities, with fast turnaround and comprehensive project management.
Looking for a trusted partner to achieve your research goals? Schedule a meeting with us, send us a request, or call us at (888) 878-3090. [Request a Quote]
Frequently Asked Questions
What is the main advantage of the guided bend test in weld assessment? The guided bend test provides a simple yet effective way to evaluate weld ductility and integrity. It reveals surface and subsurface defects by bending the specimen, offering clear visual evidence of weld quality.
Why is the guided bend test important for weld quality evaluation? It is important because it helps detect cracks, lack of fusion, and other discontinuities that may not be visible otherwise. This ensures the weld meets required strength and safety standards in critical applications.
What types of defects can be identified using the guided bend test? The guided bend test can identify defects such as cracks, porosity, lack of fusion, inclusions, and incomplete penetration. These defects become visible when the welded sample is bent under controlled conditions.
How does the guided bend test support quality control? It supports quality control by verifying the mechanical performance and soundness of welds. The test ensures that welding procedures and workmanship meet specified standards and produce reliable, defect-free joints.
What are the benefits of using the guided bend test over other methods? Compared to some non-destructive tests, the guided bend test provides direct physical evidence of weld performance. It is relatively simple, cost-effective, and does not require complex equipment or advanced instrumentation.
