What Is EN 16094 Martindale Micro Scratch Guide?
EN 16094 Martindale Micro Scratch Testing evaluates the scratch resistance and surface durability of coatings, laminates, and treated surfaces using a standardized reciprocating scratch methodology. The test quantifies the resistance of a surface to micro-scratching under defined loads, providing measurable data on coating quality and wear resistance.
This method is widely adopted in the flooring, furniture, and automotive surface coatings industries to differentiate product performance, guide formulation development, and support material quality assessment under real-world surface contact conditions.
Applications and Benefits of EN 16094 Martindale Micro Scratch Guide Testing
Scope
EN 16094 scratch testing is used to assess the scratch resistance and durability of coated surfaces under controlled loading conditions. It helps determine how well a coating withstands mechanical abrasion, maintains its appearance, and adheres to the substrate when subjected to repeated scratch cycles.
The test typically evaluates:
- Micro-scratch resistance under defined normal loads to measure the coating’s ability to resist surface damage
- Surface gloss retention after scratch cycles to assess any loss in visual finish or aesthetic quality
- Coating integrity and delamination behaviour, identifying cracks, peeling, or separation from the substrate
- Comparative performance between coating systems, enabling benchmark analysis of different formulations or protective layers
Applications
- Hard floor coverings and laminate flooring
- Furniture and decorative panel surface coatings
- Automotive interior and exterior trim coatings
- Consumer electronics enclosure finishes
- Architectural glass and protective coatings
Benefits
- Standardised, reproducible scratch assessment
- Quantifies surface quality differences between coating formulations
- Identifies coating failure modes (gloss loss, delamination, cracking)
- Supports product development and quality control
- Applicable to flat, rigid, and semi-flexible substrates

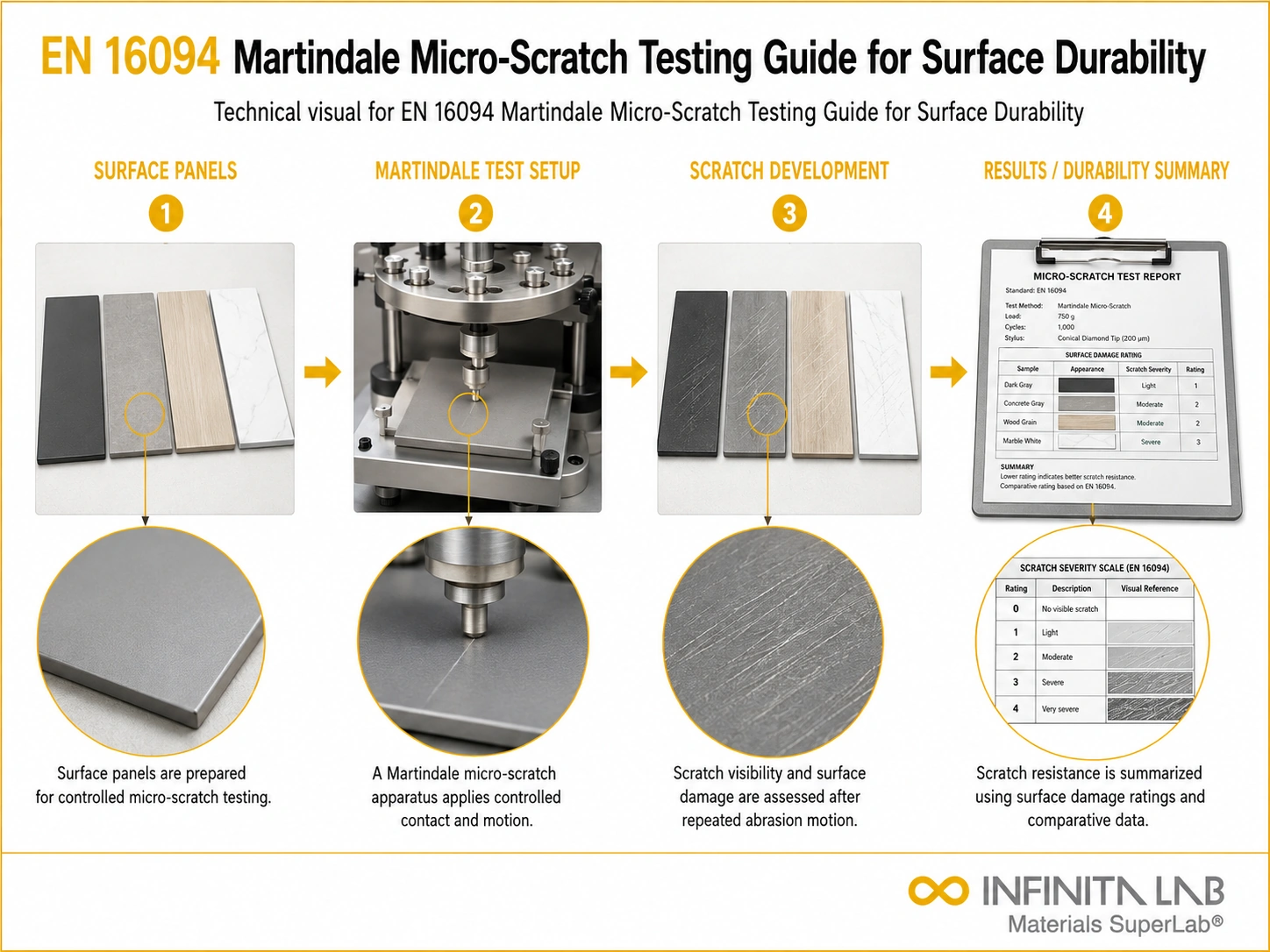

Our EN 16094 Testing Procedure
Specimen Preparation
Test specimens are conditioned at 23 °C and 50% RH for 24 hours; surface gloss is measured before testing using a glossmeter.
1Scratch Application
A defined stylus or abrasive pad reciprocates over the surface under controlled load per EN 16094 parameters for a set number of cycles.
2Post-Test Assessment
The surface is re-examined under standard lighting, with gloss measured and scratches documented.
3Classification & Reporting
Scratch resistance is rated (MS0–MS2) based on gloss retention and visual changes per EN 16094.
4EN 16094 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Applicable Materials | Coatings, laminates, treated surfaces, flooring |
| Scratch Classes | MS0 (no effect) to MS2 (clearly visible scratches) |
| Gloss Measurement | 60° geometry glossmeter |
| Conditioning | 23 °C ± 2 °C, 50% ± 5% RH |
- Martindale abrasion and scratch tester (EN 16094 configured)
- Calibrated 60° glossmeter
- Standardised stylus and abrasive media
- Optical microscope and macro photography setup
- Environmental conditioning chamber
Equipment and Instrumentation Used for EN 16094 Testing
What You Receive: Test Report, Data, and Certification
- Pre- and post-test gloss values and gloss retention %
- EN 16094 micro-scratch class assignment (MS0–MS2)
- High-resolution images of scratch patterns
- Coating failure mode classification
- Full test report
EN 16094 Martindale Micro Scratch Guide FAQs
EN 16094 uses a reciprocating Martindale motion to simulate real-use micro-scratching under low loads, while conventional scratch tests (e.g., pencil hardness) apply a single directional stroke under higher loads. EN 16094 is better suited for fine surface durability differentiation.
The standard is primarily designed for hard floor coverings and their surface treatments but is also widely applied to furniture coatings, laminates, and any flat coating system requiring scratch resistance classification.
Scratch class is assigned by comparing pre- and post-test gloss values and visually assessing scratch visibility under defined illumination. MS0 indicates no visible change; MS2 indicates clearly visible scratches under normal lighting conditions.
Yes. It is highly effective for comparative studies, allowing formulators to rank coatings by scratch resistance and optimize coating chemistry, film thickness, and surface treatment.
Specimens should be clean, free of surface contamination, and conditioned at standard atmospheric conditions (23 °C/50% RH) for a minimum of 24 hours prior to testing.
According to EN 16094, micro-scratch resistance is evaluated using a Martindale testing machine. A laminate flooring specimen is rubbed with an abrasive pad under a specified load and controlled motion. After testing, surface damage is assessed by measuring gloss changes and visually examining scratches. The results are used to classify the material’s micro-scratch resistance.
EN 16094 evaluates the micro-scratch resistance of laminate floor coverings rather than printed cards. The specimen undergoes controlled rubbing using a Martindale tester, and its surface is assessed for changes in gloss and visible scratches. These results help determine how well the laminate surface withstands repeated mechanical contact during everyday use.
Why Choose Infinita Lab for Martindale Micro Scratch Guide Testing
When your Martindale Micro Scratch Guide results have to hold up - for compliance, a customer audit, or an engineering decision - EN 16094 accuracy and an unbiased third-party report matter more than price. Infinita Lab routes your EN 16094 martindale micro scratch guide testing to ISO/IEC 17025-accredited U.S. partner labs with hands-on method experience, so you get defensible data, transparent reporting, and turnaround times built around your project deadline - not ours.
