ASTM G8: G8 Pipeline Coating Cathodic Disbonding Testing Services
ASTM G8 test procedures encompass rapid tests for comparing insulating coating techniques used on steel pipe outside to the preventing or minimizing corrosion in subterranean service when the pipe may or may not be cathodic protected. The standard is defined as the values expressed in SI units to three significant decimals.
TRUSTED BY
Get ASTM G8 compliant results — request your G8 pipeline coating cathodic disbonding testing quote
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
What Is ASTM G8 G8 Pipeline Coating Cathodic Disbonding?
ASTM G8 is a standardized test method used to evaluate the resistance of pipeline coatings to cathodic disbonding under controlled laboratory conditions. It simulates the effect of cathodic protection systems on coated metal surfaces, where electrochemical reactions may cause coating detachment.
The test is critical for assessing coating performance in buried or submerged pipelines, where long-term adhesion and corrosion protection are essential. It helps determine how well a coating can resist disbondment when exposed to electrical potentials and electrolyte environments.
Applications and Benefits of ASTM G8 G8 Pipeline Coating Cathodic Disbonding Testing
Scope
ASTM G8 defines a laboratory procedure to measure the extent of coating disbondment from a metal substrate when subjected to cathodic polarization in an electrolyte solution. It evaluates coating adhesion stability under electrochemical stress conditions.
The method supports comparison of coating systems and validation of corrosion protection performance.
- Evaluation of coating resistance to cathodic disbonding
- Measurement of disbonded area around artificial defects
- Simulation of cathodic protection conditions
- Assessment of coating adhesion under electrochemical stress
- Comparison of coating systems for pipeline applications
- Standardized corrosion-related coating performance testing
Applications
- Oil and gas pipeline coating evaluation
- Underground and submerged pipeline systems
- Protective coating qualification and selection
- Corrosion protection system validation
- Coating performance in cathodic protection environments
- Quality control in coating manufacturing
- Research and development of advanced coatings
Benefits
- Simulates real cathodic protection conditions
- Provides critical data on coating adhesion durability
- Helps prevent coating failure and corrosion risks
- Supports long-term pipeline integrity
- Enables comparison of coating technologies
- Assists in regulatory and industry compliance

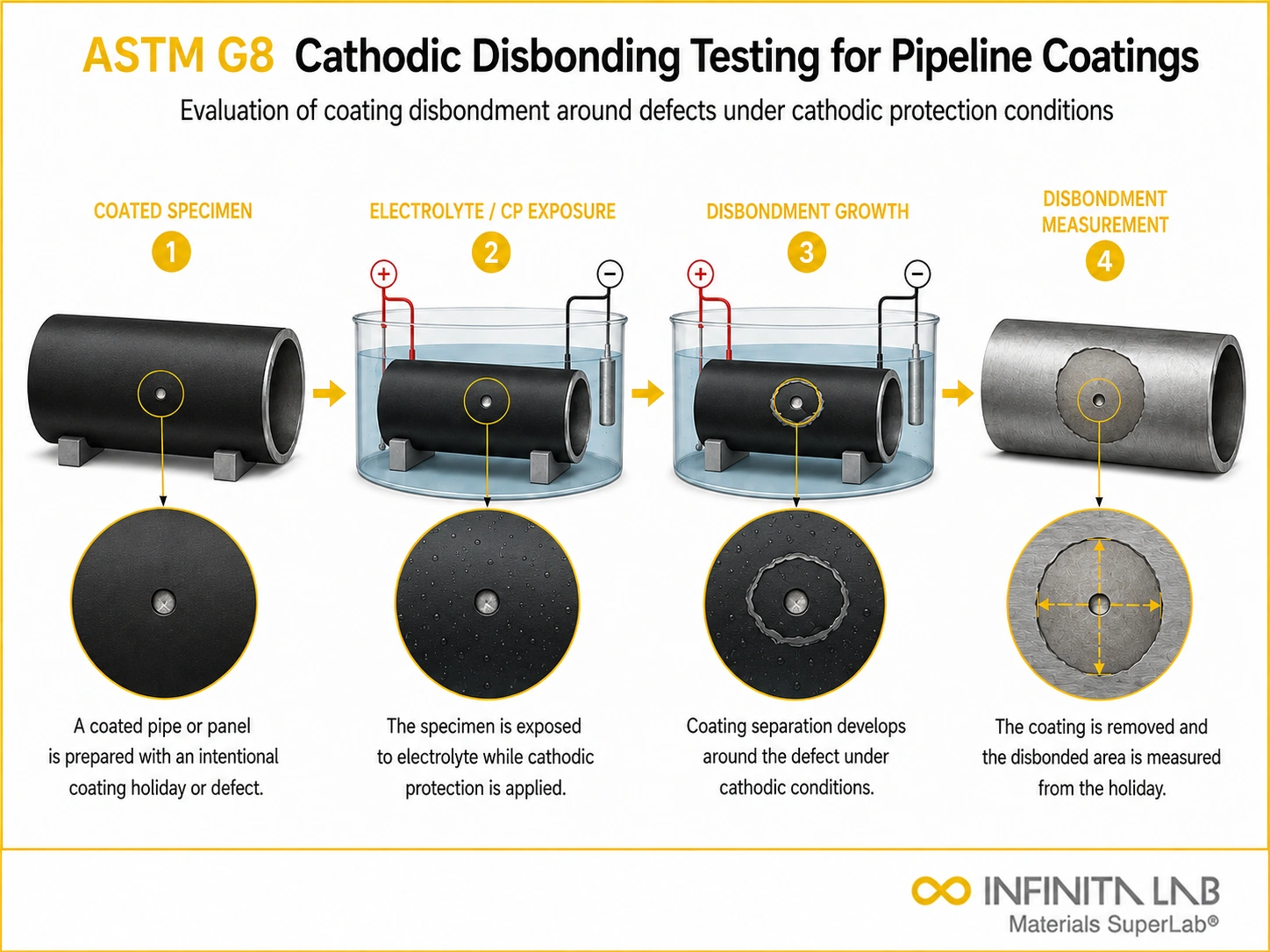

Our ASTM G8 Testing Procedure
Sample Preparation
Coated metal panels are prepared with a defined holiday (defect) to expose the substrate.
1Electrolyte Setup
The specimen is immersed in an electrolyte solution and connected to a cathodic protection system.
2Polarization Exposure
A controlled electrical potential is applied for a specified duration to simulate cathodic conditions.
3Disbondment Measurement
The extent of coating disbondment around the defect is measured and recorded.
4ASTM G8 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Substrate | Carbon steel |
| Holiday Size | ~6 mm diameter |
| Test Temperature | ~23 °C (or as specified) |
| Applied Potential | −1.5 V vs. Cu/CuSO₄ |
| Reference Electrode | Cu/CuSO₄ |
| Test Duration | ~30 days |
| Loading Type | Electrical potential in electrolyte environment |
| Units | mm (disbondment radius) |
- Cathodic disbonding test cell
- DC power supply (cathodic protection source)
- Reference electrode (e.g., saturated calomel electrode)
- Electrolyte solution container
- Specimen holders and fixtures
- pH meter and temperature control system
- Measuring tools (calipers, scale)
- Data acquisition system
Equipment and Instrumentation Used for ASTM G8 Testing
What You Receive: Test Report, Data, and Certification
- Disbondment radius or area measurement
- Coating adhesion performance evaluation
- Corrosion protection effectiveness assessment
- Comparative coating performance data
- ASTM-compliant test report
- Quality control and certification documentation
- Recommendations for coating improvement
- Pipeline integrity assessment support
ASTM G8 G8 Pipeline Coating Cathodic Disbonding FAQs
Cathodic disbonding occurs due to electrochemical reactions at the metal-coating interface under cathodic protection, generating hydroxyl ions and hydrogen. This increases alkalinity and weakens adhesion, leading to coating separation from the substrate.
The defect simulates coating damage in real pipelines, creating a site for electrochemical reactions. It allows evaluation of how disbondment propagates from a localized failure under cathodic protection conditions.
While it prevents corrosion, excessive cathodic potential can promote coating disbondment by altering interfacial chemistry, making it essential to balance protection and coating stability.
The failure occurs at the coating-metal interface due to electrochemical changes, not within the coating itself. Adhesion breakdown is driven by localized chemistry shifts, making it fundamentally different from mechanical or cohesive coating failure.
Hydroxyl ions increase pH, disrupting chemical bonds such as polar and hydrogen bonds at the interface. This alters surface energy and reduces adhesion strength, facilitating coating separation under sustained cathodic conditions.
