ASTM D3368 FEP Fluorocarbon Sheet & Film Testing Services
The ASTM D 3368 Standard Specification for FEP-Fluorocarbon Sheet and Film specifies the specifications and characteristics for sheets and films made of FEP (fluorinated ethylene propylene), assuring consistency in quality and performance. Dimensions, material composition, testing techniques, and other crucial standards for producing and assessing FEP-based products are covered.
TRUSTED BY
Precision-driven testing for dimensional accuracy and compliance
- Overview
- Scope, Applications, and Benefits
- Test Process
- Specifications
- Instrumentation
- Results and Deliverables
Overview
ASTM D3368 covers the specification and evaluation of fluorinated ethylene propylene (FEP) fluorocarbon sheets and films used in high-performance applications. The standard defines key physical, mechanical, and thermal properties to ensure reliable performance.
This method is widely used in electrical insulation, chemical processing, and industrial applications. It helps verify that FEP sheets and films maintain stability, flexibility, and chemical resistance under demanding conditions.
Scope, Applications, and Benefits
Scope
ASTM D3368 evaluates FEP sheets and films by defining dimensional, mechanical, and thermal performance requirements. The test ensures material reliability in extreme environments.
The test evaluates:
- Thickness and dimensional consistency
- Mechanical strength and flexibility
- Thermal stability and operating range
- Chemical resistance properties
- Suitability for insulation and protective applications
Applications
- Electrical insulation films
- Chemical-resistant linings
- Industrial protective films
- Wire and cable insulation layers
- Aerospace and automotive components
- High-performance fluoropolymer applications
Benefits
- Ensures performance in harsh environments
- Supports material selection and specification
- Improves durability and chemical resistance
- Maintains consistent dimensional quality
- Enables comparison of FEP material grades

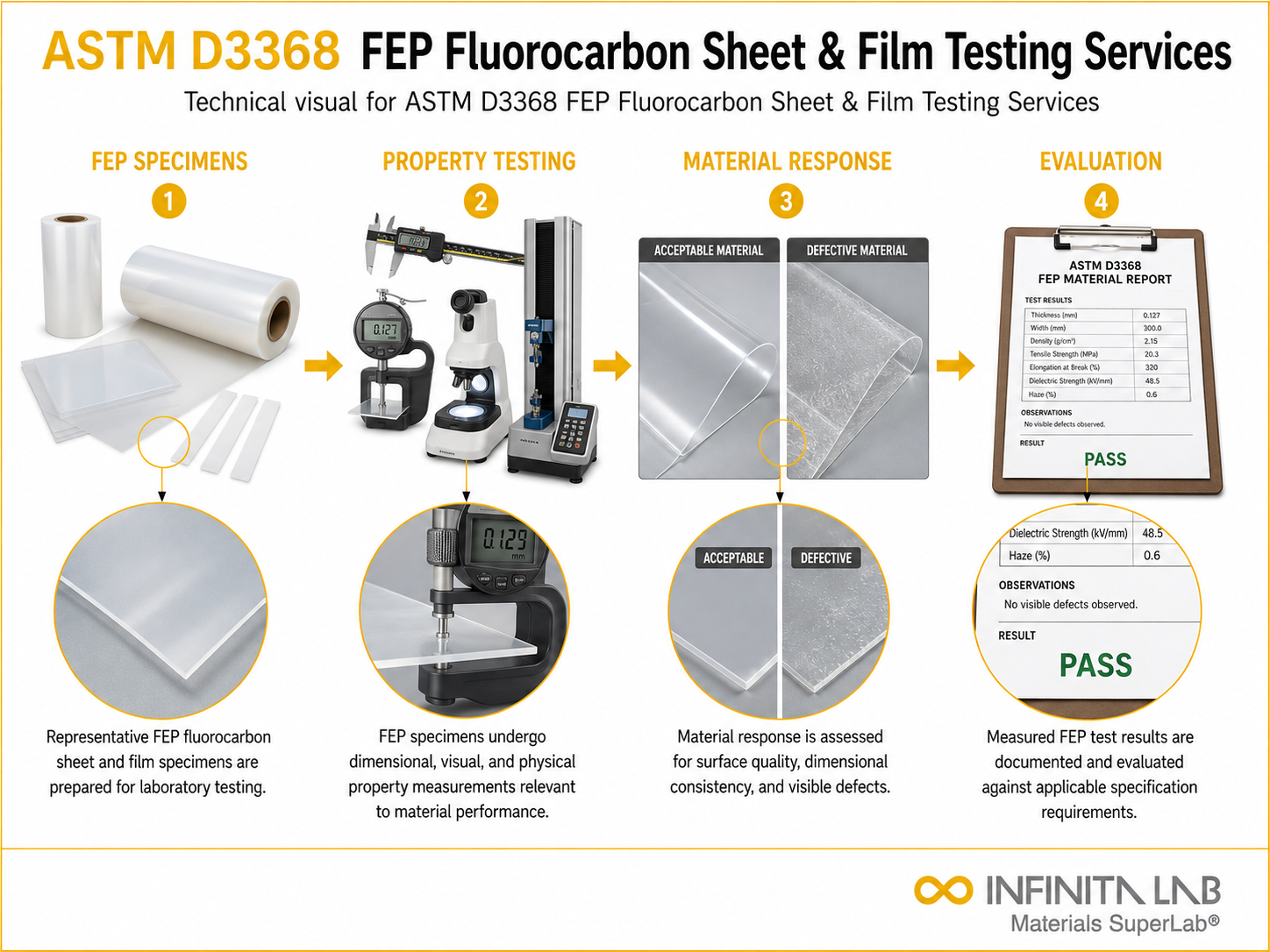

Test Process
Test Process
FEP sheet or film samples are cut to required dimensions.
1Dimensional Measurement
Thickness and uniformity are measured.
2Property Evaluation
Mechanical and thermal properties are tested.
3Data Recording & Evaluation
Results are analyzed to verify compliance with ASTM requirements.
4Technical Specifications
| Parameter | Details |
|---|---|
| Applicable Materials | FEP fluorocarbon sheets and films |
| Thickness Range | FEP fluorocarbon sheets and films |
| Density Range | Density Range |
| Operating Temperature | ~-200°C to 200°C |
| Tensile Strength | Tensile Strength |
| Measured Outputs | Dimensional, mechanical, thermal properties |
Instrumentation Used for Testing
- Thickness gauge or micrometer
- Tensile testing machine
- Thermal analysis equipment (DSC/TGA)
- Environmental conditioning chamber
- Sample cutting tools
- Data acquisition system
Results and Deliverables
- Dimensional accuracy results
- Mechanical and thermal property data
- Chemical resistance evaluation
- Material performance assessment
- Test condition summary
- ASTM compliance report
Frequently Asked Questions
ASTM D3368 provides specification for FEP fluorocarbon sheets and films. It defines requirements for physical, mechanical, and electrical properties, ensuring reliable performance in chemical-resistant, insulating, and high-temperature applications.
Key parameters include thickness, tensile strength, elongation, dielectric properties, and thermal stability. Dimensional tolerances and material consistency are also evaluated to ensure proper performance of FEP sheets and films.
The test verifies compliance with dimensional and physical property requirements. Results indicate suitability of FEP materials for insulation, protective coatings, and chemical-resistant applications requiring flexibility and durability.
ASTM D3368 applies to fluorinated ethylene propylene sheets and films used in electrical insulation, chemical processing, and industrial applications requiring transparency, flexibility, and resistance to harsh environments.
ASTM D3368 provides specification guidelines but may not fully represent performance under all service conditions. Additional testing may be required for long-term aging, mechanical stress, or extreme environmental exposure scenarios.
