What Is ASTM C1525 Advanced Ceramic Thermal Shock Resistance?
ASTM C1525-18 defines a standardized method to evaluate the thermal shock resistance of advanced ceramics using rapid water quenching. It measures the ability of materials to withstand sudden temperature changes without cracking or losing mechanical integrity, which is critical for high-temperature applications.
This test simulates real-world conditions where ceramics experience rapid cooling, such as in engines or thermal systems. By assessing retained strength after quenching, ASTM C1525-18 helps determine material durability, reliability, and suitability for environments involving severe thermal gradients.
Applications and Benefits of ASTM C1525 Advanced Ceramic Thermal Shock Resistance Testing
Scope
ASTM C1525-18 specifies procedures for evaluating thermal shock resistance by heating ceramic specimens and rapidly cooling them in water to assess strength degradation.
- Applicable to monolithic advanced ceramics
- Evaluates resistance to rapid temperature changes
- Uses water quenching as a controlled cooling method
- Measures retained mechanical strength after shock
- Defines specimen preparation and heating conditions
- Supports material comparison and performance evaluation
Applications
- Aerospace and turbine components
- Thermal barrier and insulation systems
- Engine and exhaust components
- High-temperature industrial ceramics
- Energy and power generation systems
- Research and development of ceramic materials
Benefits
- Determines resistance to thermal shock damage
- Helps prevent sudden material failure
- Supports material selection for extreme conditions
- Improves product reliability and durability
- Provides standardized and repeatable testing
- Assists in quality control and performance validation

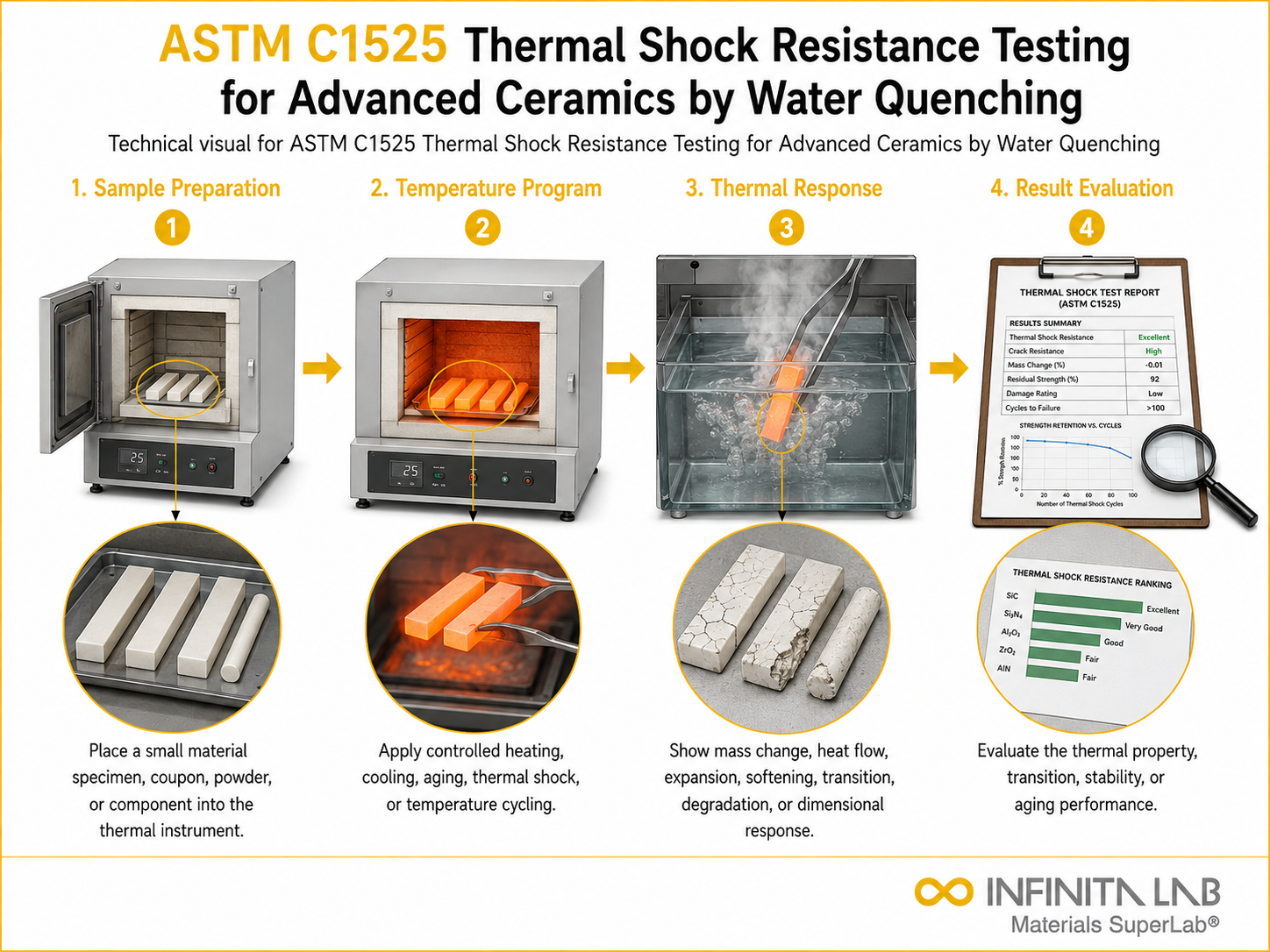

Our ASTM C1525 Testing Procedure
Specimen Preparation
Prepare ceramic specimens with specified dimensions and surface finish.
1Heating Stage
Heat specimens to a predetermined high temperature under controlled conditions.
2Water Quenching
Rapidly immerse heated specimens into water to induce thermal shock.
3Strength Evaluation
Measure retained strength or inspect for damage after quenching.
4ASTM C1525 Test Parameters and Requirements
| Parameter | Details |
|---|---|
| Material Type | Monolithic advanced ceramics |
| Temperature Range | Elevated heating temperature as specified |
| Cooling Medium | Water for rapid quenching |
| Specimen Geometry | Standardized shapes and dimensions |
| Measurement Parameter | Retained strength after quenching |
| Heating Control | Uniform and controlled temperature exposure |
| Failure Evaluation | Crack formation or strength reduction |
| Output Result | Thermal shock resistance performance |
- High-temperature furnace
- Water quenching tank
- Universal testing machine (UTM)
- Temperature measurement devices (thermocouples)
- Specimen handling tools
- Data acquisition system
Equipment and Instrumentation Used for ASTM C1525 Testing
What You Receive: Test Report, Data, and Certification
- Retained strength values after quenching
- Thermal shock resistance assessment
- Crack and damage analysis
- Temperature vs performance data
- Comparative material evaluation
- Detailed test report with observations
ASTM C1525 Advanced Ceramic Thermal Shock Resistance FAQs
Thermal shock resistance is the ability of a material to resist damage when exposed to rapid temperature changes. It is a critical property for ceramics used in high-temperature and fluctuating thermal environments.
Fused silica (synthetic quartz or silicon oxide, SiO2), cordierite, and silicon nitrides (Si3N4) have very low thermal expansion coefficients, making them relatively resistant to thermal shock
Aluminum Nitride (AlN) provides the highest thermal conductivity, but the level depends on the grade. Precision Ceramics PCAN 3000 is the highest with 230 W/M/K. The industry standard tends to be 170-180 W/M/K, with lesser grades down to 150 W/M/K.
Thermal shock exposes devices to rapid temperature changes that are more significant than 15°C/minute. Temperature cycle testing uses a transition rate of less than 15°C/minute and is usually between 1 to 10°C/minute, from our experience.
To maintain the mechanical properties associated with a crystalline structure or phase distribution that slow cooling would lose, one usually quenches a metal object by rapidly cooling it, such as by immersing it in oil or water, from the high temperature at which it was shaped.
Thermal shock testing evaluates a material's ability to withstand sudden temperature changes without cracking or losing mechanical strength. According to ASTM C1525, advanced ceramic specimens are heated in a furnace to specified temperatures and rapidly immersed in a room-temperature water bath. This sudden cooling creates thermal stresses within the specimens. After quenching, the specimens undergo flexural strength testing, and their retained strength is compared with that of unexposed specimens. The results help determine the material's thermal shock resistance and critical temperature difference.
Liquid-to-liquid thermal shock testing evaluates how a material responds to rapid temperature changes when transferred between liquids at different temperatures. A specimen is first immersed in a heated liquid bath and then rapidly transferred into a colder liquid bath. The sudden temperature difference creates thermal stresses that may cause cracking, deformation, or strength loss. The specimen is subsequently inspected or tested to evaluate its resistance to thermal shock. This approach can be used for comparative material evaluation, but ASTM C1525 specifically prescribes water quenching of advanced ceramic specimens rather than a general liquid-to-liquid cycling procedure.
