Screw Failure Analysis: Common Failure Modes & Investigation Methods
Why Screws Fail: Primary Failure Modes
Screw failures can be grouped into several primary categories, each with characteristic physical evidence that guides the analytical investigation:
Fatigue Fracture
Fatigue is the most common cause of screw fracture in service. Repeated cyclic loading — from vibration, thermal cycling, or fluctuating mechanical loads — initiates a crack at a stress concentration point (thread root, head-shank fillet, or surface defect) that propagates progressively until the remaining cross-section fractures suddenly. SEM fractography reveals fatigue striations and the crack origin location.
Overload Fracture
Overload fractures occur when the applied load exceeds the screw’s tensile or shear strength — during improper installation (over-torquing), joint overload, or unexpected dynamic loading. Ductile overload fractures show a cone-and-cup morphology with dimpled rupture; brittle overload fractures show cleavage facets or intergranular fracture.
Hydrogen Embrittlement
High-strength steel screws are susceptible to hydrogen embrittlement — a delayed fracture phenomenon in which absorbed atomic hydrogen reduces the material’s ductility and fracture toughness. HE fractures often show intergranular morphology and typically occur at thread roots or the head-shank junction. Hydrogen can be introduced during electroplating, acid cleaning, or from the service environment.
Stress Corrosion Cracking (SCC)
Screws in corrosive environments — marine, chemical processing, high-temperature — may fail by SCC if a susceptible material-environment combination is present. SCC fractures exhibit mixed intergranular/transgranular morphologies, with corrosion products on the crack surface. EDS identifies the corrosive species.
Thread Stripping
Thread stripping occurs when the engaged thread shear strength is exceeded — typically due to improper hole preparation, use of the wrong screw material for the mating thread material, or gross over-torquing. It manifests as smearing or shearing of the thread flanks rather than as a fracture through the screw body.
Corrosion Degradation
Screws in humid, marine, or chemically aggressive environments corrode over time, reducing cross-sectional area and fatigue life. Galvanic corrosion between dissimilar metals at fastener interfaces accelerates degradation. SEM/EDS characterizes the morphology and chemistry of corrosion products.

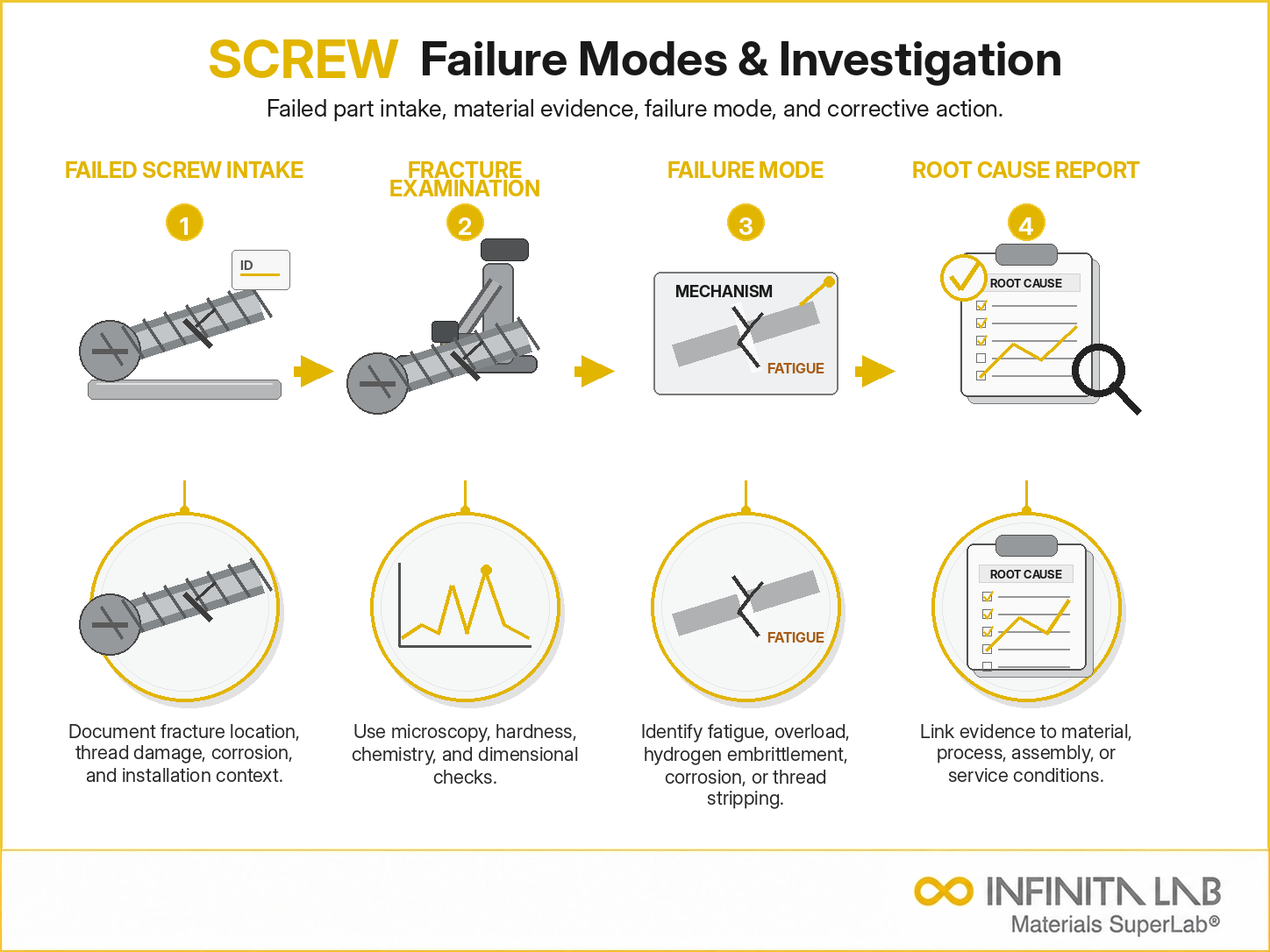

Screw Failure Analysis Methodology
A thorough screw failure analysis program follows a disciplined sequence:
- Visual Examination Macro examination of the failed screw and mating threads documents fracture location, deformation patterns, corrosion, and surface finish. The pattern of damage provides immediate clues about the failure mode and loading direction.
- Dimensional Inspection Measurement of thread pitch, major and minor diameters, head dimensions, and shank geometry against drawing specifications identifies manufacturing dimensional non-conformances that may have contributed to failure.
- Chemical Composition Analysis OES, XRF, or ICP analysis verifies that the screw material meets the specified alloy composition. Incorrect alloy specification or material substitution is a common contributor to premature fastener failure.
- Hardness Testing Rockwell or Vickers hardness measurements verify that the screw has been correctly heat-treated to the specified strength grade (e.g., SAE Grade 5, Grade 8, ISO 8.8, ISO 10.9). Insufficient hardness indicates under-tempering; excessive hardness suggests over-quenching and susceptibility to hydrogen embrittlement.
- SEM Fractography SEM examination of fracture surfaces identifies the failure mode (fatigue, overload, SCC, HE) and locates the crack initiation site. EDS analysis identifies corrosion products, contaminants, or embrittling species at the origin of the failure.
- Metallographic Cross-Section Cross-sectioning through the fracture origin reveals microstructural features — grain size, carbide distribution, decarburization, plating layer quality, and hydrogen damage — that contribute to the failure mechanism.
Industries Where Screw Failure Analysis Is Critical
Automotive: Fastener failures in engine assemblies, suspension systems, and structural joints have direct safety implications. FMEA programs and warranty investigation both require rigorous failure analysis.
Aerospace: Safety-critical fasteners in airframes, engine mounts, and landing gear systems are subject to rigorous qualification and failure investigation programs under FAA and EASA oversight.
Electronics: Screws in precision electronics housings and board-mounting hardware must maintain clamping force through repeated thermal cycles and vibration — failure analysis identifies material, process, or design deficiencies.
Industrial Equipment: Fasteners in heavy machinery, pressure vessels, and rotating equipment subject to high loads, vibration, and corrosive environments require systematic failure investigation to prevent recurrence
Conclusion
Screw failure analysis is essential for identifying the root causes of fastener failures — whether due to fatigue, overload, corrosion, hydrogen embrittlement, or design and manufacturing defects. By combining visual inspection, mechanical testing, chemical analysis, and advanced techniques like SEM fractography, engineers can accurately diagnose failure mechanisms, prevent recurrence, and improve the reliability and safety of critical assemblies across industries.
